I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l

Electric Griddle

GP8600E
GP8900E
GP8120E
Date Purchased
Serial Number
Dealer
Service Provider
GPL8600E
GPL8900E
GPL8120E
For use in GB & IE
229350-13

Advertisement

Table of Contents
loading

Related Manuals for Waldorf GP8600E

Summary of Contents for Waldorf GP8600E

  • Page 1: Electric Griddle

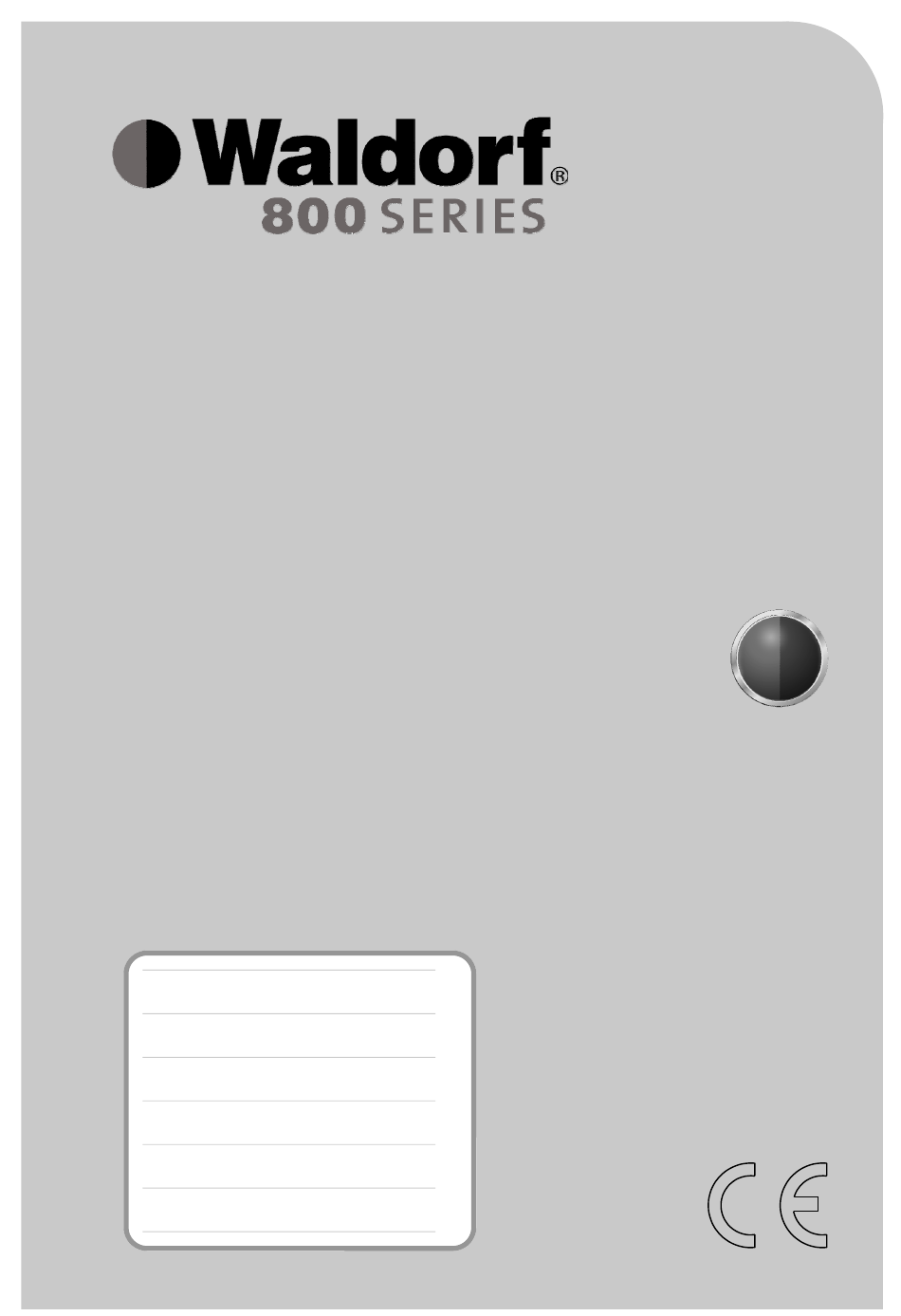

    I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Electric Griddle GP8600E GPL8600E GPL8900E...
  • Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281...

  • Page 3: Table Of Contents

    Contents Waldorf Electric Griddle GP(L)8600E Electric Griddle, 600mm. GP(L)8900E Electric Griddle, 900mm. GP(L)8120E Electric Griddle, 1200mm. Introduction ..................... 2 Specifications ................... 3 Model Numbers Covered in this Specification Electrical Supply Requirements Electrical Connection Dimensions ....................4 Installation ....................8 Installation Requirements...

  • Page 4: Introduction

    Introduction We are confident that you will be delighted with your WALDORF ELECTRIC GRIDDLE, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new WALDORF Appliance, there are two important things you can do.

  • Page 5: Specifications

    QUALIFIED PERSON IN ORDER TO AVOID A HAZARD When connecting a Waldorf electric appliance to the mains supply, ensure that the following is carried out:-  An isolating switch is fitted within 2m of the appliance, but not on the appliance and in such a position that the user does not have to reach across the cooking surface.

  • Page 6: Dimensions

    Dimensions Dimensions for Bench Models GP(L)8600E - B GP(L)8900E - B GP(L)8120E - B = Rating Plate Location for this option.
  • Page 7 Dimensions Dimensions for Cabinet Base Models GP(L)8600E - CB = Rating Plate Location for this option. GP(L)8900E - CB GP(L)8120E - CB...
  • Page 8 Dimensions Dimensions for Leg Stand Models = Rating Plate Location for this option. GP(L)8600E - LS GP(L)8900E - LS GP(L)8120E - LS...
  • Page 9 Dimensions Dimensions for Refrigeration Base Models GP(L)8900E - RB GP(L)8120E - RB = Rating Plate Location for this option.

  • Page 10: Installation

    Waldorf Electric Griddles are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering electrical and fire safety.

  • Page 11: Assembly

    Connect the mains supply to L1, L2 and L3 fuse carrier connections for 3 phase and L1 for single phase (GP8600E). Connect neutral and earth conductors to neutral stud and earth stud respectively.

  • Page 12: Commissioning

    Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with the operating instructions specified in the ‘Operation’ section of this manual.  Check the current draw and loading for the equipment. Refer specification section for correct electrical requirements.

  • Page 13: Operation

    (e.g. paint sealed) manufacturer should not be adjusted by the user / operator. Description of Controls Electric Griddle Controls (Model GP8600E-B shown) Power Indicator Lamps (Green). Heating Indicator Lamps (Amber). Control Knob With temperature Gradient of 50°C to 320°C.

  • Page 14: Cleaning And Maintenance

    Cleaning and Maintenance General Caution Always turn ‘Off’ the electrical supply before cleaning the range. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the griddle regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface of the griddle plate will hinder the transfer of heat from the cooking surface to the food.

  • Page 15: Daily Cleaning

    Cleaning and Maintenance Daily Cleaning The grease drawer should be checked and emptied frequently to prevent overflow and spillage. Remove the grease drawer while still warm so that the grease is in a liquid state. Empty any grease from the drawer and wash thoroughly in the same manner as any cooking utensil. Clean the Control Panel with a damp cloth lightly moistened with a solution of mild detergent and water.

  • Page 16: Periodic Maintenance

    Cleaning and Maintenance a. Remove and clean the grease collection drawer frequently to prevent over spills. b. Clean the griddle surface thoroughly with the supplied scraper tool. c. Allow the griddle plate to cool, then clean the griddle plate with a scrubbing brush, a mild non- abrasive detergent and water.

  • Page 17: Fault Finding

    Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.

  • Page 18: Circuit Schematics

    Wiring Schematic GP8600E (1 P+N+E Connection) REAR SUPPLY ENTRY EARTH STUD M6 LABEL 019207 EARTH STUD M6 GRIDDLE PLATE NEON AMBER 227963 THERMOSTAT 229146 OVERTEMP THERMOSTAT 229353 NEON GREEN 227962 SWITCH EARTH STUD 229145 3/16" CONTROL PANEL...
  • Page 19 Wiring Schematic GP8600E (3 P+N+E Connection) REAR SUPPLY ENTRY EARTH STUD M6 LABEL 229043 LABEL 19234 EARTH STUD M6 GRIDDLE PLATE NEON AMBER 227963 THERMOSTAT 229146 OVERTEMP THERMOSTAT 229353 NEON GREEN 227962 SWITCH EARTH STUD 229145 3/16" CONTROL PANEL...
  • Page 20 Wiring Schematic GP8900E (3 P+N+E Connection)
  • Page 21 Wiring Schematic GP8120E (3 P+N+E Connection)

  • Page 22: Replacement Parts List

    Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual).
