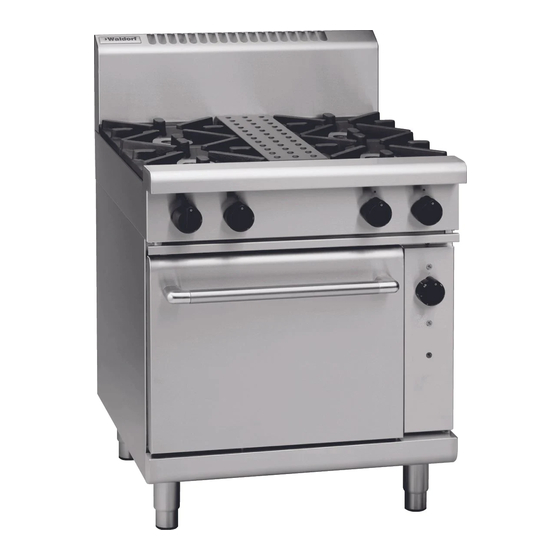

Gas range convection oven

Advertisement

Quick Links

I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
Gas Range
Convection Oven
RN8510GC
RNL8510GC
RN8610GC
RNL8610GC
RN8810GC
RNL8810GC
Date Purchased
Serial Number
Dealer
Service Provider
RNB8510GC
RNLB8510GC
RNB8610GC
RNLB8610GC
RNB8810GC
RNLB8810GC
For use in GB, IE & DK
228680-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Waldorf 800 Series

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Convection Oven RN8510GC RNL8510GC RNB8510GC RNLB8510GC RN8610GC RNL8610GC RNB8610GC RNLB8610GC RN8810GC...
  • Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315...
  • Page 3: Table Of Contents

    Contents Waldorf Gas Convection Oven Range RN(L)(B)8510GC Gas Range Convection Oven - 750mm wide. RN(L)(B)8610GC Gas Range Convection Oven - 900mm wide. RN(L)(B)8810GC Gas Range Convection Oven - 1200mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification...
  • Page 4: Introduction

    Introduction We are confident that you will be delighted with your WALDORF Gas Range Convection Oven, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do.
  • Page 5: Specification

    Specifications Model Numbers Covered in this Specification RN[1]8510GC [2] Gas Range Convection Oven + 4 Open Burners. RN[1]8513GC [2] Gas Range Convection Oven + 2 Open Burners + 300mm Griddle. RN[1]8610GC [2] Gas Range Convection Oven + 6 Open Burners. RN[1]8613GC [2] Gas Range Convection Oven + 4 Open Burners + 300mm Griddle.
  • Page 6: Gas Supply Requirements

    Specifications Gas Supply Requirements - Australia: Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner - each 300mm Griddle Section 21 MJ/hr 21 MJ/hr - Oven 30 MJ/hr 30 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 0.95 kPa...
  • Page 7: Electrical Supply Requirements

    Specifications - All Other Markets: Natural Gas Town Gas (**) Input Rate (N.H.G.C.) - each Open Burner 28MJ/hr 28MJ/hr - each 300mm Griddle Section 21MJ/hr 21MJ/hr - Oven 30 MJ/hr 30 MJ/hr Supply Pressure 1.13 - 3.40kPa 0.75 - 1.50kPa Burner Operating Pressure (*) 0.95kPa 0.63 Pa...
  • Page 8: Dimensions

    Dimensions RN(L)8510GC Cooktop Options RN(L)8510GC RN(L)8513GC...
  • Page 9 Dimensions RN(L)8610GC Cooktop Options RN(L)8610GC RN(L)8613GC RN(L)8619GC RN(L)8616GC...
  • Page 10 Dimensions RN(L)8810GC Cooktop Options RN(L)8810GC RN(L)8813GC RN(L)8816GC RN(L)8819GC...
  • Page 11: Installation

     This appliance shall be installed with sufficient ventilation to prevent occurrence of unacceptable concentrations of health harmful substances in room, appliance is installed Waldorf Gas Range Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas, electrical and fire safety.
  • Page 12: Clearances

    Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250mm (*) Rear 100mm * Side clearances can be 50mm when the adjacent surface is at least 100mm below cooking surface. Assembly Caution ...
  • Page 13: Electrical Connection

    Installation Regulator connections are " BSP female. Connection to the appliance is " BSP male. (Refer to ‘Specifications’ section for gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that appliance is level and at correct height.
  • Page 14: Operation

    / operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product.
  • Page 15: Open Burners

    Operation Open Burners ('F' - Flame Failure Option) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not expelled.
  • Page 16: Oven Pilot Ignition

    Operation Griddle Lighting the Griddle a. Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position. b. Hold gas control knob depressed, press piezo ignition button to ignite pilot burner. Repeat Items 1 to 2 until pilot is lit. c. Release gas control knob approximately 10-20 seconds after lighting pilot. d.
  • Page 17: Oven - Main Burner / Thermostat

    Operation Oven - Main Burner / Thermostat Ensure oven door is closed. Turn ‘ON’ electrical power at mains supply, (green) power indicator light will illuminate on oven control panel. With pilot burner alight, depress and rotate oven gas control knob to 'Main Flame' position. (This puts gas valve in 'Stand-By' position and control of main burner is now carried out through oven thermostat control).
  • Page 18: Cleaning And Maintenance

    Cleaning and Maintenance Before Commencing Cleaning Caution Always turn off the gas / electrical supply before cleaning the appliance. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. NOTE: ...
  • Page 19: Open Burner Cleaning

    Cleaning and Maintenance Open Burner Cleaning Griddle Plate Cleaning 1. Remove pot stands, burner caps, burner bowls It is recommended that a flat blade scraper is used to clean the griddle surface, these are not supplied and pot stand supports from top of cooktop. Wash with hot soapy water, using a soft with griddle but may be purchased separately.
  • Page 20: Oven Interior Cleaning

    Cleaning and Maintenance Oven Interior Cleaning 1. Do not use wire brushes, steel wool or other abrasive materials to clean oven interior. 2. Clean oven regularly with a good quality domestic oven cleaner. 3. Weekly - Remove and clean any built up of grease etc.
  • Page 21: Fault Finding

    Fault Finding This section provides an easy reference guide to more common problems that may occur during operation of your appliance. This fault finding guide is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
  • Page 22: Wiring Schematic

    Wiring Schematic RN8510GC / RN8610GC / RN8810GC...
  • Page 23: Gas Conversion And Specifications

    Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE:  These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ...
  • Page 24 Gas Conversion and Specifications Piezo Igniter Griddle Pilot Supply Tube Carry out the following:-  Remove griddle plate section and heat shield.  Remove main burner.  Disconnect piezo igniter from mounting Pilot Burner bracket. (For access purposes).  Disconnect pilot supply tube from pilot Main Burner Injector burner to access pilot injector.
  • Page 25 Gas Conversion and Specifications Remove pilot and main injectors and replace with correct size injectors as shown in ‘Gas Specifications Tables’ at end of this section. Refit the following:-  Re-connect pilot supply tube to pilot burner.  Re-connect piezo igniter and thermocouple to mounting bracket. ...
  • Page 26: Gas Specifications

    Gas Conversion and Specifications Gas Specifications - Australia: Natural Gas LP Gas (Propane) Ø 2.45mm Ø 1.50mm Main Burner Injectors Open Burner 0.30 0.20 Pilot Burner ('PF' Option Only) Ø 2.10mm Ø 1.30mm Main Burner 0.35 0.23 Griddle Pilot Burner Fully Open Fully Open Burner Aeration Setting...
  • Page 27 Gas Conversion and Specifications - UK Only: Category: (20, 37). 2H3P Flue Type: Natural Gas (G20) Propane (G31) Ø 2.30mm Ø 1.40mm Main Burner Injectors Open Burner 0.30 0.20 Pilot Burner ('PF' Option Only) Ø 2.10mm Ø 1.30mm Main Burner Griddle 0.35 0.23...
  • Page 28 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas (**) Main Burner Ø 2.45mm Ø 4.50mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.60 Main Burner Ø 2.10mm Ø 3.40mm Griddle Pilot Burner 0.35 0.60 Burner Aeration Setting Fully open Fully open Main Burner...
  • Page 29: Replacement Parts List

    Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual).
  • Page 30 Replacement Parts List Oven 232233 Knob Thermostat (80-300°C). 227933 Oven Burner. 018691K Oven Pilot Burner Kit. 020253 Oven Thermocouple (1200mm). 018743 Thermocouple Spacer. 032260 Burner Injector (Nat Gas) Ø 2.60mm. 032160 Burner Injector (LPG) Ø 1.60mm. 032145 Burner Injector (Butane) Ø...
  • Page 31 Replacement Parts List Gas Regulators Gas Regulators Gas Type Description Part No. Nat. Gas 228531 ¾” BSP F/F Convertible. Butane Town Gas 230185 ¾” BSP F/F Adjustable. Gas Conversion Kits Gas Type to Convert to Models Nat. Gas Butane Town Gas Nat.
