Adjusting the lens

Zoom

Turn the smooth ring on the lens, closest to the case, to adjust the zoom so that the image fills the screen.

Focus

Turn the knurled ring at the outer end of the lens, to adjust the focus until the image is sharp.

Shift

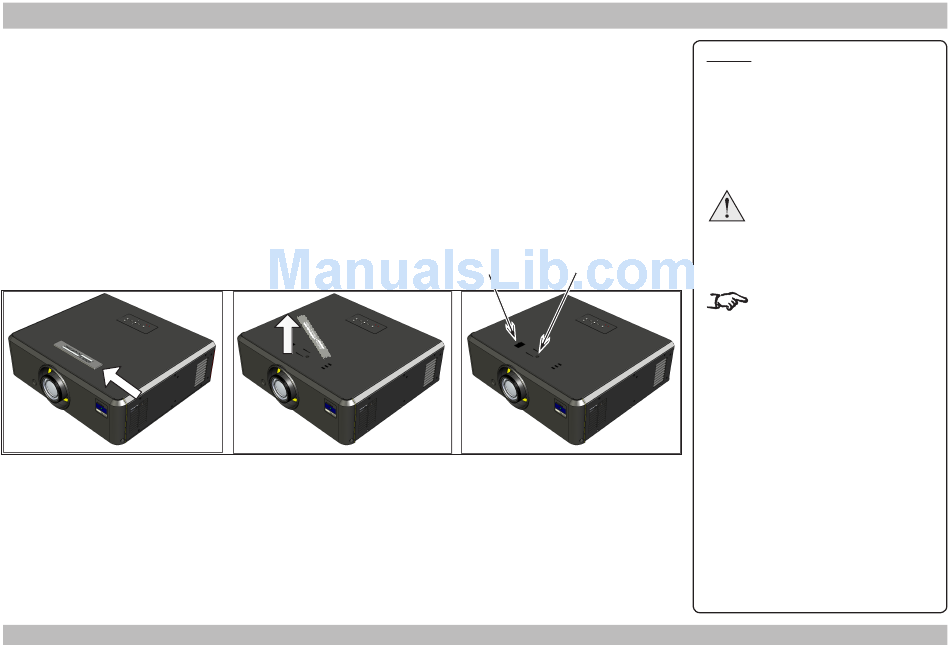

1. To reveal the adjustment access holes, slide the Digital Projection badge in the direction shown below, then gently lift it off by hand.
2. Use the 5mm Allen wrench to adjust the horizontal and vertical position of the image.
Revision C, July 2014
OPERATING THE PROJECTOR
Horizontal shift Vertical shift
Installation and Quick-Start Guide
Notes
Do NOT prise off the badge
using a tool.
Lens shift controls are not available
on projectors fitted with the fixed
0.73:1 lens.
Inst-08
