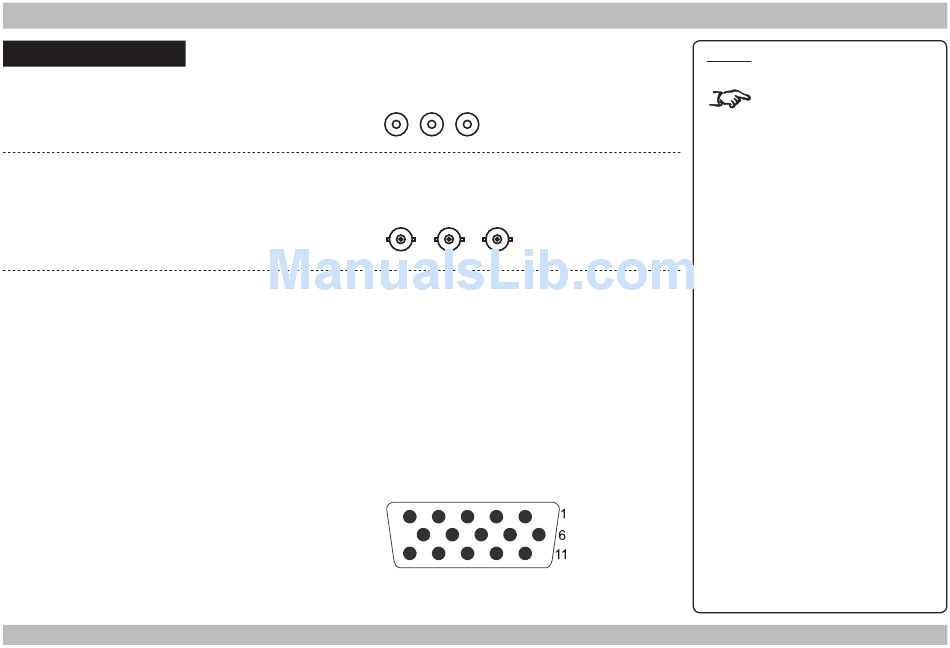

Wiring details

Signal inputs

Component 1

3 x RCA Phono connector

Component 2

3 x 75 ohm BNC
RGsB YCbCr
R Cr
G + Sync G
B Cb

RGB input

15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
Revision C, July 2014
WIRING DETAILS
Component 1
YPbPr
Pr
Y
Pb
Component 2
Pin view of female connector
Connection Guide
Notes
For full details of all input settings,
see the Main menu section in the
Operating Guide.
Con-08
