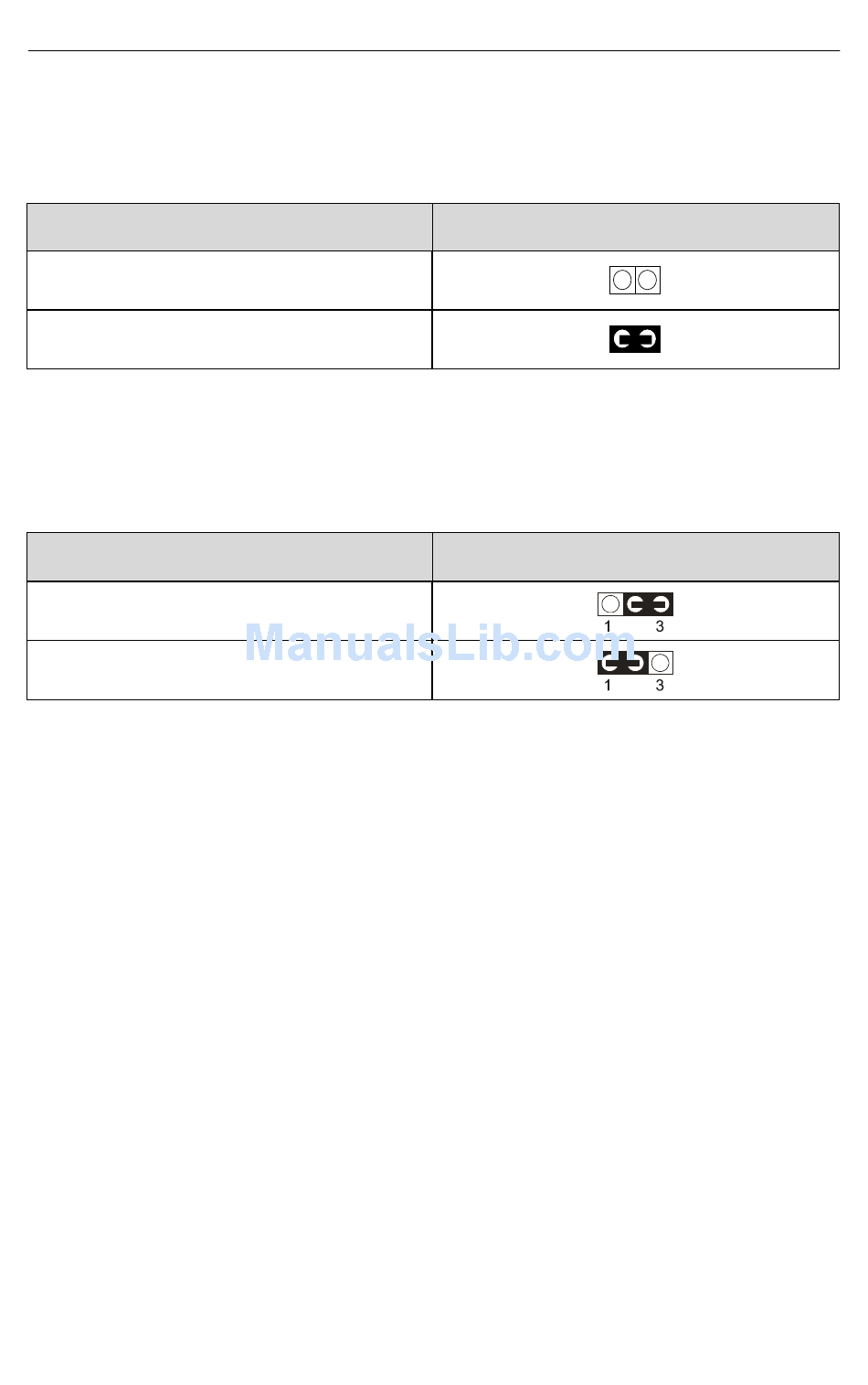

JVGA1: VGA Use
This jumper is set for the PCI VGA card only. Open this jumper when the system
is not able to boot up. If you use AGP card, it is important to set default with
JVGA1.
For PCI VGA card
Normal (default)
JBAT1: Clear CMOS data
Clear the CMOS memory by shorting this jumper 2 & 3 momentarily, and then
remove the cap back to 1 & 2 to retain original CMOS setting.
Clear CMOS Data
Retain Data (default)
JWOL1: Wake On LAN (WOL) Connector
This jumper is designed to use LAN to boot up the system. Connect the wake
on signal from LAN card to this connector.
***For support WOL, the ATX power supply has to have at least 5V/720mA
standby current.***
