Installing The Chassis Intrusion Switch - Dell PowerEdge T605 Systems Hardware Owner's Manual

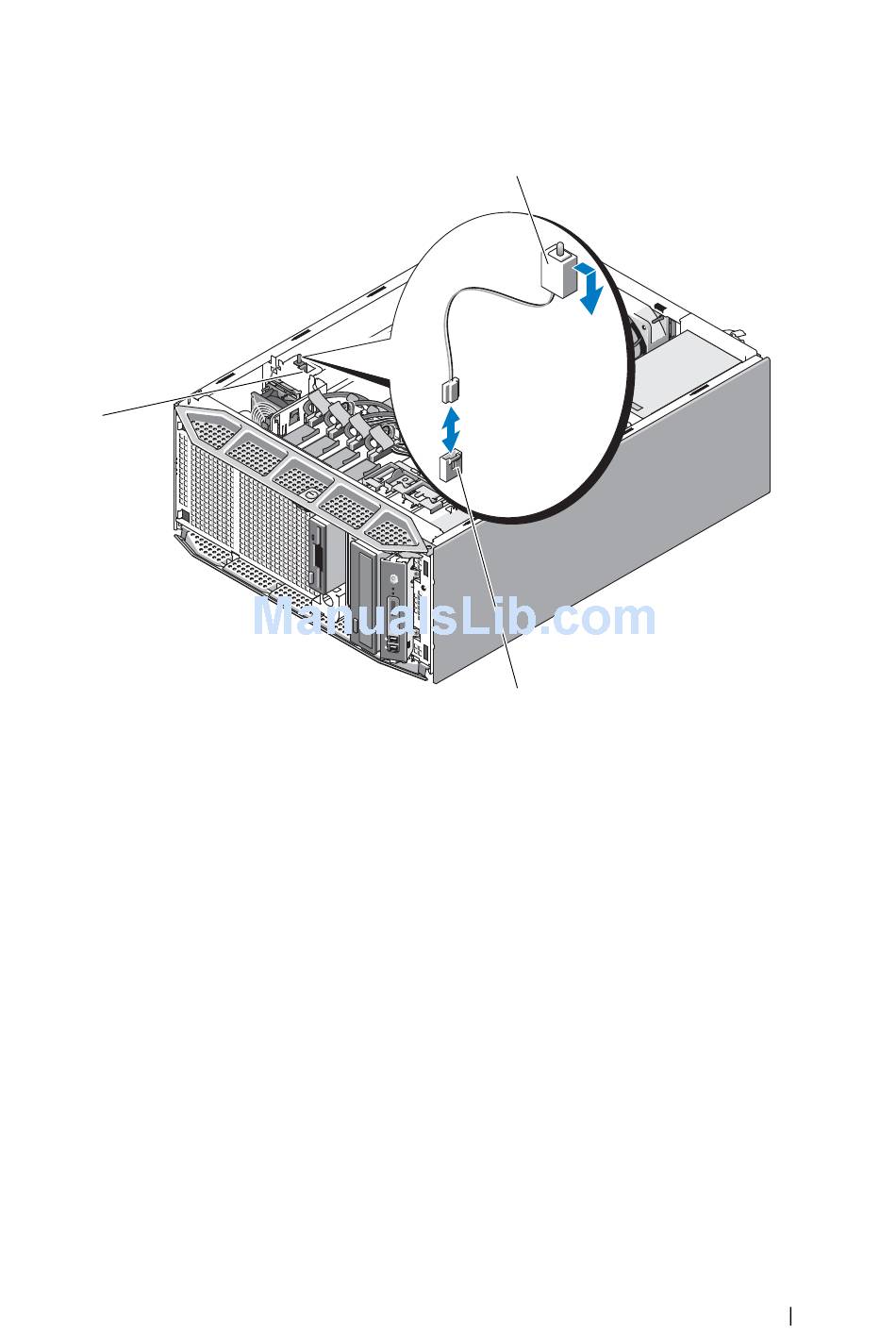

Figure 3-37. Removing and Installing the Chassis Intrusion Switch
1
1 securing bracket notch
3 INTRUSION connector on system
board

Installing the Chassis Intrusion Switch

1 Align the chassis intrusion switch with the securing bracket notch. See
Figure 3-37.
2 Slide the switch into the securing bracket notch.
3 Connect the switch cable to the INTRUSION connector on the system
board. See Figure 6-1 for the connector location.
4 Install the expansion card shroud. See "Installing the Expansion Card
Shroud" on page 75.
5 Close the system. See "Closing the System" on page 70.
6 Place the system upright and on its feet on a flat, stable surface.
