AFOLUX LX Series Flat Panel PC

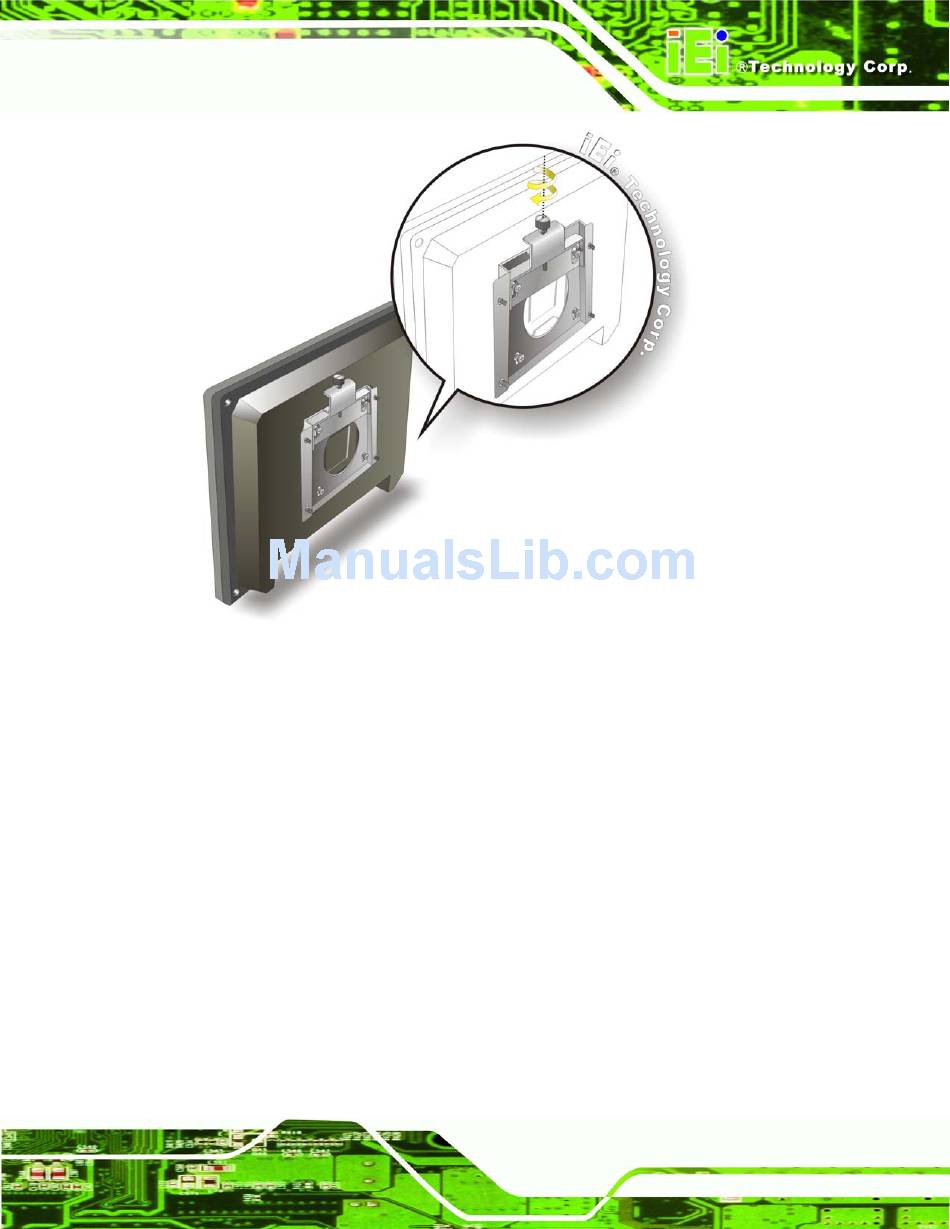

Figure 3-12: Secure the Panel PC

3.8.2 Panel Mounting

To mount the AFOLUX LX series flat panel PC into a panel, please follow the steps below.
Select the position on the panel to mount the flat panel PC.
Step 1:
Cut out a section from the panel that corresponds to the rear panel dimensions
Step 2:
of the flat panel PC. Take care that the panel section that is cut out is smaller
than the overall size of the metal frame that surrounds the flat panel PC but just
large enough for the rear panel of the flat panel PC to fit through (Figure 3-13,
Figure 3-14 and Figure 3-15).
Page 37
