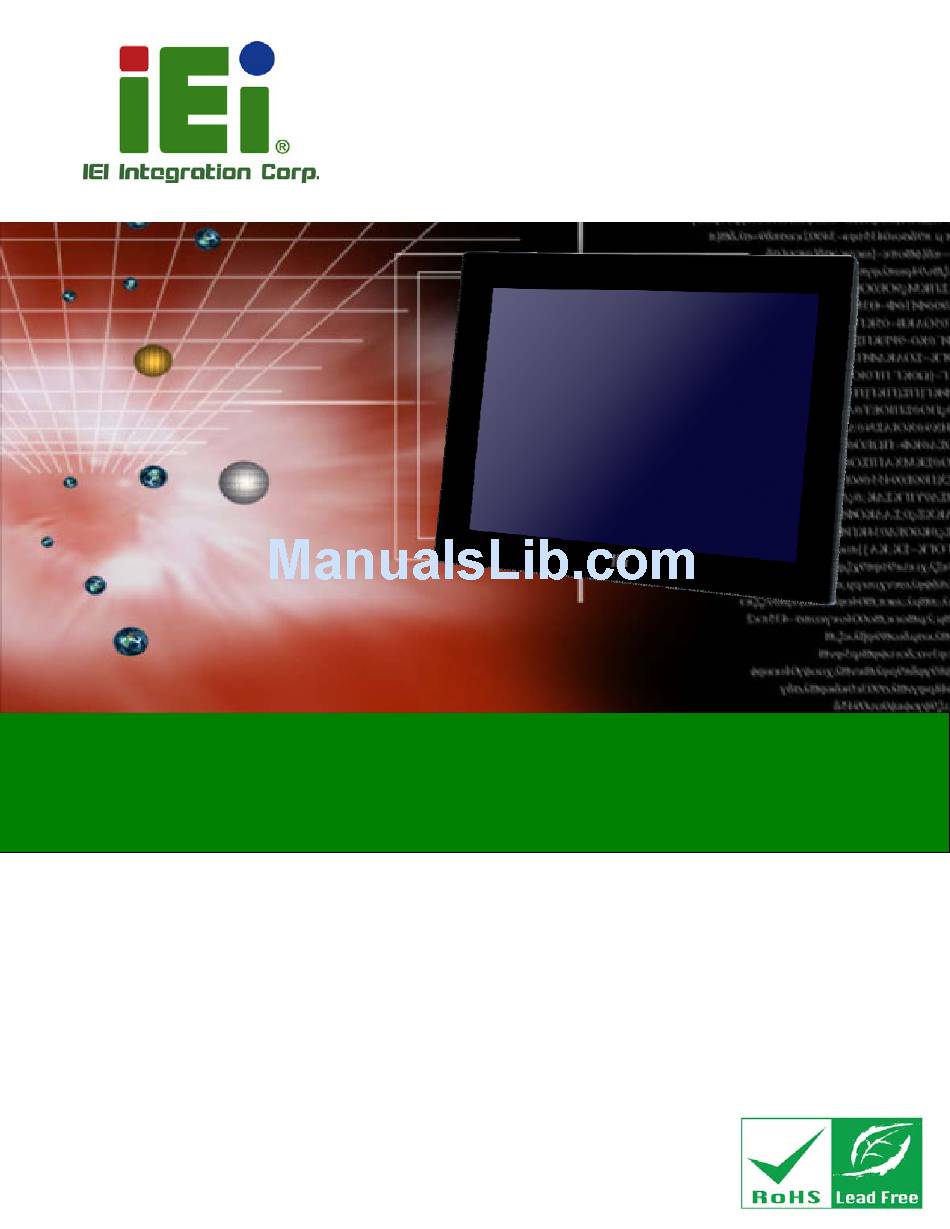

AFL3-12A/W15A-BT Panel PC
MODEL:
AFL3-12A/W15A-BT
Flat Bezel Panel PC with Intel® Celeron® J1900 Quad-Core CPU,
Touchscreen, Dual USB 3.0, Dual GbE LAN, RS-232,
HD Audio, Wi-Fi 802.11a/b/g/n/ac, IP 65 Rating and RoHS
Rev. 1.01 - June 30, 2015
User Manual
User Manual
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL3-12A/W15A-BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology AFL3-12A/W15A-BT

Summary of Contents for IEI Technology AFL3-12A/W15A-BT

  • Page 1 AFL3-12A/W15A-BT Panel PC MODEL: AFL3-12A/W15A-BT Flat Bezel Panel PC with Intel® Celeron® J1900 Quad-Core CPU, Touchscreen, Dual USB 3.0, Dual GbE LAN, RS-232, HD Audio, Wi-Fi 802.11a/b/g/n/ac, IP 65 Rating and RoHS User Manual User Manual Page I Rev. 1.01 - June 30, 2015...
  • Page 2 AFL3-12A/W15A-BT Panel PC Revision Date Version Changes Updated the following sections: June 30, 2015 1.01 Section 3.12.2: Panel Mounting Section 3.12.3: Cabinet and Rack Installation Initial release June 2, 2015 1.00 Page II...
  • Page 3 AFL3-12A/W15A-BT Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Manual Conventions

    AFL3-12A/W15A-BT Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    AFL3-12A/W15A-BT Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.5 R ....................... 5 ANEL 1.6 B ......................5...
  • Page 6 AFL3-12A/W15A-BT Panel PC 3.12 M ..................30 OUNTING THE YSTEM 3.12.1 Wall Mounting....................30 3.12.2 Panel Mounting....................33 3.12.3 Cabinet and Rack Installation ............... 36 3.12.4 Arm Mounting ....................40 3.12.5 Stand Mounting ....................42 3.13 P ................... 43 OWERING...
  • Page 7 AFL3-12A/W15A-BT Panel PC 4.4.1 North Bridge Configuration................67 4.4.1.1 Internal IGD Configuration............... 67 4.4.2 South Bridge Configuration................69 4.4.2.1 PCI Express Configuration ............... 71 4.5 S ......................... 72 ECURITY 4.6 B ........................73 4.7 S & E ......................75 5 SYSTEM MAINTENANCE ..................77 5.1 S...
  • Page 8 AFL3-12A/W15A-BT Panel PC 6.2.18 USB Connector (CAM_USB2)............... 92 6.2.19 Webcam Connector (CAM_USB1)..............92 6.3 E ............92 XTERNAL NTERFACE ANEL ONNECTORS 6.3.1 Ethernet Connectors (LAN1 & LAN2)............. 93 6.3.2 Power Connector (CN5) ................93 6.3.3 RS-232 RJ-45 Serial Port (COM1) ..............93 6.3.4 RS-232/422/485 DB-9 Serial Port (COM2).............
  • Page 9 AFL3-12A/W15A-BT Panel PC List of Figures Figure 1-1: AFL3-12A/W15A-BT Flat Bezel Panel PC..............2 Figure 1-2: Front View ........................4 Figure 1-3: Rear View ........................5 Figure 1-4: Bottom Panel .......................6 Figure 1-5: AFL3-12A-BT Dimensions (mm) ................9 Figure 1-6: AFL3-W15A-BT Dimensions (mm)................10 Figure 3-1: AFL3-12A-BT Back Cover Retention Screws ............18 Figure 3-2: AFL3-W15A-BT Back Cover Retention Screws............19...
  • Page 10 AFL3-12A/W15A-BT Panel PC Figure 3-26: Arm Mounting Retention Screw Holes..............41 Figure 3-27: Arm Mounting......................41 Figure 3-28: Stand Mounting (Stand-A/Bxx) ................42 Figure 3-29: Powering On the System..................43 Figure 3-30: Reset Button Location....................44 Figure 3-31: Keypad AP .......................45 Figure 5-1: WLAN Card Location ....................79 Figure 5-2: Releasing the WLAN Card..................80...
  • Page 11 AFL3-12A/W15A-BT Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications....................8 Table 3-1: DB-9 Serial Port Pin 9 Setting Jumper Settings ............24 Table 3-2: RS-232/422/485 Selection Jumper Settings .............25 Table 3-3: RS-422 Pinouts ......................26 Table 3-4: RS-485 Pinouts ......................26 Table 3-5: DB-9 Serial Port (COM1) Pinouts ................29...
  • Page 12 AFL3-12A/W15A-BT Panel PC Table 6-24: RS-232 RJ-45 Serial Port (COM1) Pinouts..............93 Table 6-25: RS-232/422/485 DB-9 Serial Port (COM2) Pinouts..........94 Table 6-26: USB 3.0 Connectors (USB_CON1) Pinouts............94 Table 6-27: Preconfigured Jumpers ...................95 Table 6-28: Backlight Voltage Selection Jumper (J_BL1) Settings.........95 Table 6-29: Inverter Power Selection Jumper (JP2) Settings ..........95 Table 6-30: LVDS Voltage Selection Jumper (J_VLVDS1) Settings ........95...
  • Page 13 AFL3-12A/W15A-BT Panel PC List of BIOS Menus BIOS Menu 1: Main ........................49 BIOS Menu 2: Advanced ......................51 BIOS Menu 3: ACPI Settings .......................52 BIOS Menu 4: F81866 Super IO Configuration ................53 BIOS Menu 5: Serial Port n Configuration Menu...............53 BIOS Menu 6: F81866 H/W Monitor.....................59 BIOS Menu 7: RTC Wake Settings ....................60...

  • Page 15: Introduction

    AFL3-12A/W15A-BT Panel PC Chapter Introduction Page 1...

  • Page 16: Overview

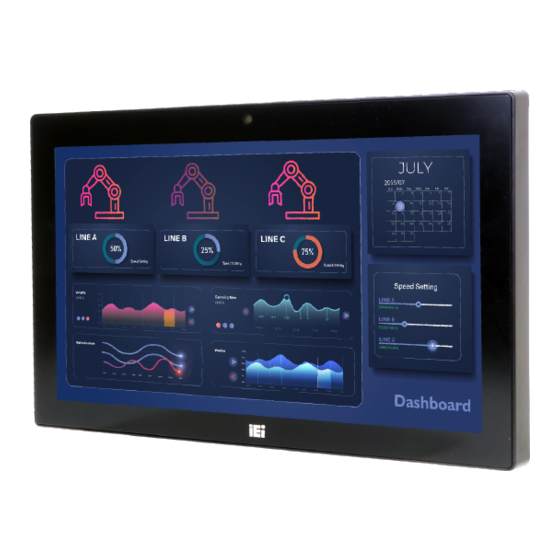

    1.1 Overview Figure 1-1: AFL3-12A/W15A-BT Flat Bezel Panel PC The AFL3-12A/W15A-BT series is a quad-core Intel® Celeron® processor J1900 powered flat bezel panel PC with a rich variety of functions and peripherals. The flat-bezel design is ideal for easy and simplified integration into various applications.

  • Page 17: Model Variations

    AFL3-12A/W15A-BT Panel PC 1.2 Model Variations There are four models in the AFL3-12A/W15A-BT series. The model numbers and model variations are listed below. Model Size Brightness Touchscreen 12.1” 500 cd/m Projected capacitive type AFL3-12A-BT-J1/PC/2G AFL3-12A-BT-J1/R/2G 12.1” 500 cd/m 5-wire resistive type 15.6”...

  • Page 18: Front Panel

    AFL3-12A/W15A-BT Panel PC 1.4 Front Panel The front side of the AFL3-12A/W15A-BT is a flat-bezel panel with a TFT LCD screen surrounded by a PC/ABS plastic frame (Figure 1-2). Figure 1-2: Front View There is a power LED indicator located on the front panel. The status descriptions of the power LED indicator are listed below.

  • Page 19: Rear Panel

    The rear panel provides access to retention screw holes that support VESA mounting. See Figure 1-3. Figure 1-3: Rear View 1.6 Bottom Panel The bottom panel of the AFL3-12A/W15A-BT has the following connectors and switches (Figure 1-4):  1 x 9 V ~ 30 V DC input power jack ...

  • Page 20: System Specifications

    AFL3-12A/W15A-BT Panel PC Figure 1-4: Bottom Panel 1.7 System Specifications The technical specifications for the AFL3-12A/W15A-BT systems are listed in Table 1-2. Specification AFL3-12A-BT AFL3-W15A-BT LCD Size 12.1" 15.6” (16:9) Max. Resolution 1024 (W) x 768 (H) 1366 (W) x 768 (H)
  • Page 21 AFL3-12A/W15A-BT Panel PC Intel® Celeron® processor J1900 (2.0 GHz, quad-core) CPU (SoC) Memory One 204-pin 1333 MHz single-channel DDR3L SO-DIMM slot preinstalled with 2 GB SDRAM (system max. 4 GB) Ethernet Two Realtek RTL8111E PCIe GbE controllers One PCIe Mini card slot for mSATA module installation Storage One 2.5”...

  • Page 22: Table 1-2: System Specifications

    AFL3-12A/W15A-BT Panel PC 60 W power adapter Power Supply Input: 90 V AC ~ 264 V AC @ 50 Hz/ 60 Hz Output: 12 V DC Power Requirement 9 V ~ 30 V DC 43 W, 12 V @ 3.5 A...

  • Page 23: Dimensions

    AFL3-12A/W15A-BT Panel PC 1.8 Dimensions The AFL3-12A-BT dimensions are shown below.  303.51 mm Width:  243.39 mm Height: 44.42 mm  Depth: Figure 1-5: AFL3-12A-BT Dimensions (mm) Page 9...

  • Page 24: Figure 1-6: Afl3-W15A-Bt Dimensions (Mm)

    AFL3-12A/W15A-BT Panel PC The AFL3-W15A-BT dimensions are shown below.  396.98 mm Width:  250.26 mm Height:  53.00 mm Depth: Figure 1-6: AFL3-W15A-BT Dimensions (mm) Page 10...

  • Page 25: Unpacking

    AFL3-12A/W15A-BT Panel PC Chapter Unpacking Page 11...

  • Page 26: Unpacking

    AFL3-12A/W15A-BT Panel PC 2.1 Unpacking To unpack the flat bezel panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat bezel panel PC has been properly installed.

  • Page 27: Packing List

    AFL3-12A/W15A-BT purchased from contact sales representative directly by sending an email to ales@ieiworld.com. The AFL3-12A/W15A-BT flat bezel panel PC is shipped with the following components: Quantity Item Image AFL3-12A/W15A-BT panel PC Power adapter (60 W) (P/N: 63040-010060-120-RS) Power cord (P/N: 32702-000200-100-RS)

  • Page 28: Optional Items

    AFL3-12A/W15A-BT Panel PC Utility CD One Key Recovery CD 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image VESA 75 wall mount kit (P/N: AFLWK-12) VESA 100 wall mount kit (P/N: AFLWK-19B)
  • Page 29 AFL3-12A/W15A-BT Panel PC Item and Part Number Image (P/N: ARM-31-RS) Stand for VESA 100 (P/N: STAND-A12-RS) (P/N: STAND-A19-RS) Stand for VESA 75/VESA 100 (P/N: STAND-C12-R10) Stand for VESA 75/VESA 100 (P/N: STAND-C19-R10) LCD monitor stand with adjustable hinge (P/N: VSTAND-A12) If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 30: Installation

    AFL3-12A/W15A-BT Panel PC Chapter Installation Page 16...

  • Page 31: Anti-Static Precautions

    AFL3-12A/W15A-BT and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL3-12A/W15A-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL3-12A/W15A-BT is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 32: Installation And Configuration Steps

    Step 0: 3.4 Removing the Back Cover To access the AFL3-12A/W15A-BT internally the back cover must be removed. To remove the back cover, please follow the steps below. Remove the retention screws from the back cover. Two types of screw are used Step 1: for securing the back cover.

  • Page 33: Figure 3-2: Afl3-W15A-Bt Back Cover Retention Screws

    AFL3-12A/W15A-BT Panel PC Figure 3-2: AFL3-W15A-BT Back Cover Retention Screws Slide the back cover toward the I/O panel until it is disengaged from the locking Step 2: mechanism. Then, lift the back cover off the chassis. See Figure 3-3. Figure 3-3: Remove the Back Cover...

  • Page 34: Reinstalling The

    AFL3-12A/W15A-BT Panel PC 3.4.1 Reinstalling the Back Cover To install the back cover, slide the back cover toward the top cover until the external and internal locking mechanisms are both clipped into place. Then, secure the back cover with the previously removed screws. Please be aware of the type of screws when fastening the back cover (refer to Figure 3-1 and Figure 3-2).

  • Page 35: Msata Module Installation

    AFL3-12A/W15A-BT Panel PC 3.5 mSATA Module Installation To install an mSATA module into the AFL3-12A/W15A-BT, please follow the steps below: Remove the plastic back cover. See Section 3.4 above. Step 1: Locate the full-size PCIe Mini card slot. Remove the preinstalled retention screw Step 2: on the screw pillar of the PCIe Mini card slot as shown in (Figure 3-5).

  • Page 36: Hdd Installation

    Step 5: Step 0: 3.6 HDD Installation To install the HDD into the AFL3-12A/W15A-BT, please follow the steps below: Remove the plastic back cover. See Section 3.4 above. Step 1: Remove the four HDD bracket retention screws and lift the HDD bracket off the Step 2: panel PC.

  • Page 37: Figure 3-7: Hdd Bracket Retention Screws

    Connect the SATA cable and SATA power cable to the rear of HDD from the Step 4: motherboard. Install the HDD into the AFL3-12A/W15A-BT by aligning the retention screw Step 5: holes in the HDD brackets with the retention screw holes on the chassis. Insert the four retention screws.

  • Page 38: Serial Port Pin 9 Selection

    AFL3-12A/W15A-BT Panel PC Figure 3-9: HDD Installation Replace the plastic back cover. Step 6: Step 0: 3.7 DB-9 Serial Port Pin 9 Selection The JP5 jumper configures pin 9 on the DB-9 serial port. Pin 9 on the COM2 DB-9 connector can be set as the ring (RI) signal, +5 V or +12 V.

  • Page 39: Rs-232/422/485 Serial Port Selection

    AFL3-12A/W15A-BT Panel PC Figure 3-10: DB-9 Serial Port Pin 9 Setting Jumper Location 3.8 RS-232/422/485 Serial Port Selection The JP4 jumper sets the communication protocol used by the DB-9 serial communication port as RS-232, RS-422 or RS-485. Please note that when the DB-9 serial port is set to RS-422/485, the DB-9 port becomes COM3.

  • Page 40: Com3 Rs-422 And Rs-485 Pinouts

    AFL3-12A/W15A-BT Panel PC Figure 3-11: RS-232/422/485 Selection Jumper Location 3.8.1 COM3 RS-422 and RS-485 Pinouts The pinouts for RS-422 and RS-485 operation of external serial port COM 3 are detailed below. COM 3 RS-422 Description Pin 1 Pin 2 Pin 6...

  • Page 41: Clear Cmos

    Figure 3-12: Clear CMOS Button Location 3.10 AT/ATX Mode Selection AT or ATX power mode can be used on the AFL3-12A/W15A-BT. The selection is made through an AT/ATX switch located on the bottom panel (Figure 3-13). Figure 3-13: AT/ATX Switch Location 3.10.1 AT Power Mode...

  • Page 42: Atx Power Mode

    Manufacturing shop flow 3.10.2 ATX Power Mode With the ATX mode selected, the AFL3-12A/W15A-BT panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 43: Figure 3-14: Serial Device Connector

    AFL3-12A/W15A-BT Panel PC Figure 3-14: Serial Device Connector Insert the serial connector. Insert the D-sub 9 connector of a serial device into Step 3: the D-sub 9 connector on the cable. Secure the connector. Secure the serial device connector to the external Step 4: interface by tightening the two retention screws on either side of the connector.

  • Page 44: Mounting The System

    AFL3-12A/W15A-BT Panel PC 3.12 Mounting the System The six methods of mounting the AFL3-12A/W15A-BT are listed below.  Wall mounting  Panel mounting  Rack mounting  Arm mounting  Stand mounting The six mounting methods are described below. 3.12.1 Wall Mounting To mount the flat bezel panel PC onto the wall, please follow the steps below.

  • Page 45: Figure 3-15: Wall-Mounting Bracket

    AFL3-12A/W15A-BT Panel PC Figure 3-15: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mount kit into the Step 6: four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-16).

  • Page 46: Figure 3-16: Chassis Support Screws

    AFL3-12A/W15A-BT Panel PC Align the mounting screws on the monitor rear panel with the mounting holes on Step 7: the bracket. Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-16).

  • Page 47: Panel Mounting

    AFL3-12A/W15A-BT Panel PC Figure 3-17: Secure the Panel PC 3.12.2 Panel Mounting To mount the AFL3-12A/W15A-BT flat bezel panel PC into a panel, please follow the steps below. Select the position on the panel to mount the flat bezel panel PC.

  • Page 48: Figure 3-19: Afl-W15A-Bt Cutout Dimensions

    AFL3-12A/W15A-BT Panel PC Figure 3-19: AFL-W15A-BT Cutout Dimensions Slide the flat bezel panel PC through the hole until the frame is flush against the Step 3: panel. Insert a M5*50 screw into the screw hole on the side of the panel mounting Step 4: bracket.

  • Page 49: Figure 3-20: Panel Mounting Kit Installation

    AFL3-12A/W15A-BT Panel PC Figure 3-20: Panel Mounting Kit Installation Align the panel mounting bracket screw holes with the VESA mounting holes on Step 6: the rear of the panel PC. Secure the two panel mounting brackets to the rear of the panel PC by inserting...

  • Page 50: Cabinet And Rack Installation

    Figure 3-21: Securing Panel Mounting Brackets 3.12.3 Cabinet and Rack Installation The AFL3-12A/W15A-BT flat bezel panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below:...

  • Page 51: Figure 3-22: Rack/Cabinet Bracket Installation

    AFL3-12A/W15A-BT Panel PC Figure 3-22: Rack/Cabinet Bracket Installation Insert a M5*50 screw into the screw hole on the side of the rack mounting Step 2: bracket. Then, install the following components onto the screw in sequence. See Figure 3-23. Sequence...

  • Page 52: Figure 3-23: Rack Mounting Kit Installation

    AFL3-12A/W15A-BT Panel PC Figure 3-23: Rack Mounting Kit Installation Align the rack mounting bracket screw holes with the VESA mounting holes on Step 4: the rear of the panel PC. Secure the two rack mounting brackets to the rear of the panel PC by inserting...

  • Page 53: Figure 3-24: Securing Rack Mounting Brackets

    AFL3-12A/W15A-BT Panel PC Figure 3-24: Securing Rack Mounting Brackets Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet Step 6: (Figure 3-25). Figure 3-25: Install into a Rack/Cabinet Page 39...

  • Page 54: Arm Mounting

    When purchasing the arm please ensure that it is VESA compliant and that the arm has a 75 mm a 100 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to support the AFL3-12A/W15A-BT flat bezel panel PC.

  • Page 55: Figure 3-26: Arm Mounting Retention Screw Holes

    AFL3-12A/W15A-BT Panel PC Figure 3-26: Arm Mounting Retention Screw Holes Secure the AFL3-12A/W15A-BT to the interface pad by inserting four retention Step 4: screws through the mounting arm interface pad and into the AFL3-12A/W15A-BT.S t e p 0 : Figure 3-27: Arm Mounting...

  • Page 56: Stand Mounting

    3.12.5 Stand Mounting To mount the AFL3-12A/W15A-BT using the stand mounting kit, please follow the steps below. Locate the screw holes on the rear of the AFL3-12A/W15A-BT. This is where the Step 1: bracket will be attached. Align the bracket with the screw holes.

  • Page 57: Powering On The System

    Connect the power cord to the power adapter. Connect the other end of the Step 1: power cord to a power source. Connect the power adapter to the power connector of the AFL3-12A/W15A-BT. Step 2: Locate the power button on the I/O panel.

  • Page 58: Reset The System

    Visit the IEI website or contact technical support for the latest updates. All the drivers for the AFL3-12A/W15A-BT are on the utility CD that came with the system. The utility CD contains drivers for Windows 7 and Windows 8 operating systems. Please select the corresponding drivers for the system.

  • Page 59: Keypad Ap

    AFL3-12A/W15A-BT Panel PC  Keypad AP The following drivers can be installed on the Windows 8 operating system:  Chipset  Graphics   Audio  Wi-Fi Keypad AP  3.15.1 Keypad AP Keypad AP is an OSD control tool developed by IEI. After the installation, the Keypad AP can be accessed by clicking the icon on the notification area.

  • Page 60: Bios Setup

    AFL3-12A/W15A-BT Panel PC Chapter BIOS Setup Page 46...

  • Page 61: Introduction

    AFL3-12A/W15A-BT Panel PC 4.1 Introduction A licensed copy of the BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 62: Getting Help

    AFL3-12A/W15A-BT Panel PC Left arrow Move to the item on the left hand side Right arrow Move to the item on the right hand side Increase the numeric value or make changes Decrease the numeric value or make changes F1 key...

  • Page 63: Main

    AFL3-12A/W15A-BT Panel PC  Save & Exit – Selects exit options and loads default settings The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.

  • Page 64: Cpu Information

    AFL3-12A/W15A-BT Panel PC  Compliency: Current compliant version  Project Version: the board version  Build Date: Date the current BIOS version was made  CPU Information The CPU Information lists a brief summary of the CPU. The fields in CPU Information cannot be changed.

  • Page 65: Advanced

    AFL3-12A/W15A-BT Panel PC 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus: WARNING: Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 66: Acpi Settings

    AFL3-12A/W15A-BT Panel PC 4.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system...

  • Page 67: F81866 Super Io Configuration

    AFL3-12A/W15A-BT Panel PC 4.3.2 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced F81866 Super IO Configuration...

  • Page 68: Serial Port 1 Configuration

    AFL3-12A/W15A-BT Panel PC 4.3.2.1.1 Serial Port 1 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disable the serial port Disabled  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 69: Serial Port 3 Configuration

    AFL3-12A/W15A-BT Panel PC  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.  The serial port IO port address and interrupt Auto EFAULT address are automatically detected.

  • Page 70: Serial Port 4 Configuration

    AFL3-12A/W15A-BT Panel PC  The serial port IO port address and interrupt Auto EFAULT address are automatically detected.  Serial Port I/O port address is 3E8h and the IO=3E8h; IRQ=10 interrupt address is IRQ10  Serial Port I/O port address is 3F8h and the IO=3F8h;...

  • Page 71: Serial Port 5 Configuration

    AFL3-12A/W15A-BT Panel PC  The serial port IO port address and interrupt Auto EFAULT address are automatically detected.  Serial Port I/O port address is 2E8h and the IO=2E8h; IRQ=7 interrupt address is IRQ7  Serial Port I/O port address is 3F8h and the IO=3F8h;...

  • Page 72: Change Settings [Auto]

    AFL3-12A/W15A-BT Panel PC  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.  The serial port IO port address and interrupt Auto EFAULT address are automatically detected.  Serial Port I/O port address is 2F0h and the IO=2F0h;...

  • Page 73: F81866 H/W Monitor

    AFL3-12A/W15A-BT Panel PC 4.3.3 F81866 H/W Monitor The F81866 H/W Monitor menu (BIOS Menu 6) shows the operating temperatures and voltages. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced PC Health Status :+47 °C CPU temperature :+43 °C...

  • Page 74: Rtc Wake Settings

    AFL3-12A/W15A-BT Panel PC 4.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 7) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 75: Serial Port Console Redirection

    AFL3-12A/W15A-BT Panel PC  If selected, the following appears with values that Enabled can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 76: Cpu Configuration

    AFL3-12A/W15A-BT Panel PC  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled 4.3.6 CPU Configuration Use the CPU Configuration (BIOS Menu 9) to view detailed CPU specifications and configure the CPU.

  • Page 77: Intel Virtualization Technology [Disabled]

    AFL3-12A/W15A-BT Panel PC  Processor Cores: Lists the number of the processor core  Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU. Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the ...

  • Page 78: Ide Configuration

    AFL3-12A/W15A-BT Panel PC 4.3.7 IDE Configuration Use the IDE Configuration menu (BIOS Menu 10) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced IDE Configuration...

  • Page 79: Usb Configuration

    AFL3-12A/W15A-BT Panel PC 4.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 11) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 80: Chipset

    AFL3-12A/W15A-BT Panel PC  Legacy USB support disabled Disabled  Legacy USB support disabled if no USB devices are Auto connected 4.4 Chipset Use the Chipset menu (BIOS Menu 12) to access the North Bridge, South Bridge, and Integrated Graphics configuration menus.

  • Page 81: North Bridge Configuration

    AFL3-12A/W15A-BT Panel PC 4.4.1 North Bridge Configuration Use the North Bridge menu (BIOS Menu 13) to configure the north bridge chipset. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset > Intel IGD Configuration Config Intel IGD Settings...
  • Page 82 AFL3-12A/W15A-BT Panel PC  DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to specify the amount of system memory that can be used by the internal graphics device.  64 MB of memory used by internal graphics device  128 MB of memory used by internal graphics...

  • Page 83: South Bridge Configuration

    AFL3-12A/W15A-BT Panel PC 4.4.2 South Bridge Configuration Use the South Bridge menu (BIOS Menu 15) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled (ATX)] Select AC power state...

  • Page 84: Xhci Mode [Smart Auto]

    AFL3-12A/W15A-BT Panel PC  The High Definition Audio controller is enabled. Enabled EFAULT  XHCI Mode [Smart Auto] Use the XHCI Mode BIOS option to configure the USB xHCI (USB 3.0) controller.  Enable the xHCI controller. USB 3.0 ports behave as Enabled USB 3.0 ports.

  • Page 85: Pci Express Configuration

    AFL3-12A/W15A-BT Panel PC 4.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 16) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset PCI Express Configuration Configure PCIe Port PCI-E Mini Card (Full Size)

  • Page 86: Security

    AFL3-12A/W15A-BT Panel PC 4.5 Security Use the Security menu (BIOS Menu 17) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 87: Boot

    AFL3-12A/W15A-BT Panel PC 4.6 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...

  • Page 88: Quiet Boot [Enabled]

    AFL3-12A/W15A-BT Panel PC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT  UEFI Boot [Disabled] Use the UEFI Boot BIOS option to enable or disable UEFI boot.

  • Page 89: Save & Exit

    AFL3-12A/W15A-BT Panel PC 4.7 Save & Exit Use the Save & Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main...

  • Page 90: Save As User Defaults

    AFL3-12A/W15A-BT Panel PC  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 91: System Maintenance

    AFL3-12A/W15A-BT Panel PC Chapter System Maintenance Page 77...

  • Page 92: System Maintenance Introduction

    AFL3-12A/W15A-BT Panel PC 5.1 System Maintenance Introduction If the components of the AFL3-12A/W15A-BT fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFL3-12A/W15A-BT are described below.

  • Page 93: Turn Off The Power

    Before any maintenance procedures are carried out on the system, make sure the system is turned off. 5.4 WLAN Card Replacement The AFL3-12A/W15A-BT has one WLAN card slot. To replace the WLAN card, follow the instructions below. Follow all anti-static procedures. See Section 5.2.

  • Page 94: Figure 5-2: Releasing The Wlan Card

    AFL3-12A/W15A-BT Panel PC Disconnect the antenna cables on the WLAN module and remove the retention Step 5: screw to release the WLAN card (Figure 5-2). Figure 5-2: Releasing the WLAN Card Grasp the WLAN card by the edges and carefully pull it out of the socket Step 6: (Figure 5-3).

  • Page 95: Reinstalling The Cover

    AFL3-12A/W15A-BT Panel PC Push the WLAN card down and secure it with the previously removed retention Step 8: screw. Connect the antenna cables. Step 9: Replace the back cover and secure it using the previously removed retention Step 10: screws.

  • Page 96: Interface Connectors

    AFL3-12A/W15A-BT Panel PC Chapter Interface Connectors Page 82...

  • Page 97: Peripheral Interface Connectors

    AFL3-12A/W15A-BT Panel PC 6.1 Peripheral Interface Connectors The AFL3-12A/W15A-BT panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1 and Figure 6-2. The Pin 1 locations of the on-board connectors are also indicated in the diagram below.

  • Page 98: Internal Peripheral Connectors

    AFL3-12A/W15A-BT Panel PC 6.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the AFL3MB2-BT. Pinouts of these connectors can be found in the following sections.

  • Page 99: Battery Connector (Bat1)

    AFL3-12A/W15A-BT Panel PC 6.2.1 Battery Connector (BAT1) PIN NO. DESCRIPTION Table 6-2: Battery Connector (BAT1) Pinouts 6.2.2 Digital I/O Connector (DIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION   VCC +5V   DGPO3 DGPO2   DGPO1 DGPO0  ...

  • Page 100: Lvds Connector (Lvds1)

    AFL3-12A/W15A-BT Panel PC 6.2.4 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDSA0+ LVDSA0- LVDSA1+ LVDSA1- LVDSA2+ LVDSA2- LVDSACLK+ LVDSACLK- LVDSA3+ LVDSA3- Table 6-5: LVDS Connector (LVDS1) Pinouts 6.2.5 MCU Connector (MCU_CN1) PIN NO. DESCRIPTION MCLR ICSPCLK ICSPDAT Table 6-6: MCU Connector (MCU_CN1) Pinouts 6.2.6 Microphone Connector (DMIC1)

  • Page 101: Pcie Mini Connector, Full-Size (M_Pcie1)

    AFL3-12A/W15A-BT Panel PC 6.2.7 PCIe Mini Connector, Full-Size (M_PCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION WAKE# VCC3 VCC1.5 CLKREQ# REFCLK0- REFCLK0+ PERST# PERn0 VCC3_AUX PERp0 VCC1.5 SMB_CLK PETn0 SMB_DATA PETp0 USB_DATA1- USB_DATA1+ VCC3_AUX VCC3_AUX VCC1.5 Reserved VCC3 Table 6-8: PCIe Mini Connector (M_PCIE1) Pinouts...

  • Page 102: Pcie Mini Connector, Half-Size (M_Pcie2)

    AFL3-12A/W15A-BT Panel PC 6.2.8 PCIe Mini Connector, Half-Size (M_PCIE2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION WAKE# VCC3 Reserved Reserved VCC1.5 CLKREQ# REFCLK1- REFCLK1+ PERST# PERn2 VCC3_AUX PERp2 VCC1.5 SMB_CLK PETn2 SMB_DATA PETp2 VCC3_AUX VCC3_AUX VCC1.5 Reserved VCC3 Table 6-9: PCIe Mini Connector (M_PCIE2) Pinouts...

  • Page 103: Power Led Connector (Pw_Led1)

    AFL3-12A/W15A-BT Panel PC 6.2.9 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V SUS PW LED +5V Table 6-10: Power LED Connector (PW_LED1) Pinouts 6.2.10 SATA Connector (SATA1) PIN NO. DESCRIPTION STXP_0 STXN_0 SRXN_0 SRXP_0 Table 6-11: SATA Connector (SATA1) Pinouts 6.2.11 SATA Power Connector (SATA_PWR1)

  • Page 104: Speaker Connector (Cn3)

    AFL3-12A/W15A-BT Panel PC 6.2.12 Speaker Connector (CN3) PIN NO. DESCRIPTION AUD_OUTL+ AUD_OUTL- AUD_OUTR- AUD_OUTR+ Table 6-13: Speaker Connector (CN3) Pinouts 6.2.13 SPI Flash Connector (JSPI1) PIN NO. DESCRIPTION +1.8V SPI_CS SPI_SO SPI_CLK SPI_SI Table 6-14: SPI Flash Connector (JSPI1) Pinouts 6.2.14 TTL Serial Connector, COM4 (NFC_CN1)

  • Page 105: Usb 2.0 Connector (Hub_Usb1)

    AFL3-12A/W15A-BT Panel PC 6.2.15 USB 2.0 Connector (HUB_USB1) PIN NO. DESCRIPTION DATA4+ DATA4- Table 6-16: USB 2.0 Connector (HUB_USB1) Pinouts 6.2.16 USB 2.0 Connector (HUB_USB2) PIN NO. DESCRIPTION DATA3+ DATA3- Table 6-17: USB 2.0 Connector (HUB_USB2) Pinouts 6.2.17 VGA Connector (VGA_CON1) PIN NO.

  • Page 106: Usb Connector (Cam_Usb2)

    AFL3-12A/W15A-BT Panel PC 6.2.18 USB Connector (CAM_USB2) PIN NO. DESCRIPTION DATA3+ DATA3- Table 6-19: USB Connector (CAM_USB2) Pinouts 6.2.19 Webcam Connector (CAM_USB1) PIN NO. DESCRIPTION DATA2+ DATA2- Table 6-20: Webcam Connector (CAM_USB1) Pinouts 6.3 External Interface Panel Connectors The table below lists the rear panel connectors on the AFL2MB-15A motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 107: Ethernet Connectors (Lan1 & Lan2)

    AFL3-12A/W15A-BT Panel PC 6.3.1 Ethernet Connectors (LAN1 & LAN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDI0+ MDI3- MDI0- +3.3Vsus MDI1+ ACT-1 MDI1- LINNK1000 +3.3sus LINNK1000 +3.3sus MDI2+ MDI2- MDI3+ Table 6-22: Ethernet Connectors (LAN1 & LAN2) Pinouts 6.3.2 Power Connector (CN5) Table 6-23: Power Connector (CN5) Pinouts 6.3.3 RS-232 RJ-45 Serial Port (COM1)

  • Page 108: Rs-232/422/485 Db-9 Serial Port (Com2)

    SSRX2+ SSTX1- SSTX2- SSTX1+ SSTX2+ Table 6-26: USB 3.0 Connectors (USB_CON1) Pinouts 6.4 Preconfigured Jumper Settings CAUTION: The following jumpers are preconfigured for the AFL3-12A/W15A-BT. Users should not change these jumpers (Table 6-27). It is only for reference. Page 94...

  • Page 109: Backlight Voltage Selection Jumper (J_Bl1)

    AFL3-12A/W15A-BT Panel PC Jumper Name Type Label Backlight voltage selection 3-pin header J_BL1 Inverter power selection 6-pin header LVDS voltage selection 3-pin header J_VLVDS1 Panel PWM power selection 3-pin header J_ADJ1 Serial port selection 12-pin header Table 6-27: Preconfigured Jumpers 6.4.1 Backlight Voltage Selection Jumper (J_BL1)

  • Page 110: Panel Pwm Power Selection Jumper (J_Adj1)

    AFL3-12A/W15A-BT Panel PC 6.4.4 Panel PWM Power Selection Jumper (J_ADJ1) Description Short 1-2 +3.3V (Default) Short 2-3 Table 6-31: Panel PWM Power Selection Jumper (J_ADJ1) Settings Page 96...

  • Page 111: A Regulatory Compliance

    AFL3-12A/W15A-BT Panel PC Appendix Regulatory Compliance Page 97...
  • Page 112 AFL3-12A/W15A-BT Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive 2004/108/EC  Low-Voltage Directive 2006/95/EC  RoHS II Directive 2011/65/EU  Ecodesign Directive 2009/125/EC  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 113 AFL3-12A/W15A-BT Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ...
  • Page 114 AFL3-12A/W15A-BT Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
  • Page 115 AFL3-12A/W15A-BT Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference ...

  • Page 116: B Safety Precautions

    AFL3-12A/W15A-BT Panel PC Appendix Safety Precautions Page 102...

  • Page 117: Safety Precautions

    Do not apply voltage levels that exceed the specified voltage range. Doing so may cause fire and/or an electrical shock.  Electric shocks can occur if the AFL3-12A/W15A-BT chassis is opened when the AFL3-12A/W15A-BT is running.  Do not drop or insert any objects into the ventilation openings of the AFL3-12A/W15A-BT.

  • Page 118: Anti-Static Precautions

    AFL3-12A/W15A-BT and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL3-12A/W15A-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL3-12A/W15A-BT is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 119: Product Disposal

    Please follow the national guidelines for electrical and electronic product disposal. B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the AFL3-12A/W15A-BT, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the AFL3-12A/W15A-BT, please read the details below. Page 105...

  • Page 120: Cleaning Tools

    Some components in the AFL3-12A/W15A-BT may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the AFL3-12A/W15A-BT. ...

  • Page 121: Cbios Menu Options

    AFL3-12A/W15A-BT Panel PC Appendix BIOS Menu Options Page 107...
  • Page 122 AFL3-12A/W15A-BT Panel PC 　 BIOS Information .........................49 　 CPU Information........................50 　 Memory Information ......................50 　 TXE Information ........................50 　 System Date [xx/xx/xx] ......................50 　 System Time [xx:xx:xx] .......................50 　 ACPI Sleep State [S3 (Suspend to RAM)]................52 　 Serial Port [Enabled]......................54 　...
  • Page 123 AFL3-12A/W15A-BT Panel PC 　 User Password ........................72 　 Bootup NumLock State [On]....................73 　 Quiet Boot [Enabled] ......................74 　 UEFI Boot [Disabled] ......................74 　 Launch PXE OpROM [Disabled] ..................74 　 Option ROM Messages [Force BIOS].................74 　 Save Changes and Reset ....................75 　...

  • Page 124: D Watchdog Timer

    AFL3-12A/W15A-BT Panel PC Appendix Watchdog Timer Page 110...
  • Page 125 AFL3-12A/W15A-BT Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 126 AFL3-12A/W15A-BT Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 127: E Hazardous Materials Disclosure

    AFL3-12A/W15A-BT Panel PC Appendix Hazardous Materials Disclosure Page 113...

  • Page 128: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFL3-12A/W15A-BT Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 129 AFL3-12A/W15A-BT Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 130 AFL3-12A/W15A-BT Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

This manual is also suitable for:

Afl3-12a-btAfl3-w15a-bt

Table of Contents
