AFL-xxA-N26 Series Panel PC
o42AFL-xxA-N26 Series Flat Panel PC
MODEL:
AFL-xxA-N26
Fanless All-in-one Panel PC with 1.6 GHz Intel® Atom™ Processor
TFT LCD, Wireless LAN, Touch Screen,
RS-232/422/485 and IP 64 Protection

User Manual

Page 1
Rev. 1.00 - 9 November, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL-xxA-N26 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFL-xxA-N26

Summary of Contents for IEI Technology AFL-xxA-N26

  • Page 1: User Manual

    AFL-xxA-N26 Series Panel PC o42AFL-xxA-N26 Series Flat Panel PC MODEL: AFL-xxA-N26 Fanless All-in-one Panel PC with 1.6 GHz Intel® Atom™ Processor TFT LCD, Wireless LAN, Touch Screen, RS-232/422/485 and IP 64 Protection User Manual Page 1 Rev. 1.00 - 9 November, 2012...
  • Page 2 AFL-xxA-N26 Series Panel PC Revision Date Version Changes Initial release 9 November, 2012 1.00 Page 2...
  • Page 3 AFL-xxA-N26 Series Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 AFL-xxA-N26 Series Panel PC WARNING: This equipment has been tested and found to comply with the limits for a Class A and Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    AFL-xxA-N26 Series Panel PC Table of Contents 1 INTRODUCTION......................15 1.1 O ........................ 16 VERVIEW 1.1.1 Features and Model Variations................ 16 1.1.2 Applications ..................... 17 1.2 E ....................17 XTERNAL VERVIEW 1.2.1 Front Panel ...................... 18 1.2.2 Rear Panel ....................... 18 1.2.3 I/O Interface Panel ..................
  • Page 6 AFL-xxA-N26 Series Panel PC 3.8 J ....................42 UMPER ETTINGS 3.8.1 Access the Jumpers ..................43 3.8.2 Preconfigured Jumpers ..................43 3.8.3 Clear CMOS Jumper..................44 3.8.4 COM3 Port Pin 9 Select .................. 45 3.8.5 RS-232/422/485 Serial Port Select Jumper ............. 46 3.8.5.1 COM4 RS-422 and RS-485 Pinouts ............

  • Page 7: Page

    AFL-xxA-N26 Series Panel PC 5.2 M ........................71 5.3 A ....................... 72 DVANCED 5.3.1 ACPI Settings ....................73 5.3.2 RTC Wake Settings ................... 74 5.3.3 CPU Configuration..................75 5.3.4 IDE Configuration ................... 77 5.3.5 USB Configuration................... 78 5.3.6 F81866 Super IO Configuration ..............79 5.3.6.1 Serial Port n Configuration ...............
  • Page 8 AFL-xxA-N26 Series Panel PC 7.2.2 Audio MIC-in Connector (MIC1) ..............122 7.2.3 Audio DMIC-in Connector (DMIC1)............. 122 7.2.4 Battery Connector (CN1)................123 7.2.5 COM2 Connector (COM2) ................123 7.2.6 CPU Fan Connector (CPU_FAN1)..............123 7.2.7 DIO Connector (DIO1).................. 123 7.2.8 HDD LED Connector (HDD_CN1)............... 124 7.2.9 I2C Connector (CN4)..................
  • Page 9 AFL-xxA-N26 Series Panel PC 7.4.2 Inverter ADJ Power Selection Jumper (JP6)..........135 7.4.3 Inverter Power Selection Jumper (JP1)............135 7.4.4 LVDS Panel Voltage Selection Jumper (J_VLVDS1) ........136 7.4.5 Touchscreen Selection Jumper (J1)..............136 A SAFETY PRECAUTIONS ..................137 A.1 S ..................
  • Page 10 AFL-xxA-N26 Series Panel PC List of Figures Figure 1-1: AFOLUX AFL-xxA-N26 Flat Panel PC..............16 Figure 1-2: AFL-xxA-N26 Front View ..................18 Figure 1-3: AFL-xxA-N26 Rear View ...................18 Figure 1-4: AFL-10A-N26 I/O Interface Connector Panel ............19 Figure 1-5: AFL-12A-N26 I/O Interface Connector Panel ............20 Figure 1-6: AFL-xxA-N26 Top View.....................20...
  • Page 11 AFL-xxA-N26 Series Panel PC Figure 3-21: AFL-10A-N26 Panel Opening .................52 Figure 3-22: AFL-12A-N26 Panel Opening .................53 Figure 3-23: Tighten the Panel Mounting Clamp Screws ............53 Figure 3-24: AFL-W07A-N26/AFL-08A-N26 Arm Mounting Retention Screw Holes....54 Figure 3-25: AFL-10A-N26/AFL-12A-N26 Arm Mounting Retention Screw Holes ....55 Figure 3-26: The Rack/Cabinet Bracket..................56...
  • Page 12 AFL-xxA-N26 Series Panel PC Figure 6-20: Preparing Setup Screen ..................110 Figure 6-21: InstallShield Wizard Welcome Screen ............... 110 Figure 6-22: Audio Driver Software Configuration..............111 Figure 6-23: Restart the Computer ..................111 Figure 6-24: Welcome Screen ....................112 Figure 6-25: License Agreement ....................113 Figure 6-26: Ready to Install the Program ................
  • Page 13 AFL-xxA-N26 Series Panel PC List of Tables Table 1-1: Model Variations ......................17 Table 1-2: AFL-xxA-N26 Series System Specifications ............26 Table 3-1: Jumpers ........................43 Table 3-2: Preconfigured Jumpers .....................43 Table 3-3: Clear CMOS Jumper Settings..................44 Table 3-4: COM3 Pin 9 Setting Jumper Settings ...............45 Table 3-5: RS-232/422/485 Serial Port Select Jumper Settings ..........46...
  • Page 14 AFL-xxA-N26 Series Panel PC Table 7-22: TTL Panel Connector (CN6) Pinouts..............130 Table 7-23: USB Connector (USB1) Pinouts................130 Table 7-24: USB Connector (USB2) Pinouts................130 Table 7-25: USB Connector (USB3) Pinouts................131 Table 7-26: USB2 and USB3 Power Connector (JP18) Pinouts ..........131 Table 7-27: Rear Panel Connectors ..................

  • Page 15: Introduction

    AFL-xxA-N26 Series Panel PC Chapter Introduction Page 15...

  • Page 16: Overview

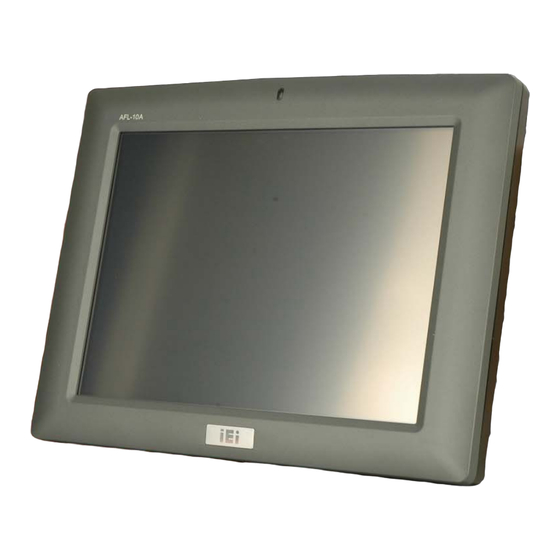

    1.1 Overview Figure 1-1: AFOLUX AFL-xxA-N26 Flat Panel PC The AFL-xxA-N26 series is Intel® Atom™ N2600 powered flat panel PCs with a rich variety of functions and peripherals. All AFL-xxA-N26 models are designed for easy and simplified integration in to kiosk and point-of-sales (POS) applications.

  • Page 17: Applications

    SSD supported IP 64 compliant front panel AT or ATX power mode Touch screen RoHS compliance There are four kinds of panel size of the AFL-xxA-N26 series. The model numbers and model variations are listed below. Model Size Brightness...

  • Page 18: Front Panel

    1.2.1 Front Panel The front side of the AFOLUX AFL-xxA-N26 series is a flat panel TFT LCD screen with LED backlight surrounded by an ABS/PC plastic frame. The top of the front panel has a power LED.

  • Page 19: I/O Interface Panel

    AFL-xxA-N26 Series Panel PC 1.2.3 I/O Interface Panel The I/O interface panel located on the bottom of the AFL-xxA-N26 has the following I/O interface connectors: 1 x Audio line-out connector 1 x 9 V ~ 28 V DC In connector...

  • Page 20: Top Panel And Side Panels

    Figure 1-5: AFL-12A-N26 I/O Interface Connector Panel 1.2.4 Top Panel and Side Panels The top panel and side panels of AFOLUX AFL-xxA-N26 series provide access to slots that support panel mount and rack mount (Figure 1-6). Figure 1-6: AFL-xxA-N26 Top View...

  • Page 21: Dimensions

    AFL-xxA-N26 Series Panel PC 1.3 Dimensions The following sections provide detailed schematics and information on the dimensions of the AFL-xxA-N26 series. 1.3.1 AFL-W07A-N26 Dimensions The AFL-W07A-N26 dimensions are shown in Figure 1-8 and listed below. 226.00 mm Width: 140.00 mm Height: 40.2 mm...

  • Page 22: Afl-08A-N26 Dimensions

    AFL-xxA-N26 Series Panel PC 1.3.2 AFL-08A-N26 Dimensions The AFL-08A-N26 dimensions are shown in Figure 1-9 and listed below. 233.86 mm Width: 183.89 mm Height: 41.05 mm Depth: Figure 1-9: AFL-08A-N26 Dimensions (mm) Page 22...

  • Page 23: Afl-10A-N26 Dimensions

    AFL-xxA-N26 Series Panel PC 1.3.3 AFL-10A-N26 Dimensions The AFL-10A-N26 dimensions are shown in Figure 1-10 and listed below. 276.0 mm Width: 222.0 mm Height: 51.50 mm Depth: Figure 1-10: AFL-10A-N26 Dimensions (mm) Page 23...

  • Page 24: Afl-12A-N26 Dimensions

    AFL-xxA-N26 Series Panel PC 1.3.4 AFL-12A-N26 Dimensions The AFL-12A-N26 dimensions are shown in Figure 1-10 and listed below. 304.0 mm Width: 246.0 mm Height: 49.5 mm Depth: Figure 1-11: AFL-12A-N26 Dimensions (mm) Page 24...

  • Page 25: Internal Overview

    The AFOLUX AFL-xxA-N26 has the following components installed internally: 1 x Motherboard 1 x 2.0 GB 800 MHz DDR3 SDRAM SO-DIMM 1 x Wireless module 1.5 System Specifications The technical specifications for the AFOLUX AFL-xxA-N26 series systems are listed in Table 1-2. Specification AFL-W07A-N26 AFL-08A-N26...

  • Page 26: Table 1-2: Afl-Xxa-N26 Series System Specifications

    2 x RJ-45 for LAN 2 x USB 2.0 ports (four USB 2.0 ports on the AFL-12A-N26 model) 1 x VGA connector 1 x Power button 1 x Reset button 1 x AT/ATX power switch Table 1-2: AFL-xxA-N26 Series System Specifications Page 26...

  • Page 27: Unpacking

    AFL-xxA-N26 Series Panel PC Chapter Unpacking Page 27...

  • Page 28: Unpacking

    AFL-xxA-N26 Series Panel PC 2.1 Unpacking To unpack the flat panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat panel PC has been properly installed.

  • Page 29: Packing List

    AFL-xxA-N26 Series Panel PC 2.1.1 Packing List The AFL-xxA-N26 flat panel PC is shipped with the following components: Quantity Item Image Standard AFOLUX AFL-xxA-N26 series Power adapter Power cord M3*4 flat-head screws Touch pen Thermal pad for mSATA SSD One Key Recovery CD...
  • Page 30 AFL-xxA-N26 Series Panel PC User manual CD and driver CD Optional Panel mounting kit (P/N: AFLPK-12) Wall mounting kit (P/N: AFLWK-12) Stand (P/N:STAND-A12) (P/N: ARM-11-RS) (P/N: ARM-31-RS) LCD monitor stand with adjustable hinge (P/N: VSTAND-A07/A10/A12) Page 30...
  • Page 31 AFL-xxA-N26 Series Panel PC Hybrid Card Reader (P/N: AFLP-xxAMSI-U) Magnetic card reader (P/N: AFLP-xxAMSR-U) DC 9~36 V Input UPS (P/N: AUPS-A20-R10) DC 12 V Input UPS (P/N: AUPS-A10-R10) If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 32: Installation

    AFL-xxA-N26 Series Panel PC Chapter Installation Page 32...

  • Page 33: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL-xxA-N26. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL-xxA-N26 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 34: Installation And Configuration Steps

    Over-tightening back cover screws will crack the plastic frame. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm). To access the AFL-xxA-N26 internally the back cover and the internal aluminum cover must be removed. To remove the covers, please follow the steps below.

  • Page 35: Figure 3-1: Back Cover Retention Screws

    AFL-xxA-N26 Series Panel PC Figure 3-1: Back Cover Retention Screws Remove the retention screws securing the internal aluminum cover. The screw Step 2: numbers are varied in different models. The following figures show the aluminum cover retention screws of each model.

  • Page 36: Msata Ssd Installation

    Step 0: 3.5 mSATA SSD Installation The AFL-xxA-N26 series has one PCIe Mini slot inside the rear panel for mSATA SSD installation. To install the mSATA SSD, follow the instructions below. Open the system by following the instruction described in Section 3.4.

  • Page 37: Figure 3-6: Pcie Mini Slot Location

    Attach the thermal pad onto the mSATA card. Use the thermal pad come with Step 5: the AFL-xxA-N26 to attach onto the controller chips of the mSATA card (Figure 3-8). If there is a label sticker on the mSATA card, remove the sticker first.

  • Page 38: Figure 3-8: Msata Card Thermal Pad

    AFL-xxA-N26 Series Panel PC Figure 3-8: mSATA Card Thermal Pad Replace the internal aluminum cover and the plastic back cover. Step 6: Step 0: WARNING: The mSATA card thermal pad helps draw the heat away from the mSATA components and evenly dissipates it into the heat sink on the internal aluminum cover.

  • Page 39: Hdd Installation (Af-12A-N26 Only)

    AFL-xxA-N26 Series Panel PC 3.6 HDD Installation (AF-12A-N26 Only) To install the HDD into the AF-12A-N26, please follow the steps below: Open the system by following the instruction described in Section 3.4. Step 1: Remove the four HDD bracket retention screws (Figure 3-9). Disconnect the Step 2: SATA cable and the SATA power cable.

  • Page 40: Figure 3-10: Af-12A-N26 Hdd Retention Screws

    AFL-xxA-N26 Series Panel PC Figure 3-10: AF-12A-N26 HDD Retention Screws Install the HDD into the AF-12A-N26 by aligning the retention screw holes in the Step 4: HDD brackets with the retention screw holes on the chassis. Insert the four retention screws.

  • Page 41: At/Atx Mode Selection

    Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm). 3.7 AT/ATX Mode Selection AT and ATX power modes can both be used on the AFL-xxA-N26 series. The selection is made through an AT/ATX switch on the bottom panel (Figure 3-12). To select AT mode or ATX mode, follow the steps below.

  • Page 42: Atx Power Mode

    Manufacturing shop flow 3.7.2 ATX Power Mode With the ATX mode selected, the AFL-xxA-N26 panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 43: Access The Jumpers

    Do not change the settings on the jumpers in described here. Doing so may disable or damage the system. The following jumpers are preconfigured for the AFL-xxA-N26. Users should no change these jumpers (Table 3-2). The jumper settings of the preconfigured jumpers are listed in Chapter 7 for reference.

  • Page 44: Clear Cmos Jumper

    Jumper Location: See Figure 3-13 If the AFL-xxA-N26 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close the pins for a few seconds then remove the jumper clip.

  • Page 45: Com3 Port Pin 9 Select

    AFL-xxA-N26 Series Panel PC Figure 3-13: Clear CMOS Jumper 3.8.4 COM3 Port Pin 9 Select Jumper Label: Jumper Type: 6-pin header Jumper Settings: See Table 3-4 Jumper Location: See Figure 3-14 This jumper configures pin 9 on COM3 DB-9 connector. Pin 9 on the COM3 DB-9 connector can be set as the ring (RI) signal, +5 V or +12 V.

  • Page 46: Rs-232/422/485 Serial Port Select Jumper

    AFL-xxA-N26 Series Panel PC Figure 3-14: COM3 Pin 9 Setting Jumper Location 3.8.5 RS-232/422/485 Serial Port Select Jumper Jumper Label: 12-pin header (four 3-pin headers combined) Jumper Type: Jumper Settings: See Table 3-5 Jumper Location: See Figure 3-15 The RS-232/422/485 Serial Port Select jumper sets the communication protocol used by the DB-9 serial communications port as RS-232, RS-422 or RS-485.

  • Page 47: Com4 Rs-422 And Rs-485 Pinouts

    AFL-xxA-N26 Series Panel PC Figure 3-15: RS-232/422/485 Serial Port Select Jumper Location 3.8.5.1 COM4 RS-422 and RS-485 Pinouts The pinouts for RS-422 and RS-485 operation of external serial port COM 4 are detailed below. COM 4 RS-422 Description Pin 1...

  • Page 48: Mounting The System

    PC does not fall down and get damaged. The four methods of mounting the AFOLUX AFL-xxA-N26 are listed below. Wall mounting...

  • Page 49: Figure 3-16: Wall-Mounting Bracket

    AFL-xxA-N26 Series Panel PC Figure 3-16: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mount kit into the Step 6: four screw holes on the real panel of the flat panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-17).

  • Page 50: Figure 3-17: Chassis Support Screws

    AFL-xxA-N26 Series Panel PC Align the mounting screws on the monitor rear panel with the mounting holes on Step 7: the bracket. Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-17).

  • Page 51: Panel Mounting

    AFL-xxA-N26 Series Panel PC Figure 3-18: Secure the Panel PC 3.9.2 Panel Mounting To mount the AFOLUX AFL-xxA-N26 series flat panel PC into a panel, please follow the steps below. Select the position on the panel to mount the flat panel PC.

  • Page 52: Figure 3-19: Afl-W07A-N26 Panel Opening

    AFL-xxA-N26 Series Panel PC Figure 3-19: AFL-W07A-N26 Panel Opening Figure 3-20: AFL-08A-N26 Panel Opening Figure 3-21: AFL-10A-N26 Panel Opening Page 52...

  • Page 53: Figure 3-22: Afl-12A-N26 Panel Opening

    AFL-xxA-N26 Series Panel PC Figure 3-22: AFL-12A-N26 Panel Opening Slide the flat panel PC through the hole until the frame is flush against the panel. Step 3: Insert the panel mounting clamps into the pre-formed holes along the edges of Step 4: the chassis, behind the frame.

  • Page 54: Arm Mounting

    3.9.3 Arm Mounting The AFL-xxA-N26 series is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75mm interface pad. To mount the AFL-xxA-N26 series on an arm, please follow the steps below. The arm is a separately purchased item. Please correctly mount the arm onto Step 1: the surface it uses as a base.

  • Page 55: Cabinet And Rack Installation

    PC. Step 0: 3.9.4 Cabinet and Rack Installation The AFL-xxA-N26 series flat panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below:...

  • Page 56: Figure 3-26: The Rack/Cabinet Bracket

    AFL-xxA-N26 Series Panel PC Figure 3-26: The Rack/Cabinet Bracket Insert the rack mounting clamps into the pre-formed holes along the edges of Step 2: the flat panel PC, behind the ABS/PC plastic frame. There are a total of 4 rack mounting clamps for AFL-W07A-N26/AFL-08A-N26 and 6 rack mounting clamps for AFL-10A-N26/AFL-12A-N26.

  • Page 57: Bottom Panel Connectors

    Locate the RJ-45 connectors on the bottom panel of the AFOLUX Step 1: AFL-xxA-N26 Series. Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the bottom panel of the AFOLUX AFL-xxA-N26 Series. See Figure 3-29. Page 57...

  • Page 58: Serial Device Connection (Db-9)

    Step 0: 3.10.2 Serial Device Connection (DB-9) The AFOLUX AFL-xxA-N26 Series has one male DB-9 connector on the bottom panel for serial devices to be connected. Follow the steps below to connect a serial device to the AFOLUX AFL-xxA-N26 Series panel PC.

  • Page 59: Figure 3-30: Serial Device Connector

    AFL-xxA-N26 Series Panel PC Figure 3-30: Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector. Step 0: Page 59...

  • Page 60: To Db-9 Serial Cable Connection

    AFL-xxA-N26 Series Panel PC 3.10.3 RJ-45 to DB-9 Serial Cable Connection The AFL-xxA-N26 has one serial device connector on the bottom panel. The serial device slots (RJ-45) connect to a cable with a standard DB-9 connector at the other end. Follow the steps below to connect a serial device to the AFL-xxA-N26 panel PC.

  • Page 61: Figure 3-32: Usb Device Connection

    AFL-xxA-N26 Series Panel PC Located the USB connectors. The locations of the USB connectors are shown Step 1: in Chapter 1. Align the connectors. Align the USB device connector with one of the Step 2: connectors on the bottom panel. See Figure 3-32.

  • Page 62: System Maintenance

    AFL-xxA-N26 Series Panel PC Chapter System Maintenance Page 62...

  • Page 63: System Maintenance Introduction

    AFL-xxA-N26 Series Panel PC 4.1 System Maintenance Introduction If the components of the AFOLUX AFL-xxA-N26 series fail they must be replaced. Components that can be replaced include: Wireless LAN module SO-DIMM module mSATA SSD module Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFOLUX AFL-xxA-N26 series are described below.

  • Page 64: Turn Off The Power

    AFL-xxA-N26 Series Panel PC 4.3 Turn off the Power WARNING: Failing to turn off the system before opening it can cause permanent damage to the system and serious or fatal injury to the user. Before any maintenance procedures are carried out on the system, make sure the system is turned off.

  • Page 65: Figure 4-1: Afl-10A-N26 So-Dimm Socket Location

    AFL-xxA-N26 Series Panel PC Figure 4-1: AFL-10A-N26 SO-DIMM Socket Location Remove the memory module by pulling both the spring retainer clips outward Step 5: from the socket. Grasp the memory module by the edges and carefully pull it out of the socket.

  • Page 66: Wlan Module Replacement

    AFL-xxA-N26 Series Panel PC 4.5.2 WLAN Module Replacement The AFOLUX AFL-xxA-N26 series is pre-installed one PCIe Mini wireless module. To replace the wireless module, follow the instructions below. Follow all anti-static procedures. See Section 4.2. Step 1: Turn off the power. See Section 4.3.

  • Page 67: Reinstalling The Covers

    AFL-xxA-N26 Series Panel PC Install a new WLAN module by inserting the card into the slot at an angle Step 8: Push the WLAN module down until the spring retainer clips lock into place. Step 9: Connect the two antennas.

  • Page 68: Ami Bios Setup

    AFL-xxA-N26 Series Panel PC Chapter AMI BIOS Setup Page 68...

  • Page 69: Introduction

    AFL-xxA-N26 Series Panel PC 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 70: Getting Help

    AFL-xxA-N26 Series Panel PC F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values F3 key Load optimized defaults F4 key Save changes and Exit BIOS Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help...

  • Page 71: Main

    AFL-xxA-N26 Series Panel PC 5.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 72: Advanced

    AFL-xxA-N26 Series Panel PC System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu ( B IOS Menu 2) to configure the CPU and peripheral devices...

  • Page 73: Acpi Settings

    AFL-xxA-N26 Series Panel PC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters. > RTC Wake Settings > CPU Configuration > IDE Configuration > USB Configuration ---------------------- >...

  • Page 74: Rtc Wake Settings

    AFL-xxA-N26 Series Panel PC ACPI Sleep State [S1 (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used. The system enters S1 (POS) sleep state. The (CPU...

  • Page 75: Cpu Configuration

    AFL-xxA-N26 Series Panel PC Wake System with Fixed Time [Disabled] Use the Wake System with Fixed Time option to specify the time the system should be roused from a suspended state. The real time clock (RTC) cannot generate a wake...
  • Page 76 AFL-xxA-N26 Series Panel PC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Processor Type Intel(R) Atom(TM) for Hyper-Threading CPU N2600 @ 1.60GHz Technology and Disabled EMT64 Supported...

  • Page 77: Ide Configuration

    AFL-xxA-N26 Series Panel PC Hyper-threading [Enabled] Use the Hyper-threading function to enable or disable the CPU hyper threading function. Disables the use of hyper-threading technology Disabled Enables the use of hyper-threading technology Enabled EFAULT 5.3.4 IDE Configuration Use the IDE Configuration menu (BIOS Menu 6) to change and/or set the configuration of the IDE devices installed in the system.

  • Page 78: Usb Configuration

    AFL-xxA-N26 Series Panel PC 5.3.5 USB Configuration Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 79: F81866 Super Io Configuration

    AFL-xxA-N26 Series Panel PC Legacy USB support disabled Disabled Legacy USB support disabled if no USB devices are Auto connected 5.3.6 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports.

  • Page 80: Serial Port N Configuration

    AFL-xxA-N26 Series Panel PC 5.3.6.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 1 Configuration...

  • Page 81: Serial Port [Enabled]

    AFL-xxA-N26 Series Panel PC Serial Port I/O port address is 3F8h and the IO=3F8h; IRQ=3, 4 interrupt address is IRQ3, 4 Serial Port I/O port address is 2F8h and the IO=2F8h; IRQ=3, 4 interrupt address is IRQ3, 4 Serial Port I/O port address is 3E8h and the IO=3E8h;...

  • Page 82: Serial Port [Enabled]

    AFL-xxA-N26 Series Panel PC Serial Port I/O port address is 2E8h and the IO=2E8h; interrupt address is IRQ10, 11 IRQ=10,11 Serial Port I/O port address is 250h and the IO=250h; interrupt address is IRQ10, 11 IRQ=10,11 Serial Port I/O port address is 2E0h and the IO=2E0h;...

  • Page 83: F81866 H/W Monitor

    AFL-xxA-N26 Series Panel PC Serial Port I/O port address is 250h and the IO=250h; interrupt address is IRQ10, 11 IRQ=10,11 Serial Port I/O port address is 2E0h and the IO=2E0h; interrupt address is IRQ10, 11 IRQ=10,11 5.3.7 F81866 H/W Monitor The F81866 H/W Monitor menu (BIOS Menu 10) shows the operating temperature, fan speeds and system voltages.

  • Page 84: Cpu_Fan1 Smart Fan Control [Auto Duty-Cycle Mode]

    AFL-xxA-N26 Series Panel PC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Smart Fan Mode Configuration Smart Fan Mode Select (Reference System CPU_FAN1 Smart Fan control [Auto Duty-Cycle Mode] Temperature) CPU Temperature 1 CPU Temperature 2 CPU Temperature 3...

  • Page 85: Serial Port Console Redirection

    AFL-xxA-N26 Series Panel PC The fan adjusts its speed using Auto by Auto Duty-Cycle EFAULT Duty-Cycle settings Mode System Temperature n Use the + or – key to change the System Temperature n value. Enter a decimal number between 1 and 100.

  • Page 86: Iei Feature

    AFL-xxA-N26 Series Panel PC 5.4 iEi Feature Use the iEi Feature menu (BIOS Menu 13) to configure the auto recovery function. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover...

  • Page 87: Chipset

    AFL-xxA-N26 Series Panel PC 5.5 Chipset Use the Chipset menu (BIOS Menu 14) to access the North Bridge, South Bridge, Integrated Graphics, and ME Subsystem configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 88: Host Bridge Configuration

    AFL-xxA-N26 Series Panel PC 5.5.1 Host Bridge Configuration Use the Host Bridge menu (BIOS Menu 15) to configure the Host Bridge chipset. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset >Intel IGD Configuration Select which graphics controller to use as the ******* Memory Information ******* primary boot device.

  • Page 89: South Bridge Configuration

    AFL-xxA-N26 Series Panel PC Fixed Graphics Memory Size [128MB] Use the Fixed Graphics Memory Size option to specify the maximum amount of memory that can be allocated as graphics memory. Configuration options are listed below. 128 MB EFAULT 256 MB 5.5.2 South Bridge Configuration...

  • Page 90: Power Saving Function [Disabled]

    AFL-xxA-N26 Series Panel PC Power Saving Function [Disabled] Use the Power Saving Function BIOS option to enable or disable the power saving function. Power saving function is disabled. Disabled EFAULT Power saving function is enabled. It will reduce power Enabled consumption when the system is off.

  • Page 91: Boot

    AFL-xxA-N26 Series Panel PC 5.6 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard...

  • Page 92: Quiet Boot [Enabled]

    AFL-xxA-N26 Series Panel PC Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled OEM Logo displayed instead of POST messages Enabled EFAULT Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 93: Security

    AFL-xxA-N26 Series Panel PC 5.7 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 94: Save & Exit

    AFL-xxA-N26 Series Panel PC 5.8 Save & Exit Use the Save & Exit menu (BIOS Menu 20) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 95: Save As User Defaults

    AFL-xxA-N26 Series Panel PC Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 96: Software Drivers

    AFL-xxA-N26 Series Panel PC Chapter Software Drivers Page 96...

  • Page 97: Available Software Drivers

    NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. The following drivers can be installed on the system:...

  • Page 98: Chipset Driver Installation

    AFL-xxA-N26 Series Panel PC Figure 6-1: Drivers 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Access the driver list shown in Figure 6-1 (See Section 6.2). Click “Chipset”. Step 1: The setup files are extracted as shown in Figure 6-2.

  • Page 99: Figure 6-2: Chipset Driver Screen

    AFL-xxA-N26 Series Panel PC Figure 6-2: Chipset Driver Screen When the setup files are completely extracted the Welcome Screen in Figure Step 3: 6-3 appears. Figure 6-3: Chipset Driver Welcome Screen Click Next to continue. Step 4: The license agreement in Figure 6-4 appears.

  • Page 100: Figure 6-4: Chipset Driver License Agreement

    AFL-xxA-N26 Series Panel PC Read the License Agreement. Step 6: Click the Yes icon to continue. Step 7: Figure 6-4: Chipset Driver License Agreement The Read Me file in Figure 6-5 appears. Step 8: Click Next to continue. Step 9:...

  • Page 101: Figure 6-5: Chipset Driver Read Me File

    AFL-xxA-N26 Series Panel PC Figure 6-5: Chipset Driver Read Me File Setup Operations are performed as shown in Figure 6-6. Step 10: Figure 6-6: Chipset Driver Setup Operations Page 101...

  • Page 102: Vga Driver Installation

    AFL-xxA-N26 Series Panel PC Once the Setup Operations are complete, click the Next icon to continue. Step 11: The Finish screen appears. Step 12: Select “Yes, I want to restart the computer now” and click the Finish icon. Step 13: See Figure 6-7.

  • Page 103: Figure 6-8: Vga Driver Read Me File

    AFL-xxA-N26 Series Panel PC Figure 6-8: VGA Driver Read Me File The installation files are extracted. See Figure 6-9. Step 4: Figure 6-9: VGA Driver Setup Files Extracted The Welcome Screen in Figure 6-10 appears. Step 5: Page 103...

  • Page 104: Figure 6-10: Vga Driver Welcome Screen

    AFL-xxA-N26 Series Panel PC Figure 6-10: VGA Driver Welcome Screen Click Next to continue. Step 6: The license agreement in Figure 6-11 appears. Step 7: Read the License Agreement. Step 8: Click the Yes icon to continue. Step 9: Page 104...

  • Page 105: Figure 6-11: Vga Driver License Agreement

    AFL-xxA-N26 Series Panel PC Figure 6-11: VGA Driver License Agreement The Read Me file in Figure 6-12 appears. Step 10: Click Next to continue. Step 11: Figure 6-12: VGA Driver Read Me File Setup Operations are performed as shown in Figure 6-13.

  • Page 106: Figure 6-13: Vga Driver Setup Operations

    AFL-xxA-N26 Series Panel PC Figure 6-13: VGA Driver Setup Operations Once the Setup Operations are complete, click the Next icon to continue. Step 13: The Finish screen appears. Step 14: Select “Yes, I want to restart the computer now” and click the Finish icon.

  • Page 107: Lan Driver Installation

    AFL-xxA-N26 Series Panel PC 6.5 LAN Driver Installation To install the LAN driver, please do the following. Access the driver list shown in Figure 6-1 (See Section 6.2). Click “LAN”. Step 1: The Welcome screen in Figure 6-15 appears. Step 2: Figure 6-15: LAN Driver Welcome Screen Click Next to continue.

  • Page 108: Figure 6-16: Lan Driver Welcome Screen

    AFL-xxA-N26 Series Panel PC Figure 6-16: LAN Driver Welcome Screen The program begins to install. Step 6: The installation progress can be monitored in the progress bar shown in Figure Step 7: 6-17. Figure 6-17: LAN Driver Installation When the driver installation is complete, the screen in Figure 6-18 appears.

  • Page 109: Audio Driver Installation

    AFL-xxA-N26 Series Panel PC Figure 6-18: LAN Driver Installation Complete 6.6 Audio Driver Installation To install the audio driver, please do the following. Access the driver list shown in Figure 6-1 (See Section 6.2). Click “Audio”. Step 1: Locate the setup file and double click it.

  • Page 110: Figure 6-20: Preparing Setup Screen

    AFL-xxA-N26 Series Panel PC The InstallShield Wizard is prepared to guide the user through the rest of the Step 4: process (Figure 6-20). Figure 6-20: Preparing Setup Screen Once initialized, the InstallShield Wizard welcome screen appears Step 5: (Figure 6-21).

  • Page 111: Figure 6-22: Audio Driver Software Configuration

    AFL-xxA-N26 Series Panel PC InstallShield starts to install the new software as shown in Figure 6-22. Step 7: Figure 6-22: Audio Driver Software Configuration After the driver installation process is complete, a confirmation screen appears Step 8: (Figure 6-23). Figure 6-23: Restart the Computer...

  • Page 112: Touch Screen Driver

    AFL-xxA-N26 Series Panel PC The confirmation screen offers the option of restarting the computer now or later. Step 9: For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: 6.7 Touch Screen Driver To install the touch panel software driver, please follow the steps below.

  • Page 113: Figure 6-25: License Agreement

    AFL-xxA-N26 Series Panel PC Figure 6-25: License Agreement Click N and the Installshield Wizard is ready to install the program (Figure Step 4: 6-26). Figure 6-26: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears...

  • Page 114: Wireless Driver

    AFL-xxA-N26 Series Panel PC Figure 6-27: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later (Figure Step 6: 6-28). For the settings to take effect, the computer must be restarted. Click Yes to restart the computer.

  • Page 115: Figure 6-29: Wireless Driver License Agreement

    AFL-xxA-N26 Series Panel PC A new window opens. Select the RT5392 folder. Double click the .exe file to Step 2: install the wireless LAN driver. The license agreement in Figure 6-29 appears. Step 3: Figure 6-29: Wireless Driver License Agreement Accept the conditions of the license agreement and click N to continue.

  • Page 116: Figure 6-30: Wireless Driver Configuration Tool Options

    AFL-xxA-N26 Series Panel PC Figure 6-30: Wireless Driver Configuration Tool Options Select configuration tool in Figure 6-30 and click N to continue. Step 6: The Wireless Mode Options window in Figure 6-31 appears. Step 7: Figure 6-31: Wireless Mode Select Window Click N in Figure 6-31.

  • Page 117: Figure 6-32: Wireless Driver Installation

    AFL-xxA-N26 Series Panel PC Figure 6-32: Wireless Driver Installation When the installation is finished. Click F in the termination screen. Step 10: Step 0: INISH Page 117...

  • Page 118: Interface Connectors

    AFL-xxA-N26 Series Panel PC Chapter Interface Connectors Page 118...

  • Page 119: Peripheral Interface Connectors

    AFL-xxA-N26 Series Panel PC 7.1 Peripheral Interface Connectors The AFL-xxA-N26 series panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 7-1 and Figure 7-2. The Pin 1 locations of the on-board connectors are also indicated in the diagrams below.

  • Page 120: Internal Peripheral Connectors

    Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the AFL-xxA-N26 motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 121: Table 7-1: Peripheral Interface Connectors

    AFL-xxA-N26 Series Panel PC Connector Type Label HDD LED connector 2-pin wafer HDD_CN1 I2C connector (solder side) 4-pin wafer LVDS connector 20-pin crimp LVDS1 LVDS backlight connector 6-pin wafer INVERTER1 MCU connector (solder side) 9-pin wafer HOTKEY_CN1 MCU connector 10-pin header...

  • Page 122: Audio Speaker-Out Connector (Cn3)

    AFL-xxA-N26 Series Panel PC 7.2.1 Audio Speaker-out Connector (CN3) PIN NO. DESCRIPTION AUD_OUTL+ AUD_OUTL- AUD_OUTR- AUD_OUTR+ Table 7-2: Audio Line-out Connector (CN3) Pinouts 7.2.2 Audio MIC-in Connector (MIC1) PIN NO. DESCRIPTION MIC1_IN_L AGND_AMP MIC_JD MIC1_IN_R Table 7-3: Audio MIC-in Connector (MIC1) Pinouts 7.2.3 Audio DMIC-in Connector (DMIC1)

  • Page 123: Battery Connector (Cn1)

    AFL-xxA-N26 Series Panel PC 7.2.4 Battery Connector (CN1) PIN NO. DESCRIPTION Battery +3.3V Table 7-5: Battery Connector (CN1) Pinouts 7.2.5 COM2 Connector (COM2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION RFID_INT Table 7-6: COM2 Connector Pinouts 7.2.6 CPU Fan Connector (CPU_FAN1) PIN NO.

  • Page 124: Hdd Led Connector (Hdd_Cn1)

    AFL-xxA-N26 Series Panel PC 7.2.8 HDD LED Connector (HDD_CN1) PIN NO. DESCRIPTION HD_LED Table 7-9: HDD LED Connector (HDD_CN1) Pinouts 7.2.9 I2C Connector (CN4) PIN NO. DESCRIPTION SMBDATA SMBCLK Table 7-10: I2C Connector (CN4) Pinouts 7.2.10 LVDS Connector (LVDS1) PIN NO.

  • Page 125: Lvds Backlight Connector (Inverter1)

    AFL-xxA-N26 Series Panel PC 7.2.11 LVDS Backlight Connector (INVERTER1) PIN NO. DESCRIPTION +12V +12V BLON BRIGHTNESS Table 7-12: LVDS Backlight Connector (INVERTER1) Pinouts 7.2.12 MCU Connector (JP8) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MCLR MCU_IR ICSPCLK AUTO_CLK ICSPDAT AUTO_DATA Table 7-13: MCU Connector (JP8) Pinouts 7.2.13 MCU Connector (HOTKEY_CN1)

  • Page 126: Pcie Mini Slot (M_Pcie1)

    AFL-xxA-N26 Series Panel PC 7.2.14 PCIe Mini Slot (M_PCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION WAKE# VCC3 RESERVED RESERVED VCC1.5 CLKREQ# REFCLK0- REFCLK0+ PERST# PERn3 VCC3_AUX PERp3 VCC1.5 SMB_CLK PETn3 SMB_DATA PETp3 USB6_DATA- RESERVED USB6_DATA+ RESERVED RESERVED LED_WWAN# RESERVED LED_WLAN#...

  • Page 127: Pcie Mini Slot (M_Pcie2)

    AFL-xxA-N26 Series Panel PC 7.2.15 PCIe Mini Slot (M_PCIE2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION WAKE# VCC3 RESERVED RESERVED VCC1.5 CLKREQ# REFCLK1- REFCLK1+ PERST# PERn0 VCC3_AUX PERp0 VCC1.5 SMB_CLK PETn0 SMB_DATA PETp0 USB7_DATA- RESERVED USB7_DATA+ RESERVED RESERVED LED_WWAN# RESERVED LED_WLAN#...

  • Page 128: Power Led Connector (Pw_Led1)

    AFL-xxA-N26 Series Panel PC 7.2.16 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V SUS PW LED +5V Table 7-17: Power LED Connector (PW_LED1) Pinouts 7.2.17 Power Button Connector (PW_BTN1) PIN NO. DESCRIPTION PW_BN Table 7-18: Power Button Connector (PW_BTN1) Pinouts 7.2.18 SATA Power Connector (SATA_PWR1)

  • Page 129: Touch Panel Connector (Ts1)

    AFL-xxA-N26 Series Panel PC 7.2.20 Touch Panel Connector (TS1) PIN NO. 8-Wire 4-Wire 5-Wire Right Sense Left Sense Bottom Sense Top Sense Sense (S) Right Excite Right LR (X) Left Excite Left LL (L) Bottom Excite Bottom UR (H) Top Excite...

  • Page 130: Usb Connector (Usb1)

    AFL-xxA-N26 Series Panel PC TFT_B2 TFT_B1 DOTCLK TFT_B0 Table 7-22: TTL Panel Connector (CN6) Pinouts 7.2.22 USB Connector (USB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5Vsus D0F- D1F+ D0F+ D1F- +5Vsus Table 7-23: USB Connector (USB1) Pinouts 7.2.23 USB Connector (USB2) PIN NO.

  • Page 131: Usb Connector (Usb3)

    +3.3V Table 7-26: USB2 and USB3 Power Connector (JP18) Pinouts 7.3 External Interface Panel Connectors The table below lists the rear panel connectors on the AFL-xxA-N26 motherboard. Pinouts of these connectors can be found in the following sections. Connector Type...

  • Page 132: Audio Line-Out Connector (Aux1)

    AFL-xxA-N26 Series Panel PC 7.3.1 Audio Line-out Connector (AUX1) PIN NO. DESCRIPTION OUTL AMP_INL AMP_INR OUTR Table 7-28: Audio Line-in Connector (AUX1) Pinouts 7.3.2 Ethernet Connector (LAN1, LAN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_MDI0+ LAN1_MDI0- LAN1_MDI1+ LAN1_MDI1- LAN1_MDI2+ LAN1_MDI2-...

  • Page 133: Serial Port (Com1, Rj-45)

    AFL-xxA-N26 Series Panel PC 7.3.4 RS-232 Serial Port (COM1, RJ-45) PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD1 NTX1 NDSR1 NCTS1 NRX1 NDTR1 NRTS1 NRI1 Table 7-31: RS-232 Serial Port (COM1) Pinouts 7.3.5 RS-232/422/485 Serial Port (COM3/COM4, DB-9) PIN NO. DESCRIPTION PIN NO.

  • Page 134: Reset Button Connector (Rst1)

    AFL-xxA-N26 Series Panel PC 7.3.6 Reset Button Connector (RST1) PIN NO. DESCRIPTION RST_SW Table 7-35: Reset Button Connector (RST1) Pinouts 7.3.7 USB 2.0 Connectors (USB4) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5Vsus +5Vsus D4F- D5F- D4F+ D5F+ Table 7-36: USB 2.0 Connectors (USB4) Pinouts 7.3.8 VGA Connector (VGA1)

  • Page 135: Preconfigured Jumper Settings

    AFL-xxA-N26 Series Panel PC 7.4 Preconfigured Jumper Settings The following jumpers are preconfigured for the AFL-xxA-N26. Users should not change these jumpers ( T able 7-38). It is only for reference. Jumper Name Label Type Backlight voltage selection J_BL1 3-pin header...

  • Page 136: Lvds Panel Voltage Selection Jumper (J_Vlvds1)

    AFL-xxA-N26 Series Panel PC 7.4.4 LVDS Panel Voltage Selection Jumper (J_VLVDS1) Description Short 1-2 +3.3 V (Default) Short 2-3 +5 V Table 7-42: LVDS Voltage Selection Jumper (J_VLVDS1) Settings 7.4.5 Touchscreen Selection Jumper (J1) Description Short 1-2 5-wire (Default) Short 3-4...

  • Page 137: A Safety Precautions

    AFL-xxA-N26 Series Panel PC Appendix Safety Precautions Page 137...

  • Page 138: Safety Precautions

    Do not apply voltage levels that exceed the specified voltage range. Doing so may cause fire and/or an electrical shock. Electric shocks can occur if the AFOLUX AFL-xxA-N26 series chassis is opened when the AFOLUX AFL-xxA-N26 series is running. Do not drop or insert any objects into the ventilation openings of the AFOLUX AFL-xxA-N26 series.

  • Page 139: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFOLUX AFL-xxA-N26 series. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFOLUX AFL-xxA-N26 series is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 140: Product Disposal

    A.2 Maintenance and Cleaning Precautions When maintaining or cleaning the AFOLUX AFL-xxA-N26 series, please follow the guidelines below. A.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the AFOLUX AFL-xxA-N26 series, please read the details below. Page 140...

  • Page 141: Cleaning Tools

    AFL-xxA-N26 series. A.2.2 Cleaning Tools Some components in the AFOLUX AFL-xxA-N26 series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the AFOLUX AFL-xxA-N26 series.
  • Page 142 AFL-xxA-N26 Series Panel PC Foam swabs - Whenever possible, it is best to use lint free swabs such as foam swabs for cleaning. Page 142...

  • Page 143: B Bios Configuration Options

    AFL-xxA-N26 Series Panel PC Appendix BIOS Configuration Options Page 143...

  • Page 144: Bios Configuration Options

    AFL-xxA-N26 Series Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 5. 　 BIOS Information .........................71 　 System Date [xx/xx/xx] ......................71 　 System Time [xx:xx:xx] .......................72 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................74 　...
  • Page 145 AFL-xxA-N26 Series Panel PC 　 Administrator Password .....................93 　 User Password ........................93 　 Save Changes and Reset ....................94 　 Discard Changes and Reset ....................94 　 Restore Defaults ........................94 　 Save as User Defaults ......................95 　 Restore User Defaults ......................95 Page 145...

  • Page 146: C Watchdog Timer

    AFL-xxA-N26 Series Panel PC Appendix Watchdog Timer Page 146...
  • Page 147 NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 148: Example Program

    AFL-xxA-N26 Series Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 149: D Hazardous Materials Disclosure

    AFL-xxA-N26 Series Panel PC Appendix Hazardous Materials Disclosure Page 149...

  • Page 150: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFL-xxA-N26 Series Panel PC D.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 151 AFL-xxA-N26 Series Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 152 AFL-xxA-N26 Series Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
