The Current Fixture Firmware tab of the
Fixture & Firmware Library window
allows you to change the current fixture
firmware for each of the available fixture
series. You can set the series' firmware to
any of the firmware versions which are
available in internal memory, or which have
been uploaded to the User Library by the
user.
Updating firmware in one panel
To install new video panel firmware in a selected panel:
1. See Figure 46. In the P3-100 application, open the Setup window. The Configured Devices list on the
left of the screen lists the panels that are connected and configured. Each panel has a line in the list
consisting of a plus sign, green button and panel type. Click on the plus sign to view the panel's serial
number.
2. Click on the panel's serial number to open Device Properties for that panel at the bottom of the screen.
3. Click on the Reload Firmware button at the bottom of the Device Properties pane and follow the
instructions on the monitor screen.
4. Finally, de-select the panel in the Configured Devices list.

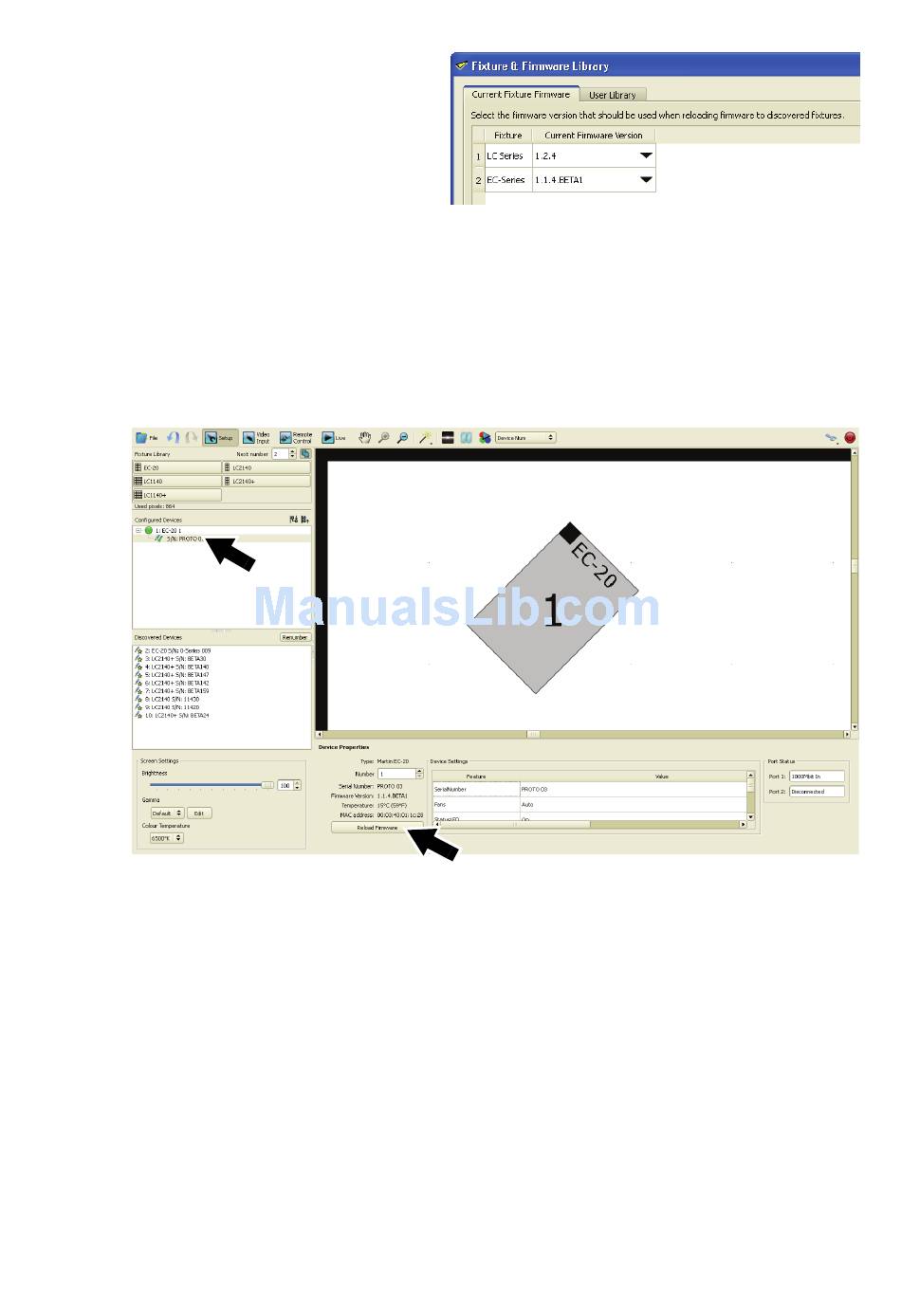

Figure 46: Reloading firmware in a single panel
Service
Figure 45: Current Fixture Firmware tab
