4. See Figure 23. Check that each panel has the correct display address for its position in the installation
with reference to the panel numbers in your on-screen installation. If the panel's display address is not
correct, enter its correct display address in the Number box (arrowed) under Device Properties. The
panel's display address should now be correctly matched to its position in the physical installation.
Note! Physical panels in the installation must have the correct display address for their position in
the physical installation. You cannot give a panel a correct address by dragging it with the mouse to a
new location in the on-screen installation – doing this will not change the display address of the
panel, it will simply move the part of the video image displayed by that panel to the wrong position in
the physical installation. If a physical panel has an incorrect display address number for its position
in the installation, you must enter Device Properties for that panel and set its display address to the
correct number as described above.
5. Once you have given correct display address numbers to panels in the Configured Devices window,
repeat this process for any panels in the Discovered Devices list. Click on the panel name to open its
Device Properties and give the panel the correct display address number for its position in the physical
display. Each time you give a correct address number to a detected panel, it will appear in the Configured
Devices list with a green bullet-point to show that the detected physical panel has been configured and is
assigned to a panel in the on-screen installation.
6. Enable the Device Numbers test pattern and check that on-screen and physical panels have the same
display address numbers. If necessary, go back and adjust any incorrect address numbers as described
earlier until the installation is correctly laid out.
7. Deactivate the test pattern. The on-screen installation now matches the physical installation, and you are
ready to set up the video input. Go to "3. Setting up video display" on page 28.

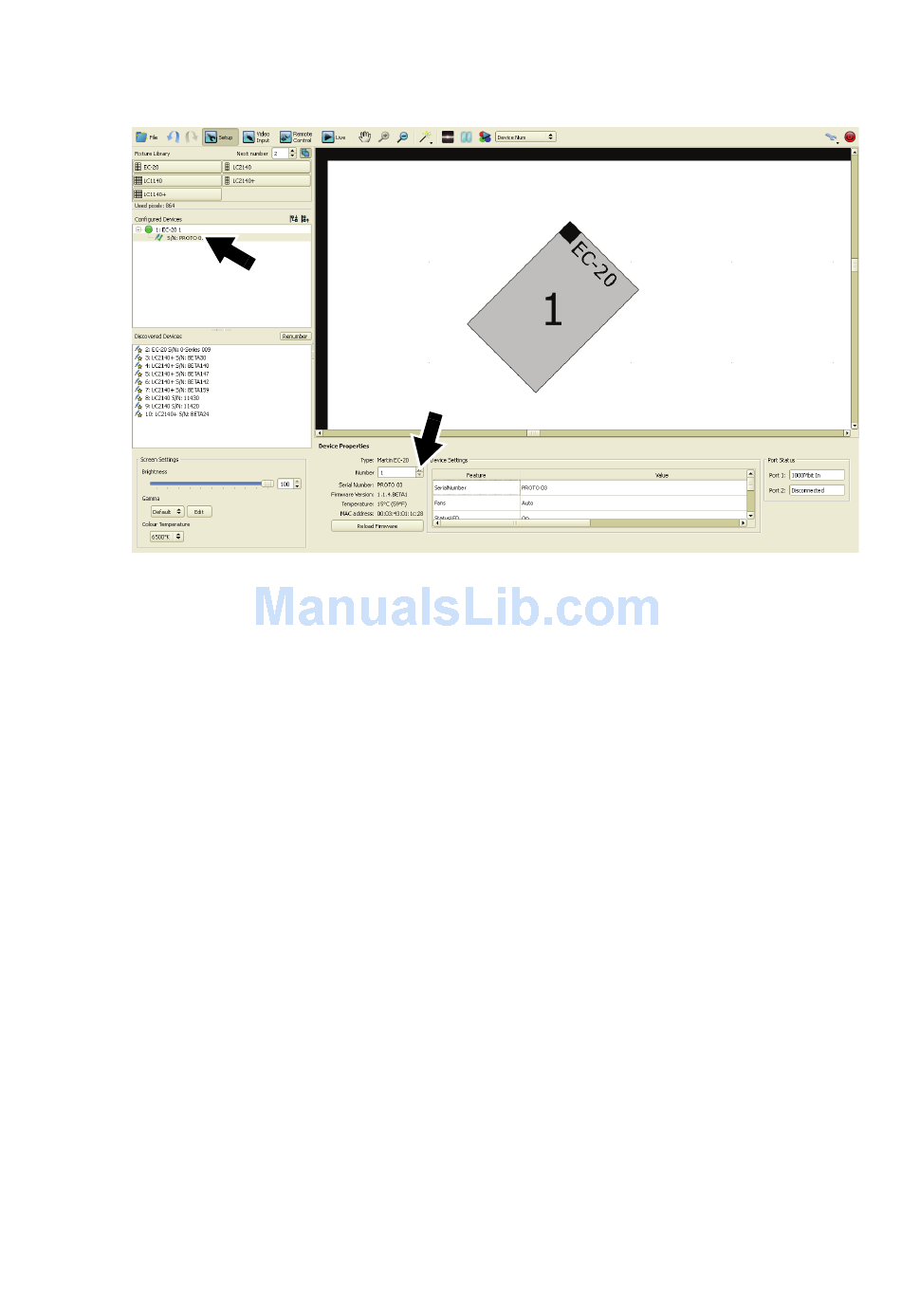

Figure 23: Device Properties for Configured Devices
