Remote viewing via network
The P3-100 also features a built-in
webserver that allows remote
access to status information via a
network.
To access status info over a
network:
1. Plug a network cable into
Ethernet port 1 on the P3-100's
rear panel to connect the
P3-100 to the network.
2. Click on the Hardware Settings
button in the Tools menu.
3. See Figure 44 on page 46. If
using DHCP, make sure the Use
DHCP checkbox under Network
Settings is checked. Otherwise
enter static IP address, subnet
mask and gateway details.
4. Start a web browser on a PC on
the network and open the
address http:// followed by the
IP address shown under Web
Server in the Hardware
Settings window. This connects
you to the P3-100 and opens a
webpage containing status
information for the P3-100 and
all connected panels (see
Figure 43).

Managing panel utilities from the P3-100

You can manage panel utilities remotely from the P3-100 by clicking on the panel's serial number in the
Configured Devices pane. This opens the Device Properties pane at the bottom of the screen, with the
following options available:
• Control the fans (LC panels only)
• Turn the multicolor Status LED on the back of the panel on or off (LC, LC+, EC)
• Call up internal test patterns on panels (LC, LC+, EC)
• Set the brightness of the internal test patterns on panels (LC, LC+, EC)
• View the firmware version of a panel (LC, LC+, EC)
• Switch between calibrated and uncalibrated modes (EC)
• Check Date Codes of installed LED Blocks (EC)
• Dim the LCD display on the back of the panel (LC, LC+)
44

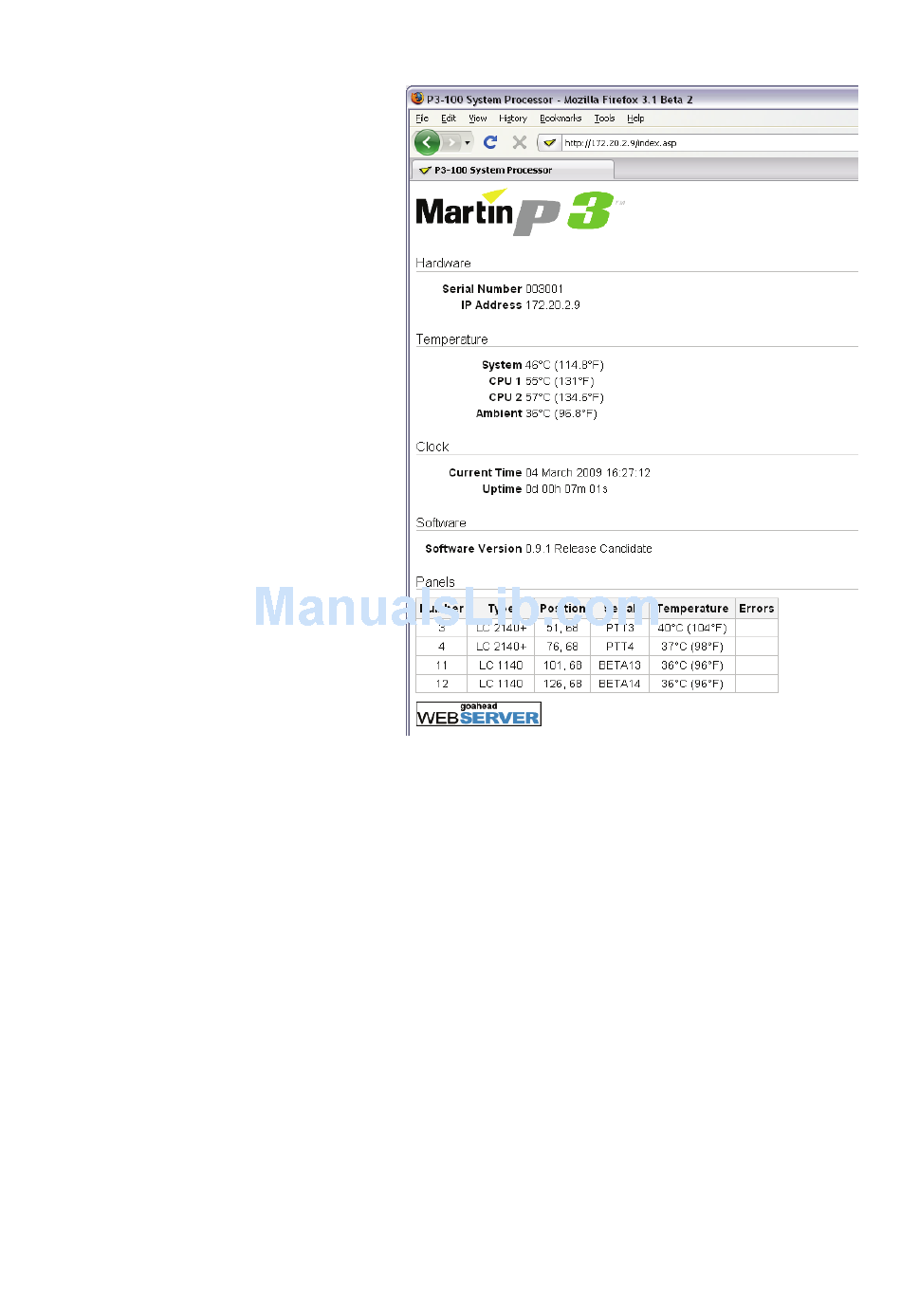

Figure 43: System info via network
