Grouping panels
You can group panels by selecting
them, then right-clicking and choosing
Group in the pop-up menu. See Figure
15. Grouped panels have a colored
dotted line around them and are
highlighted in that color when selected.
If you select a group, the Group
Properties window opens, where you
can:
• Give the group a name.
• Adjust the color for the dotted line
and highlighting on the canvas.
• Adjust the position for the group.
• Rotate the group around any anchor
position (center of rotation) that you
define.
• Define intensity and color correction
for that group.
Groups are listed in the Configured
Devices window, where you can click on a group to select it on the canvas.
To select a group on the canvas, click on it. To select a panel in a group on the canvas, double-click on that
panel.
To ungroup panels, right-click on the group and select Ungroup.
If no panels are connected to the P3-100 but a video source is connected, go to "3. Setting up video display"
on page 28 to continue preparing the installation offline, then return to the section below when you connect
panels. If panels are connected to the P3-100, continue below.

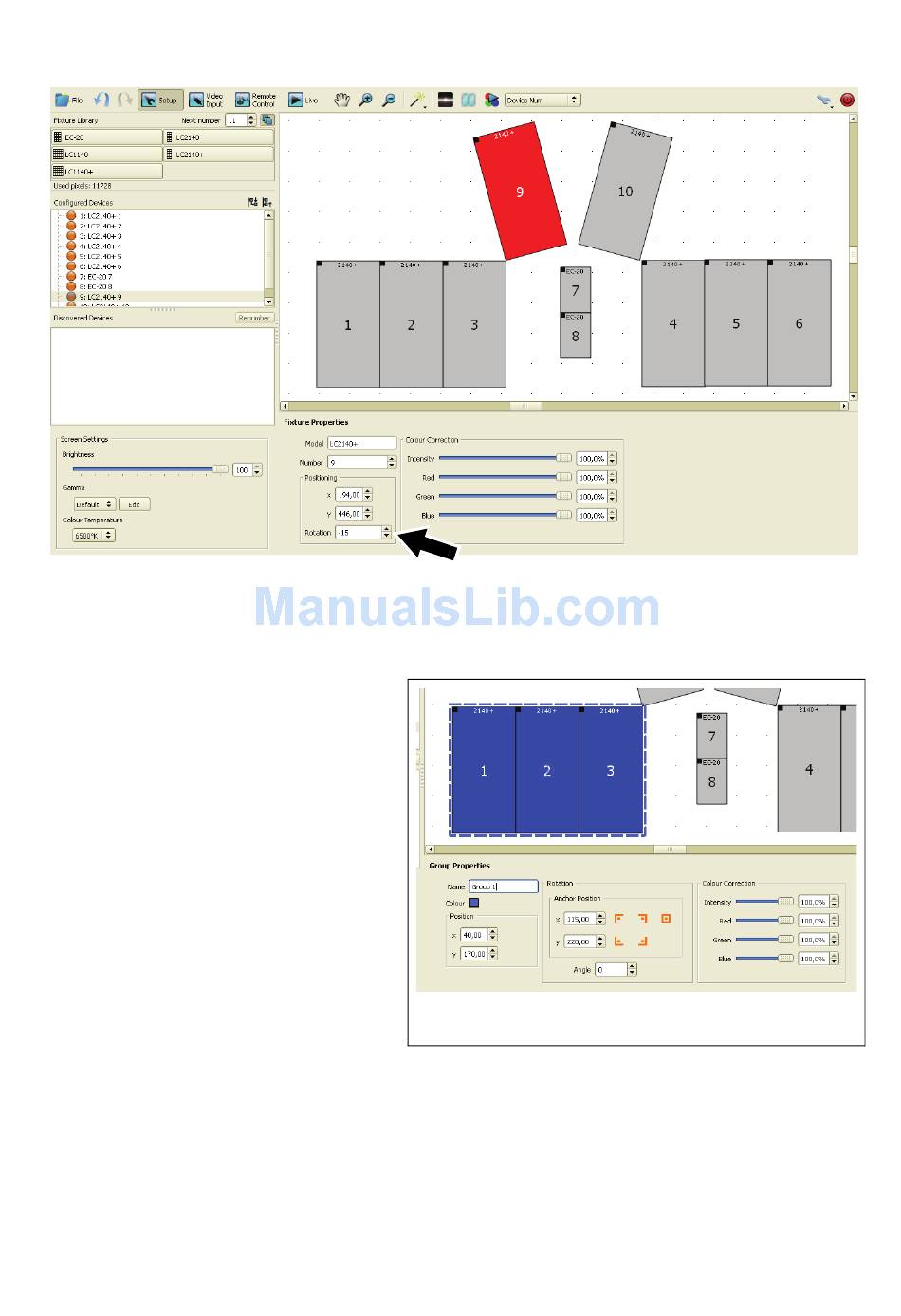

Figure 14: Panel rotation in Setup view
Setup
Figure 15: Panel groups
