Multi-controller system
You can use two (or more) P3-100s if you want to control installations that exceed the maximum number of
pixels that can be controlled by a single P3-100 (typically 500 000). The P3-100s will receive the same video
from a DVI and/or Analog Video Splitter, but will each control only a part of the total setup.
Split your installation into multiple parts, each containing maximum 500 000 pixels. Each part is then
controlled by a separate P3-100 and wired via independent Ethernet Cables and Gigabit Ethernet Switches.
The synchronous processing of the P3-100s guarantees that all parts of the installation are synchronized.

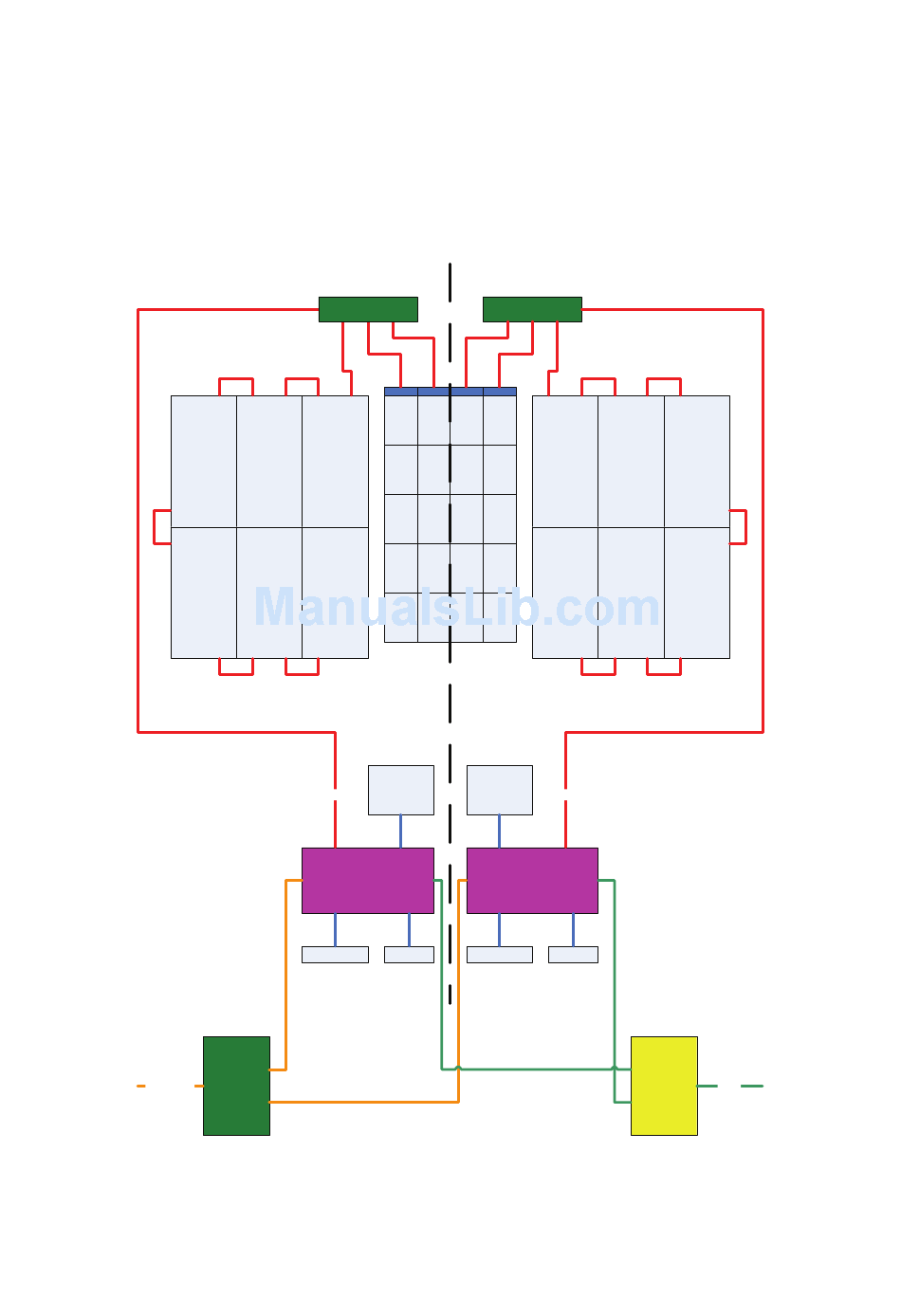

See the system diagram in Figure 38 for an example of a stacked installation:
LC2140+ LC2140+
LC2140+ LC2140+
DVI and/or
DVI and/or
Analog Video
Analog Video In
Splitter
Figure 38: Multiple P3-100 controller system
1Gbit Ethernet Switch
EC-20 EC-20 EC-20
LC2140+
EC-20 EC-20 EC-20
EC-20 EC-20 EC-20
EC-20 EC-20 EC-20
LC2140+
EC-20 EC-20 EC-20
Monitor Monitor
P3
P3-100 A
Keyboard Mouse Keyboard
Setup
1Gbit Ethernet Switch
EC-20
LC2140+ LC2140+
EC-20
EC-20
EC-20
LC2140+ LC2140+
EC-20
P3
P3-100 B
Mouse
DMX Splitter
LC2140+
LC2140+
DMX In
