4. When you click on the Quick Addressing Tool and have decided whether you want to address all panels
or just the discovered panels that are not yet configured, the first physical panel to address will display a
white pattern, and the panels to choose from in the on-screen installation will appear yellow. Click on the
panel in your on-screen installation that corresponds to the white panel in the physical installation and
repeat this operation until all panels have been given display address numbers.
5. If you enable the Device Numbers test pattern while using the Quick Addressing Tool, you can see
which panels in the installation have been given address numbers.
6. See Figure 19. The Quick Addressing Tool has its own toolbar with the
following options:
- Step to next discovered device (without linking the currently highlighted
physical device to a fixture in the configuration).
- Restart quick addressing process.
- Close Quick Addressing Tool.
7. See Figure 20. When you have finished
addressing panels, click on the test pattern
button (arrowed) in the toolbar to activate a
test pattern over the whole physical
installation. Select Device Num from the
scroll-down list of pattern types beside the
button. The panels should now show their
display addresses as large numbers. An
arrow will indicate their up/down orientation,
and angles will indicate panel corners.
8. Check that display addresses in the physical
installation are correct. If you have made a
mistake during addressing, you can either
restart the Quick Addressing process or
adjust any incorrect display addresses as
described in "2.C Manually adding panels
and adjusting display address numbers" on
page 24 until the installation is correctly laid
out.

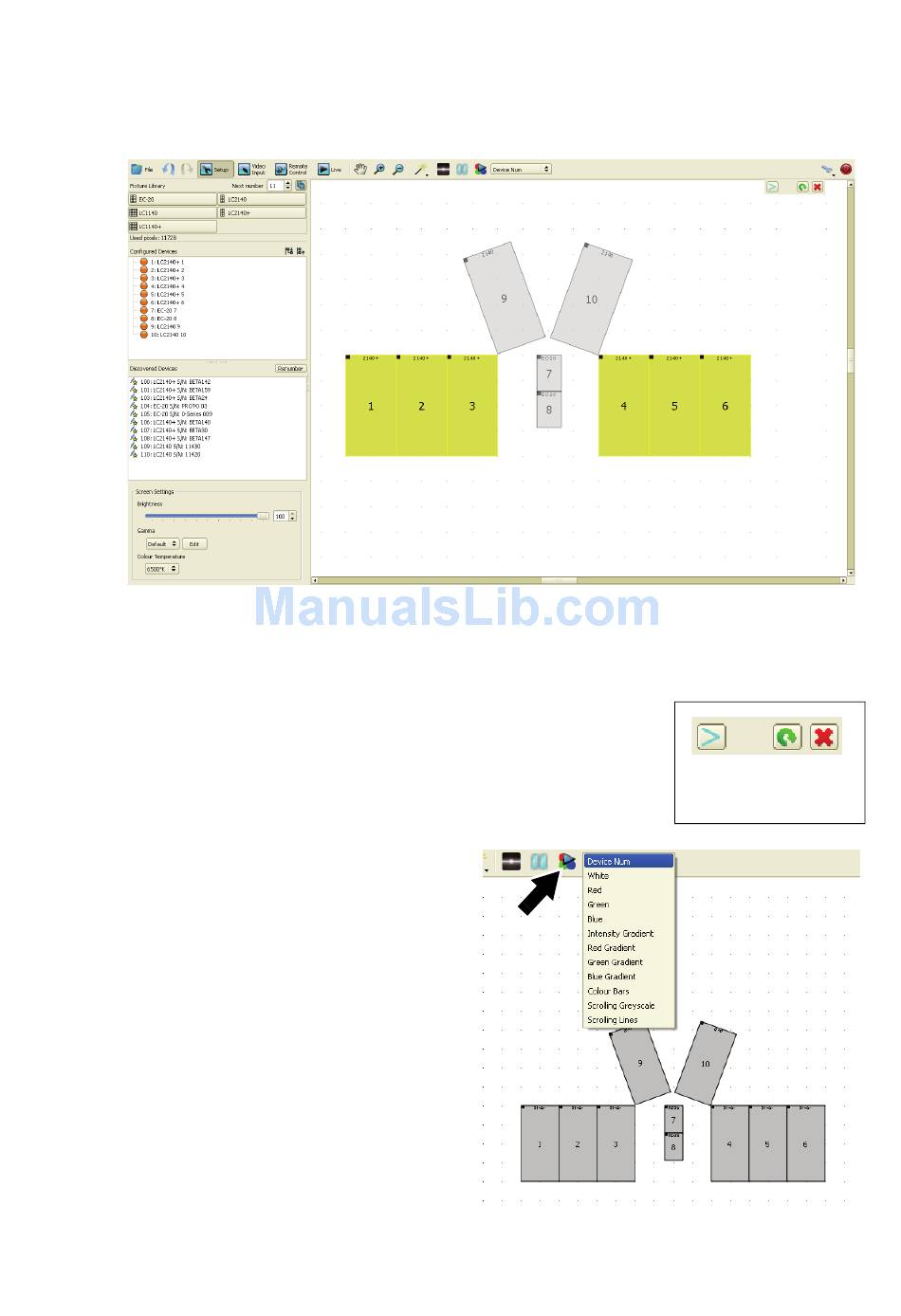

Figure 18: Quick addressing
Setup
Figure 19: Quick
Addressing Toolbar
Figure 20: Test pattern
