  • Page 1 Mania PR1 user manual...
  • Page 2 © 2003-2004 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in China. P/N 35000148, Rev. B.
  • Page 3: Table Of Contents

    Focusing the Mania PR1 ........
  • Page 4 Mania PR1 user manual...
  • Page 5: Introduction

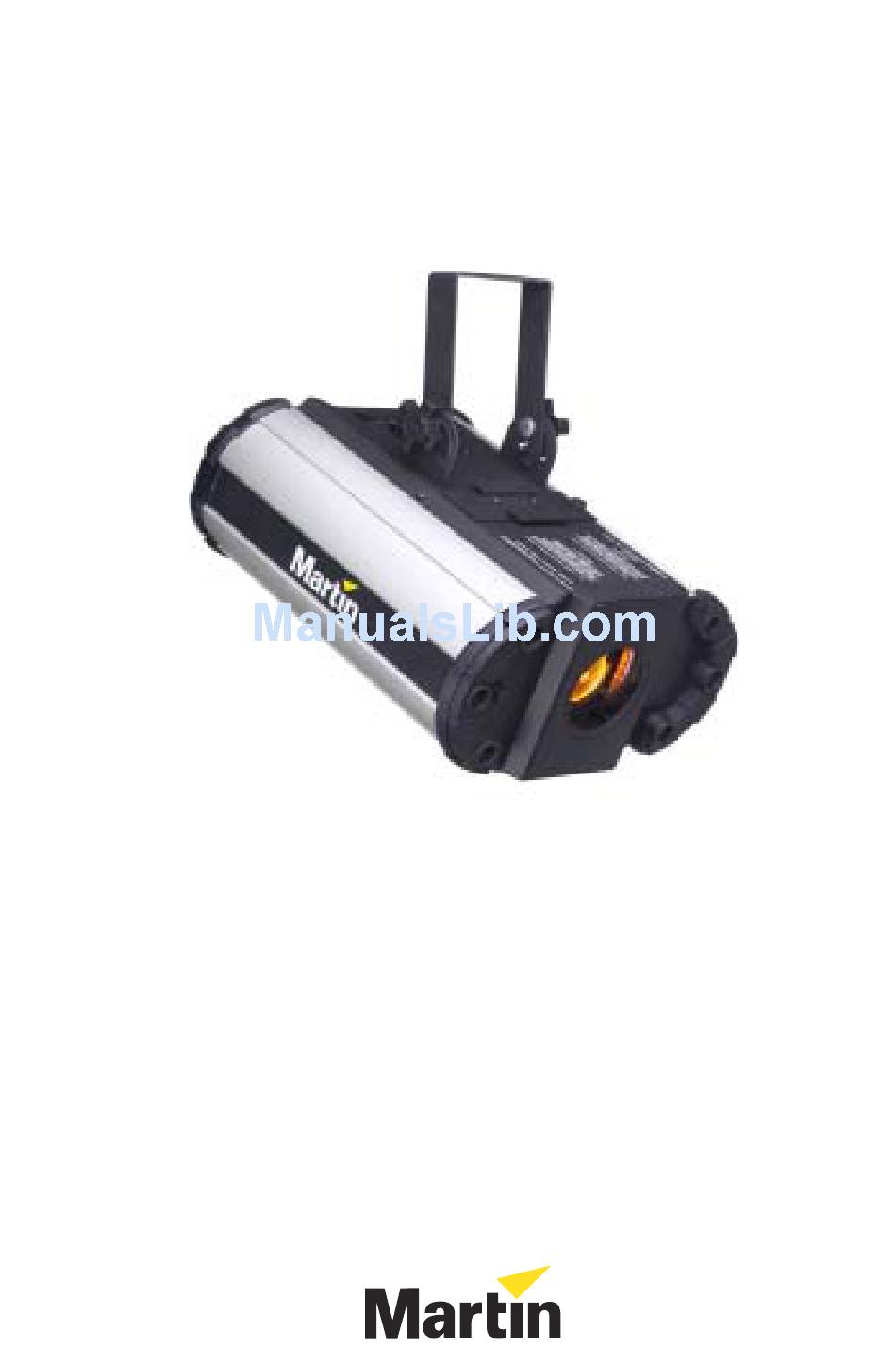

    NTRODUCTION Thank you for selecting a Martin Mania PR1. The Mania PR1 is a gobo projector with a motorized rotating gobo. Gobo rotation speed and direction can be adjusted, and a remote control is supplied with the product. The beam angle can be adjusted from 25° to 32°. A 43° beam angle can also be obtained using a separately available accessory.
  • Page 6 The lamp must be changed if it becomes damaged or thermally deformed. If the external power cord of this luminaire is damaged, it must be replaced by a special cord exclusively available from your Martin dealer. Avoiding electric shocks Warning Always disconnect from mains power before replacing the lamp, fuses, or any part, and when not in use.
  • Page 7: Unpacking

    U N P A C K I N G The packing material is carefully designed to protect the fixture during shipment - always use it to transport the fixture. The Mania PR1 is packaged with the following: • 3-wire power cable • User manual •...
  • Page 8: Mania Pr1 Overview

    M A N I A P R 1 O V E R V I E W Cooling vent Gobo rotation speed Safety cable attachment eye AC supply setting Mains switch Remote control input Mains socket Remote control output Fuse holder Cooling fan Thumb screw (cover lock) Gobo rotation direction switch Mania PR1 user manual...
  • Page 9: Installation

    Martin dealer. Configuring for local mains power The Mania PR1 has a switch-selectable power supply that can operate in the following voltage ranges at 50-60 Hz: • 115 - 120 volts (setting 115) •...
  • Page 10: Overhead Mounting

    2 Turn the power on using the mains switch. O V E R H E A D M O U N T I N G The Mania PR1 is designed to be hung overhead with a clamp (not included). Mania PR1 user manual...
  • Page 11 Always use a secure means of secondary attachment. For indoors use only. To hang the Mania PR1 on an overhead support: 1 Verify that the structure can support at least 10 times the weight of all installed fixtures, clamps, cables, auxiliary equipment, and other items.
  • Page 12: Operation

    40 mm (1.6 in.). To change the gobo/texture glass: 1 Switch the mains power off and allow the fixture to cool for 20 minutes. 2 Unscrew the gobo access hatch on the top of the fixture. Mania PR1 user manual...
  • Page 13 3 Lift the gobo holder out of the fixture. 4 The gobo/texture glass is held in place by a steel spring. Remove the spring to remove the gobo/texture glass that is presently installed. Lamp side Front lens side 5 Install the replacement gobo or textured glass. Note that the coated or textured side should face the lamp.
  • Page 14: Installing A Color Filter

    F O C U S I N G T H E M A N I A P R 1 The focus is adjusted using the dial next to the lens. Twist the dial until a sharp image is acquired. Mania PR1 user manual...
  • Page 15: Gobo Rotation

    R E M O T E C O N T R O L O P E R A T I O N The remote control unit can control up to four daisy- chained Mania PR1s. Connect the remote control to the RJ-45 In connector on the first Mania PR1 fixture Rotation speed Rotation speed and connect successive fixtures using the RJ-45 Out connector.
  • Page 16: Basic Service

    C L E A N I N G Regular cleaning of the elements in the optical path, as well as the air vents, is vital to maintaining the operational quality of the Mania PR1. Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes overheating and damage to the fixture that is not covered by the warranty.
  • Page 17: Lamp Maintenance

    Caution Hot lamp. Important The Mania PR1 is supplied with a Philips 6958 24V 250W 10H lamp (Martin P/N 97000115) with an average life of 1000 hours. The fixture must only be used with this lamp. Using any other Basic service...
  • Page 18 2 Remove the thumb screw holding the cover in place. 3 Slide the fixture cover open. 4 Gently grasp the bulb as close to the base as possible and lever it out of the bulb socket. Mania PR1 user manual...
  • Page 19: Reconfiguring The Beam

    5 Replace the bulb. Use only a Philips 6958 24V 250W 10H lamp (Martin P/N 97000115). Warning Installing any other lamp may damage the fixture! 6 Close the fixture cover and tighten the thumb screw, taking care not to trap any loose wires.
  • Page 20 2mm Allen bolts around the lens. 6. Working inside the fixture, grasp the lens module and twist it counterclockwise so that it is released from the mounting screws. Lift the lens module out of the fixture. Mania PR1 user manual...
  • Page 21 7. Prepare a soft cloth or similar device to catch components if they fall out of the lens module. 8. See illustration below. Open the lens module by unscrewing the retaining ring (D). To obtain a 32° beam angle, remove the concave lens (C) and thin spacer (B).
  • Page 22: Lens Assembly

    R E P L A C I N G T H E M A I N S F U S E The Mania PR1 uses a time-delay fuse for protection against current overload. An indication that the fuse may have blown is that when power is applied and the lamp is switched on, no light is produced.
  • Page 23: Troubleshooting

    Burned out lamp Install new lamp Fixture too hot Allow to cool Improve air flow around fixture No action Electrical malfunction Refer to a Martin service technician Fuse blows repeatedly Electrical malfunction Refer to a Martin service technician Troubleshooting...
  • Page 24: Specifications

    PECIFICATIONS P H Y S I C A L Size without mounting bracket (LxWxH) . . .340x290x158 mm (13.4x11.4x6.2 in.) Weight..........9 kg (19.8 lbs) C O N S T R U C T I O N Housing.
  • Page 25 O R D E R I N G I N F O R M A T I O N Mania PR1 US version ........P/N 90430031 Mania PR1 non-US version .
