System layout

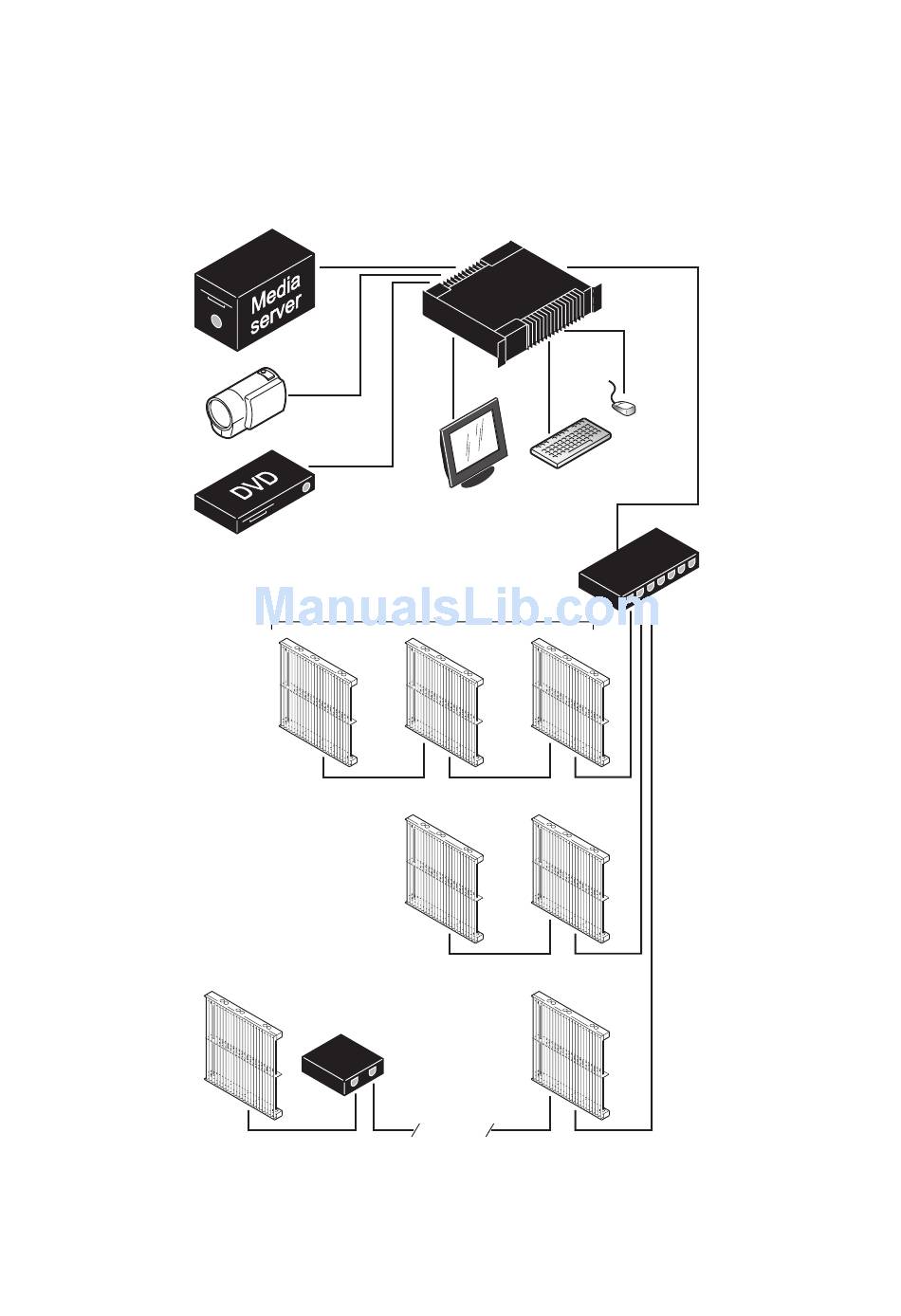

Figure 3 is given for reference only and shows how an entire system consisting of a P3-100 System
Controller and LC Plus panels should be laid out and connected. For full details of panel installation –
including important safety information – refer to the user documentation supplied with panels and available for
download free of charge from www.martin.com
P3-100 Controller
P3 signal
DVI
DVI-D
Mouse
Analog Keyboard
video
Monitor
1GB Ethernet
switch required
if installation
exceeds 50 panels
Max. 50 panels per daisy-chain
1GB Ethernet
switch required
if cable length
exceeds 100 m
100 m
cable
Figure 3: System layout
