2. Right-click on a preset button and select Properties to rename that
preset and either select whether the system should snap to that preset
immediately or select the number of seconds the system should take to
fade to that preset.
3. Left-click on a preset button to recall the Video Input configuration from
that preset.
Note that presets recall only Video Input configuration data: they do not
contain Setup or Remote Control data.

4. Setting up remote control via DMX

You can control a range of parameters in your video display by sending DMX values from a DMX controller
connected to the P3-100. To set up DMX control, you must open the Remote Control view (see Figure 33)
and click-and-drag Controls from the list at A over to the patch pane B to patch them to DMX channels.
Where 16-bit control is available, two DMX channels are used. The first channel offers standard 8-bit control,
and the channel immediately above it offers fine adjustment of the value set on the first channel.
Global Controls
Global Controls apply to all the panels in the installation and can be patched only once:
• Screen control allows you to select live video input, freeze, blackout or display a test pattern on the entire
video display.
• Preset Recall allows you to call up any configuration presets saved under Presets at the bottom of the
Video Setup window.
• Colour Temperature allows you to adjust the color temperature of the entire video display. You can select
8-bit or 16-bit control.
Segment Controls
A segment can contain a single panel, a group of panels, or all the panels in the installation, depending on
how you set up the segment control. Segment Controls can therefore be patched multiple times per P3-100
System Controller:
• Intensity allows you to modify total intensity
• Red, Green and Blue allow you to modify the intensity of individual colors
• X Position and Y Position allow you to modify the position of the video image in the segment
• Rotation allows you to modify the rotation of the video image in the segment
32
A

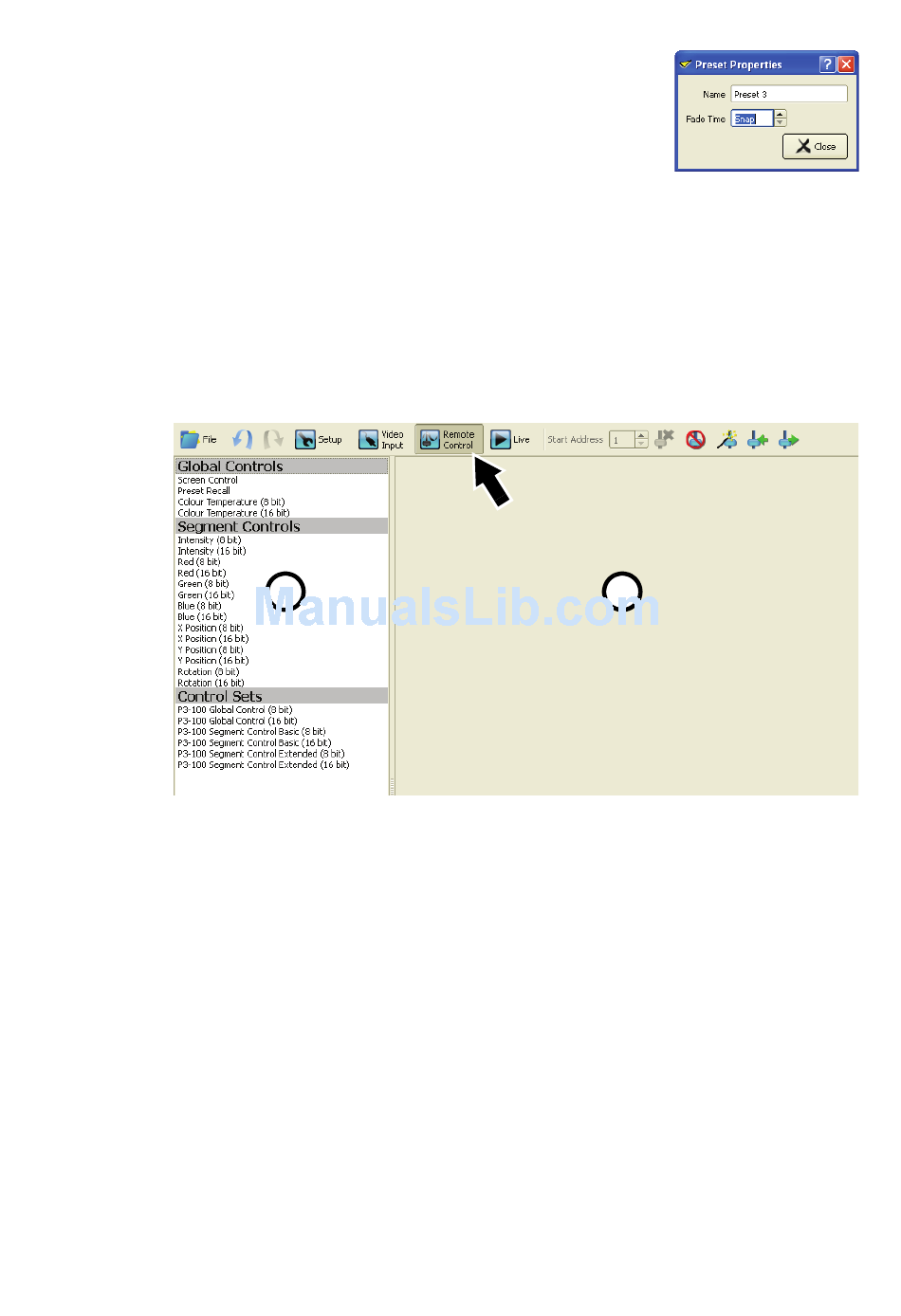

Figure 33: Remote Control view
