5. See Figure 6. Either select the finest
pitch you will use in the installation in
the Dot Pitch selection box, or select
the panel with the finest pitch you will
use in the Fixture selection box to set
the dot pitch automatically:
- The pixels in the panels with this
pitch will be mapped 1:1 with the
video input and give the best video
quality.
- Panels with a coarser pitch will
receive scaled video so that the
video image is the same size on
fine and coarse pitch panels.
- Panels with a finer pitch will not be
available in this configuration.
For best video quality, do not set a
finer pitch than the finest pitch panel
in the installation. If the installation
only contains LC Plus panels with a 40 mm pitch, set the dot pitch to 40 mm, not 20 mm.
Once you have selected a pitch, the Available Fixtures window shows a list of the panel types that can
be used in the configuration.
Important! You cannot change the dot pitch setting for a configuration once you have created that
configuration.
6. Click on Next.
7. See Figure 7. Select the maximum
workspace area for the configuration.
This is set to 1280 x 1024 pixels by
default. You can either accept the
default area, or if you know the total
width and height in pixels of your
installation, including any gaps or
empty areas, you can enter it to avoid
unnecessary processing by the
P3-100.
Important! You cannot change the
workspace area for a configuration
once you have created that
configuration.
8. Click on Finish to create and open
the new configuration.
All the installation's settings are
automatically saved in the configuration file while you work.
Once you have opened or created a configuration file, you use the Setup view window to configure the
installation.
14

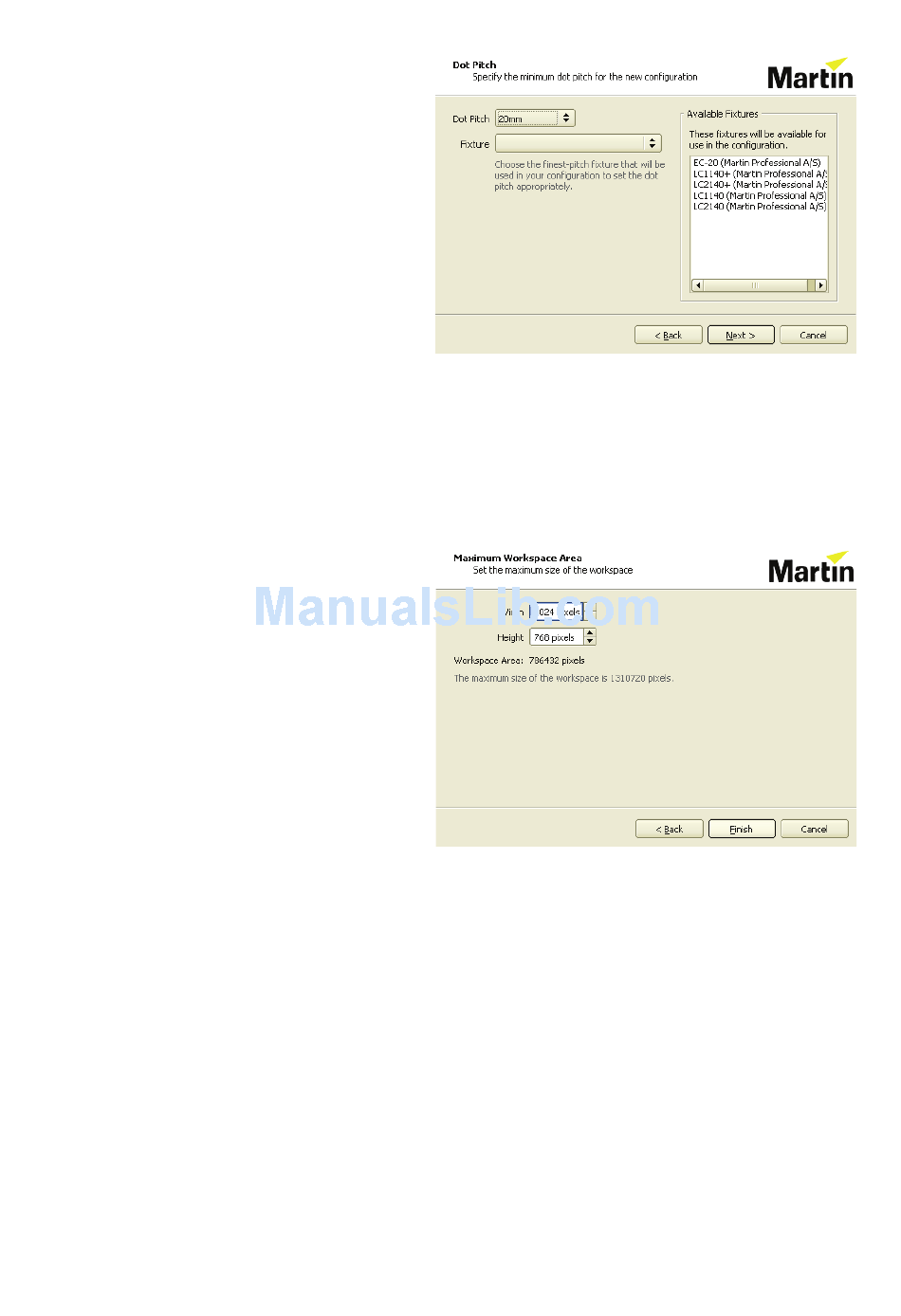

Figure 6: Dot pitch setting window
Figure 7: Workspace area window
