Configuring A Preset Position - GeoVision GV-IP Speed Dome Quick Start Manual

3.8 Configuring a Preset Position

You can set up a preset position toward whic
256 preset points can be configured and saved.
Setting up a Preset

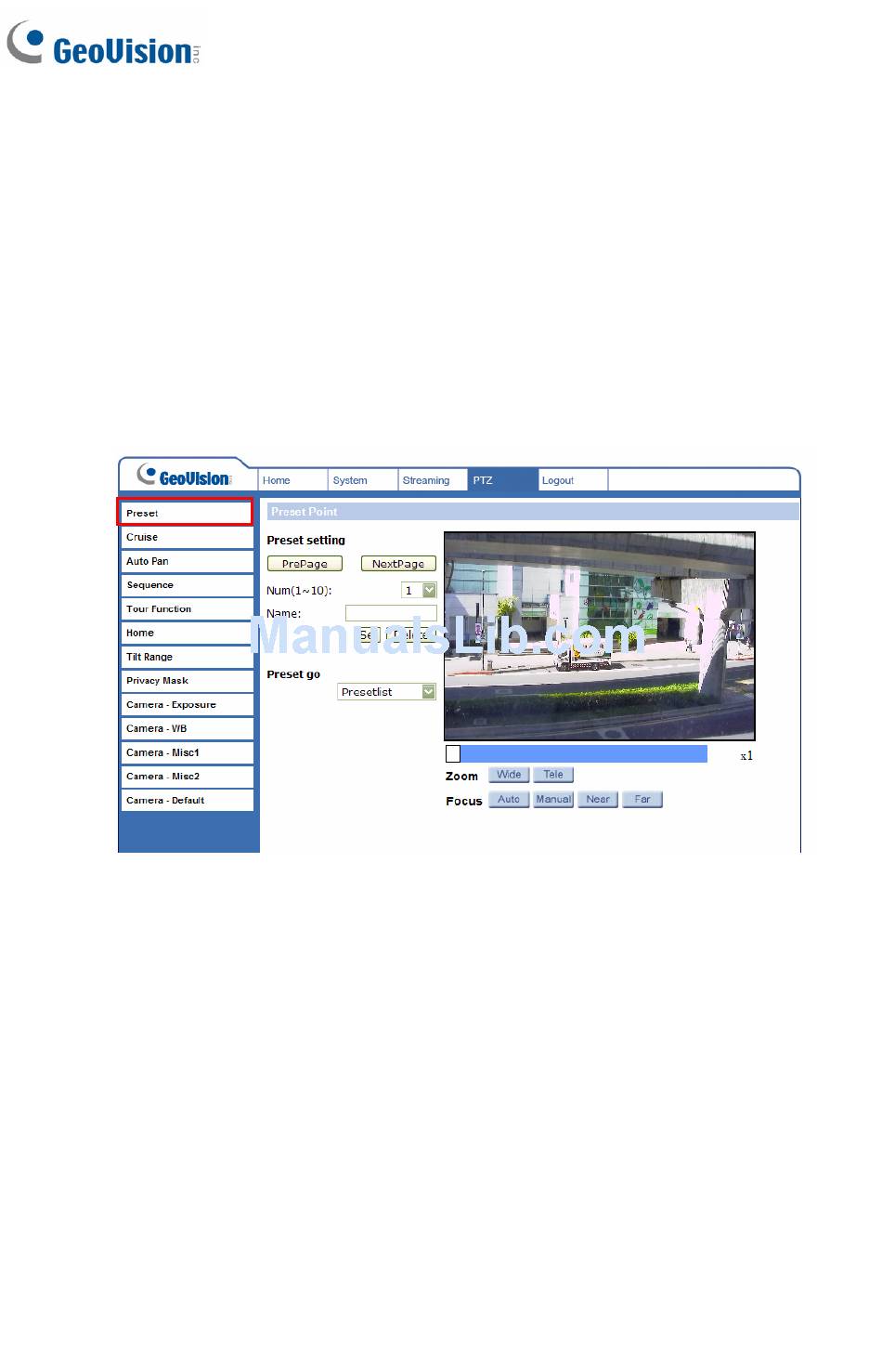

1. Click the PTZ tab and select Preset from the left menu of the Web
interface.
2. Click the dome view and drag the cursor to a desired position.
3. Use the Zoom and Focus buttons to adjust the dome view.
4. Use the Num drop-down list to select a number to define a Preset point.
Click Pre page or Next Page button to select numbers from 1 to 256.
5. Type a name to describe the selected number in the Name field.
6. To create another Preset point, repeat Steps 2 to 5 and select a
different preset number.
7. Click Set to save the settings.
8. Use the Preset Go drop-down list to select a Preset point to test your
settings.
48
h the do me view moves. Up to
