GeoVision GV-SD220 Quick Start Manual

Gv-ip speed dome, indoor, outdoor ir
Hide thumbs Also See for GV-SD220:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Start Manual

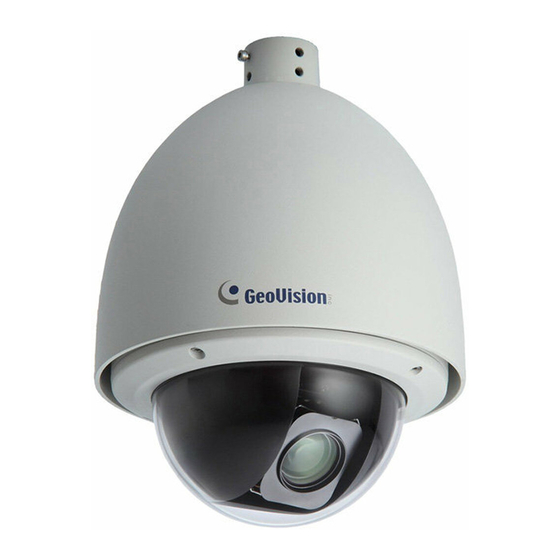

GV-SD220 Indoor IP Speed Dome
GV-SD220-S / 2300 / 2301 / 2411 Outdoor IP Speed Dome
GV-SD2723-IR / 2733-IR Outdoor IR IP Speed Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

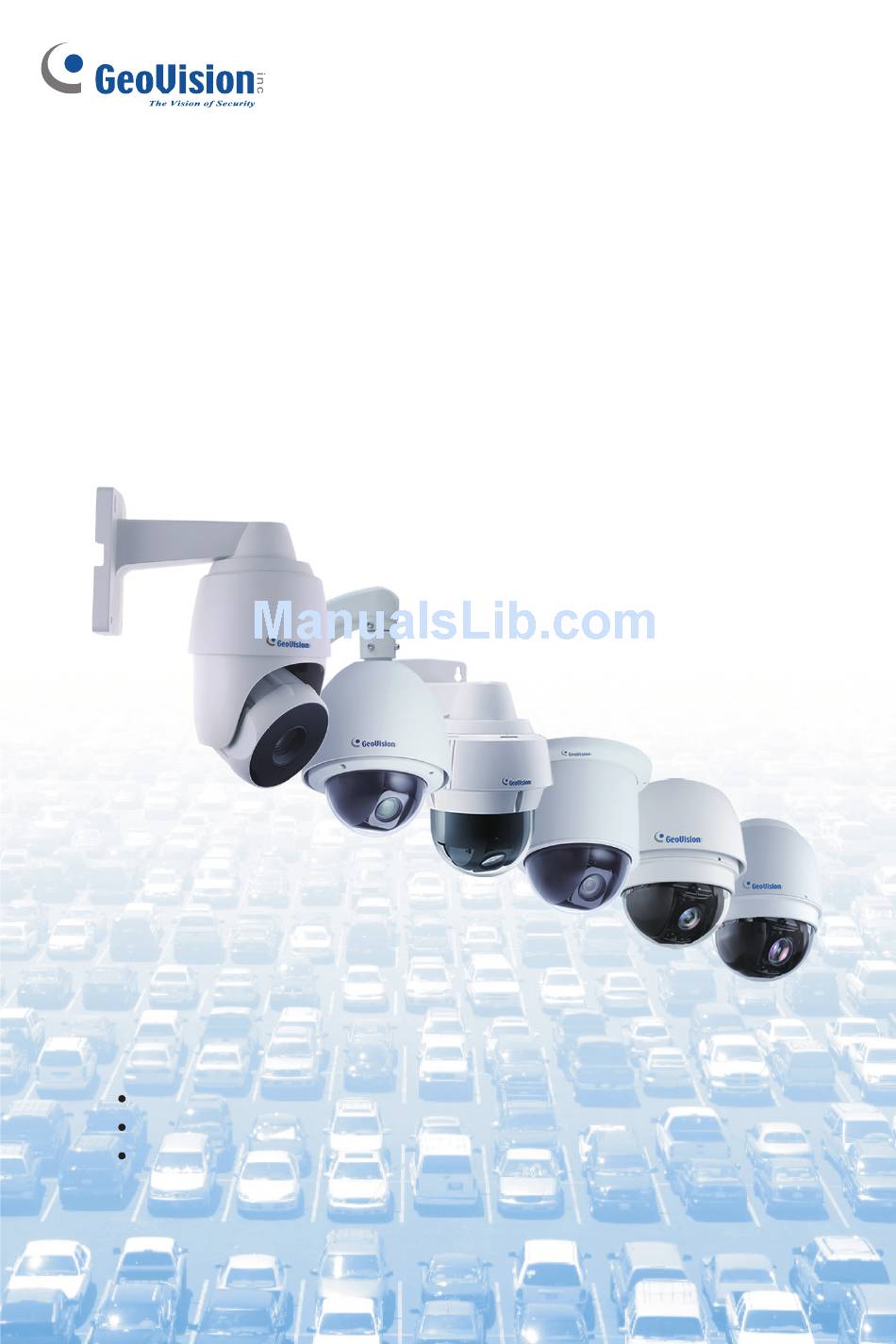

Quick Start Guide

GV-IP Speed Dome
ISD-QG-K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-SD220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-SD220

Summary of Contents for GeoVision GV-SD220

  • Page 1: Quick Start Guide

    Quick Start Guide GV-IP Speed Dome GV-SD220 Indoor IP Speed Dome GV-SD220-S / 2300 / 2301 / 2411 Outdoor IP Speed Dome GV-SD2723-IR / 2733-IR Outdoor IR IP Speed Dome Before attempting to connect or operate this product, ISD-QG-K please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    2.1 Packing List................. 2   2.1.1 GV-SD220 (PoE) Indoor IP Speed Dome ......2   2.1.2 GV-SD220-S (PoE) / 2300 Outdoor IP Speed Dome ..3   2.1.3 GV-SD2301 / 2411 Outdoor IP Speed Dome....4   2.1.4 GV-SD2723-IR / 2733-IR Outdoor IP Speed Dome ..5  ...
  • Page 4   2.4 Connecting the Camera............. 19   2.5 Accessing the Camera .............. 22   2.5.1 System Requirements ............ 22   2.5.2 Looking Up the IP Address and Logging In ..... 23   2.6 The Web Interface..............25   2.7 The PTZ Control Panel.............. 27  ...
  • Page 5   3.3 Installation ................. 44   3.3.1 GV-SD200: Surface Mount ..........44   3.3.2 GV-SD200-S: Mini Pendent Mount ......... 47   3.4 Connecting the Cables .............. 49   3.5 Accessing the Camera .............. 51   3.5.1 System Requirements ............ 51  ...

  • Page 6: Note For Recording

    Note for Recording By default, the images are recorded to the memory card inserted in the GV-IP Speed Dome camera. Mind the following when using a memory card for recording:  Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan.

  • Page 7: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing GV-IP Speed Dome outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

  • Page 8: Note For Water Resistant Coating On Camera Cover

    Note for Water Resistant Coating on Camera Cover The camera cover of GV-SD2301 / 2411 is treated with a water resistant coating that prevents droplets from forming on the surface. The water resistant coating will slowly wear off after approximately one year depending on the operating environment.

  • Page 9: Options

    Options Optional devices can expand the capabilities and versatility of your GV-IP Speed Dome. Contact your dealer for more information. Name Details GV-Mount Accessories The GV-Mount Accessories provide a comprehensive lineup of accessories for installing the outdoor GV-IP Speed Dome on ceiling, wall corner and pole.

  • Page 10: Introduction

    GV-IP Speed Dome. For detailed information, refer to GV-IP Speed Dome User’s Manual, available on our website. Model Application Description GV-SD220 (PoE) Indoor 2 MP H.264, 20x / 30x optical zoom, 12x digital zoom, WDR Pro GV-SD220-S (PoE)

  • Page 11: Gv-Sd220 / 220-S / 2300

    2. GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.1 Packing List 2.1.1 GV-SD220 (PoE) Indoor IP Speed Dome   Indoor GV-IP Speed Dome Hard-Ceiling Cover   Mounting Plate Download Guide  Warranty Card...

  • Page 12: Gv-Sd220-S (Poe) / 2300 Outdoor Ip Speed Dome

    2.1.2 GV-SD220-S (PoE) / 2300 Outdoor IP Speed Dome   Outdoor GV-IP Speed Dome Pendant Tube   Hex Key x 2 M6 Screw x 4   Desiccant Pack x 4 Download Guide  Warranty Card...

  • Page 13: Gv-Sd2301 / 2411 Outdoor Ip Speed Dome

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.1.3 GV-SD2301 / 2411 Outdoor IP Speed Dome   Outdoor GV-IP Speed Dome Pendant Tube   Hex Key x 2 Rubber ring   RJ-45 Connector Desiccant Pack x 2 ...

  • Page 14: Gv-Sd2723-Ir / 2733-Ir Outdoor Ip Speed Dome

    2.1.4 GV-SD2723-IR / 2733-IR Outdoor IP Speed Dome   Outdoor GV-IP Speed Dome Pendant Tube   Hex Key x 2 Rubber ring   RJ-45 Connector Data Cable   Download Guide Warranty Card...

  • Page 15: Overview

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.2 Overview 2.2.1 GV-SD220 / 220-S / 2300 Name Description Restores all the settings back to factory default. For Default details, see 2.14 Restoring Default Settings. The status LED turns green when the power is on and Status fades when the camera is ready for use.

  • Page 16: Gv-Sd2301 / 2411

    2.2.2 GV-SD2301 / 2411 Name Function Restores all the settings back to factory default. Default For details see 2.14 Restoring Default Settings. Memory Card Insert a micro SD / SD card to store the Slot recording data for GV-SD2301 / 2411.

  • Page 17: Gv-Sd2723-Ir / 2733-Ir

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.2.3 GV-SD2723-IR / 2733-IR Name Function Memory Card Insert a micro SD / SDHC card to store Slot recording data. Restores all the settings back to factory Default default.

  • Page 18: Installation

    There are multiple ways to install the GV-IP Speed Dome. Only the standard installation methods are introduced in the Quick Start Guide. For details on optional installations, see Chapter 6 Installing the GV-IP Speed Dome, GV-Mount Installation Guide. 2.3.1 GV-SD220: Hard-Ceiling Mount Required Items  Indoor packing (supplied) ...
  • Page 19 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Secure the indoor GV-IP Speed Dome to the mounting plate. Loosen the screw on the mounting plate Align the camera to the mounting plate and rotate the camera body to the right.

  • Page 20: Gv-Sd220 / 220-S / 2300: Wall Pendant Mount

    2.3.2 GV-SD220 / 220-S / 2300: Wall Pendant Mount Required Items  Outdoor packing (supplied)  Ceiling screws x 4 (user-prepared) Insert the desiccants to the camera. IMPORTANT: Be sure to conceal the desiccants in the GV-IP Speed Dome within 2 minutes of opening the desiccant pack.
  • Page 21 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Insert two desiccant packs to the places indicated. Insert your micro SD card into the memory card slot. See 2.2.1 GV-SD220 / 220-S / 2300. Follow step 1-A to secure the camera cover with the supplied hex key.

  • Page 22: Gv-Sd2301 / 2411: Wall Pendant Mount

    2.3.3 GV-SD2301 / 2411: Wall Pendant Mount Required Items  Outdoor packing (supplied)  Ceiling screws x 4 (user-prepared) Insert the desiccants to the camera. Remove the camera cover using the supplied hex key. Insert one desiccant pack to the place indicated. IMPORTANT: Be sure to conceal the desiccants in the GV-SD2301 / 2411 within 2 minutes of opening the desiccant pack.
  • Page 23 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Insert your SD card into the SD card slot. See 2.2.2 GV-SD2301 / 2411. Secure the camera cover with the supplied hex key. Make sure the first two screws to be tightened are diagonal to each other.
  • Page 24 Slide the cap and components through the Ethernet cable as shown below. It is recommended to use the supplied RJ-45 connector. Move the cap and the components toward the LAN port. Secure the cap tightly. Slip the rubber ring on the Data Cable and pass the pin connectors of the Data Cable through the mounting plate.
  • Page 25 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Fasten the data cable with the mounting plate and the rubber ring. Insert the pin connectors of the data cable to the indicated area. Secure the mounting plate with the supplied hex key.
  • Page 26 Push the rivets into the holes on the pendant tube and rotate clockwise to lock the position. Tighten the screws with the supplied hex key. Secure the pendant tube to the wall with self-prepared screws.

  • Page 27: Gv-Sd2723-Ir / 2733-Ir: Wall Pendant Mount

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.3.4 GV-SD2723-IR / 2733-IR: Wall Pendant Mount Required Items  Outdoor packing (supplied)  Ceiling screws x 4 (user-prepared) Insert your SD card into the camera. Remove the memory card cover by loosening the two screws on the rear side of the camera.

  • Page 28: Connecting The Camera

    2.4 Connecting the Camera Connect power to the camera using one of the following methods.  Connect the Power Adapter to the data cable.  Use the Power over Ethernet (PoE) function and the power will be provided over the network cable. Note: The Power Adapter is an optional device.
  • Page 29 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Wire Definition Orange Alarm In 1 Yellow Alarm In 2 Green Alarm In 3 Blue Alarm In 4 Pink Ground Purple Alarm Out White Alarm Out Open...
  • Page 30 GV-PA901 PoE Adapter The GV-PA901 PoE Adapter is only for the Outdoor GV-IP Speed Dome. Prepare two Ethernet cables for the connection. Note: PoE function is available for the outdoor GV-IP Speed Dome only when GV-PA901 PoE Adapter (optional device) is applied for connection. Connect one end of an Ethernet cable to the LAN 10 / 100 Port on the GV-PA901 and the other end to the LAN port on a Hub / Router.

  • Page 31: Accessing The Camera

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.5 Accessing the Camera 2.5.1 System Requirements To access GV-IP Speed Dome through a Web browser, ensure your PC is in good network connection and use one of the following web browsers: ...

  • Page 32: Looking Up The Ip Address And Logging In

    2.5.2 Looking Up the IP Address and Logging In By default, the IP address of your GV-IP Speed Dome is assigned with an unused IP by the DHCP server unless your router does not support DHCP. In this case, the default IP address will be 192.168.0.10. Follow the steps below to look up the dynamic IP address.
  • Page 33 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR To login, type the IP address in a Web browser. The login page appears. Type the default ID and password admin and click Apply to log in.

  • Page 34: The Web Interface

    2.6 The Web Interface Name Description Play Play live video. Stop Stop playing live video or recording to the local PC. Microphone Talk to the surveillance area from the local PC. Speaker Listen to the audio around the camera.
  • Page 35 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Name Description Snapshot Take a snapshot of the live video. File Save Record live video to the local PC. Full Screen Display in full screen mode. Right-click the live image to access the following...

  • Page 36: The Ptz Control Panel

    2.7 The PTZ Control Panel Click the PTZ Control button on the Live View window and select PTZ Control Panel. The PTZ Control Panel appears.
  • Page 37 GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Name Description Exit Closes the PTZ control panel. Moves the PTZ Camera in 8 directions: up, down, Pan / Tilt left, right, upper left, down left, upper right and Control down right.

  • Page 38: Setting Presets

    2.8 Setting Presets You can set up a preset position toward which the dome view moves. Up to 255 preset points can be configured and saved. Setting a Preset Use the direction keys on the PTZ Control Panel to move the dome to a desired position in Live View.

  • Page 39: Setting Cruise

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Going to a Preset To move the dome view to a previously defined preset position, click Option on the PTZ Control Panel, click Preset Go and select a Preset number that has been set up.

  • Page 40: Setting Auto Pan

    2.10 Setting Auto Pan The GV-IP Speed Dome can pan up to 360° endlessly to survey the horizontal view between 2 user-defined positions. Up to 8 sets of Auto Pan can be configured. Setting an Auto Pan Set the vertical position of your GV-IP Speed Dome first. Vertical movements during or after the Auto Pan settings will not be effective.

  • Page 41: Setting Sequence

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Starting and Stopping an Auto Pan To start the GV-IP Speed Dome on an Auto Pan mode, click Option on the PTZ Control Panel, click Auto Go and select an Auto Pan number that has been previously set.
  • Page 42 Select Sequence under PTZ Setting. Use the Index drop-down list to select the Sequence number to be configured. One Sequence can include up to 16 Presets. Use the Point drop-down list to select the number of Presets desired for the Sequence. Use the Preset drop-down list to select the Presets for the Sequence.

  • Page 43: Setting Tour

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR Starting and Stopping a Sequence To start the dome view on a Sequence route, click Option on the PTZ Control Panel, click Auto Go and select a Go Sequence number that has been previously set.
  • Page 44 Follow Step 1 in 2.11 Setting Sequence. Select Sequence under PTZ Setting. Use the Index drop-down list to select the Tour number to be configured. One Tour can include up to 16 sets of Presets, Sequences, Cruises and Auto Pan. Use the Point drop-down list to select the number of movements desired for the Tour.

  • Page 45: Upgrading System Firmware

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.13 Upgrading System Firmware GeoVision periodically releases the latest firmware to the company website. You can update your GV-IP Speed Dome firmware through the Web interface or GV-IP Device Utility, which can also be downloaded from the website.
  • Page 46 In the Live View window, click the Show System Menu button and select Remote Config. This dialog box appears. Click the Browser button to locate the firmware file (.img) saved at your local computer. Click the Upgrade button to start upgrading.

  • Page 47: Restoring Default Settings

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.14 Restoring Default Settings If for any reason the camera is not responding correctly, you can reset it to its factory default settings either directly on the camera or through its Web interface.
  • Page 48 IMPORTANT: Make sure the SD card cover of GV-SD2723-IR / 2733-IR is sealed after loading default, or the cover may conflict with the camera’s automatic pan and tilt movements during reboot. Through the Web Interface On the Web interface, select Tools and click the Load Default button. The default loading will start shortly.

  • Page 49: Restoring Ptz Configuration Settings

    GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR 2.14.2 Restoring PTZ Configuration Settings Access the PTZ Configuration dialog box (Step 1 in 2.11 Setting Sequence). In the left menu, select System Configuration. To restore all settings within PTZ Configuration back to default, click Load Camera Default (Include PTZ).

  • Page 50: Gv-Sd200 / 200-S

    3. GV-SD200 / 200-S 3.1 Packing List 3.1.1 GV-SD200 Indoor IP Speed Dome  Indoor GV-IP Speed  Hard Ceiling Mount Dome (GV-MountD603)  Terminal Block  M3 Standard Screw (x1)  GV-IP Speed Dome  M4 Screw (x5) Software CD ...

  • Page 51: Gv-Sd200-S Outdoor Ip Speed Dome

    GV-SD200 / 200-S 3.1.2 GV-SD200-S Outdoor IP Speed Dome  Outdoor GV-IP Speed Dome  M3 Standard Screw (x1)  M3 Security Screw (x1)  M5 Standard Screw (x1)  M5 Security Screw (x1)  Outdoor Mounting Kit  Waterproof Rubber (GV-MountD902) ...

  • Page 52: Overview

    3.2 Overview Name Description LAN / High Power Connects to a 10/100 Ethernet or High Power PoE (for GV-SD200 only). Connects to I/O devices. For details, see I/O Terminal Block 3.4 Connecting the Cables. Power Port Connects to power of AC 24V. Inserts a micro SD / SDHC card to store Memory Card Slot recording data.

  • Page 53: Installation

    GV-SD200 / 200-S 3.3 Installation There are several mounting methods for GV-IP Speed Dome. In this Quick Start Guide, we only show you the standard mounting methods. For other mounting methods, refer to GV-IP Speed Dome GV-SD200 User’s Manual. 3.3.1 GV-SD200: Surface Mount GV-MountD603 (Supplied) Mark the positions of the three screw holes on the Hard Ceiling...
  • Page 54 Fasten the Hard Ceiling Mount with the three supplied M4 Self-tapping Screws. Thread the connected cables and wires through the center hole of the Mount and connect the cable to the camera body. Users can choose to hide the cables and wires inside the ceiling, and put the rubber from the accessory package to fill the gap at the side of the Fixing Plate.
  • Page 55 GV-SD200 / 200-S Fasten the screw at the side of the Fixing Plate. After installing the Camera on the Hard Ceiling Mount, put the Dome Cover back, and use a flat screw drive to fasten two supplied Flat Screws on the Dome Cover. Fasten the supplied Standard Screw on the Dome Cover.

  • Page 56: Gv-Sd200-S: Mini Pendent Mount

    3.3.2 GV-SD200-S: Mini Pendent Mount Required items:  Outdoor packing (supplied)  Wall screws x 4 GV-MountD202 (Supplied) (user-prepared) GV-MountD902 (Supplied) Make a cable entry hole on the wall to recess the cables. You can also push up the Cable Entry Board on the Mini Pendent Mount’s Mounting Plate to place the cables, as shown in the photo below.
  • Page 57 GV-SD200 / 200-S Run the cable(s) through the Mini Pendent Mount. Note: Block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. The sponge can be placed in two ways as shown in the illustrations below. Sponge Sponge Thread the cable(s) through the Mounting Kit and join the Mounting...

  • Page 58: Connecting The Cables

    Definition AC 24_1 AC 24_2 Note: If you are using GeoVision’s optional power adapters, connect the green or green/yellow wire to GND. The two remaining wires are interchangeable, and both wires can be connected to AC_2 or AC_1. Connecting Ethernet Cable The High Power PoE function is only supported for GV-SD200.
  • Page 59 GV-SD200 / 200-S Connecting Alarm I/O Definition Definition Alarm_Out_NC_1 Alarm_Out_COM_2 Alarm_Out_NO_1 Alarm_Out_COM_1 Alarm_In_4 Alarm_In_3 Alarm_Out_NC_2 Alarm_In_2 Alarm_Out_NO_2 Alarm_In_1 Connecting Audio Definition Line_Out Line_In...

  • Page 60: Accessing The Camera

    3.5 Accessing the Camera 3.5.1 System Requirements To perform the GV-IP Speed Dome via web browser, ensure your PC is in good network connection, and use one of the following web browsers.  Internet Explorer 7.0 or later  Firefox ...

  • Page 61: Looking Up The Ip Address And Logging In

    GV-SD200 / 200-S 3.5.2 Looking up the IP Address and Logging in By default, the IP address of your GV-IP Speed Dome is assigned by the DHCP server unless your router does not support DHCP. In this case, the default IP address will be 192.168.0.10. Follow the steps below to look up the dynamic IP address.
  • Page 62 Note: If your router does not support DHCP, the default IP address will be 192.168.0.10. In this case, it is strongly suggested to modify the IP address to avoid IP address conflict with other GeoVision IP device on the same LAN. For details, see 3.1.2 Changing the IP Address, GV-IP...

  • Page 63: The Web Interface

    GV-SD200 / 200-S 3.6 The Web Interface After logging onto the GV-IP Speed Dome, users will see the Home page as shown below: Main Tabs Language Selection Time Display Focus Mode Select Video Format Display Mode PTZ Control Panel Codec Info Web Recording Pause Video Streaming Snapshot...

  • Page 64: The Ptz Control Panel

    3.7 The PTZ Control Panel Click the button on the home page. The PTZ Control Panel appears. Button Description Moves the camera to 8 directions. Zooms in. Shortens the apparent distance between the camera and the view. Zooms out. Lengthens the apparent distance between the camera and the view.
  • Page 65 GV-SD200 / 200-S Button Description Focuses in. Changes the sharpness of the view. Focuses out. Changes the sharpness of the view. Automatically adjusts the focus. Enlarges the aperture opening. Automatically adjusts the aperture opening. Reduces the aperture opening. Moves to a defined Preset point. Preset Starts a defined Cruise path.

  • Page 66: Setting Presets

    3.8 Setting Presets You can set up a preset position toward which the dome view moves. Up to 256 preset points can be configured and saved. Setting a Preset Click the PTZ tab and select Preset from the left menu of the Web interface.

  • Page 67: Setting Sequence

    GV-SD200 / 200-S Going to a Preset To move the dome view to a previously defined Preset point, click the Home tab and click on the PTZ Control Panel button . Select the defined number from the Preset drop-down list and click the button.
  • Page 68 Click the Edit button under Sequence Setting. Use the Sequence Line drop-down list to select a Sequence route number to be configured. Use the Name drop-down list to select the desired Preset points for the Sequence route. One Sequence line include up to 64 Preset points. Use the Pre Page and Next Page buttons to reach numbers1 to 64.

  • Page 69: Setting Cruise

    GV-SD200 / 200-S 10. Return to the Sequence page. Use the Sequence Line drop-down list to select a Sequence route number and click Go to test your settings. Starting and Stopping a Sequence To start the dome view on a Sequence route, click the Home tab, click the PTZ Control Panel button and select a Sequence number which has been previously set.
  • Page 70 Use the Cruise Path drop-down list to select a Cruise path number to be configured. Click the dome view and drag the cursor to a desired position as the Start Point of a Cruise path. Click the Set button of Record Start and start programming the Cruise path by dragging the red cursor on the dome view.

  • Page 71: Setting Auto Pan

    GV-SD200 / 200-S 3.11 Setting Auto Pan The GV-IP Speed Dome can pan up to 360° endlessly to survey the horizontal view between 2 pre-defined positions. You can configure up to 4 sets of Auto Pan paths. Setting an Auto Pan Click the PTZ tab and select Auto Pan from the left menu of the Web interface.

  • Page 72: Setting Tour

    Note: The zoom ratio of an Auto Pan’s Start Point will persist throughout the whole path. Starting and Stopping a Auto Pan To start the dome view on an Auto Pan path, click the Run button on the Auto Pan page. The dome view will continue moving once an Auto Pan is started.
  • Page 73 GV-SD200 / 200-S Click the Edit button under Tour Function Setting. Use the Tour Function drop-down list to select a number to be configured. Use the Function drop-down list to select a Preset, Sequence, Cruise or Auto Pan. Type a number in the No. field to specify the Preset, Sequence, Cruise, and Auto Pan.
  • Page 74 Starting and Stopping a Tour To start the dome view on a Tour path, click the Run button on the Tour Function page. The dome view will continue moving once a Tour is started. To stop the movements, move the cursor on the dome view and drag it to any directions.

  • Page 75: Upgrading System Firmware

    GV-SD200 / 200-S 3.13 Upgrading System Firmware GeoVision periodically releases the updated firmware on the website. Update your camera to the latest firmware through its Web interface. IMPORTANT: Stop monitoring of the camera. Stop the connection to GV-System. While the firmware is being updated,...
  • Page 76 Click the System tab and select Software Upgrade from the left menu. Click the Browse button and select one firmware file to be uploaded. Note: Do not change the upgrade file name, or the system will fail to find the file. Use the drop-down list to select the corresponding type of file you want to upgrade.

  • Page 77: Restoring Default Settings

    GV-SD200 / 200-S 3.14 Restoring Default Settings If for any reason the camera is not responding correctly, you can reset it to its factory default settings either directly on the camera or through its Web interface. Using the Web Interface Click the System tab and select Factory Default from the left menu.
  • Page 78 Directly on the Camera To restore to default settings directly on the camera, use a pointy object, such as the tip of a pen to hold down the Load default button (Button E below) for about 30 seconds while the power is on. The lens will rotate briefly when load default is completed.
