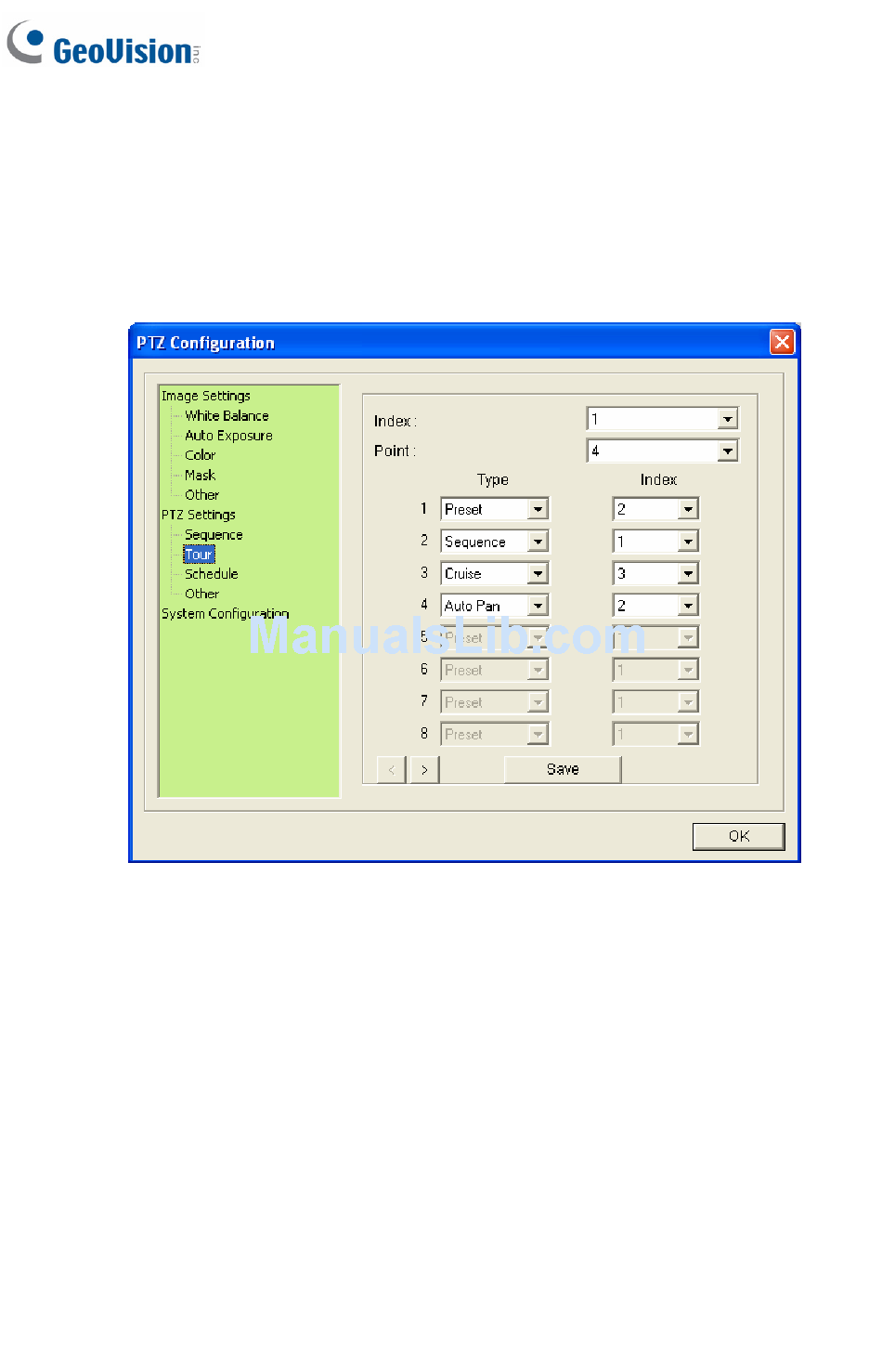

2.12 Configuring a Tour
You can set up your GV-IP Speed Dome to move in a combination of preset
positions, Sequence
routes.
Setting Up a Tour
1.
Follow the steps in Accessing the PTZ Configuration Dialog Box above
and click Open to display the PTZ Configuration dialog box, click
Tour located under PTZ Setting on the left menu.
2.
Use the Index drop-down list to select the Tour group number to be
configured. Up to 8 Indexes (Tour groups) can be created.
3.
One Tour group can include up to 16 sets of Preset Points, Sequence,
Cruise and Auto Pan. Use the Type drop-down list to select the
movement type.
26
, Cruise and Auto Pan. You can configure up to 8 Tour
