2.

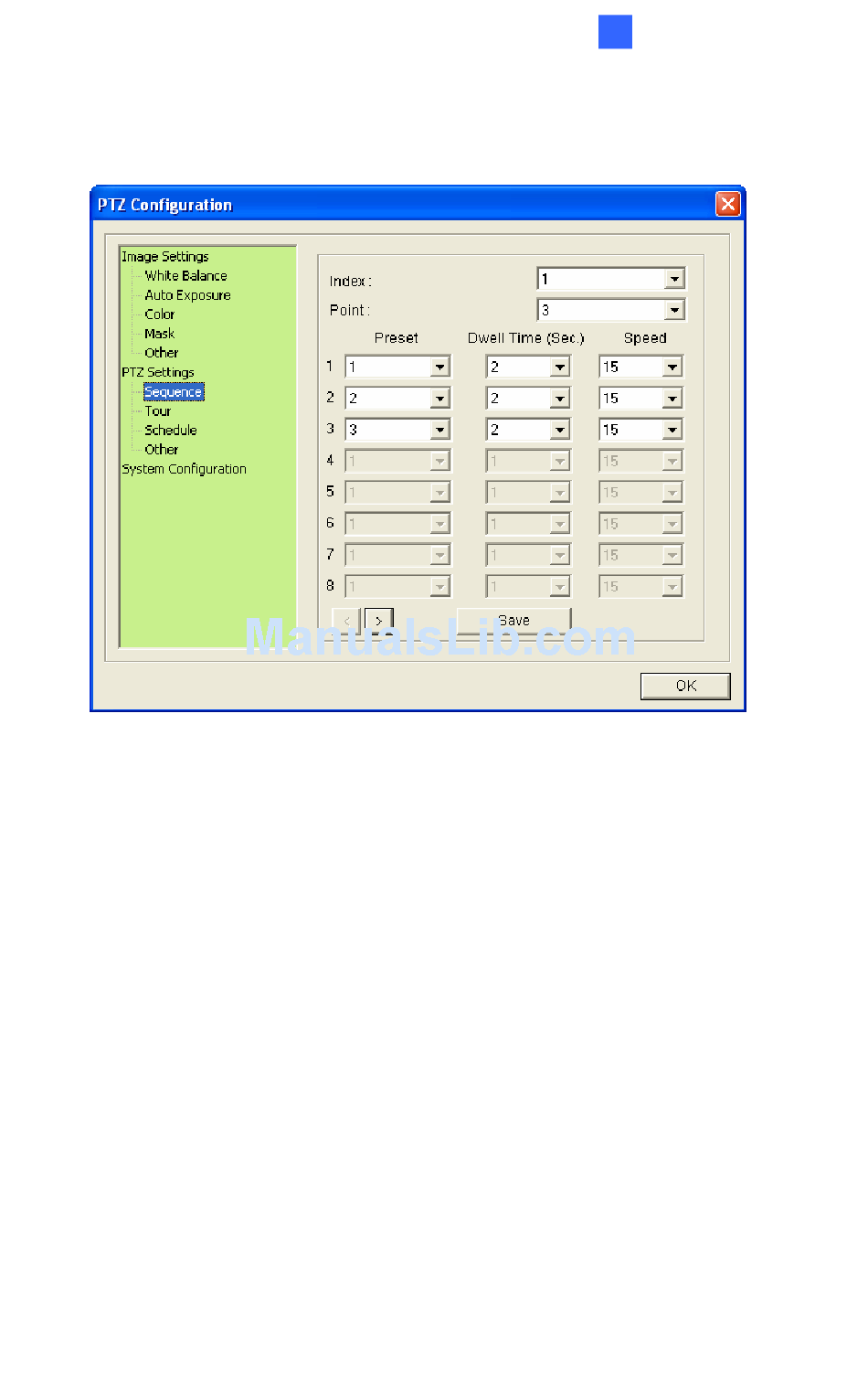

Click Open and click Sequence located under PT
menu.
3.
Use the Index drop-down list to select the Sequence group number to
be configured. Up to 8 Indexes (Sequence groups) can be created.
4.
One Sequence group can include up to 16 Preset Points. Use the
Point drop-down list to select the number of Preset Points in this
Sequence group.
5.
Use the Preset drop-down list to select the Presets for this Sequence
group.
6.
Use the Dwell Time drop-down list to set the duration for the dome to
stay at this Preset. The duration time ranges from 1 to 255 seconds.
7.
Use the Speed drop-down list to set the speed at which the dome
travels from one Preset to another.
8.
To create another Sequence group, repeat Steps 1 to 6, and select a
different Index number.
9.
Click Save to complete the settings.
2
GV-SD220 / SD220-S
Z Setting on the left
21
