Note 1:
According to the designation of sync signals and the setting of each inspection mode, the analog outputs
(BNC) of the signal generator should be connected as specified below. (Except the cases when
otherwise specified)
1) SEPARATE: R/G/B CONNECTION, HS ←→ H, VS ←→ V, CS not connected
2) COMPOSITE: R/G/B CONNECTION, CS ←→ H
3) SYNC ON GREEN: R/G/B CONNECTION,
Note 2:

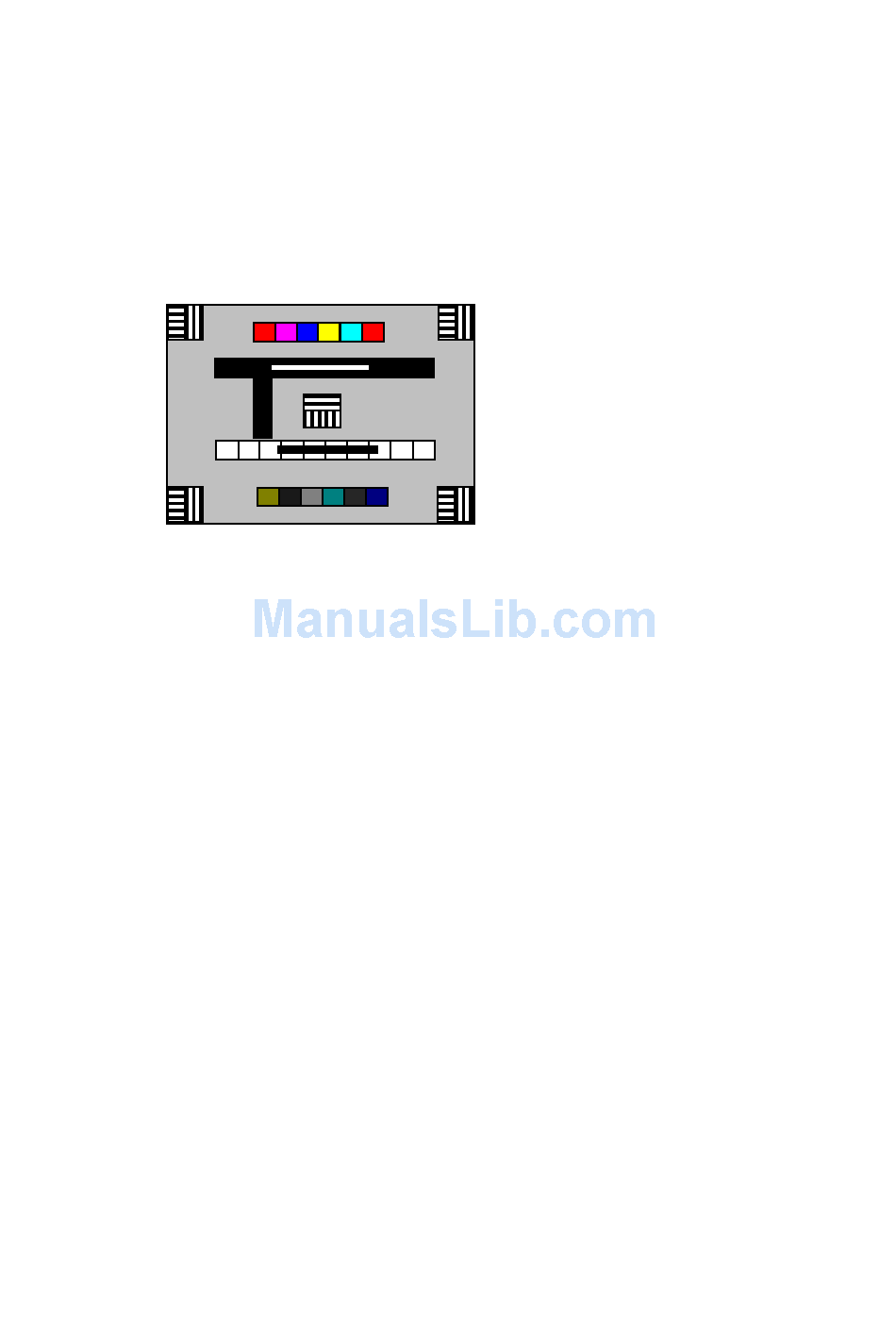

Option 2 Screen
No connections for HS and VS
No connections for HS, VS, and CS
5-4
