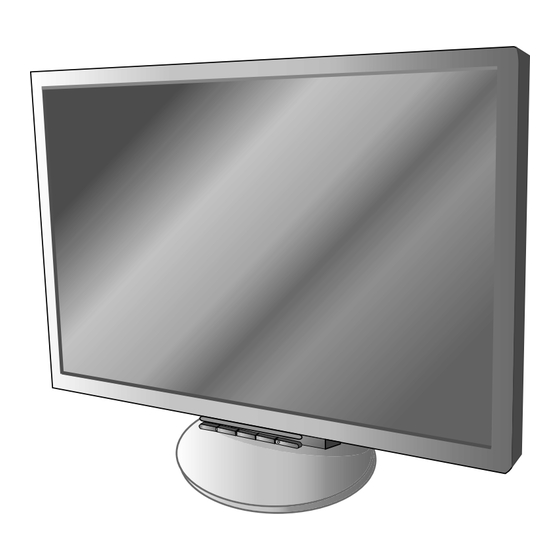

NEC MultiSync LCD225WNXM User Manual

Nec widescreen multimedia flat panel monitor user's manual
Hide thumbs Also See for MultiSync LCD225WNXM:
Table of Contents

Advertisement

Quick Links

MultiSync LCD205WNXM
MultiSync LCD225WNXM
MultiSync LCD225WNX
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiSync LCD225WNXM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEC MultiSync LCD225WNXM

Summary of Contents for NEC MultiSync LCD225WNXM

  • Page 1 MultiSync LCD205WNXM MultiSync LCD225WNXM MultiSync LCD225WNX User’s Manual...

  • Page 2: Declaration Of The Manufacturer

    E NERGY endorsement of any product or service. ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K.. Microsoft and Windows are registered trademarks of the Microsoft Corporation.

  • Page 3: Canadian Department Of Communications Compliance Statement

    Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specified cables with the MultiSync LCD205WNXM (L206T8)/MultiSync LCD225WNXM/LCD225WNX (L226T9) color monitor so as not to interfere with radio and television reception.

  • Page 4: Quick Start

    Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD monitor with tilt base • Audio Cable • Power Cord • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) • Video Signal Cable (DVI-D to DVI-D) (LCD225WNX only) •...
  • Page 5 6. Place DVI cable and power cable into the specific hooks as indicated in Figure C.3. Power cord Figure C.2 7. Place the D-Sub and the USB cables (LCD205WNXM/LCD225WNXM only) into the specific hooks indicated in Figure C.4. 8. Make sure all cables are resting flat against the stand (Figure C.4). 30° Tilt...

  • Page 6: Raise And Lower Monitor Screen

    9. Hold all the cables firmly and place the cable cover onto the stand (Figure D.1). To remove the cable cover, lift the cover off as shown in Figure D.2. NOTE: Handle with care when placing the cable cover and avoid pinching your fingers. 10.

  • Page 7: Remove Monitor Stand For Mounting

    (Arm) 2.0 ~ 3.2 mm Tighten all screws Specifications 4-SCREWS (M4) MAX depth: 8.5 mm If use other screw, 100 mm check lenght of screw. English-6 Figure R.4 Weight of LCD assembly: 5.9 kg (MAX) (LCD205WNXM) 6.3 kg (MAX) (LCD225WNXM/ LCD225WNX)
  • Page 8 Controls OSD (On-Screen-Display) control buttons on the front of the monitor function as follows: 1. Basic function at pressing each key SELECT Button At No OSD Showing OSD. showing At OSD showing Go to Adjustment stage. (Icon selection stage) At OSD showing Go to Icon selection stage.

  • Page 9: Color Control Systems

    VOLUME Control the sound volume of speakers and headphone. To mute the speaker sound, press the 1<->2/RESET key. BRIGHTNESS Adjusts the overall image and background screen brightness. CONTRAST Adjusts the image brightness in relation to the background. AUTO CONTRAST (Analog Input only) Adjusts the image displayed for non-standard video inputs.

  • Page 10: Monitor Info

    OSD LOCK OUT This control completely locks out access to all OSD control functions without Volume, Brightness and Contrast. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD are locked out. To activate the OSD Lock Out function, press “1<->2/ RESET”, then “+” key and hold down simultaneously.

  • Page 11: Recommended Use

    As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 12 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
  • Page 13 Specifications - LCD205WNXM Monitor Specifications LCD Module Diagonal: 51.1 cm/20.1 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level (Positive/Negative) AUDIO INPUT: STEREO Mini Jack Head Phone Output Display Colors Analog input: 16,777,216 Synchronization Range...
  • Page 14 Specifications - LCD225WNXM Monitor Specifications LCD Module Diagonal: 55.9 cm/22.0 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level (Positive/Negative) AUDIO INPUT: STEREO Mini Jack Head Phone Output...
  • Page 15 Specifications - LCD225WNX Monitor Specifications LCD Module Diagonal: 55.9 cm/22.0 inches Native Resolution (Pixel Count): 1680 x 1050 Input Signal PC INPUT: Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level (Positive/Negative) AUDIO INPUT: STEREO Mini Jack Head Phone Output Display Colors Analog input: 16,777,216 Synchronization Range...
  • Page 16 Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. USB 2.0 hub adds excitement to your computing by connecting you to digital cameras, scanners and more (LCD205WNXM/ LCD225WNXM only). English-15...

  • Page 17: Troubleshooting

    As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 18 TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, color rendition and image stability. Energy •...

  • Page 19: Energy Saving

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

This manual is also suitable for:

Multisync lcd205wnxmMultisync lcd225wnxLcd225wnxm-bk - multisync - 22" lcd monitorLcd225wxm - multisync - 22" lcd monitorLcd205wnxm-bk - multisync - 20.1" lcd monitor
