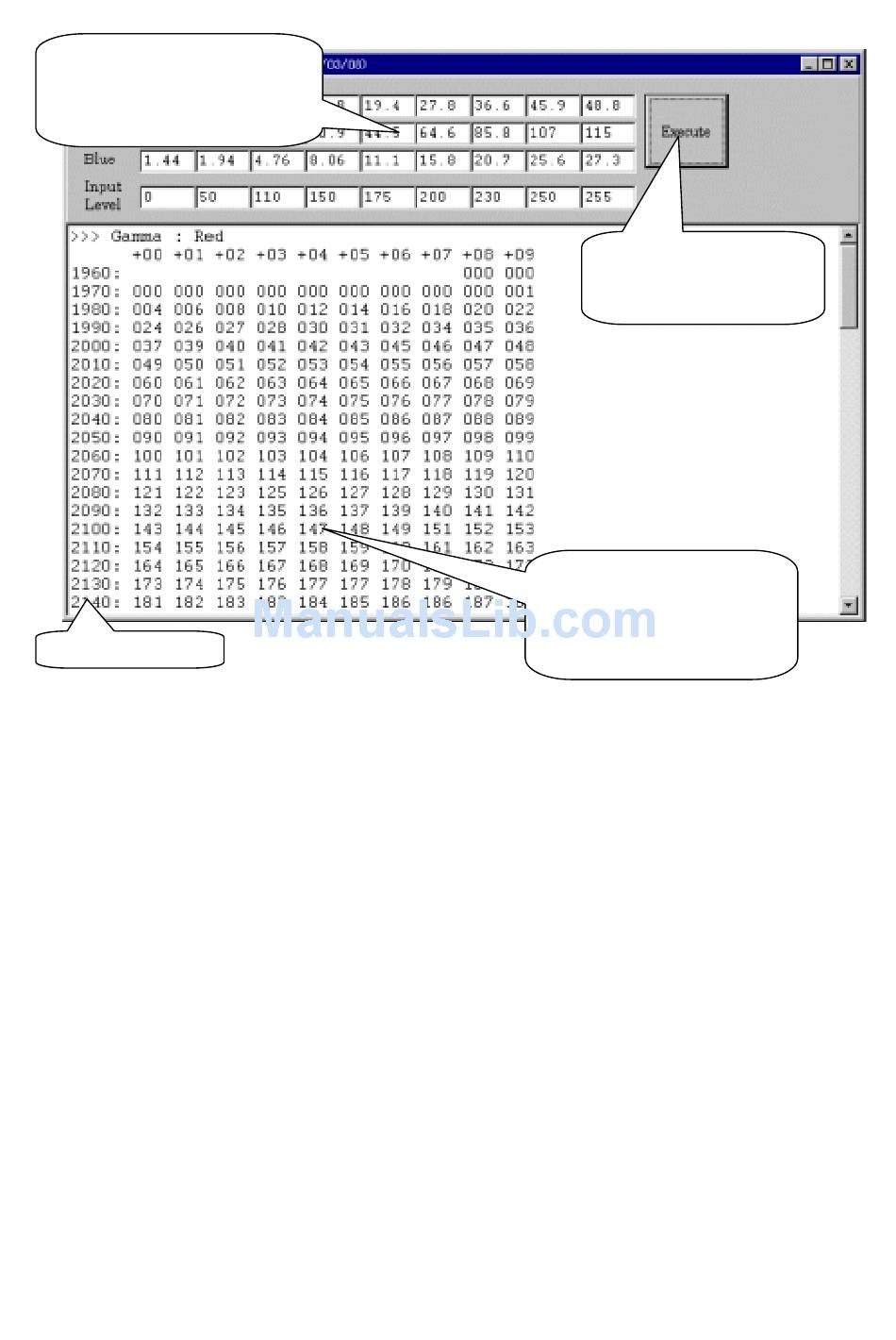

Enter the values of Table 6.
Movement from a box to
another can be done also with
the TAB key.
EEPROM address
5) Successively enter the data according to the addresses of the EEPROM established by the use of the
sRGB Gamma Calculator Software. An input is performed by edit of EEPROM of service menu → [tab
F]
6) Make power OFF → ON of the unit, and confirm whether the color is free from abnormality and
examine if any dot-state noise is generated.
Cautions: 1) The adjustment signal should be used at a definition of 1600 x 1200, 60Hz.
2) About 30 minutes of heat run is required when measuring the values with a color analyzer.
3) During measurements, the panel surface should not be exposed to external light so long as
circumstances permit.
Press
button upon completion
of RGB 27-point entry.
EEPROM DATA
It is converted
Hexadecimal system, and
decimal is entered by the
EEPROM editor.
