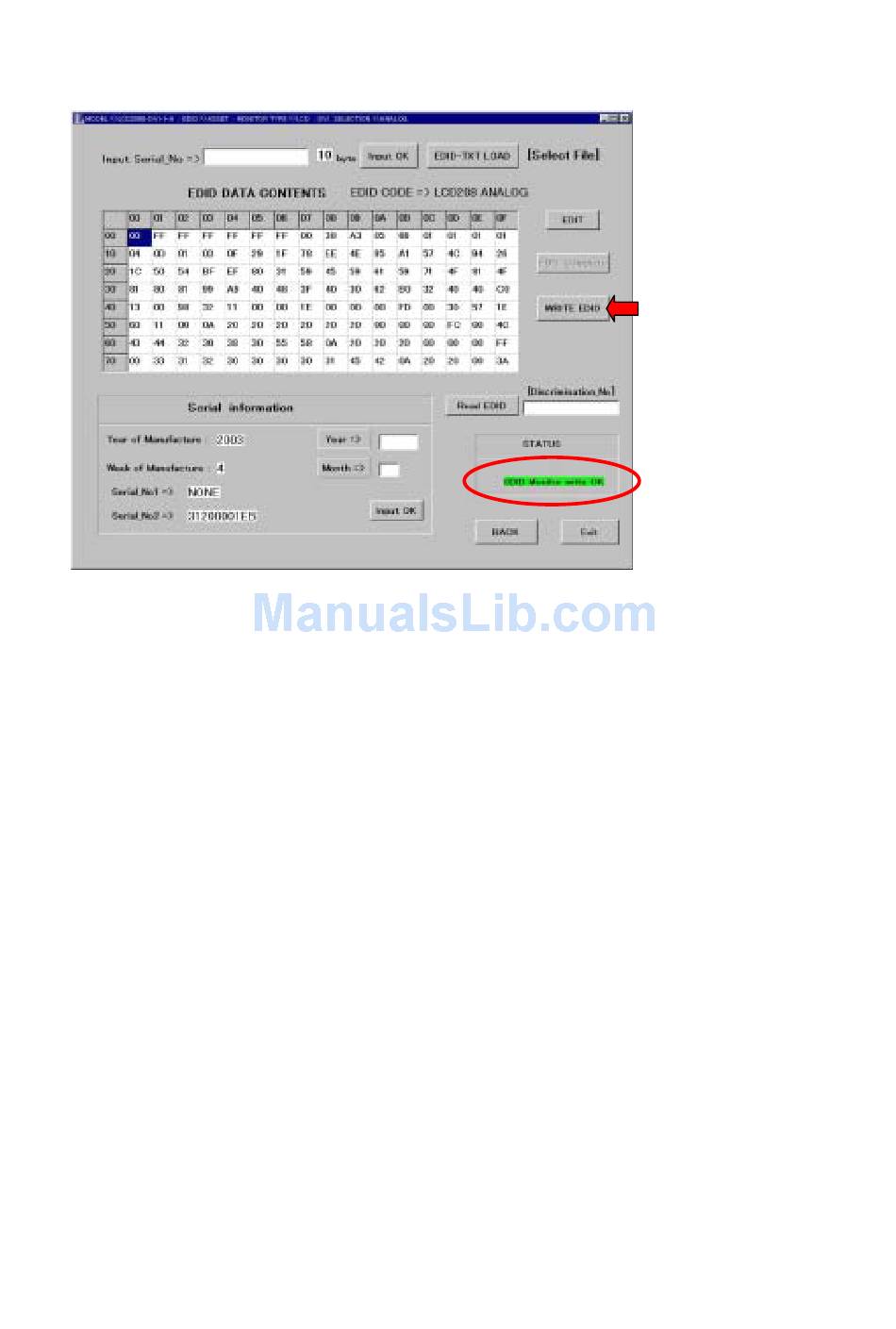

10) When the [WRITE EDID] button is pressed, writing of the EDID data only is carried out. Upon the
completion of correct writing, a display of [EDID Monitor Write OK] is presented in the column of
[STATUS].

3.4.2 EDID Data Inspection and Writing to the DVI Connector (Input 1) Digital

1) Connect the EDID data writing unit with jigs, etc. (Refer to a DVI-A connector connection figure)
2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united
and double-clicked to [LCD2080-DVI-I-D].
3) 6) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI
Connector (Input 1) Analog ".

3.4.3 EDID Data Inspection and Writing to the D-SUB Connector (Input 2) Analog

1) Connect the EDID data writing unit with jigs, etc. (Refer to a D-SUB connector connection figure)
2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united
and double-clicked to [LCD2080-D-SUB-A].
3) 6) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI
Connector (Input 1) Analog ".

3.4.4 EDID Data Writing to the D-SUB Connector (Input 2) Digital

1) Connect the EDID data writing unit with jigs, etc. (Refer to a D-SUB connector connection figure)
2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united
and double-clicked to [LCD2080-D-SUB-D-WRITE].
3) 8) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI
Connector (Input 1) Analog ".
5-27
