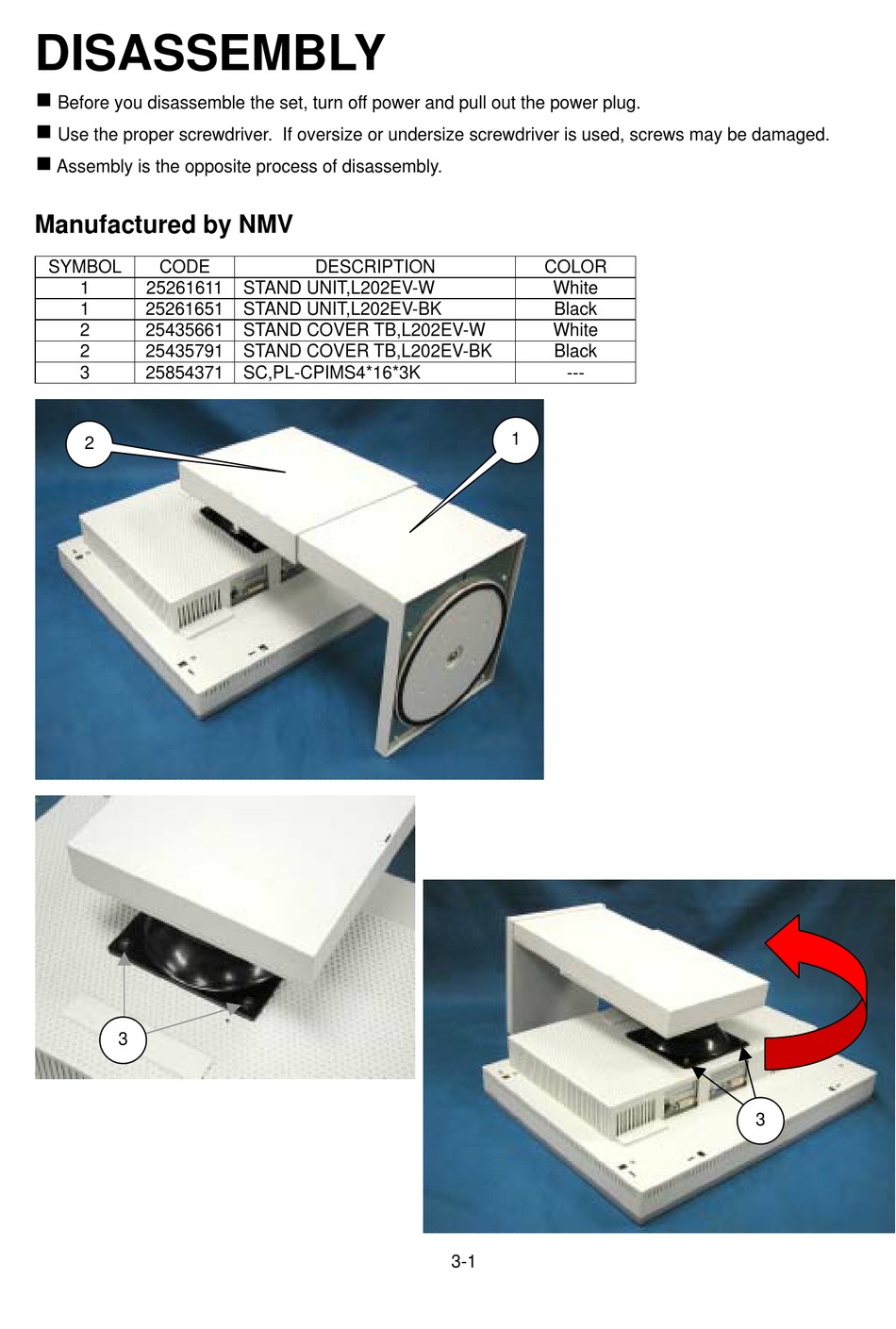

DISASSEMBLY
g Before you disassemble the set, turn off power and pull out the power plug.
g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged.
g Assembly is the opposite process of disassembly.
Manufactured by NMV
SYMBOL
CODE
1
25261611
1
25261651
2
25435661
2
25435791
3
25854371
2
3
DESCRIPTION
STAND UNIT,L202EV-W
STAND UNIT,L202EV-BK
STAND COVER TB,L202EV-W
STAND COVER TB,L202EV-BK
SC,PL-CPIMS4*16*3K
COLOR
White
Black
White
Black
---
1
3-1
3
