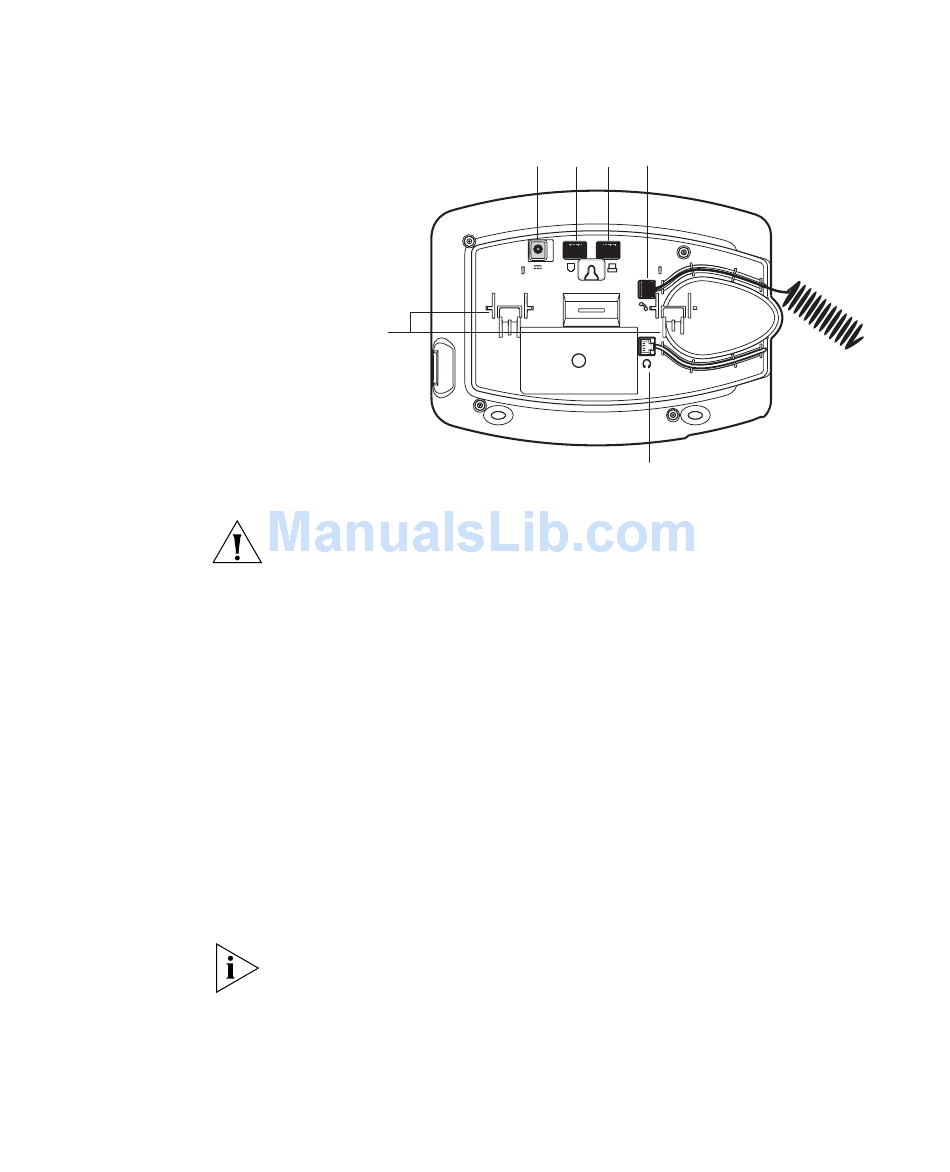

Figure 6 Underside of the VCX 3102 Business Telephone
6
CAUTION: The VCX system operates over the LAN, not through traditional
telephone wiring. Your telephone connects to the VCX system through an
RJ-45 LAN connector instead of an RJ-11 telephone connector. Your
telephone will not work unless it is connected properly. Ask your
administrator if you have questions about your telephone connection.
The underside of an VCX telephone or attendant console includes:
1 AC power adapter connection
2 Ethernet connector for connection to the LAN
3 Ethernet connector for an optional connection to your desktop
computer.
4 Handset connector
5 Headset connector (3102 and 3103 only)
6 Tabs for the support bracket
For information about the underside of each VCX Telephone, and for
information about how to connect any VCX Telephone or Attendant
Console to a Power over Ethernet source, see the packing sheet that
comes with the device.
Strain relief clamps are built into the 3101/3102/3105 support bracket.
Connecting the Telephone
1 2 3 4
5
