(7) Refitting the toner disposal box

Procedure
1. Open the rear cover.
2. Install the new toner disposal box in the
machine.

(8) Refitting the developer unit

Procedure
1. Install the new developer unit in the
machine by holding both of its ends.
Insert the unit along the guides on both
sides.

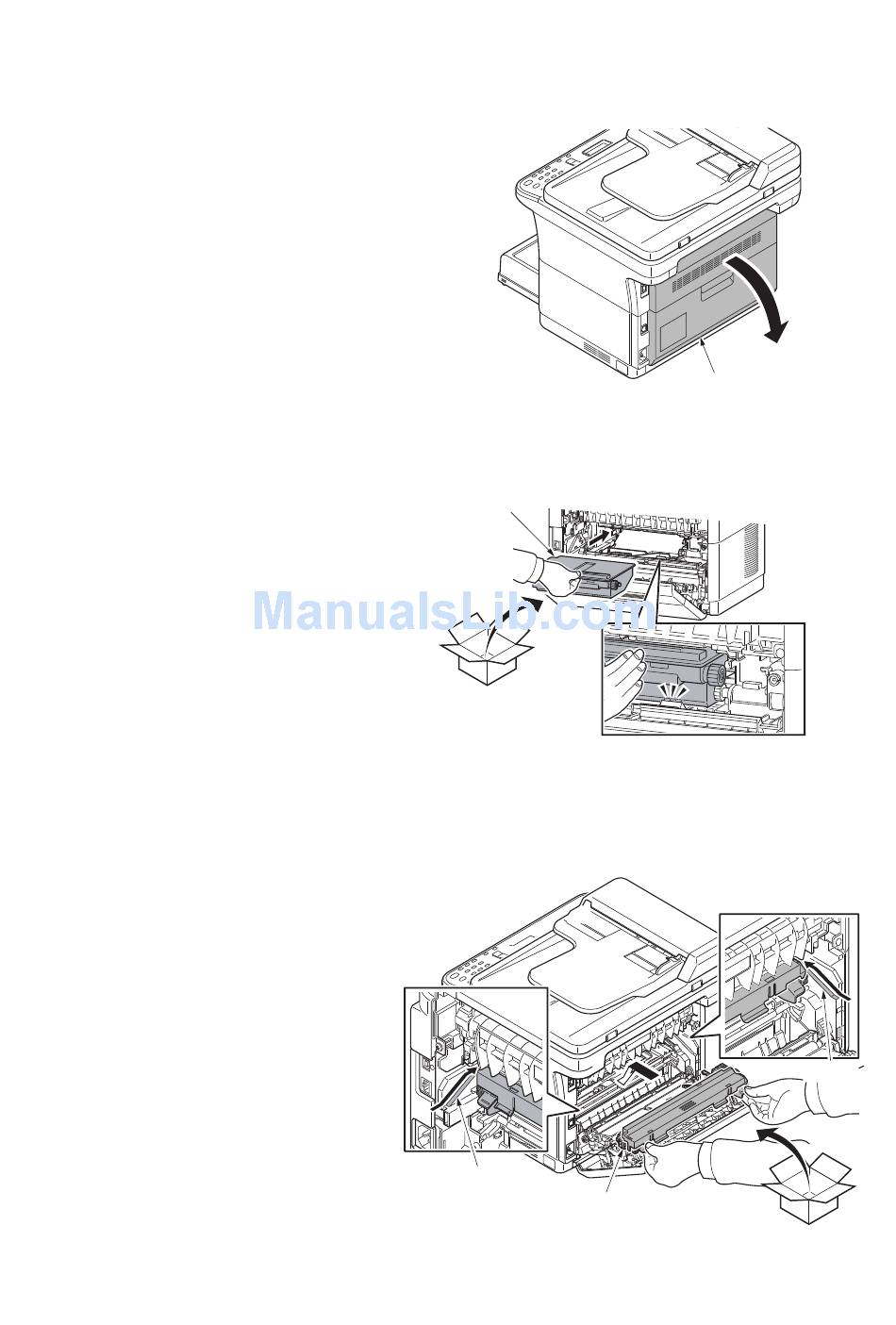

Figure 2-4-24
Toner disposal box
Figure 2-4-25
Guide
Developer unit
Figure 2-4-26
2-4-12
2M4/2M5/2M6/2M7
Rear cover
Guide
