Kyocera ECOSYS FS-1020MFP Service Manual page 133

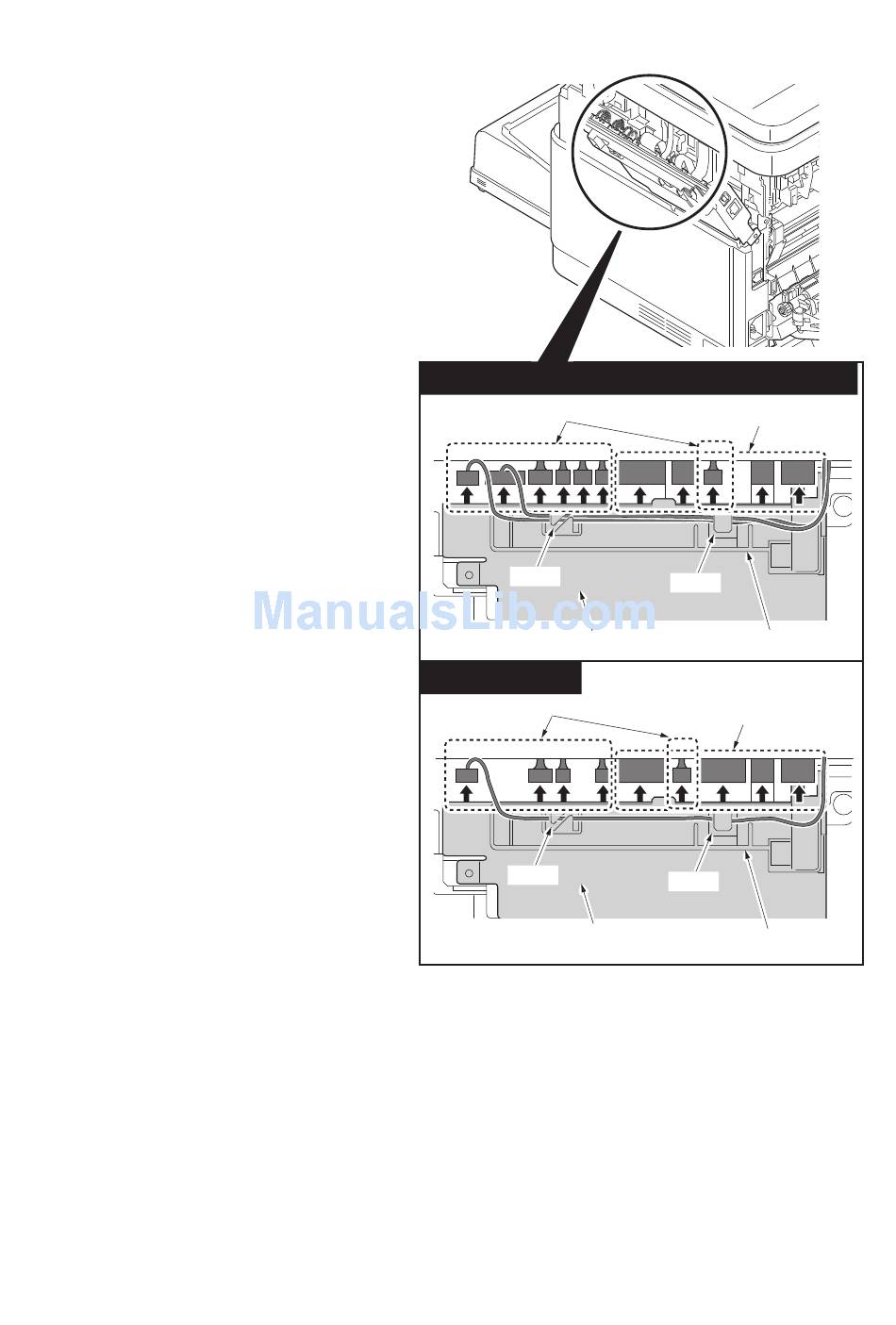

4. Detach the following connectors and
FFC from the main PWB:
4 in 1 25/26 ppm model,
4 in 1 20/21 ppm model,
3 in 1 25/26 ppm model:
Seven connectors, four FFC
3 in 1 20/21 ppm model:
Five connectors, four FFC
5. Release the wire from the 2 hookings
on the wire guide.
4 in 1 25/26 ppm, 3 in 1 25/26 ppm, 4 in 1 20/21 ppm
Seven connectors
Hook
Main PWB unit
3 in 1 20/21 ppm
Five connectors
Hook
Main PWB unit
Figure 1-5-28
1-5-19
2M4/2M5/2M6/2M7
Four FFC
Hook
Wire guide
Four FFC
Hook
Wire guide
