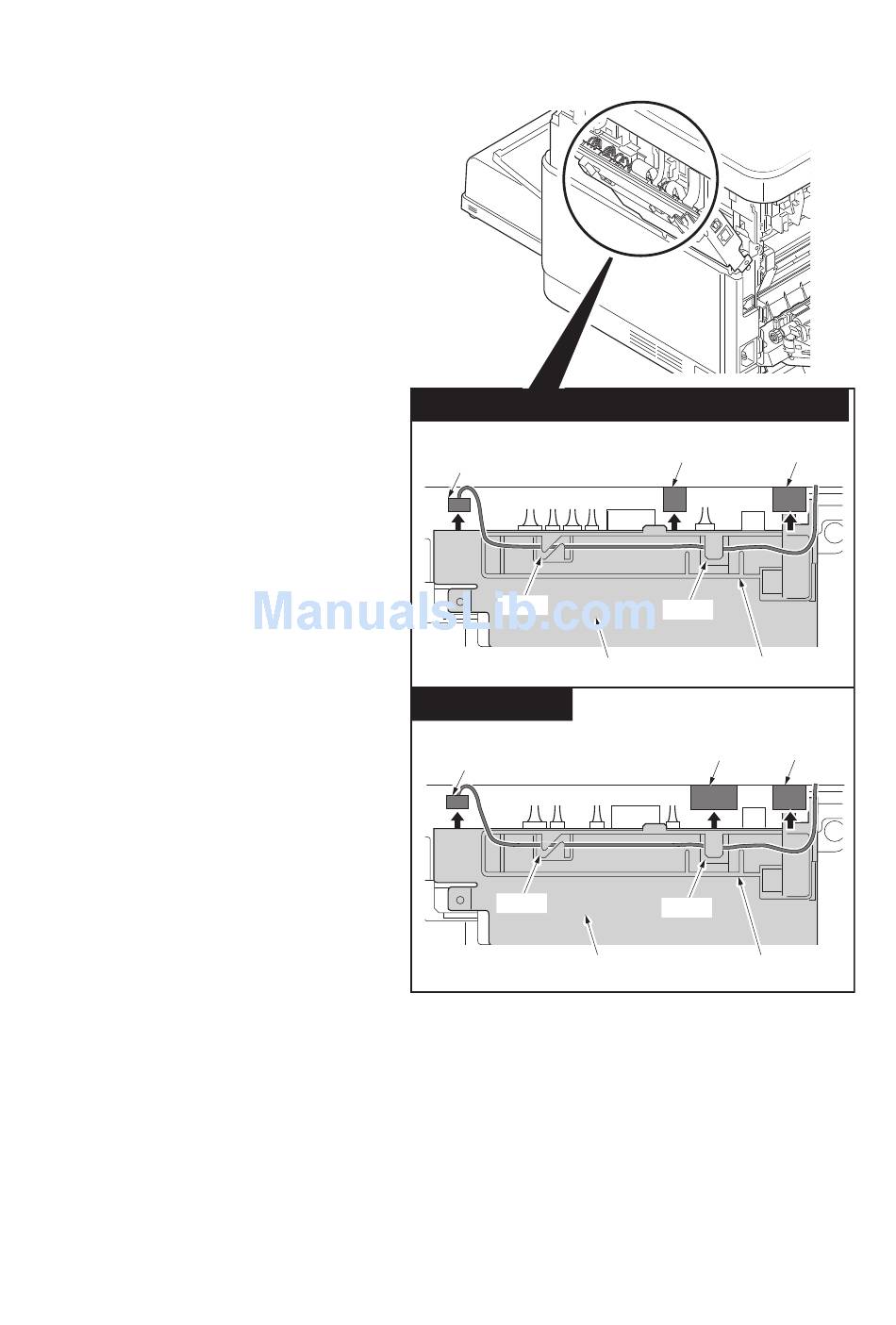

8. Detach the connector and two FFCs
from the main PWB.
9. Release the wire from the 2 hookings
on the wire guide.
4 in 1 25/26 ppm, 3 in 1 25/26 ppm, 4 in 1 20/21 ppm
Connector (YC18)
Hook
Main PWB unit
3 in 1 20/21 ppm
Connector (YC18)
Hook
Main PWB unit
1-5-12
2M4/2M5/2M6/2M7
FFC (YC6)
FFC (YC8)
Hook
Wire guide
FFC (YC21) FFC (YC8)
Hook
Wire guide
Figure 1-5-17
