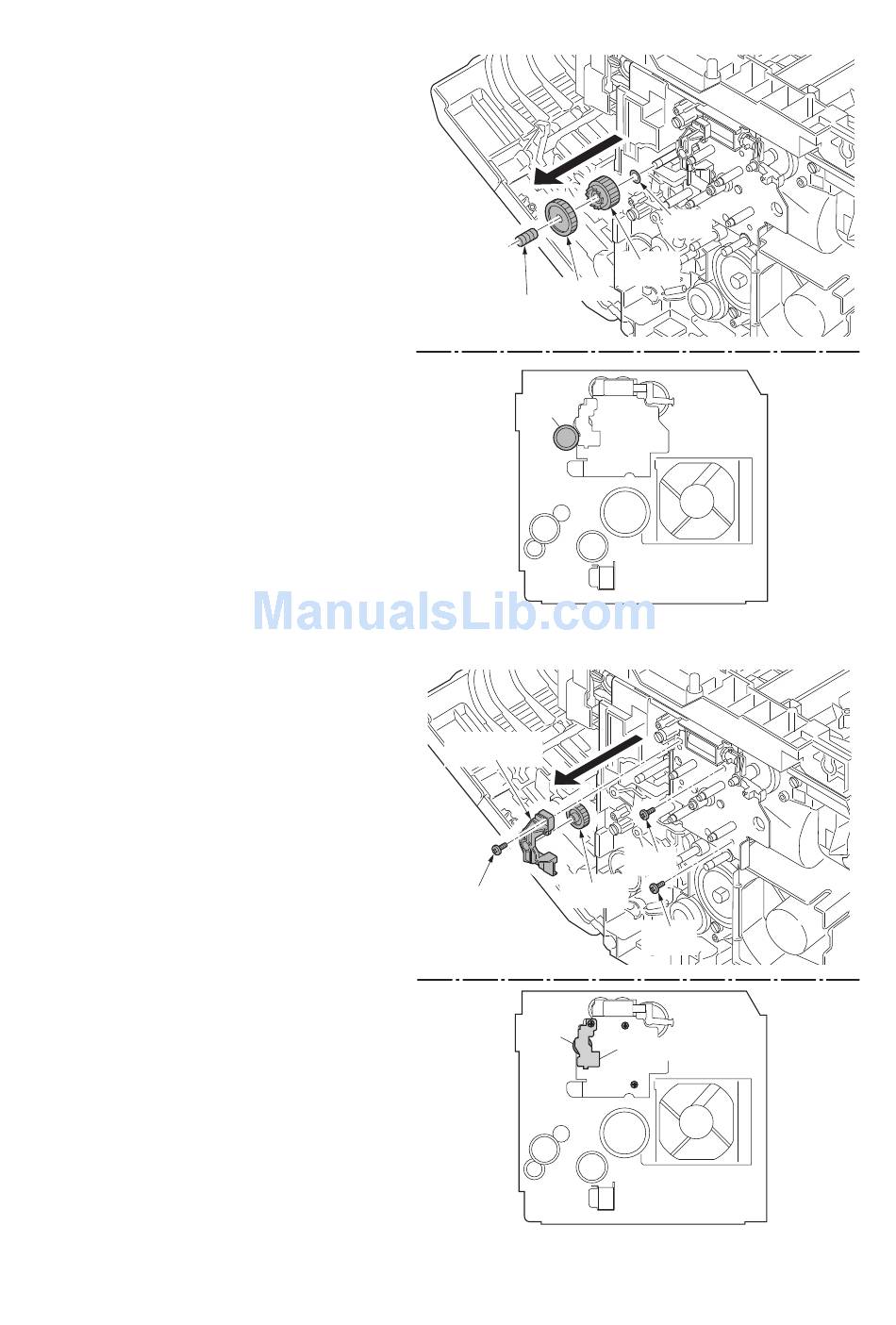

13. Remove the spring, gear M, gear N and
sim.
14. Remove the three screws and remove
the gear cover and gear P.
Gear M
Spring
M,N
Figure 1-5-54
Gear cover
Gear P
Screw
P
Figure 1-5-55
1-5-34
2M4/2M5/2M6/2M7
Sim
Gear N
Screw
Screw
Gear cover
