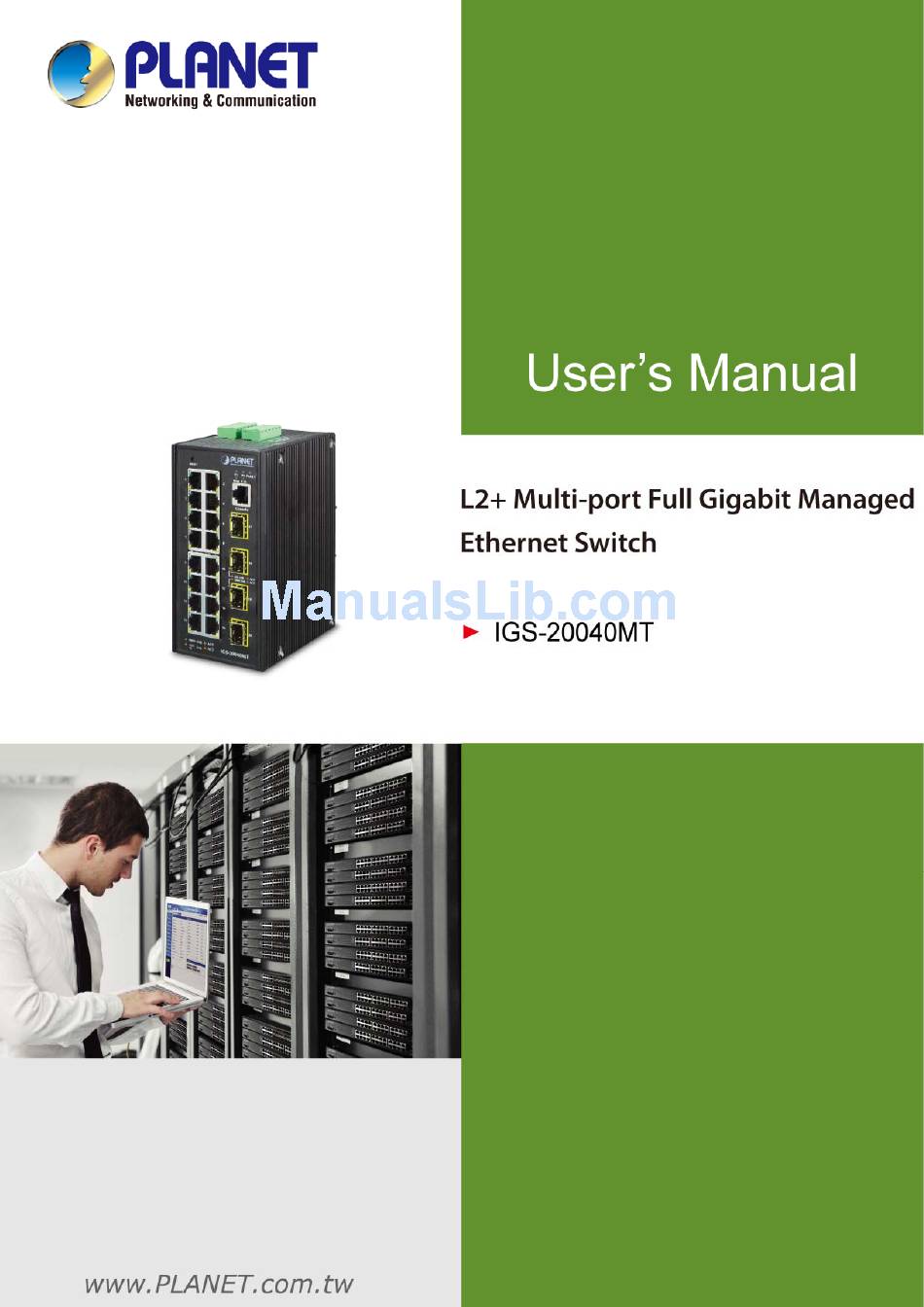

Planet IGS-20040MT User Manual

Planet IGS-20040MT User Manual

L2+ multi-port full gigabit managed ethernet switch
Hide thumbs Also See for IGS-20040MT:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-20040MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Planet IGS-20040MT

  • Page 2: Fcc Warning

    PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3: Table Of Contents

    2.3.1 Installing the SFP Transceiver ..........................35 2.3.2 Removing the SFP Transceiver ...........................38 3. SWITCH MANAGEMENT ....................39 3.1 Requirements..............................39 3.2 Management Access Overview .........................40 3.3 CLI Mode Management ..........................41 3.4 Web Management ............................44 3.5 SNMP-based Network Management ......................45 3.6 PLANET Smart Discovery Utility ......................46...
  • Page 4 User’s Manual of IGS-20040MT 4. WEB CONFIGURATION ...................... 48 4.1 Main Web Page ............................51 4.2 System.................................53 4.2.1 System Information..............................54 4.2.2 IP Configuration ..............................55 4.2.3 IP Status ................................57 4.2.4 Users Configuration .............................58 4.2.5 Privilege Levels ..............................61 4.2.6 NTP Configuration ...............................62 4.2.7 Time Configuration ..............................63 4.2.8 UPnP ...................................65...
  • Page 5 User’s Manual of IGS-20040MT 4.3.5.4 SNMPv3 Views............................94 4.3.5.5 SNMPv3 Access ............................95 4.4 Port Management ............................97 4.4.1 Port Configuration..............................97 4.4.2 Port Statistics Overview ............................99 4.4.3 Port Statistics Detail............................100 4.4.4 SFP Module Information ............................101 4.4.5 Port Mirror................................104 4.5 Link Aggregation ............................106 4.5.1 Static Aggregation..............................108 4.5.2 LACP Configuration ............................109...
  • Page 6 User’s Manual of IGS-20040MT 4.7.7 MSTI Ports Configuration ..........................159 4.7.8 Port Status .................................161 4.7.9 Port Statistics..............................162 4.8 Multicast ..............................163 4.8.1 IGMP Snooping ..............................163 4.8.2 Profile Table...............................167 4.8.3 Address Entry ..............................168 4.8.4 IGMP Snooping Configuration ...........................169 4.8.5 IGMP Snooping VLAN Configuration.........................171 4.8.6 IGMP Snooping Port Group Filtering .........................173...
  • Page 7 User’s Manual of IGS-20040MT 4.9.13 Storm Control Configuration ..........................213 4.9.14 QoS Statistics ..............................214 4.9.15 Voice VLAN Configuration ..........................215 4.9.16 Voice VLAN OUI Table.............................217 4.10 Access Control Lists..........................218 4.10.1 Access Control List Status ..........................218 4.10.2 Access Control List Configuration........................220 4.10.3 ACE Configuration ............................222 4.10.4 ACL Ports Configuration ..........................232...
  • Page 8 User’s Manual of IGS-20040MT 4.13 MAC Address Table..........................299 4.13.1 MAC Table Configuration..........................299 4.13.2 MAC Address Table Status ..........................301 4.14 LLDP ................................303 4.14.1 Link Layer Discovery Protocol .........................303 4.14.2 LLDP Configuration ............................303 4.14.3 LLDP MED Configuration ..........................306 4.14.4 LLDP-MED Neighbor ............................312 4.14.5 Neighbor ................................316...
  • Page 9 User’s Manual of IGS-20040MT 5. SWITCH OPERATION ....................... 358 5.1 Address Table ............................358 5.2 Learning ..............................358 5.3 Forwarding & Filtering ..........................358 5.4 Store-and-Forward ...........................358 5.5 Auto-Negotiation ............................359 6. TROUBLESHOOTING....................... 360 APPENDIX A: Networking Connection ................361 A.1 Switch's Data RJ45 Pin Assignments - 1000Mbps, 1000Base-T ............361 A.2 10/100Mbps, 10/100Base-TX ........................361...
  • Page 10: Introduction

    User’s Manual of IGS-20040MT 1. INTRODUCTION PLANET IGS-20040MT Industrial 16-Port 10/100/1000T + 4-Port 100/1000X SFP Industrial Managed Switch come with the multi-port Gigabit Ethernet Switch and SFP fiber optic connectibility, and robust layer 2 features. The description of these models is shown below:...
  • Page 11: Product Description

    IP30 rugged strong case with redundant power system. Besides support for 40Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-20040MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.
  • Page 12 Q-in-Q VLAN, Multiple Spanning Tree Protocol(MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 groups of 8 ports for trunking and supports connection fail-over as well.
  • Page 13 IPv6 / IPv4 Full-functioned Secure Switch for Building Automation Networking The IGS-20040MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 protocols, advanced Layer 2 to Layer 4 data switching and redundancy, QoS traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for...
  • Page 14 User’s Manual of IGS-20040MT Flexible and Extendable Solution The 4 mini-GBIC slots built in the IGS-20040MT support dual-speed as it features 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.
  • Page 15: How To Use This Manual

    User’s Manual of IGS-20040MT 1.3 How to Use This Manual This User’s Manual is structured as follows: Section 2, INSTALLATION The section explains the functions of the Industrial Managed Switch and how to physically install the Industrial Managed Switch. Section 3, SWITCH MANAGEMENT The section contains the information about the software function of the Industrial Managed Switch.
  • Page 16: Product Features

    User’s Manual of IGS-20040MT 1.4 Product Features  Physical Port  16-Port 10/100/1000Base-T RJ45 copper  4 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection  One RJ45 console interface for basic management and setup  Industrial Case / Installation ...
  • Page 17 User’s Manual of IGS-20040MT  Up to 16Gbps bandwidth(duplex mode)  Provides port mirror (many-to-1)  Port Mirroring of the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops  Supports E.R.P.S. (Ethernet Ring Protection Switching) ...
  • Page 18  Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues  SMTP / Syslog remote alarm  Four RMON groups (history, statistics, alarms and events)  SNMP trap for interfacing Link Up and Link Down notification  System Log  PLANET Smart Discovery Utility for deploy management...
  • Page 19: Product Specifications

    User’s Manual of IGS-20040MT 1.5 Product Specifications Model Name IGS-20040MT Hardware Specifications 16 10/ 100/1000Base-T RJ45 Auto-MDI/MDI-X ports Copper Ports 4 1000Base-SX/LX/BX SFP interfaces (Port-17 to Port-20) SFP/mini-GBIC Slots Compatible with 100Base-FX SFP 1 x RJ45 serial port (115200, 8, N, 1)
  • Page 20 User’s Manual of IGS-20040MT 24V AC 8 watts / 27BTU (System on) Power Consumption 17 watts / 57BTU (Full loading) Layer 2 Functions Web browser, Remote Telnet, SNMPv1, v2c, local console Basic Management Interfaces SSH, SSL, SNMPv3 Secure Management Interface...
  • Page 21 User’s Manual of IGS-20040MT RFC 2863 Interface MIB IEEE 802.1X PAE RFC 2665 Ether-Like MIB LLDP RFC 2819 RMON MIB MAU-MIB (Group 1, 2, 3 and 9) Layer 3 Functions Max. 128 VLAN interfaces IP Interfaces Max. 32 routing entries...
  • Page 22: Installation

    User’s Manual of IGS-20040MT 2. INSTALLATION 2.1 Hardware Description The Industrial Managed Switch provides three different running speeds – 10Mbps, 100Mbps and 1000Mbps in the same Switch and automatically distinguishes the speed of incoming connection. This section describes the hardware features of Industrial Managed Switch. For easier management and control of the Industrial Managed Switch, familiarize yourself with its display indicators and ports.
  • Page 23: Front Panel

    User’s Manual of IGS-20040MT 2.1.2 Front Panel Figure 2-1 shows the front panel of Industrial Managed Switch. Figure 2-1: IGS-20040MT Switch Front Panel ■ Gigabit TP interface 10/100/1000Base-T Copper, RJ45 Twist-Pair: Up to 100 meters. ■ SFP slot 100/1000Base-X mini-GBIC slot, SFP (Small-form Factor Pluggable) transceiver module: From 550 meters to 2km (multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber).
  • Page 24 User’s Manual of IGS-20040MT ■ Reset button On the upper left side of the front panel, the reset button is designed for rebooting the Industrial Industrial Managed Switch without turning off and on the power. The following is the summary table of reset button...
  • Page 25: Led Indications

    User’s Manual of IGS-20040MT 2.1.3 LED Indications LED Definition:  System Color Function Indicates power 1 has power. Green Indicates power 2 has power. Green Indicates either power 1 or power 2 has no power. Fault Green Lights to indicate that the ERPS Ring has been created successfully.
  • Page 26: Switch Upper Panel

    6-contacts. It accepts input power from 12 to 48V DC and 24V AC. Insert positive / negative DC power wires into contacts 1 and 2 for DC Power 1, or 5 and 6 for DC Power 2. Figure 2-3: IGS-20040MT Upper Panel Tighten the wire-clamp screws for preventing the wires from loosening.
  • Page 27: Wiring The Fault Alarm Contact

    User’s Manual of IGS-20040MT 2.1.5 Wiring the Fault Alarm Contact The fault alarm contacts are in the middle (3 & 4) of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Managed Switch will detect the fault status of the power failure, or port link failure (available for managed model).
  • Page 28: Wiring The Digital Input / Output

    The 6-contact terminal block connector on the rear panel of IGS-20040MT is used for Digital Input and Digital Output. Please follow the steps below to insert wire. The IGS-20040MT offers two DI and DO groups. 1 and 2 are DI groups, 3 and 4 are DO groups and 5 and 6 are GND (ground).
  • Page 29 Figure 2-7 Wires DI0 and DI1 to Open Detector There are two Digital Output groups for you to sense IGS-20040MT port failure or power failure and issue a high or low signal to external device.The following topology shows how to wire DO0 and DO1.
  • Page 30: Install The Industrial Managed Switch

    User’s Manual of IGS-20040MT 2.2 Install the Industrial Managed Switch This section describes how to install your Industrial Managed Switch and make connections to the Industrial Managed Switch. Please read the following topics and perform the procedures in the order being presented. To install your Industrial Managed Switch on a desktop or shelf, simply complete the following steps.
  • Page 31: Din-Rail Mounting

    User’s Manual of IGS-20040MT 2.2.2 DIN-Rail Mounting This section describes how to install the Industrial Managed Switch. There are two methods to install the Industrial Managed Switch -- DIN-rail mounting and wall-mount plate mounting. Please read the following topics and perform the procedures in the order being presented.
  • Page 32 User’s Manual of IGS-20040MT Step 3: Check whether the DIN-rail is tightly on the track. Please refer to the following procedures to remove the Industrial Managed Switch from the track. Step 4: Lightly remove the DIN-rail from the track.
  • Page 33: Wall Mount Plate Mounting

    User’s Manual of IGS-20040MT 2.2.3 Wall Mount Plate Mounting To install the Industrial Managed Switch on the wall, please follow the instructions below. Follow all the DIN-rail installation steps as shown in the example. Step 1: Remove the DIN-rail from the Industrial Managed Switch. Use the screwdriver to loosen the screws to remove the DIN-rail.
  • Page 34: Cabling

    User’s Manual of IGS-20040MT 2.3 Cabling  10/100/1000Base-T All 10/100/1000Base-T ports come with auto-negotiation capability. They automatically support 1000Base-T, 100Base-TX and 10Base-T networks. Users only need to plug a working network device into one of the 10/100/1000Base-T ports, and then turn on the Industrial Managed Switch. The port will automatically run in 10Mbps, 20Mbps, 100Mbps or 200Mbps and 1000Mbps or 2000Mbps after negotiating with the connected device.
  • Page 35: Installing The Sfp Transceiver

    Approved PLANET SFP Transceivers PLANET Industrial Managed Switch supports 100/1000 dual mode with both single mode and multi-mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: Fast Ethernet Transceiver (100Base-X SFP)
  • Page 36 User’s Manual of IGS-20040MT MFB-FB20 WDM(LC) Single Mode 20km 1550nm 1310nm 0 ~ 60 ℃ MFB-TFA20 WDM(LC) Single Mode 20km 1310nm 1550nm -40 ~ 75 ℃ MFB-TFB20 WDM(LC) Single Mode 20km 1550nm 1310nm -40 ~ 75 ℃ MFB-TFA40 WDM(LC) Single Mode...
  • Page 37 User’s Manual of IGS-20040MT It is recommended to use PLANET SFPs on the Industrial Managed Switch. If you insert an SFP transceiver that is not supported, the Industrial Managed Switch might not recognize it. Please choose the SFP transceiver which can be operated in the temperature range of -40~75 ℃.
  • Page 38: Removing The Sfp Transceiver

    User’s Manual of IGS-20040MT 2.3.2 Removing the SFP Transceiver Make sure there is no network activity by consulting or checking with the network administrator. Or through the management interface of the switch/converter (if available) to disable the port in advance.
  • Page 39: Switch Management

    User’s Manual of IGS-20040MT 3. SWITCH MANAGEMENT This chapter explains the methods that you can use to configure management access to the Industrial Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system.
  • Page 40: Management Access Overview

    User’s Manual of IGS-20040MT 3.2 Management Access Overview The Industrial Managed Switch gives you the flexibility to access and manage it using any or all of the following methods:  Remote Telnet Interface  Web browser Interface  An external SNMP-based network management application The remote Telnet and Web browser interfaces are embedded in the Industrial Managed Switch software and are available for immediate use.
  • Page 41: Cli Mode Management

    There are two ways for CLI mode management, one is remote telnet and the other operated from console port. Remote telnet is an IP-based protocol and console port is for user to operate the IGS-20040MT locally only; however, their operations are the same.
  • Page 42 User’s Manual of IGS-20040MT  115200 bps  8 data bits  No parity  1 stop bit Figure 3-1-2: Terminal Parameter Settings You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots.
  • Page 43 User’s Manual of IGS-20040MT Figure 3-2: Remote Telnet Interface Main Screen of Industrial Managed Switch...
  • Page 44: Web Management

    User’s Manual of IGS-20040MT 3.4 Web Management The Industrial Managed Switch offers management features that allow users to manage the Industrial Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the Industrial Managed Switch, you can access the Industrial Managed Switch’s Web interface applications directly in your...
  • Page 45: Snmp-Based Network Management

    User’s Manual of IGS-20040MT 3.5 SNMP-based Network Management You can use an external SNMP-based application to configure and manage the Industrial Managed Switch, such as SNMP Network Manager, HP Openview Network Node Management (NNM) or What’s Up Gold. This management method requires the SNMP agent on the Industrial Managed Switch and the SNMP Network Management Station to use the same community string.
  • Page 46: Planet Smart Discovery Utility

    To easily list the Industrial Managed Switch in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual CD-ROM is an ideal solution. The following install instructions guide you to running the Planet Smart Discovery Utility. Open the Planet Smart Discovery Utility in administrator PC.
  • Page 47 To click the “Control Packet Force Broadcast” function, it allows new setting value to be assigned to the Web Smart Switch under a different IP subnet address. Press “Connect to Device” button and then the Web login screen appears in Figure 3-7. Press “Exit” button to shut down the planet Smart Discovery Utility.
  • Page 48: Web Configuration

    User’s Manual of IGS-20040MT 4. WEB CONFIGURATION This section introduces the configuration and functions of the Web-based management. About Web-based Management The Industrial Managed Switch offers management features that allow users to manage the Industrial Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
  • Page 49 User’s Manual of IGS-20040MT  Logging on the Industrial Managed Switch Use Internet Explorer 7.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The factory-default IP Address is as follows: http://192.168.0.100 When the following login screen appears, please enter the default username "admin" with password “admin” (or the username/password you have changed via console) to login the main screen of Industrial Managed Switch.
  • Page 50 User’s Manual of IGS-20040MT Now, you can use the Web management interface to continue the switch management or manage the Industrial Managed Switch by Web interface. The Switch Menu on the left of the web page lets you access all the commands and statistics the Industrial Managed Switch provides.
  • Page 51: Main Web Page

    User’s Manual of IGS-20040MT 4.1 Main Web Page The Industrial Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Industrial Managed Switch using the Web browser of your choice. This chapter describes how to use the Industrial Managed Switch’s Web browser interface to configure and manage it.
  • Page 52 User’s Manual of IGS-20040MT Main Menu Using the onboard web agent, you can define system parameters, manage and control the Industrial Managed Switch, and all its ports, or monitor network conditions. Via the Web-Management, the administrator can set up the Industrial Managed Switch by selecting the functions those listed in the Main Function.
  • Page 53: System

    User’s Manual of IGS-20040MT 4.2 System Use the System menu items to display and configure basic administrative details of the Industrial Managed Switch. Under System the following topics are provided to configure and view the system information. The Managed Switch system information is provided here.
  • Page 54: System Information

    User’s Manual of IGS-20040MT 4.2.1 System Information The System Info page provides information for the current device information. System Info page helps a switch administrator to identify the hardware MAC address, software version and system uptime. The screen in Figure 4-2-1 appears.
  • Page 55: Ip Configuration

    User’s Manual of IGS-20040MT : Click to refresh the page 4.2.2 IP Configuration The IP Configuration includes the IP Configuration, IP Interface and IP Routes. The configured column is used to view or change the IP configuration. The maximum number of interfaces supported is 128 and the maximum number of routes is 32.
  • Page 56 User’s Manual of IGS-20040MT This setting controls the DNS name resolution done by the switch. The DNS Server following modes are supported:  From any DHCP interfaces The first DNS server offered from a DHCP lease to a DHCP-enabled interface will be used.
  • Page 57: Ip Status

    User’s Manual of IGS-20040MT The VLAN ID (VID) of the specific IPv6 interface associated with the Next Hop VLAN gateway. Buttons : Click to add a new IP interface. A maximum of 128 interfaces is supported. : Click to add a new IP route. A maximum of 32 routes is supported.
  • Page 58: Users Configuration

    User’s Manual of IGS-20040MT The current address of the interface (of the given type). Address The status flags of the interface (and/or address). Status  IP Routes The destination IP network or host address of this route. Network The gateway address of this route.
  • Page 59 User’s Manual of IGS-20040MT Buttons : Click to add a new user. Add / Edit User This Page configures a user – add, edit or delete user. Figure 4-2-5: Add / Edit User Configuration Page Screenshot The Page includes the following fields:...
  • Page 60 User’s Manual of IGS-20040MT By default setting, most groups privilege level 5 has the read-only access and privilege level 10 has the read-write access. And the system maintenance (software upload, factory defaults and etc.) need user privilege level 15. Generally, the privilege level 15 can be used for an administrator account, privilege level 10 for a standard user account and privilege level 5 for a guest account.
  • Page 61: Privilege Levels

    User’s Manual of IGS-20040MT 4.2.5 Privilege Levels This Page provides an overview of the privilege levels. After setup is completed, please press “Apply” button to take effect. Please login web interface with new user name and password and the screen in Figure 4-2-7 appears.
  • Page 62: Ntp Configuration

    User’s Manual of IGS-20040MT more than one. The following description defines these privilege level groups in details:  System: Contact, Name, Location, Timezone, Log.  Security: Authentication, System Access Management, Port (contains Dot1x port, MAC based and the MAC Address Limit), ACL, HTTPS, SSH, ARP Inspection and IP source guard.
  • Page 63: Time Configuration

    User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  Mode Indicates the NTP mode operation. Possible modes are:  Enabled: Enable NTP mode operation. When enable NTP mode operation, the agent forward and to transfer NTP messages between the clients and the server when they are not on the same subnet domain.
  • Page 64 User’s Manual of IGS-20040MT Figure 4-2-9: Time Configuration Page Screenshot The Page includes the following fields: Object Description  Time Zone Lists various Time Zones worldwide. Select appropriate Time Zone from the drop-down menu and click Save to set. ...
  • Page 65: Upnp

    User’s Manual of IGS-20040MT  Month - Select the starting month.  Hours - Select the starting hour.  Minutes - Select the starting minute.  End Time Settings  Week - Select the ending week number.  Day - Select the ending day.
  • Page 66 User’s Manual of IGS-20040MT  TTL The TTL value is used by UPnP to send SSDP advertisement messages. Valid values are in the range of 1 to 255.  The duration, carried in SSDP packets, is used to inform a control point or control...
  • Page 67: Dhcp Relay

    User’s Manual of IGS-20040MT 4.2.9 DHCP Relay Configure DHCP Relay on this Page. DHCP Relay is used to forward and to transfer DHCP messages between the clients and the server when they are not on the same subnet domain. The DHCP option 82 enables a DHCP relay agent to insert specific information into a DHCP request packets when forwarding client DHCP packets to a DHCP server and remove the specific information from a DHCP reply packets when forwarding server DHCP packets to a DHCP client.
  • Page 68: Dhcp Relay Statistics

    User’s Manual of IGS-20040MT they are not on the same subnet domain.  Relay Information Indicates the DHCP relay information mode option operation. Possible modes are: Mode  Enabled: Enable DHCP relay information mode operation. When enabling DHCP relay information mode operation, the agent inserts specific...
  • Page 69 User’s Manual of IGS-20040MT The Page includes the following fields: Server Statistics Object Description  Transmit to Server The packets number that is relayed from client to server.  Transmit Error The packets number whose errors are sending to clients.
  • Page 70: Cpu Load

    User’s Manual of IGS-20040MT 4.2.11 CPU Load This Page displays the CPU load, using an SVG graph. The load is measured as average over the last 100ms, 1sec and 10 seconds intervals. The last 120 samples are graphed, and the last numbers are displayed as text as well. In order to display the SVG graph, your browser must support the SVG format.
  • Page 71: System Log

    User’s Manual of IGS-20040MT 4.2.12 System Log The Industrial Managed Switch system log information is provided here. The System Log screen in Figure 4-2-15 appears. Figure 4-2-15: System Log Page Screenshot The Page includes the following fields: Object Description  ID The ID (>= 1) of the system log entry.
  • Page 72: Detailed Log

    User’s Manual of IGS-20040MT : Updates the system log entries, starting from the first available entry ID. : Updates the system log entries, ending at the last entry currently displayed. : Updates the system log entries, starting from the last entry currently displayed.
  • Page 73: Remote Syslog

    User’s Manual of IGS-20040MT 4.2.14 Remote Syslog Configure remote syslog on this Page. The Remote Syslog screen in Figure 4-2-17 appears. Figure 4-2-17: Remote Syslog Page Screenshot The Page includes the following fields: Object Description  Mode Indicates the server mode operation. When the mode operation is enabled, the syslog message will send out to syslog server.
  • Page 74: Smtp Configuration

    User’s Manual of IGS-20040MT 4.2.15 SMTP Configuration This Page facilitates an SMTP Configuration on the switch. The SMTP Configure screen in Figure 4-2-18 appears. Figure 4-2-18: SMTP Configuration Page Screenshot The Page includes the following fields: Object Description  SMTP Mode Controls whether SMTP is enabled on this switch.
  • Page 75: Digital Input / Output

    User’s Manual of IGS-20040MT 4.2.16 Digital Input / Output Digital Input allows user to log external device (such as industrial cooler) dead or alive or something else. System will log a user customized message into system log and syslog, and issue SNMP trap or issue an alarm E-mail.
  • Page 76: Fault Alarm

    User’s Manual of IGS-20040MT  As Digital Input: Event Allows user to record alarm message to System log, syslog or issues out via SNMP Trap or SMTP. As default SNMP Trap and SMTP are disabled, please enable them first if you want to issue alarm message via them.
  • Page 77 User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  Enable Controls whether Fault Alarm is enabled on this switch.  Record Controls whether Record is sending System log or SNMP Trap or both.  Action Controls whether Port Fail or Power Fail or both for fault detecting.
  • Page 78: Web Firmware Upgrade

    User’s Manual of IGS-20040MT 4.2.18 Web Firmware Upgrade This Page facilitates an update of the firmware controlling the switch. The Web Firmware Upgrade screen in Figure 4-2-21 appears. Figure 4-2-21: Web Firmware Upgrade Page Screenshot To open Firmware Upgrade screen, perform the following: Click System ->...
  • Page 79: Tftp Firmware Upgrade

    User’s Manual of IGS-20040MT 4.2.19 TFTP Firmware Upgrade The Firmware Upgrade Page provides the functions to allow a user to update the Industrial Managed Switch firmware from the TFTP server in the network. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.
  • Page 80: Save Startup Config

    User’s Manual of IGS-20040MT 4.2.20 Save Startup Config This function allows to save the current configuration, thereby ensuring that the current active configuration can be used at the next reboot screen in Figure 4-2-24 as shown below. After saving the configuration, the screen in Figure 4-2-25 appears.
  • Page 81: Configuration Upload

    User’s Manual of IGS-20040MT 4.2.22 Configuration Upload Configuration Upload page allows the uploads of the running-config and startup-config on the switch. Please refer to Figure 4-2-27 shown below. Figure 4-2-27: Configuration Upload Page Screenshot If the destination is running-config, the file will be applied to the switch configuration. This can be done in two ways: ...
  • Page 82: Configuration Delete

    User’s Manual of IGS-20040MT It is possible to activate any of the configuration files present on the switch, except for running-config which represents the currently active configuration. Select the file to activate and click . This will initiate the process of completely replacing the existing configuration with that of the selected file.
  • Page 83: Factory Default

    User’s Manual of IGS-20040MT Figure 4-2-30: Software Image Selection Page Screenshot The Page includes the following fields: Object Description  Image The flash index name of the firmware image. The name of primary (preferred) image is image, the alternate image is named image.bk.
  • Page 84: System Reboot

    User’s Manual of IGS-20040MT Buttons : Click to reset the configuration to Factory Defaults. : Click to return to the Port State Page without resetting the configuration. To reset the Industrial Managed Switch to the Factory default setting, you can also press the hardware reset button at the front panel about 10 seconds.
  • Page 85: Simple Network Management Protocol

    User’s Manual of IGS-20040MT 4.3 Simple Network Management Protocol 4.3.1 SNMP Overview The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.
  • Page 86: Snmp System Configuration

    User’s Manual of IGS-20040MT SNMP community An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where information is sent. The community name is used to identify the group. A SNMP device or agent may belong to more than one SNMP community.
  • Page 87 User’s Manual of IGS-20040MT  Disabled: Disable SNMP mode operation.  Indicates the SNMP supported version. Possible versions are: Version  SNMP v1: Set SNMP supported version 1.  SNMP v2c: Set SNMP supported version 2c.  SNMP v3: Set SNMP supported version 3.
  • Page 88: Snmp Trap Configuration

    User’s Manual of IGS-20040MT 4.3.3 SNMP Trap Configuration Configure SNMP trap on this Page. The SNMP Trap Configuration screen in Figure 4-3-2 appears. Figure 4-3-2: SNMP Trap Configuration Page Screenshot The Page includes the following fields: Object Description  Indicates which trap Configuration's name for configuring. The allowed string Trap Config length is 0 to 255, and the allowed content is ASCII characters from 33 to 126.
  • Page 89 User’s Manual of IGS-20040MT  SNMP v3: Set SNMP trap supported version 3.  Indicates the community access string when send SNMP trap packet. The Trap Community allowed string length is 0 to 255, and the allowed content is the ASCII characters from 33 to 126.
  • Page 90: Snmp System Information

    User’s Manual of IGS-20040MT  RMON: Enable/disable RMON trap. Buttons : Click to apply changes : Click to undo any changes made locally and revert to previously saved values. 4.3.4 SNMP System Information The switch system information is provided here. The SNMP System Information screen in Figure 4-3-3 appears.
  • Page 91: Snmpv3 Configuration

    User’s Manual of IGS-20040MT 4.3.5 SNMPv3 Configuration 4.3.5.1 SNMPv3 Communities Configure SNMPv3 communities table on this Page. The entry index key is Community. The SNMPv3 Communities screen in Figure 4-3-4 appears. Figure 4-3-4: SNMPv3 Communities Configuration Page Screenshot The Page includes the following fields:...
  • Page 92: Snmpv3 Users

    User’s Manual of IGS-20040MT 4.3.5.2 SNMPv3 Users Configure SNMPv3 users table on this Page. The entry index keys are Engine ID and User Name. The SNMPv3 Users screen Figure 4-3-5 appears. Figure 4-3-5: SNMPv3 Users Configuration Page Screenshot The Page includes the following fields:...
  • Page 93: Snmpv3 Groups

    User’s Manual of IGS-20040MT  MD5: An optional flag to indicate that this user using MD5 authentication protocol.  SHA: An optional flag to indicate that this user using SHA authentication protocol. The value of security level cannot be modified if entry already exist. That means must first ensure that the value is set correctly.
  • Page 94: Snmpv3 Views

    User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  Check to delete the entry. It will be deleted during the next save. Delete  Indicates the security model that this entry should belong to. Possible security...
  • Page 95: Snmpv3 Access

    User’s Manual of IGS-20040MT string length is 1 to 32, and the allowed content is the ASCII characters from 33 to 126.  Indicates the view type that this entry should belong to. Possible view type are: View Type ...
  • Page 96 User’s Manual of IGS-20040MT to 126.  Indicates the security model that this entry should belong to. Possible security Security Model models are:  any: Accepted any security model (v1|v2c|usm).  v1: Reserved for SNMPv1.  v2c: Reserved for SNMPv2c.
  • Page 97: Port Management

    User’s Manual of IGS-20040MT 4.4 Port Management Use the Port Menu to display or configure the Industrial Managed Switch's ports. This section has the following items:  Configures port connection settings Port Configuration  Lists Ethernet and RMON port statistics Port Statistics Overview ...
  • Page 98 User’s Manual of IGS-20040MT  The current link state is displayed graphically. Green indicates the link is up and Link red that it is down.  Provides the current link speed of the port. Current Link Speed  Select any available link speed for the given switch port. Draw the menu bar to Configured Link Speed select the mode.
  • Page 99: Port Statistics Overview

    User’s Manual of IGS-20040MT 4.4.2 Port Statistics Overview This Page provides an overview of general traffic statistics for all switch ports. The Port Statistics Overview screen in Figure 4-4-2 appears. Figure 4-4-2: Port Statistics Overview Page Screenshot The displayed counters are:...
  • Page 100: Port Statistics Detail

    User’s Manual of IGS-20040MT 4.4.3 Port Statistics Detail This Page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to display. The selected port belong to the currently selected stack unit, as reflected by the Page header. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit.
  • Page 101: Sfp Module Information

    4.4.4 SFP Module Information The IGS-20040MT supports the SFP module with digital diagnostics monitoring (DDM) function. This feature is also known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP module via the SFP Module...
  • Page 102 User’s Manual of IGS-20040MT power, optical input power, temperature, laser bias current and transceiver supply voltage in real time. You can also use the hyperlink of port no. to check the statistics on a speficic interface. The SFP Module Information screen in Figure 4-4-4 appears.
  • Page 103 User’s Manual of IGS-20040MT SFP Monitor Event Alert: send trap Warning Temperature: degrees C Check SFP Monitor Event Alert box; it will be in accordance with your warning temperature setting and allows users to record message out via SNMP Trap.
  • Page 104: Port Mirror

    User’s Manual of IGS-20040MT 4.4.5 Port Mirror Configure port Mirroring on this Page. This function provides monitoring network traffic that forwards a copy of each incoming or outgoing packet from one port of a network Switch to another port where the packet can be studied. It enables the manager to keep close track of switch performance and alter it if necessary.
  • Page 105 User’s Manual of IGS-20040MT Figure 4-4-6: Mirror Configuration Page Screenshot The Page includes the following fields: Object Description  Port to mirror on Frames from ports that have either source (rx) or destination (tx) mirroring enabled are mirrored to this port. Disabled disables mirroring.
  • Page 106: Link Aggregation

    User’s Manual of IGS-20040MT 4.5 Link Aggregation Port Aggregation optimizes port usage by linking a group of ports together to form a single Link Aggregated Groups (LAGs). Port Aggregation multiplies the bandwidth between the devices, increases port flexibility, and provides link redundancy.
  • Page 107 User’s Manual of IGS-20040MT The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems that require high speed redundant links. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection. This feature can expand bandwidth to a device on the network. LACP operation requires full-duplex mode, more detail information refer to the IEEE 802.3ad standard.
  • Page 108: Static Aggregation

    User’s Manual of IGS-20040MT 4.5.1 Static Aggregation This Page is used to configure the Aggregation hash mode and the aggregation group. The aggregation hash mode settings are global, whereas the aggregation group relate to the currently selected stack unit, as reflected by the Page header.
  • Page 109: Lacp Configuration

    User’s Manual of IGS-20040MT Figure 4-5-3: Aggregation Group Configuration Page Screenshot The Page includes the following fields: .Object Description  Indicates the group ID for the settings contained in the same row. Group ID Group ID "Normal" indicates there is no aggregation. Only one group ID is valid per port.
  • Page 110 User’s Manual of IGS-20040MT Figure 4-5-4 : LACP Port Configuration Page Screenshot The Page includes the following fields: Object Description  The switch port number. Port  Controls whether LACP is enabled on this switch port. LACP will form an LACP Enabled aggregation when 2 or more ports are connected to the same partner.
  • Page 111 User’s Manual of IGS-20040MT each second, while Passive will wait for a LACP packet from a partner (speak if spoken to).  Timeout The Timeout controls the period between BPDU transmissions. Fast will transmit LACP packets each second, while Slow will wait for 30 seconds before sending a LACP packet.
  • Page 112: Lacp System Status

    User’s Manual of IGS-20040MT 4.5.3 LACP System Status This Page provides a status overview for all LACP instances. The LACP Status Page displays the current LACP aggregation Groups and LACP Port status. The LACP System Status screen in Figure 4-5-5 appears.
  • Page 113: Lacp Port Status

    User’s Manual of IGS-20040MT 4.5.4 LACP Port Status This Page provides a status overview for LACP status for all ports. The LACP Port Status screen in Figure 4-5-6 appears. Figure 4-5-6: LACP Status Page Screenshot The Page includes the following fields:...
  • Page 114: Lacp Port Statistics

    User’s Manual of IGS-20040MT Buttons : Click to refresh the Page immediately. Auto-refresh : Automatic refresh occurs every 3 seconds. 4.5.5 LACP Port Statistics This Page provides an overview for LACP statistics for all ports. The LACP Port Statistics screen in Figure 4-5-7 appears.
  • Page 115: Vlan

    User’s Manual of IGS-20040MT 4.6 VLAN 4.6.1 VLAN Overview A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN.
  • Page 116: Ieee 802.1Q Vlan

    User’s Manual of IGS-20040MT 4.6.2 IEEE 802.1Q VLAN In large networks, routers are used to isolate broadcast traffic for each subnet into separate domains. This Industrial Managed Switch provides a similar service at Layer 2 by using VLANs to organize any group of network nodes into separate broadcast domains.
  • Page 117 User’s Manual of IGS-20040MT ■ 802.1Q VLAN Tags The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address. Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to 0x8100, the packet carries the IEEE 802.1Q/802.1p tag.
  • Page 118 User’s Manual of IGS-20040MT Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN are defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are assigned the PVID of the port on which they were received.
  • Page 119: Vlan Port Configuration

    User’s Manual of IGS-20040MT ■ Port Overlapping Port overlapping can be used to allow access to commonly shared network resources among different VLAN groups, such as file servers or printers. Note that if you implement VLANs which do not overlap, but still need to communicate, you can connect them by enabled routing on this switch.
  • Page 120 User’s Manual of IGS-20040MT ■ IEEE 802.1Q Tunneling (Q-in-Q) IEEE 802.1Q Tunneling (QinQ) is designed for service providers carrying traffic for multiple customers across their networks. QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when different customers use the same internal VLAN IDs.
  • Page 121 User’s Manual of IGS-20040MT Global VLAN Configuration The Global VLAN Configuration screen in Figure 4-6-1 appears. Figure 4-6-1 : Global VLAN Configuration Screenshot The Page includes the following fields: Object Description  This field shows the allowed Access VLANs, it only affects ports configured as Allowed Access Access ports.
  • Page 122 User’s Manual of IGS-20040MT Port VLAN Configuration The VLAN Port Configuration screen in Figure 4-6-2 appears. Figure 4-6-2 : Port VLAN Configuration Screenshot The Page includes the following fields: Object Description  This is the logical port number for this row.
  • Page 123 User’s Manual of IGS-20040MT  By default, a trunk port is member of all VLANs (1-4095)  The VLANs that a trunk port is member of may be limited by the use of Allowed VLANs  Frames classified to a VLAN that the port is not a member of are discarded ...
  • Page 124 User’s Manual of IGS-20040MT On ingress, frames with a VLAN tag with TPID = 0x8100 or 0x88A8 get classified to the VLAN ID embedded in the tag. If a frame is untagged or priority tagged, the frame gets classified to the Port VLAN. If frames must be tagged on egress, they will be tagged with an S-tag.
  • Page 125: Vlan Membership Status

    User’s Manual of IGS-20040MT Enabled VLANs field. By default, a Trunk or Hybrid port will become member of all VLANs, and is therefore set to 1-4095. The field may be left empty, which means that the port will not become member of any VLANs.
  • Page 126 User’s Manual of IGS-20040MT Object Description  A VLAN User is a module that uses services of the VLAN management VLAN User functionality to configure VLAN memberships and VLAN port configuration such as PVID, UVID. Currently we support following VLAN : - Admin : This is reffered as static.
  • Page 127: Vlan Port Status

    User’s Manual of IGS-20040MT 4.6.5 VLAN Port Status This Page provides VLAN Port Staus. The VLAN Port Status screen in Figure 4-6-5 appears. Figure 4-6-5: VLAN Port Status for Static User Page Screenshot The Page includes the following fields: Object Description ...
  • Page 128: Private Vlan

    User’s Manual of IGS-20040MT  Port VLAN ID Shows the PVID setting for the port.  Tx Tag Shows egress filtering frame status whether tagged or untagged.  Untagged VLAN ID Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behavior at the egress side.
  • Page 129 User’s Manual of IGS-20040MT The page includes the following fields: Object Description  Delete To delete a private VLAN entry, check this box. The entry will be deleted during the next save.  Private VLAN ID Indicates the ID of this particular private VLAN.
  • Page 130: Port Isolation

    User’s Manual of IGS-20040MT 4.6.7 Port Isolation Overview When a VLAN is configured to be a private VLAN, communication between ports within that VLAN can be prevented. Two application examples are provided in this section:  Customers connected to an ISP can be members of the same VLAN, but they are not allowed to communicate with each other within that VLAN.
  • Page 131 User’s Manual of IGS-20040MT The configuration of promiscuous and isolated ports applies to all private VLANs. When traffic comes in on a promiscuous port in a private VLAN, the VLAN mask from the VLAN table is applied. When traffic comes in on an isolated port, the private VLAN mask is applied in addition to the VLAN mask from the VLAN table.
  • Page 132: Vlan Setting Example

    User’s Manual of IGS-20040MT 4.6.8 VLAN setting example:  Separate VLAN  802.1Q VLAN Trunk  Port Isolate 4.6.8.1 Two Separate 802.1Q VLANs The diagram shows how the Industrial Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and VLAN Group 3 are separated VLAN.
  • Page 133 User’s Manual of IGS-20040MT While [PC-1] transmit an untagged packet enters Port-1, the Industrial Managed Switch will tag it with a VLAN Tag=2. [PC-2] and [PC-3] will received the packet through Port-2 and Port-3. [PC-4],[PC-5] and [PC-6] received no packet.
  • Page 134: Vlan Trunking Between Two 802.1Q Aware Switches

    User’s Manual of IGS-20040MT Figure 4-6-10: Change Port VLAN of Port 1~3 to be VLAN2 and Port VLAN of Port 4~6 to be VLAN3 Enable VLAN Tag for specific ports Link Type: Port-3 (VLAN-2) and Port-6 (VLAN-3) Change Port 3 Mode as Trunk and select Egress Tagging as Tag All and Type 2 in the Allowed VLANs column.
  • Page 135 User’s Manual of IGS-20040MT Figure 4-6-12: VLAN Trunking Diagram Setup steps Add VLAN Group Add two VLANs – VLAN 2 and VLAN 3 For Type 1-3 in Allowed Access VLANs column, the 1-3 includes VLAN1 and 2 and 3. Figure 4-6-13: Add VLAN 2 and VLAN 3...
  • Page 136 User’s Manual of IGS-20040MT Figure 4-6-14: Changes Port VLAN of Port 1~3 to be VLAN2 and Port VLAN of Port 4~6 to be VLAN3 For the VLAN ports connecting to the hosts, please refer to 4.6.10.1. The following steps focus on the VLAN Trunk port configuration.
  • Page 137: Port Isolate

    User’s Manual of IGS-20040MT Repeat Steps 1 to 6 to set up the VLAN Trunk port at the partner switch. To add more VLANs to join the VLAN trunk, repeat Steps 1 to 3 to assign the Trunk port to the VLANs.
  • Page 138: Mac-Based Vlan

    User’s Manual of IGS-20040MT Assign VLAN Member : VLAN 1 : Port-5 and Port-6 VLAN 2 : Port-1, Port-2, Port-5 and Port-6 VLAN 3: Port-3~Port-6. The screen in Figure 4-6-18 appears. Figure 4-6-17: Private VLAN Port Setting 4.6.9 MAC-based VLAN The MAC-based VLAN enties can be configured here.
  • Page 139 User’s Manual of IGS-20040MT will be deleted in the stack.  MAC Address Indicates the MAC address.  VLAN ID Indicates the VLAN ID.  Port Members A row of check boxes for each port is displayed for each MAC-based VLAN entry.
  • Page 140: Mac-Based Vlan Status

    User’s Manual of IGS-20040MT 4.6.10 MAC-based VLAN Status This Page shows MAC-based VLAN entries configured by various MAC-based VLAN users. The MAC-based VLAN Status screen in Figure 4-6-19 appears. Figure 4-6-19: MAC-based VLAN Membership Configuration for User Static Page Screenshot...
  • Page 141 User’s Manual of IGS-20040MT The page includes the following fields: Object Description  Delete To delete a Protocol to Group Name map entry, check this box. The entry will be deleted on the switch during the next Save.  VCE ID Indicates the index of the entry.
  • Page 142: Protocol-Based Vlan

    User’s Manual of IGS-20040MT 4.6.12 Protocol-based VLAN This Page allows you to add new protocols to Group Name (unique for each Group) mapping entries as well as allow you to see and delete already mapped entries for the switch. The Protocol-based VLAN screen in Figure 4-6-21 appears.
  • Page 143 User’s Manual of IGS-20040MT a. OUI: OUI (Organizationally Unique Identifier) is value in format of xx-xx-xx where each pair (xx) in string is a hexadecimal value ranges from 0x00-0xff. b. PID: If the OUI is hexadecimal 000000, the protocol ID is the Ethernet type (EtherType) field value for the protocol running on top of SNAP;...
  • Page 144: Protocol-Based Vlan Membership

    User’s Manual of IGS-20040MT 4.6.13 Protocol-based VLAN Membership This Page allows you to map a already configured Group Name to a VLAN for the switch. The Group Name to VLAN Mapping Table screen in Figure 4-6-22 appears. Figure 4-6-22: Group Name to VLAN Mapping Table Page Screenshot...
  • Page 145: Spanning Tree Protocol

    User’s Manual of IGS-20040MT 4.7 Spanning Tree Protocol 4.7.1 Theory The Spanning Tree protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
  • Page 146 User’s Manual of IGS-20040MT  The path cost to the root from the transmitting port  The port identifier of the transmitting port The switch sends BPDUs to communicate and construct the spanning-tree topology. All switches connected to the LAN on which the packet is transmitted will receive the BPDU.
  • Page 147 User’s Manual of IGS-20040MT  From forwarding to disabled  From disabled to blocking Figure 4-7-1: STP Port State Transitions You can modify each port state by using management software. When you enable STP, every port on every switch in the network goes through the blocking state and then transitions through the states of listening and learning at power up.
  • Page 148 User’s Manual of IGS-20040MT The following are the user-configurable STP parameters for the switch level: Parameter Description Default Value A combination of the User-set priority and 32768 + MAC Bridge Identifier(Not user the switch’s MAC address. configurable The Bridge Identifier consists of two parts:...
  • Page 149 User’s Manual of IGS-20040MT User-Changeable STA Parameters The Switch’s factory default setting should cover the majority of installations. However, it is advisable to keep the default settings as set at the factory; unless, it is absolutely necessary. The user changeable parameters in the Switch are as follows: Priority –...
  • Page 150 User’s Manual of IGS-20040MT and Port Cost settings is, however, relatively straight forward. Figure 4-7-2: Before Applying the STA Rules In this example, only the default STP values are used.
  • Page 151: Stp System Configuration

    User’s Manual of IGS-20040MT Figure 4-7-3: After Applying the STA Rules The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one (optional) Gigabit port on both switch B and C.
  • Page 152 User’s Manual of IGS-20040MT The Page includes the following fields: Basic Settings Object Description  The STP protocol version setting. Valid values are: Protocol Version  STP (IEEE 802.1D Spanning Tree Protocol)  RSTP (IEEE 802.2w Rapid Spanning Tree Protocol) ...
  • Page 153: Bridge Status

    User’s Manual of IGS-20040MT removed from the active topology.  Port Error Recovery Control whether a port in the error-disabled state automatically will be enabled after a certain time. If recovery is not enabled, ports have to be disabled and re-enabled for normal STP operation.
  • Page 154: Cist Port Configuration

    User’s Manual of IGS-20040MT  Root Cost Root Path Cost. For the Root Bridge this is zero. For all other Bridges, it is the sum of the Port Path Costs on the least cost path to the Root Bridge.  Topology Flag The current state of the Topology Change Flag for this Bridge instance.
  • Page 155 User’s Manual of IGS-20040MT Figure 4-7-6 : STP CIST Port Configuration Page Screenshot The Page includes the following fields: Object Description  The switch port number of the logical STP port. Port  Controls whether RSTP is enabled on this switch port.
  • Page 156 User’s Manual of IGS-20040MT A port entering error-disabled state due to this setting is subject to the bridge Port Error Recovery setting as well.  Point-to-point Controls whether the port connects to a point-to-point LAN rather than a shared medium. This can be automatically determined, or forced either true or false.
  • Page 157: Msti Priorities

    User’s Manual of IGS-20040MT Trunk 50,000 Gigabit Ethernet Full Duplex 10,000 Trunk 5,000 Table 4-7-3: Default STP Path Costs 4.7.5 MSTI Priorities This Page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well.
  • Page 158: Msti Configuration

    User’s Manual of IGS-20040MT 4.7.6 MSTI Configuration This Page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. The MSTI Configuration screen in Figure 4-7-8 appears. Figure 4-7-8: MSTI Configuration Page Screenshot...
  • Page 159: Msti Ports Configuration

    User’s Manual of IGS-20040MT MSTI Mapping Object Description  MSTI The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs not explicitly mapped.  VLANs Mapped The list of VLAN's mapped to the MSTI. The VLANs must be separated with comma and/or space.
  • Page 160 User’s Manual of IGS-20040MT Figure 4-7-10 : MST1 MSTI Port Configuration Page Screenshot The Page includes the following fields: MSTx MSTI Port Configuration Object Description  Port The switch port number of the corresponding STP CIST (and MSTI) port.  Path Cost Controls the path cost incurred by the port.
  • Page 161: Port Status

    User’s Manual of IGS-20040MT 4.7.8 Port Status This Page displays the STP CIST port status for port physical ports in the currently selected switch. The STP Port Status screen in Figure 4-7-11 appears. Figure 4-7-11: STP Port Status Page Screenshot...
  • Page 162: Port Statistics

    User’s Manual of IGS-20040MT 4.7.9 Port Statistics This Page displays the STP port statistics counters for port physical ports in the currently selected switch. The STP Port Statistics screen in Figure 4-7-12 appears. Figure 4-7-12: STP Statistics Page Screenshot The Page includes the following fields:...
  • Page 163: Multicast

    User’s Manual of IGS-20040MT 4.8 Multicast 4.8.1 IGMP Snooping The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing.
  • Page 164 User’s Manual of IGS-20040MT Figure 4-8-2: Multicast Flooding Figure 4-8-3: IGMP Snooping Multicast Stream Control...
  • Page 165 User’s Manual of IGS-20040MT IGMP Versions 1 and 2 Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group. IGMP version 1 is defined in RFC 1112. It has a fixed packet size and no optional data.
  • Page 166 User’s Manual of IGS-20040MT The states a computer will go through to join or to leave a multicast group are shown below: Figure 4-8-4: IGMP State Transitions  IGMP Querier – A router, or multicast-enabled switch, can periodically ask their hosts if they want to receive multicast traffic. If there is more than one router/switch on the LAN performing IP multicasting, one of these devices is elected “querier”...
  • Page 167: Profile Table

    User’s Manual of IGS-20040MT 4.8.2 Profile Table This page provides IPMC Profile related configurations. The IPMC profile is used to deploy the access control on IP multicast streams. It is allowed to create a maximum of 64 Profiles with a maximum of 128 corresponding rules for each. The Profile Table...
  • Page 168: Address Entry

    User’s Manual of IGS-20040MT Buttons : Click to add new IPMC profile. Specify the name and configure the new entry. Click "Save”. : Click to apply changes Click to undo any changes made locally and revert to previously saved values.
  • Page 169: Igmp Snooping Configuration

    User’s Manual of IGS-20040MT Click to undo any changes made locally and revert to previously saved values. Refreshes the displayed table starting from the input fields. Updates the table starting from the first entry in the IPMC Profile Address Configuration.
  • Page 170 User’s Manual of IGS-20040MT  Enable unregistered IPMCv4 traffic flooding. Unregistered IPMCv4 The flooding control takes effect only when IGMP Snooping is enabled. Flooding Enabled When IGMP Snooping is disabled, unregistered IPMCv4 traffic flooding is always active in spite of this setting.
  • Page 171: Igmp Snooping Vlan Configuration

    User’s Manual of IGS-20040MT 4.8.5 IGMP Snooping VLAN Configuration Each Page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table.
  • Page 172 User’s Manual of IGS-20040MT  PRI (PRI) Priority of Interface. It indicates the IGMP control frame priority level generated by the system. These values can be used to prioritize different classes of traffic. The allowed range is 0 (best effort) to 7 (highest), default interface priority value is 0 ...
  • Page 173: Igmp Snooping Port Group Filtering

    User’s Manual of IGS-20040MT 4.8.6 IGMP Snooping Port Group Filtering In certain switch applications, the administrator may want to control the multicast services that are available to end users. For example, an IP/TV service based on a specific subscription plan. The IGMP filtering feature fulfills this requirement by restricting access to specified multicast services on a switch port, and IGMP throttling limits the number of simultaneous multicast groups a port can join.
  • Page 174: Igmp Snooping Status

    User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  The logical port for the settings. Port  Filtering Profile Select the IPMC Profile as the filtering condition for the specific port. Summary about the designated profile will be shown by clicking the view button...
  • Page 175 User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  The VLAN ID of the entry. VLAN ID  Working Querier Version currently. Querier Version  Working Host Version currently. Host Version  Show the Querier status is "ACTIVE" or "IDLE".
  • Page 176: Igmp Group Information

    User’s Manual of IGS-20040MT 4.8.8 IGMP Group Information Entries in the IGMP Group Table are shown on this Page. The IGMP Group Table is sorted first by VLAN ID, and then by group. Each Page shows up to 99 entries from the IGMP Group table, default being 20, selected through the "entries per Page" input field.
  • Page 177: Igmpv3 Information

    User’s Manual of IGS-20040MT 4.8.9 IGMPv3 Information Entries in the IGMP SSM Information Table are shown on this Page. The IGMP SSM Information Table is sorted first by VLAN ID, then by group, and then by Port No. Diffrent source addresses belong to the same group are treated as single entry.
  • Page 178: Mld Snooping Configuration

    User’s Manual of IGS-20040MT 4.8.10 MLD Snooping Configuration This Page provides MLD Snooping related configuration. The MLD Snooping Configuration screen in Figure 4-8-13 appears. Figure 4-8-13: MLD Snooping Configuration Page Screenshot The Page includes the following fields: Object Description ...
  • Page 179: Mld Snooping Vlan Configuration

    User’s Manual of IGS-20040MT  Proxy Enable Enable MLD Proxy. This feature can be used to avoid forwarding unnecessary join and leave messages to the router side.  Router Port Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or MLD querier.
  • Page 180 User’s Manual of IGS-20040MT Snooping.  Querier Election Enable to join MLD Querier election in the VLAN. Disable to act as a MLD Non-Querier.  Compatibility Compatibility is maintained by hosts and routers taking appropriate actions depending on the versions of MLD operating on hosts and routers within a network.
  • Page 181: Mld Snooping Port Group Filtering

    User’s Manual of IGS-20040MT 4.8.12 MLD Snooping Port Group Filtering In certain switch applications, the administrator may want to control the multicast services that are available to end users. For example, an IP/TV service based on a specific subscription plan. The MLD filtering feature fulfills this requirement by restricting access to specified multicast services on a switch port, and MLD throttling limits the number of simultaneous multicast groups a port can join.
  • Page 182: Mld Snooping Status

    User’s Manual of IGS-20040MT Object Description  Port The logical port for the settings.  Filtering Group Select the IPMC Profile as the filtering condition for the specific port. Summary about the designated profile will be shown by clicking the view button.
  • Page 183 User’s Manual of IGS-20040MT Object Description  The VLAN ID of the entry. VLAN ID  Working Querier Version currently. Querier Version  Working Host Version currently. Host Version  Shows the Querier status is "ACTIVE" or "IDLE". Querier Status "DISABLE"...
  • Page 184: Mld Group Information

    User’s Manual of IGS-20040MT 4.8.14 MLD Group Information Entries in the MLD Group Table are shown on this Page. The MLD Group Table is sorted first by VLAN ID, and then by group. Each Page shows up to 99 entries from the MLD Group table, default being 20, selected through the "entries per Page" input field.
  • Page 185: Mldv2 Information

    User’s Manual of IGS-20040MT 4.8.15 MLDv2 Information Entries in the MLD SFM Information Table are shown on this Page. The MLD SFM (Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port.
  • Page 186: Mvr (Multicaset Vlan Registration)

    User’s Manual of IGS-20040MT 4.8.16 MVR (Multicaset VLAN Registration) The MVR feature enables multicast traffic forwarding on the Multicast VLANs. In a multicast television application, a PC or a network television or a set-top box can receive the multicast stream.
  • Page 187 User’s Manual of IGS-20040MT Figure 4-8-19: MVR Configuration Page Screenshot The Page includes the following fields: Object Description  MVR Mode Enable/Disable the Global MVR. The Unregistered Flooding control depends on the current configuration in IGMP/MLD Snooping. It is suggested to enable Unregistered Flooding control when the MVR group table is full.
  • Page 188 User’s Manual of IGS-20040MT management VLAN ports.  MVR Name MVR Name is an optional attribute to indicate the name of the specific MVR VLAN. Maximum length of the MVR VLAN Name string is 16. MVR VLAN Name can only contain alphabets or numbers. When the optional MVR VLAN name is given, it should contain at least one alphabet.
  • Page 189: Mvr Status

    User’s Manual of IGS-20040MT Caution: MVR source ports are not recommended to be overlapped with management VLAN ports. Select the port role by clicking the Role symbol to switch the setting. I indicates Inactive; S indicates Source; R indicates Receiver The default Role is Inactive.
  • Page 190: Mvr Groups Information

    User’s Manual of IGS-20040MT Buttons : Click to refresh the Page immediately. : Clears all Statistics counters. Auto-refresh : Automatic refresh occurs every 3 seconds. 4.8.18 MVR Groups Information Entries in the MVR Group Table are shown on this Page. The MVR Group Table is sorted first by VLAN ID, and then by group.
  • Page 191: Mvr Sfm Information

    User’s Manual of IGS-20040MT 4.8.19 MVR SFM Information Entries in the MVR SFM Information Table are shown on this Page. The MVR SFM (Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port.
  • Page 192: Quality Of Service

    User’s Manual of IGS-20040MT 4.9 Quality of Service 4.9.1 Understanding QoS Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.
  • Page 193: Port Policing

    User’s Manual of IGS-20040MT 4.9.2 Port Policing This Page allows you to configure the Policer settings for all switch ports. The Port Policing screen in Figure 4-9-1 appears. Figure 4-9-1: QoS Ingress Port Policers Page Screenshot The Page includes the following fields:...
  • Page 194: Port Classification

    User’s Manual of IGS-20040MT 4.9.3 Port Classification This Page allows you to configure the basic QoS Ingress Classification settings for all switch ports. The Port Classification screen in Figure 4-9-2 appears. Figure 4-9-2 : QoS Ingress Port Classification Page Screenshot...
  • Page 195 User’s Manual of IGS-20040MT All means all ports will have one specific setting.  DPL Controls the default drop precedence level. All frames are classified to a drop precedence level. If the port is VLAN aware and the frame is tagged, then the frame is classified to a DPL that is equal to the DEI value in the tag.
  • Page 196: Port Scheduler

    User’s Manual of IGS-20040MT 4.9.4 Port Scheduler This Page provides an overview of QoS Egress Port Schedulers for all switch ports. The Port Scheduler screen in Figure 4-9-3 appears. Figure 4-9-3: QoS Egress Port Schedule Page Screenshot The Page includes the following fields:...
  • Page 197: Port Shaping

    User’s Manual of IGS-20040MT 4.9.5 Port Shaping This Page provides an overview of QoS Egress Port Shapers for all switch ports. The Port Shapping screen in Figure 4-9-4 appears. Figure 4-9-4: QoS Egress Port Shapers Page Screenshot The Page includes the following fields:...
  • Page 198: Qos Egress Port Schedule And Shapers

    User’s Manual of IGS-20040MT 4.9.5.1 QoS Egress Port Schedule and Shapers The Port Scheduler and Shapers for a specific port are configured on this Page. The QoS Egress Port Schedule and Shaper screen in Figure 4-9-5 appears. Figure 4-9-5: QoS Egress Port Schedule and Shapers Page Screenshot...
  • Page 199 User’s Manual of IGS-20040MT The default value is "kbps".  Queue Shaper Excess Controls whether the queue is allowed to use excess bandwidth.  Queue Scheduler Controls the weight for this queue. Weight This value is restricted to 1-100. This parameter is only shown if "Scheduler Mode"...
  • Page 200: Port Tag Remarking

    User’s Manual of IGS-20040MT 4.9.6 Port Tag Remarking This Page provides an overview of QoS Egress Port Tag Remarking for all switch ports. The Port Tag Remarking screen in Figure 4-9-6 appears. Figure 4-9-6: QoS Egress Port Tag Remarking Page Screenshot...
  • Page 201: Qos Egress Port Tag Remarking

    User’s Manual of IGS-20040MT 4.9.6.1 QoS Egress Port Tag Remarking The QoS Egress Port Tag Remarking for a specific port are configured on this Page. The QoS Egress Port Tag Remarking screen in Figure 4-9-7 appears. Figure 4-9-7: QoS Egress Port Tag Remarking Page Screenshot...
  • Page 202: Port Dscp

    User’s Manual of IGS-20040MT 4.9.7 Port DSCP This Page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in Figure 4-9-8 appears. Figure 4-9-8: QoS Port DSCP Configuration Page Screenshot...
  • Page 203 User’s Manual of IGS-20040MT  Translate  Classify  Translate To Enable the Ingress Translation click the checkbox.  Classify Classification for a port have 4 different values.  Disable: No Ingress DSCP Classification. DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.
  • Page 204: Dscp-Based Qos

    User’s Manual of IGS-20040MT 4.9.8 DSCP-based QoS This Page allows you to configure the basic QoS DSCP-based QoS Ingress Classification settings for all switches. The DSCP-based QoS screen in Figure 4-9-9 appears. Figure 4-9-9: DSCP-based QoS Ingress Classification Page Screenshot...
  • Page 205: Dscp Translation

    User’s Manual of IGS-20040MT 4.9.9 DSCP Translation This Page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in Ingress or Egress. The DSCP Translation screen in Figure 4-9-10 appears. Figure 4-9-10: DSCP Translation Page Screenshot...
  • Page 206: Dscp Classification

    User’s Manual of IGS-20040MT  Classify Click to enable Classification at Ingress side.  Egress There are the following configurable parameters for Egress side – Remap DP0 Controls the remapping for frames with DP level 0. Remap DP1 Controls the remapping for frames with DP level 1.
  • Page 207: Qos Control List

    User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  QoS Class Available QoS Class value ranges from 0 to 7. QoS Class (0-7) can be mapped to followed parameters.  DPL Actual Drop Precedence Level. ...
  • Page 208 User’s Manual of IGS-20040MT Broadcast: Only Broadcast MAC addresses are allowedd. ■ The default value is 'Any'.  SMAC Displays the OUI field of Source MAC address, i.e. first three octet (byte) of MAC address.  Tag Type Indicates tag type. Possible values are: Any: Match tagged and untagged frames.
  • Page 209: Qos Control Entry Configuration

    User’s Manual of IGS-20040MT 4.9.11.1 QoS Control Entry Configuration The QCE Configuration screen in Figure 4-9-13 appears. Figure 4-9-13: QCE Configuration Page Screenshot The Page includes the following fields: Object Description  Check the checkbox button in case you what to make any port member of the Port Members QCL entry.
  • Page 210 User’s Manual of IGS-20040MT SNAP IPv4 IPv6 Note: all frame types are explained below.  Any Allow all types of frames.  EtherType Ethernet Type Valid ethernet type can have value within 0x600-0xFFFF or 'Any' but excluding 0x800(IPv4) and 0x86DD(IPv6), default value is 'Any'.
  • Page 211: Qcl Status

    User’s Manual of IGS-20040MT EF or AF11-AF43 Sport Source TCP/UDP port:(0-65535) or 'Any', specific or port range ■ applicable for IP protocol UDP/TCP Dport Destination TCP/UDP port:(0-65535) or 'Any', specific or port range ■ applicable for IP protocol UDP/TCP ...
  • Page 212 User’s Manual of IGS-20040MT Object Description  User Indicates the QCL user.  Indicates the index of QCE. QCE#  Port Indicates the list of ports configured with the QCE.  Indicates the type of frame to look for incomming frames. Possible frame types...
  • Page 213: Storm Control Configuration

    User’s Manual of IGS-20040MT 4.9.13 Storm Control Configuration Storm control for the switch is configured on this Page. There is a unicast storm rate control, multicast storm rate control, and a broadcast storm rate control. These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table.
  • Page 214: Qos Statistics

    User’s Manual of IGS-20040MT 4.9.14 QoS Statistics This Page provides statistics for the different queues for all switch ports. The QoS Statistics screen in Figure 4-9-17 appears. Figure 4-9-16: Queuing Counters Page Screenshot The Page includes the following fields: Object Description ...
  • Page 215: Voice Vlan Configuration

    User’s Manual of IGS-20040MT 4.9.15 Voice VLAN Configuration The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network traffic. It is recommended that there be two VLANs on a port - one for voice, one for data.
  • Page 216 User’s Manual of IGS-20040MT modes are: Enabled: Enable Voice VLAN mode operation. ■ Disabled: Disable Voice VLAN mode operation. ■  VLAN ID Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and cannot equal each port PVID. It is conflict configuration if the value equal management VID, MVR VID, PVID etc.
  • Page 217: Voice Vlan Oui Table

    User’s Manual of IGS-20040MT 4.9.16 Voice VLAN OUI Table Configure VOICE VLAN OUI table on this Page. The maximum entry number is 16. Modifying the OUI table will restart auto detection of OUI process. The Voice VLAN OUI Table screen in Figure 4-9-18 appears.
  • Page 218: Access Control Lists

    User’s Manual of IGS-20040MT 4.10 Access Control List ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program.
  • Page 219 User’s Manual of IGS-20040MT frames. ARP: The ACE will match ARP/RARP frames. ■ IPv4: The ACE will match all IPv4 frames. ■ IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol. ■ IPv4/UDP: The ACE will match IPv4 frames with UDP protocol.
  • Page 220: Access Control List Configuration

    User’s Manual of IGS-20040MT 4.10.2 Access Control List Configuration This Page shows the Access Control List (ACL), which is made up of the ACEs defined on this switch. Each row describes the ACE that is defined. The maximum number of ACEs is 512 on each switch.
  • Page 221 User’s Manual of IGS-20040MT  Port Redirect Indicates the port redirect operation of the ACE. Frames matching the ACE are redirected to the port number. The allowed values are Disabled or a specific port number. When Disabled is displayed, the port redirect operation is disabled.
  • Page 222: Ace Configuration

    User’s Manual of IGS-20040MT 4.10.3 ACE Configuration Configure an ACE (Access Control Entry) on this Page. An ACE consists of several parameters. These parameters vary according to the frame type that you select. First select the ingress port for the ACE, and then select the frame type. Different parameter options are displayed depending on the frame type selected.
  • Page 223 User’s Manual of IGS-20040MT Any: Any frame can match this ACE. ■ Ethernet Type: Only Ethernet Type frames can match this ACE. The IEEE ■ 802.3 describes the value of Length/Type Field specifications to be greater than or equal to 1536 decimal (equal to 0600 hexadecimal).
  • Page 224 User’s Manual of IGS-20040MT  MAC Parameters Object Description  (Only displayed when the frame type is Ethernet Type or ARP.) SMAC Filter Specify the source MAC filter for this ACE. Any: No SMAC filter is specified. (SMAC filter status is "don't-care".) ■...
  • Page 225 User’s Manual of IGS-20040MT  Specify the tag priority for this ACE. A frame that hits this ACE matches this tag priority. Tag Priority The allowed number range is 0 to 7. The value Any means that no tag priority is specified (tag priority is "don't-care".)
  • Page 226 User’s Manual of IGS-20040MT  ARP Sender MAC Specify whether frames can hit the action according to their sender hardware address field (SHA) settings. Match 0: ARP frames where SHA is not equal to the SMAC address. ■ 1: ARP frames where SHA is equal to the SMAC address.
  • Page 227 User’s Manual of IGS-20040MT defining UDP parameters will appear. These fields are explained later in this help file. TCP: Select TCP to filter IPv4 TCP protocol frames. Extra fields for defining ■ TCP parameters will appear. These fields are explained later in this help file.
  • Page 228 User’s Manual of IGS-20040MT Any: No destination IP filter is specified. (Destination IP filter is ■ "don't-care".) Host: Destination IP filter is set to Host. Specify the destination IP address ■ in the DIP Address field that appears. Network: Destination IP filter is set to Network. Specify the destination IP ■...
  • Page 229 User’s Manual of IGS-20040MT usage of bitmask, if the binary bit value is "0", it means this bit is "don't-care". The real matched pattern is [sipv6_address & sipv6_bitmask] (last 32 bits). For example, if the SIPv6 address is 2001::3 and the SIPv6 bitmask is 0xFFFFFFFE(bit 0 is "don't-care"...
  • Page 230 User’s Manual of IGS-20040MT Any: No TCP/UDP source filter is specified (TCP/UDP source filter status ■ is "don't-care"). Specific: If you want to filter a specific TCP/UDP source filter with this ■ ACE, you can enter a specific TCP/UDP source value. A field for entering a TCP/UDP source value appears.
  • Page 231 User’s Manual of IGS-20040MT  TCP RST Specify the TCP "Reset the connection" (RST) value for this ACE. 0: TCP frames where the RST field is set must not be able to match this ■ entry. 1: TCP frames where the RST field is set must be able to match this entry.
  • Page 232: Acl Ports Configuration

    User’s Manual of IGS-20040MT 4.10.4 ACL Ports Configuration Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the frame matches a specific ACE. The ACL Ports Configuration screen in Figure 4-10-4 appears.
  • Page 233 User’s Manual of IGS-20040MT  Mirror Specify the mirror operation of this port. The allowed values are: Enabled: Frames received on the port are mirrored. ■ Disabled: Frames received on the port are not mirrored. ■ The default value is "Disabled".
  • Page 234: Acl Rate Limiter Configuration

    User’s Manual of IGS-20040MT 4.10.5 ACL Rate Limiter Configuration Configure the rate limiter for the ACL of the switch. The ACL Rate Limiter Configuration screen in Figure 4-10-5 appears. Figure 4-10-5: ACL Rate Limiter Configuration Page Screenshot The Page includes the following fields:...
  • Page 235: Authentication

    User’s Manual of IGS-20040MT 4.11 Authentication This section is to control the access of the Industrial Managed Switch, including the user access and management control. The Authentication section contains links to the following main topics:  IEEE 802.1X Port-based Network Access Control ...
  • Page 236: Understanding Ieee 802.1X Port-Based Authentication

    User’s Manual of IGS-20040MT to authenticate. The disadvantage is that MAC addresses can be spoofed by malicious users, equipment whose MAC address is a valid RADIUS user can be used by anyone, and only the MD5-Challenge method is supported. The 802.1X and MAC-Based Authentication configuration consists of two sections, a system- and a port-wide.
  • Page 237 User’s Manual of IGS-20040MT Figure 4-11-1 Client—the device (workstation) that requests access to the LAN and switch services and responds to requests from  the switch. The workstation must be running 802.1X-compliant client software such as that offered in the Microsoft Windows XP operating system.
  • Page 238 User’s Manual of IGS-20040MT authentication server, the server's frame header is removed, leaving the EAP frame, which is then encapsulated for Ethernet and sent to the client.  Authentication Initiation and Message Exchange The switch or the client can initiate authentication. If you enable authentication on a port by using the dot1x port-control auto interface configuration command, the switch must initiate authentication when it determines that the port link state transitions from down to up.
  • Page 239: Authentication Configuration

    User’s Manual of IGS-20040MT  Ports in Authorized and Unauthorized States The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.
  • Page 240: Network Access Server Configuration

    User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  Client The management client for which the configuration below applies.  Authentication Method Authentication Method can be set to one of the following values: None: authentication is disabled and login is not possible.
  • Page 241 User’s Manual of IGS-20040MT Figure 4-11-4: Network Access Server Configuration Page Screenshot The Page includes the following fields: System Configuration Object Description  Mode Indicates if NAS is globally enabled or disabled on the switch. If globally disabled, all ports are allowed forwarding of frames.
  • Page 242 User’s Manual of IGS-20040MT port.  Reauthentication Determines the period, in seconds, after which a connected client must be reauthenticated. This is only active if the Reauthentication Enabled checkbox is Period checked. Valid values are in the range 1 to 3600 seconds.
  • Page 243 User’s Manual of IGS-20040MT The Hold Time can be set to a number between 10 and 1000000 seconds.  RADIUS-Assigned QoS RADIUS-assigned QoS provides a means to centrally control the traffic class to which traffic coming from a successfully authenticated supplicant is assigned on Enabled the switch.
  • Page 244 User’s Manual of IGS-20040MT Valid values are in the range [1; 255].  Allow Guest VLAN if The switch remembers if an EAPOL frame has been received on the port for the life-time of the port. Once the switch considers whether to enter the Guest VLAN, EAPOL Seen it will first check if this option is enabled or disabled.
  • Page 245 User’s Manual of IGS-20040MT is very flexible, in that it allows for different authentication methods, like MD5-Challenge, PEAP, and TLS. The important thing is that the authenticator (the switch) doesn't need to know which authentication method the supplicant and the authentication server are using, or how many information exchange frames are needed for a particular method.
  • Page 246 User’s Manual of IGS-20040MT successfully authenticated. Multi 802.1X Multi 802.1X is - like Single 802.1X - not an IEEE standard, but a variant that features many of the same characteristics. In Multi 802.1X, one or more supplicants can get authenticated on the same port at the same time. Each supplicant is authenticated individually and secured in the MAC table using the Port Security module.
  • Page 247 User’s Manual of IGS-20040MT several clients can be connected to the same port (e.g. through a 3rd party switch or a hub) and still require individual authentication, and that the clients don't need special supplicant software to authenticate. The advantage of MAC-based authentication over 802.1X-based authentication is that the clients...
  • Page 248 User’s Manual of IGS-20040MT arriving on the port will be classified and switched on the RADIUS-assigned VLAN ID. If (re-)authentication fails or the RADIUS Access-Accept packet no longer carries a VLAN ID or it's invalid, or the supplicant is otherwise no longer present on the...
  • Page 249 User’s Manual of IGS-20040MT Membership and VLAN Port" Pages. These Pages show which modules have (temporarily) overridden the current Port VLAN configuration. Guest VLAN Operation: When a Guest VLAN enabled port's link comes up, the switch starts transmitting EAPOL Request Identity frames. If the number of transmissions of such frames exceeds Max.
  • Page 250 User’s Manual of IGS-20040MT Reauthenticate: Schedules a reauthentication to whenever the ■ quiet-period of the port runs out (EAPOL-based authentication). For MAC-based authentication, reauthentication will be attempted immediately. The button only has effect for successfully authenticated clients on the port and will not cause the clients to get temporarily unauthorized.
  • Page 251: Network Access Overview

    User’s Manual of IGS-20040MT 4.11.4 Network Access Overview This Page provides an overview of the current NAS port states for the selected switch. The Network Access Overview screen in Figure 4-11-5 appears. Figure 4-11-5: Network Access Server Switch Status Page Screenshot...
  • Page 252: Network Access Statistics

    User’s Manual of IGS-20040MT  QoS Class QoS Class assigned to the port by the RADIUS server if enabled.  Port VLAN ID The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID is not overridden by NAS.
  • Page 253 User’s Manual of IGS-20040MT is assigned.  Port VLAN ID The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID is not overridden by NAS. If the VLAN ID is assigned by the RADIUS server, "(RADIUS-assigned)" is appended to the VLAN ID.
  • Page 254 User’s Manual of IGS-20040MT amesRx been received by the switch. dot1xAuthInvalidEapolF The number of EAPOL Invalid Type ramesRx frames that have been received by the switch in which the frame type is not recognized. dot1xAuthEapLengthErr The number of EAPOL Invalid Length...
  • Page 255 User’s Manual of IGS-20040MT server following the first response from the supplicant. Indicates that the backend server has communication with the switch. MAC-based: Counts all Access Challenges received from the backend server for this port (left-most table) or client (right-most table).
  • Page 256 User’s Manual of IGS-20040MT response packet to the backend server. Indicates the switch attempted communication with the backend server. Possible retransmissions are not counted. MAC-based: Counts all the backend server packets sent from the switch towards the backend server for a given port (left-most table) or client (right-most table).
  • Page 257 User’s Manual of IGS-20040MT Selected Counters Object Description  Selected Counters The Selected Counters table is visible when the port is one of the following administrative states: ■ Multi 802.1X ■ MAC-based Auth. The table is identical to and is placed next to the Port Counters table, and will be empty if no MAC address is currently selected.
  • Page 258 User’s Manual of IGS-20040MT : This button is available in the following modes: • Force Authorized • Force Unauthorized • Port-based 802.1X • Single 802.1X Click to clear the counters for the selected port. : This button is available in the following modes: •...
  • Page 259: Radius

    User’s Manual of IGS-20040MT 4.11.6 RADIUS This Page allows you to configure the RADIUS Servers. The RADIUS Configuration screen in Figure 4-11-7 appears. Figure 4-11-7: RADIUS Server Configuration Page Screenshot The Page includes the following fields: Global Configuration These setting are common for all of the RADIUS Servers.
  • Page 260 User’s Manual of IGS-20040MT  Key The secret key - up to 63 characters long - shared between the RADIUS server and the switch.  NAS-IP-Address The IPv4 address to be used as attribute 4 in RADIUS Access-Request packets. If this field is left blank, the IP address of the outgoing interface is used.
  • Page 261: Tacacs

    User’s Manual of IGS-20040MT 4.11.7 TACACS+ This Page allows you to configure the TACACS+ Servers. The TACACS+ Configuration screen in Figure 4-11-8 appears. Figure 4-11-8: TACACS+ Server Configuration Page Screenshot The Page includes the following fields: Global Configuration These setting are common for all of the TACACS+ Servers.
  • Page 262: Radius Overview

    User’s Manual of IGS-20040MT  Delete To delete a TACACS+ server entry, check this box. The entry will be deleted during the next Save.  Hostname The IP address or hostname of the TACACS+ server.  Port The TCP port to use on the TACACS+ server for authentication.
  • Page 263 User’s Manual of IGS-20040MT The Page includes the following fields: RADIUS Authentication Server Status Overview Object Description  # The RADIUS server number. Click to navigate to detailed statistics for this server.  IP Address The IP address and UDP port number (in <IP Address>:<UDP Port> notation) of this server.
  • Page 264: Radius Details

    User’s Manual of IGS-20040MT 4.11.9 RADIUS Details This Page provides detailed statistics for a particular RADIUS server. The RADIUS Authentication/Accounting for Server Overview screen in Figure 4-11-10 appears. Figure 4-11-10: RADIUS Authentication/Accounting for Server Overview Page Screenshot The Page includes the following fields: RADIUS Authentication Statistics The statistics map closely to those specified in RFC4668 - RADIUS Authentication Client MIB.
  • Page 265 User’s Manual of IGS-20040MT radiusAuthClientExtA The number of RADIUS Access ccessAccepts Access-Accept packets (valid Accepts or invalid) received from the server. radiusAuthClientExtA The number of RADIUS Access Rejects ccessRejects Access-Reject packets (valid or invalid) received from the server. radiusAuthClientExtA The number of RADIUS...
  • Page 266 User’s Manual of IGS-20040MT authentication port and dropped for some other reason. radiusAuthClientExtA The number of RADIUS Access ccessRequests Access-Request packets sent Requests to the server. This does not include retransmissions. radiusAuthClientExtA The number of RADIUS Access ccessRetransmission Access-Request packets...
  • Page 267 User’s Manual of IGS-20040MT in question. Shows the state of the server. It takes one of the State following values:  Disabled: The selected server is disabled.  Not Ready: The server is enabled, but IP communication is not yet up and running.
  • Page 268 User’s Manual of IGS-20040MT radiusAccClientExt The number of malformed Malformed MalformedRespons RADIUS packets received Responses from the server. Malformed packets include packets with an invalid length. Bad authenticators or or unknown types are not included as malformed access responses. radiusAcctClientExt...
  • Page 269 User’s Manual of IGS-20040MT retransmission. radiusAccClientExt The number of accounting Timeouts Timeouts timeouts to the server. After a timeout, the client may retry to the same server, send to a different server, or give up. A retry to the same server is counted as a retransmit as well as a timeout.
  • Page 270: Windows Platform Radius Server Configuration

    User’s Manual of IGS-20040MT The granularity of this measurement is 100 ms. A value of 0 ms indicates that there hasn't been round-trip communication with the server yet. Buttons Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
  • Page 271 User’s Manual of IGS-20040MT Add New RADIUS Client on the Windows 2003 server Figure 4-11-12: Windows Server – Add New RADIUS Client Setting Assign the client IP address to the Industrial Managed Switch Figure 4-11-13: Windows Server RADIUS Server Setting...
  • Page 272 User’s Manual of IGS-20040MT The shared secret key should be the same as the key configured on the Industrial Managed Switch. Figure 4-11-14: Windows Server RADIUS Server Setting Configure ports attribute of 802.1X the same as “802.1X Port Configuration”. Figure 4-11-15: 802.1x Port Configuration Create user data.
  • Page 273 User’s Manual of IGS-20040MT Figure 4-11-16: Windows 2003 AD Server Setting Path Enter ” Active Directory Users and Computers”, create legal user data; next, right-click a user what you created to enter properties, and what to be noticed:...
  • Page 274 User’s Manual of IGS-20040MT Figure 4-11-17: Add User Properties Screen Figure 4-11-18: Add User Properties Screen Set the Port Authenticate Status to “Force Authorized” if the port is connected to the RADIUS server or the port is an uplink port that is connected to another switch. Or once the 802.1X starts to...
  • Page 275: Client Configuration

    User’s Manual of IGS-20040MT 4.11.11 802.1X Client Configuration Windows XP is originally 802.1X support. As to other operating systems (windows 98SE, ME, 2000), an 802.1X client utility is needed. The following procedures show how to configure 802.1X Authentication in Windows XP.
  • Page 276 User’s Manual of IGS-20040MT Figure 4-11-20 Click “OK”. When client has associated with the Industrial Managed Switch, a user authentication notice appears in system tray. Click on the notice to continue. Figure 4-11-21: Windows Client Popup Login Request Message...
  • Page 277 User’s Manual of IGS-20040MT Enter the user name, password and the logon domain that your account belongs. 10. Click “OK” to complete the validation process. Figure 4-11-22...
  • Page 278: Security

    User’s Manual of IGS-20040MT 4.12 Security This section is to control the access of the Industrial Managed Switch, includes the user access and management control. The Security Page contains links to the following main topics:  Port Limit Control ...
  • Page 279 User’s Manual of IGS-20040MT Figure 4-12-1: Port Limit Control Configuration Overview Page Screenshot The Page includes the following fields: System Configuration Object Description  Mode Indicates if Limit Control is globally enabled or disabled on the switchstack. If globally disabled, other modules may still use the underlying functionality, but limit checks and corresponding actions are disabled.
  • Page 280 User’s Manual of IGS-20040MT underlying port security will use the shorter requested aging period of all modules that use the functionality. The Aging Period can be set to a number between 10 and 10,000,000 seconds. To understand why aging may be desired, consider the following scenario: Suppose an end-host is connected to a 3rd party switch or hub, which in turn is connected to a port on this switch on which Limit Control is enabled.
  • Page 281 User’s Manual of IGS-20040MT  Trap: If Limit + 1 MAC addresses is seen on the port, send an SNMP trap. If Aging is disabled, only one SNMP trap will be sent, but with Aging enabled, new SNMP traps will be sent everytime the limit gets exceeded.
  • Page 282: Access Management

    User’s Manual of IGS-20040MT 4.12.2 Access Management Configure access management table on this Page. The maximum entry number is 16. If the application's type matches any one of the access management entries, it will allow access to the switch. The Access Management Configuration screen in...
  • Page 283: Access Management Statistics

    User’s Manual of IGS-20040MT 4.12.3 Access Management Statistics This Page provides statistics for access management. The Access Management Statistics screen in Figure 4-12-3 appears. Figure 4-12-3: Access Management Statistics Overview Page Screenshot The Page includes the following fields: Object Description ...
  • Page 284: Https

    User’s Manual of IGS-20040MT 4.12.4 HTTPs Configure HTTPS on this Page. The HTTPS Configuration screen in Figure 4-12-4 appears. Figure 4-12-4: HTTPS Configuration Screen Page Screenshot The Page includes the following fields: Object Description  Mode Indicates the HTTPS mode operation. When the current connection is HTTPS, to apply HTTPS disabled mode operation will automatically redirect web browser to an HTTP connection.
  • Page 285: Ssh

    User’s Manual of IGS-20040MT 4.12.5 SSH Configure SSH on this Page. This Page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for software-based learning.
  • Page 286: Port Security Status

    User’s Manual of IGS-20040MT 4.12.6 Port Security Status This Page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for software-based learning.
  • Page 287 User’s Manual of IGS-20040MT  User Module Name The full name of a module that may request Port Security services.  Abbr A one-letter abbreviation of the user module. This is used in the Users column in the port status table.
  • Page 288: Port Security Detail

    User’s Manual of IGS-20040MT 4.12.7 Port Security Detail This Page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for software-based learning.
  • Page 289: Dhcp Snooping

    User’s Manual of IGS-20040MT 4.12.8 DHCP Snooping DHCP Snooping is used to block intruder on the untrusted ports of DUT when it tries to intervene by injecting a bogus DHCP reply packet to a legitimate conversation between the DHCP client and server.
  • Page 290 User’s Manual of IGS-20040MT Figure 4-12-8: DHCP Snooping Configuration Screen Page Screenshot The Page includes the following fields: Object Description  Snooping Mode Indicates the DHCP snooping mode operation. Possible modes are:  Enabled: Enable DHCP snooping mode operation. When enable DHCP snooping mode operation, the request DHCP messages will be forwarded to trusted ports and only allowed reply packets from trusted ports.
  • Page 291: Snooping Table

    User’s Manual of IGS-20040MT 4.12.9 Snooping Table This page display the dynamic IP assigned information after DHCP Snooping mode is disabled. All DHCP clients obtained the dynamic IP address from the DHCP server will be listed in this table except for local VLAN interface IP addresses.
  • Page 292 User’s Manual of IGS-20040MT Figure 4-12-10: IP Source Guard Configuration Screen Page Screenshot The Page includes the following fields: Object Description  Mode of IP Source Enable the Global IP Source Guard or disable the Global IP Source Guard. All configured ACEs will be lost when the mode is enabled.
  • Page 293: Ip Source Guard Static Table

    User’s Manual of IGS-20040MT Buttons : Click to translate all dynamic entries to static entries. : Click to apply changes Click to undo any changes made locally and revert to previously saved values. 4.12.11 IP Source Guard Static Table This Page provides Static IP Source Guard Table. The Static IP Source Guard Table screen in Figure 4-12-11 appears.
  • Page 294: Dynamic Ip Source Guard Table

    User’s Manual of IGS-20040MT 4.12.12 Dynamic IP Source Guard Table Entries in the Dynamic IP Source Guard Table are shown on this Page. The Dynamic IP Source Guard Table is sorted first by port, then by VLAN ID, then by IP address, and then by IP mask. The Dynamic IP Source Guard Table screen in Figure 4-12-12 appears.
  • Page 295: Arp Inspection

    User’s Manual of IGS-20040MT 4.12.13 ARP Inspection ARP Inspection is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2 networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses can go through DUT.
  • Page 296 User’s Manual of IGS-20040MT  Enabled: Enable ARP Inspection operation.  Disabled: Disable ARP Inspection operation. If you want to inspect the VLAN configuration, you have to enable the setting of "Check VLAN". The default setting of "Check VLAN" is disabled. When the setting of "Check VLAN"...
  • Page 297: Arp Inspection Static Table

    User’s Manual of IGS-20040MT 4.12.14 ARP Inspection Static Table This Page provides Static ARP Inspection Table. The Static ARP Inspection Table screen in Figure 4-12-14 appears. Figure 4-12-14: Static ARP Inspection Table Screen Page Screenshot The Page includes the following fields:...
  • Page 298 User’s Manual of IGS-20040MT Figure 4-12-15: Dynamic ARP Inspection Table Screenshot Navigating the ARP Inspection Table Each Page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Dynamic ARP Inspection Table.
  • Page 299: Mac Address Table

    User’s Manual of IGS-20040MT 4.13 MAC Address Table Switching of frames is based upon the DMAC address contained in the frame. The Industrial Managed Switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame ).
  • Page 300 User’s Manual of IGS-20040MT Object Description  Disable Automatic Enables/disables the the automatic aging of dynamic entries Aging  Aging Time The time after which a learned entry is discarded. By default, dynamic entries are removed from the MAC after 300 seconds. This removal is also called aging.
  • Page 301: Mac Address Table Status

    User’s Manual of IGS-20040MT 4.13.2 MAC Address Table Status Dynamic MAC Table Entries in the MAC Table are shown on this Page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID, then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.
  • Page 302 User’s Manual of IGS-20040MT  The VLAN ID of the entry. VLAN  The MAC address of the entry. MAC Address  The ports that are members of the entry. Port Members Buttons Auto-refresh : Automatic refresh occurs every 3 seconds.
  • Page 303: Lldp

    User’s Manual of IGS-20040MT 4.14 LLDP 4.14.1 Link Layer Discovery Protocol Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details...
  • Page 304 User’s Manual of IGS-20040MT The Page includes the following fields: LLDP Parameters Object Description  The switch is periodically transmitting LLDP frames to its neighbors for having the Tx Interval network discovery information up-to-date. The interval between each LLDP frame is determined by the Tx Interval value. Valid values are restricted to 5 - 32768 seconds.
  • Page 305 User’s Manual of IGS-20040MT  Tx only The switch will drop LLDP information received from neighbors, but will send out LLDP information.  Disabled The switch will not send out LLDP information, and will drop LLDP information received from neighbors.
  • Page 306: Lldp Med Configuration

    User’s Manual of IGS-20040MT Buttons : Click to apply changes Click to undo any changes made locally and revert to previously saved values. 4.14.3 LLDP MED Configuration This Page allows you to configure the LLDP-MED. The LLDPMED Configuration screen in Figure 4-14-2 appears.
  • Page 307 User’s Manual of IGS-20040MT With this in mind LLDP-MED defines an LLDP-MED Fast Start interaction between the protocol and the application layers on top of the protocol, in order to achieve these related properties. Initially, a Network Connectivity Device will only transmit LLDP TLVs in an LLDPDU.
  • Page 308 User’s Manual of IGS-20040MT different floor-to-floor dimensions. An altitude = 0.0 is meaningful even outside a building, and represents ground level at the given latitude and longitude. Inside a building, 0.0 represents the floor level associated with ground level at the main entrance.
  • Page 309 User’s Manual of IGS-20040MT  Landmark Landmark or vanity address - Example: Columbia University  Additional location Additional location info - Example: South Wing info  Name Name (residence and office occupant) - Example: Flemming Jahn  Zip code Postal/zip code - Example: 2791 ...
  • Page 310 User’s Manual of IGS-20040MT 2. Layer 2 priority value (IEEE 802.1D-2004) 3. Layer 3 Diffserv code point (DSCP) value (IETF RFC 2474) This network policy is potentially advertised and associated with multiple sets of application types supported on a given port.
  • Page 311 User’s Manual of IGS-20040MT guest voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Guest Voice application policy.  Softphone Voice - for use by softphone applications on typical data centric devices, such as PCs or laptops.
  • Page 312: Lldp-Med Neighbor

    User’s Manual of IGS-20040MT IEEE 802.1D-2004.  DSCP DSCP value to be used to provide Diffserv node behavior for the specified application type as defined in IETF RFC 2474. DSCP may contain one of 64 code point values (0 through 63). A value of 0 represents use of the default DSCP value as defined in RFC 2475.
  • Page 313 User’s Manual of IGS-20040MT The Page includes the following fields: Fast start repeat count Object Description  Port The port on which the LLDP frame was received.  Device Type LLDP-MED Devices are comprised of two primary Device Types: Network Connectivity Devices and Endpoint Devices.
  • Page 314 User’s Manual of IGS-20040MT with a particular end user. Capabilities include all of the capabilities defined for the previous Generic Endpoint Class (Class I), and are extended to include aspects related to media streaming. Example product categories expected to adhere to this class include (but are not limited to) Voice / Media Gateways, Conference Bridges, Media Servers, and similar.
  • Page 315 User’s Manual of IGS-20040MT  Guest Voice Signaling - for use in network topologies that require a different policy for the guest voice signaling than for the guest voice media.  Softphone Voice - for use by softphone applications on typical data centric devices, such as PCs or laptops.
  • Page 316: Neighbor

    User’s Manual of IGS-20040MT  Auto-negotiation Auto-negotiation Capabilities shows the link partners MAC/PHY capabilities. Capabilities Buttons : Click to refresh the Page immediately. Auto-refresh Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds. 4.14.5 Neighbor This Page provides a status overview for all LLDP neighbors.
  • Page 317: Port Statistics

    User’s Manual of IGS-20040MT 7. DOCSIS cable device 8. Station only 9. Reserved When a capability is enabled, the capability is followed by (+). If the capability is disabled, the capability is followed by (-).  Management Address Management Address is the neighbor unit's address that is used for higher layer entities to assist the discovery by the network management.
  • Page 318 User’s Manual of IGS-20040MT The Page includes the following fields: Global Counters Object Description  It also shows the time when the last entry was last deleted or added. It also Neighbor entries were shows the time elapsed since the last change was detected.
  • Page 319 User’s Manual of IGS-20040MT Buttons : Click to refresh the Page immediately. : Clears the local counters. All counters (including global counters) are cleared upon reboot. Auto-refresh Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
  • Page 320: Network Diagnostics

    User’s Manual of IGS-20040MT 4.15 Network Diagnostics This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are designed for network manager to help them quickly diagnose problems between point to point and better service customers.
  • Page 321: Ping

    User’s Manual of IGS-20040MT 4.15.1 Ping This Page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues. After you press “Start”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The Page refreshes automatically until responses to all packets are received, or until a timeout occurs. The...
  • Page 322: Ipv6 Ping

    User’s Manual of IGS-20040MT 4.15.2 IPv6 Ping This Page allows you to issue ICMPv6 ping packets to troubleshoot IPv6 connectivity issues. After you press “Start”, 5 ICMPv6 packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply.
  • Page 323: Remote Ip Ping Test

    User’s Manual of IGS-20040MT 4.15.3 Remote IP Ping Test This Page allows you to issue ICMP ping packets to troubleshoot IP connectivity issues on special port. After you press “Test”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply.
  • Page 324: Cable Diagnostics

    User’s Manual of IGS-20040MT  The destination IP Address. Remote IP Address  The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes. Ping Size  Display the ping result. Result Buttons : Click to apply changes Click to undo any changes made locally and revert to previously saved values.
  • Page 325 User’s Manual of IGS-20040MT The Page includes the following fields: Object Description  The port where you are requesting Cable Diagnostics. Port  Description Display per port description.  Cable Status Port: Port number. Pair: The status of the cable pair.
  • Page 326: Loop Protection

    User’s Manual of IGS-20040MT 4.16 Loop Protection This chapter describes enabling loop protection function that provides loop protection to prevent broadcast loops in Industrial Managed Switch. 4.16.1 Configuration This Page allows the user to inspect the current Loop Protection configurations, and possibly change them as well; screen in Figure 4-17-1 appears.
  • Page 327 User’s Manual of IGS-20040MT  Transmission Time The interval between each loop protection PDU sent on each port. valid values are 1 to 10 seconds.  The period (in seconds) for which a port will be kept disabled in the event of a Shutdown Time loop is detected (and the port action shuts down the port).
  • Page 328: Loop Protection Status

    User’s Manual of IGS-20040MT 4.16.2 Loop Protection Status This Page displays the loop protection port status of the switch; screen in Figure 4-17-2 appears. Figure 4-16-2: Loop Protection Status Screenshot The Page includes the following fields: Object Description  Port The Industrial Managed Switch port number of the logical port.
  • Page 329: Rmon

    User’s Manual of IGS-20040MT 4.17 RMON RMON is the most important expansion of the standard SNMP. RMON is a set of MIB definitions, used to define standard network monitor functions and interfaces, enabling the communication between SNMP management terminals and remote monitors.
  • Page 330 User’s Manual of IGS-20040MT  InNUcastPkts: The number of broad-cast and multi-cast packets delivered to a higher-layer protocol.  InDiscards: The number of inbound packets that are discarded even the packets are normal.  InErrors: The number of inbound packets that contained errors preventing them from being deliverable to a higher-layer protocol.
  • Page 331: Rmon Alarm Status

    User’s Manual of IGS-20040MT 4.17.2 RMON Alarm Status This Page provides an overview of RMON Alarm entries. Each Page shows up to 99 entries from the Alarm table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Alarm table.
  • Page 332: Rmon Event Configuration

    User’s Manual of IGS-20040MT 4.17.3 RMON Event Configuration Configure RMON Event table on this Page. The entry index key is ID; screen in Figure 4-17-3 appears. Figure 4-17-3: RMON Event Configuration Page Screenshot The Page includes the following fields: Object Description ...
  • Page 333: Rmon Event Status

    User’s Manual of IGS-20040MT 4.17.4 RMON Event Status This Page provides an overview of RMON Event table entries.Each Page shows up to 99 entries from the Event table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Event table.
  • Page 334: Rmon History Configuration

    User’s Manual of IGS-20040MT 4.17.5 RMON History Configuration Configure RMON History table on this Page. The entry index key is ID; screen in Figure 4-17-5 appears. Figure 4-17-5: RMON History Configuration Page Screenshot The Page includes the following fields: Object Description ...
  • Page 335: Rmon History Status

    User’s Manual of IGS-20040MT 4.17.6 RMON History Status This Page provides a detail of RMON history entries; screen in Figure 4-17-6 appears. Figure 4-17-6: RMON History Overview Page Screenshot The Page includes the following fields: Object Description  History Index Indicates the index of History control entry.
  • Page 336: Rmon Statistics Configuration

    User’s Manual of IGS-20040MT  Utilization The best estimate of the mean physical layer network utilization on this interface during this sampling interval is in the hundredths of a percent. Buttons : Click to refresh the Page immediately. Auto-refresh Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
  • Page 337: Rmon Statistics Status

    User’s Manual of IGS-20040MT 4.17.8 RMON Statistics Status This Page provides an overview of RMON Statistics entries. Each Page shows up to 99 entries from the Statistics table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Statistics table.
  • Page 338 User’s Manual of IGS-20040MT  Coll. The best estimate of the total number of collisions on this Ethernet segment.  64 Bytes The total number of packets (including bad packets) received that were 64 octets in length.  65~127 The total number of packets (including bad packets) received that were between 65 to 127 octets in length.
  • Page 339: Ptp

    User’s Manual of IGS-20040MT 4.18 PTP The Precision Time Protocol (PTP) is a protocol used to synchronize clocks throughout a computer network. On a local area network, it achieves clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems.
  • Page 340 User’s Manual of IGS-20040MT  Slave Only - clock's Device Type is Slave Only  2 Step Flag Static member: defined by the system, true if two-step Sync events and Pdelay_Resp events are used.  Clock Identity It shows unique clock identifier.
  • Page 341 User’s Manual of IGS-20040MT Clock  Ports Configuration Click to edit the port data set for the ports assigned to this clock instance. Clock Default Data Set Object Description  Clock ID An internal instance id (0..3)  Device Type Indicates the Type of the Clock Instance.
  • Page 342 User’s Manual of IGS-20040MT  PCP Priority Code Point value used for PTP frames. Clock current Data Set Object Description  stpRm Steps Removed : It is the number of PTP clocks traversed from the grandmaster to the local slave clock.
  • Page 343: Ptp Status

    User’s Manual of IGS-20040MT [1..1000] see above ‘P’ constant  ‘I’ constant [1..1000] see above [1..1000] see above ‘D’ constant Unicast Slave Configuration Object Description  Duration The number of seconds a master is requested to send Announce/Sync messages. The request is repeated from the slave each Duration/4 seconds.
  • Page 344: Ring

    User’s Manual of IGS-20040MT 4.19 Ring ITU-T G.8032 Ethernet Ring protection switching (ERPS) is a link layer protocol applied on Ethernet loop protection to provide sub-50ms protection and recovery switching for Ethernet traffic in a ring topology. ERPS provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same.
  • Page 345: Mep Configuration

    User’s Manual of IGS-20040MT 4.19.1 MEP Configuration The Maintenance Entity Point instances are configured here; screen in Figure 4-19-1 appears. Figure 4-19-1: MEP configuration page screenshot The page includes the following fields: Object Description  Delete This box is used to mark a MEP for deletion in next Save operation.
  • Page 346: Detailed Mep Configuration

    User’s Manual of IGS-20040MT Buttons : Click to add a new MEP entry : Click to refresh the page immediately. : Click to save changes. Click to undo any changes made locally and revert to previously saved values. 4.19.2 Detailed MEP Configuration This page allows the user to inspect and configure the current MEP Instance.;...
  • Page 347 User’s Manual of IGS-20040MT  Tagged VID See help on MEP create WEB.  This MAC See help on MEP create WEB. Instance Configuration: Object Description  Level See help on MEP create WEB.  Format This is the configuration of the two possible Maintenance Association Identifier formats.
  • Page 348 User’s Manual of IGS-20040MT  cLOC Fault Cause indicating that no CCM has been received (in 3,5 periods) - from this peer MEP.  cRDI Fault Cause indicating that a CCM is received with Remote Defect Indication - from this peer MEP.
  • Page 349: Ethernet Ring Protocol Switch

    User’s Manual of IGS-20040MT  Enable Automatic Protection Switching protocol information transportation based on transmitting/receiving R-APS/L-APS PDU can be enabled/disabled. Must be enabled to support ERPS/ELPS implementing APS. This is only valid with one Peer MEP configured.  Priority The priority to be inserted as PCP bits in TAG (if any).
  • Page 350 User’s Manual of IGS-20040MT Object Description  Delete This box is used to mark an ERPS for deletion in next Save operation.  Port 0 This will create a Port 0 of the switch in the ring.  Port 1 This will create "Port 1"...
  • Page 351: Ethernet Ring Protocol Switch Configuration

    User’s Manual of IGS-20040MT 4.19.4 Ethernet Ring Protocol Switch Configuration This page allows the user to inspect and configure the current ERPS Instance; screen in Figure 4-19-4 appears. Figure 4-19-4: Ethernet Ring Protocol Switch Configuration page screenshot The page includes the following fields:...
  • Page 352 User’s Manual of IGS-20040MT  Guard Time Guard timeout value to be used to prevent ring nodes from receiving outdated R-APS messages. The period of the guard timer can be configured in 10 ms steps between 10 ms and 2 seconds, with a default value of 500 ms ...
  • Page 353 User’s Manual of IGS-20040MT Instance State: Object Description  Protection State ERPS state according to State Transition Tables in G.8032.  Port 0 OK: State of East port is ok SF: State of East port is Signal Fail  Port 1...
  • Page 354: Ring Wizard

    User’s Manual of IGS-20040MT 4.19.5 Ring Wizard This page allows the user to configure the ERPS by wizard; screen in Figure 4-19-4 appears. Figure 4-19-5: Ring Wizard page screenshot The page includes the following fields: Object Description  All Switch Numbers Set all the switch numbers for the ring group.
  • Page 355: Ring Wizard Example

    User’s Manual of IGS-20040MT 4.19.6 Ring Wizard Example: Figure 4-19-6: Ring Example Diagram The above topology often occurs on using ERPS protocol. The multi switch constitutes a single ERPS ring; all of the switches only are configured as an ERPS in VLAN 3001, thereby constituting a single MRPP ring.
  • Page 356 User’s Manual of IGS-20040MT Setup steps Set ERPS Configuration on Switch 1 Connect PC to switch 1 directly; don’t connect to port 1 & 2 Logging on the Switch 1 and click “Ring > Ring Wizard” Set “All Switch Number” = 3 and “Number ID” = 1; click “Next” button to set the ERPS configuration for Switch 1.
  • Page 357 User’s Manual of IGS-20040MT To avoid loop, please don’t connect switch 1, 2 & 3 together in the ring topology before configuring the end of ERPS . Follow the configuration or ERPS wizard to connect the Switch 1, 2 & 3 together to establish ERPS application: MEP2 ←→...
  • Page 358: Switch Operation

    User’s Manual of IGS-20040MT 5. SWITCH OPERATION 5.1 Address Table The Industrial Managed Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This in-formation comes from the learning process of Industrial Managed Switch.
  • Page 359: Auto-Negotiation

    User’s Manual of IGS-20040MT 5.5 Auto-Negotiation The STP ports on the Switch have built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode.
  • Page 360: Troubleshooting

    User’s Manual of IGS-20040MT 6. TROUBLESHOOTING This chapter contains information to help you solve issues. If the Industrial Managed Switch is not functioning properly, make sure the Industrial Managed Switch was set up according to instructions in this manual. ■ The Link LED is not lit...
  • Page 361: Appendix A: Networking Connection

    User’s Manual of IGS-20040MT APPENDIX A: Networking Connection A.1 Switch's Data RJ45 Pin Assignments - 1000Mbps, 1000Base-T PIN NO MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
  • Page 362 User’s Manual of IGS-20040MT The standard cable, RJ45 pin assignment The standard RJ45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection:...
  • Page 363: Appendix B : Glossary

    User’s Manual of IGS-20040MT APPENDIX B : GLOSSARY ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID. There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also contains many detailed, different parameter options that are available for individual application.
  • Page 364 User’s Manual of IGS-20040MT ranging from 1-1024K packets per seconds. Under "Ports" and "Access Control List" web-Pages you can assign a Rate Limiter ID to the ACE(s) or ingress port(s). AES is an acronym for Advanced Encryption Standard. The encryption key protocol is applied in 802.1i standard to improve WLAN security.
  • Page 365 User’s Manual of IGS-20040MT CC is an acronym for Continuity Check. It is a MEP functionality that is able to detect loss of continuity in a network by transmitting CCM frames to a peer MEP. CCM is an acronym for Continuity Check Message. It is a OAM frame transmitted from a MEP to it's peer MEP and used to implement CC functionality.
  • Page 366 User’s Manual of IGS-20040MT Dynamic addressing simplifies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means that a new computer can be added to a network without the hassle of manually assigning it a unique IP address.
  • Page 367 User’s Manual of IGS-20040MT DSCP DSCP is an acronym for Differentiated Services Code Point. It is a field in the header of IP packets for packet classification purposes. EEE is an abbreviation for Energy Efficient Ethernet defined in IEEE 802.3az.
  • Page 368 User’s Manual of IGS-20040MT connection to a particular port on a remote host (port 80 by default). An HTTP server listening on that port waits for the client to send a request message. HTTPS HTTPS is an acronym for Hypertext Transfer Protocol over Secure Socket Layer. It is used to indicate a secure HTTP connection.
  • Page 369 User’s Manual of IGS-20040MT from a mail server. IMAP is the protocol that IMAP clients use to communicate with the servers, and SMTP is the protocol used to transport mail to an IMAP server. The current version of the Internet Message Access Protocol is IMAP4. It is similar to Post Office Protocol version 3 (POP3), but offers additional and more complex features.
  • Page 370 User’s Manual of IGS-20040MT LLDP is an IEEE 802.1ab standard protocol. The Link Layer Discovery Protocol(LLDP) specified in this standard allows stations attached to an IEEE 802 LAN to advertise, to other stations attached to the same IEEE 802 LAN, the major capabilities provided by the system...
  • Page 371 User’s Manual of IGS-20040MT For debugging network problems or monitoring network traffic, the switch system can be configured to mirror frames from multiple ports to a mirror port. (In this context, mirroring a frame is the same as copying the frame.) Both incoming (source) and outgoing (destination) frames can be mirrored to the mirror port.
  • Page 372 User’s Manual of IGS-20040MT NTP is an acronym for Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. NTP uses UDP (datagrams) as transport layer. OAM is an acronym for Operation Administration and Maintenance. It is a protocol described in ITU-T Y.1731 used to implement carrier ethernet functionality. MEP functionality like CC and RDI is based on this.
  • Page 373 User’s Manual of IGS-20040MT PING ping is a program that sends a series of packets over a network or the Internet to a specific computer in order to generate a response from that computer. The other computer responds with an acknowledgment that it received the packets.
  • Page 374 User’s Manual of IGS-20040MT QCE is an acronym for QoS Control Entry. It describes QoS class associated with a particular QCE ID. There are six QCE frame types: Ethernet Type, VLAN, UDP/TCP Port, DSCP, TOS, and Tag Priority. Frames can be classified by one of 4 different QoS classes: "Low", "Normal", "Medium", and "High"...
  • Page 375 User’s Manual of IGS-20040MT RADIUS is an acronym for Remote Authentication Dial In User Service. It is a networking protocol that provides centralized access, authorization and accounting management for people or computers to connect and use a network service. RDI is an acronym for Remote Defect Indication. It is a OAM functionallity that is used by a MEP to indicate defect...
  • Page 376 User’s Manual of IGS-20040MT SNAP The SubNetwork Access Protocol (SNAP) is a mechanism for multiplexing, on networks using IEEE 802.2 LLC, more protocols than can be distinguished by the 8-bit 802.2 Service Access Point (SAP) fields. SNAP supports identifying protocols by Ethernet type field values; it also supports vendor-private protocol identifier.
  • Page 377 User’s Manual of IGS-20040MT TACACS+ TACACS+ is an acronym for Terminal Acess Controller Access Control System Plus. It is a networking protocol which provides access control for routers, network access servers and other networked computing devices via one or more centralized servers.
  • Page 378 User’s Manual of IGS-20040MT determine the priority from the 6-bit ToS field in the IP header. The most significant 6 bits of the ToS field are fully decoded into 64 possibilities, and the singular code that results is compared against the corresponding bit in the IPv4 ToS priority control bit (0~63).
  • Page 379 User’s Manual of IGS-20040MT Virtual LAN. A method to restrict communication between switch ports. VLANs can be used for the following applications: VLAN unaware switching: This is the default configuration. All ports are VLAN unaware with Port VLAN ID 1 and members of VLAN 1.
  • Page 380 User’s Manual of IGS-20040MT necessarily with first generation wireless access points. WPA2 implements the full standard, but will not work with some older network cards (Wikipedia). WPA-PSK WPA-PSK is an acronym for Wi-Fi Protected Access - Pre Shared Key. WPA was designed to enhance the security of wireless networks.
  • Page 381: Ec Declaration Of Conformity

    : IGS-20040MT * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).
