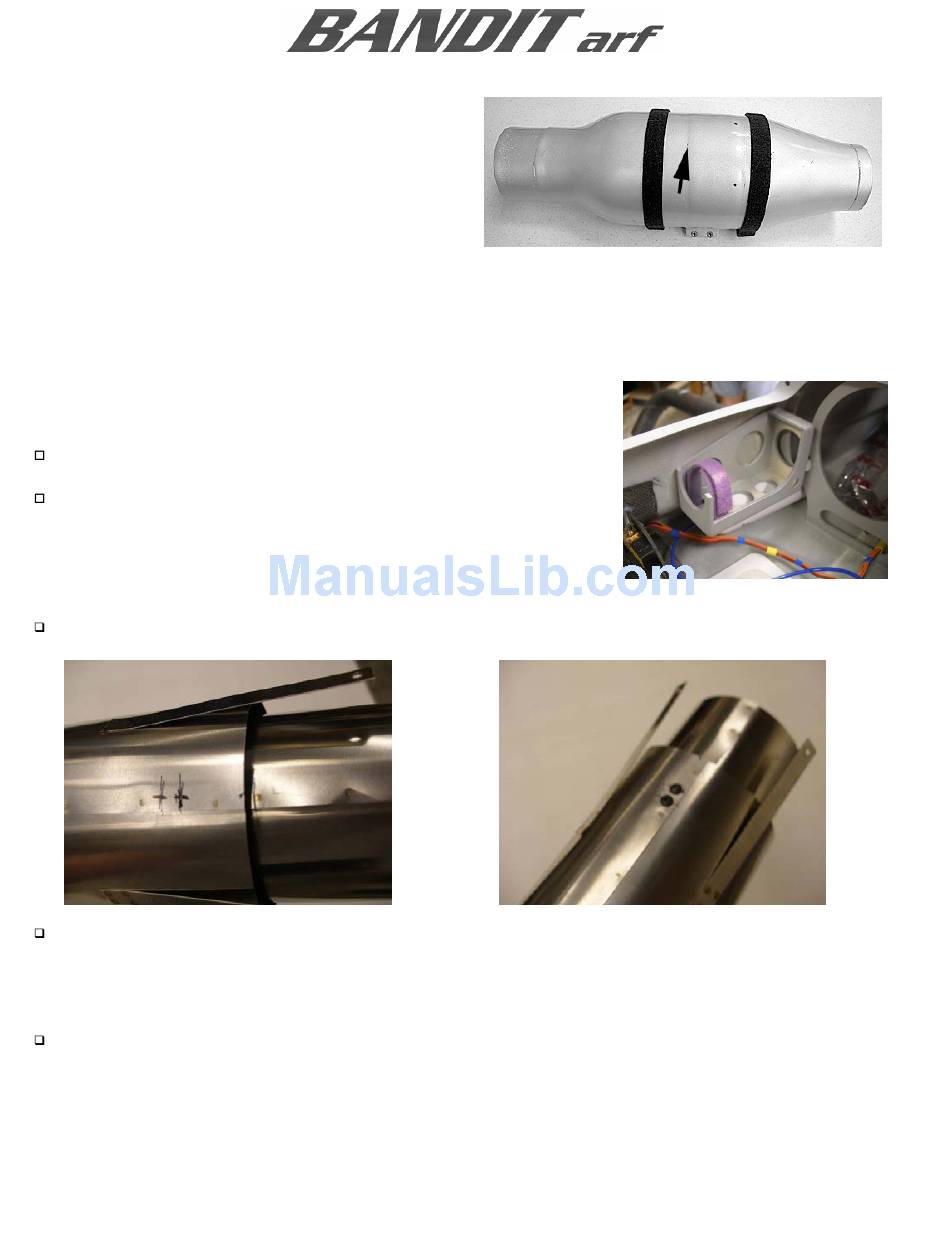

Bypass is shown with the 2" extension (for P-80/P-
120) and Velcro straps screwed to the bottom using
4 #2 BHSMS. Drill a 3/32" drain hole in the bottom
of the bypass.
Finish the Bypass and cover using the following
steps:
o Sand with #80 grit
o Apply pin hole filler (BVM #1925)
o Brush prime with K36
o Sand with #220, spray primer.
o Sand with #400, apply color and clear.

MOUNTING THE UAT

Assemble the wood UAT mount and install similar.
Use Velcro strap for easy removal of the UAT.

TAIL PIPE

The end of the inner pipe should be positioned ¾" in from the end of the outer pipe.
The distance between the inner pipe and the tail cone of the JetCat P-60 is 1.5"

TAIL PIPE FORMER

Glue the tail pipe former in place approximately 4" from the end of the rear fuselage. This positions
and holds the outer tube of the tailpipe.
