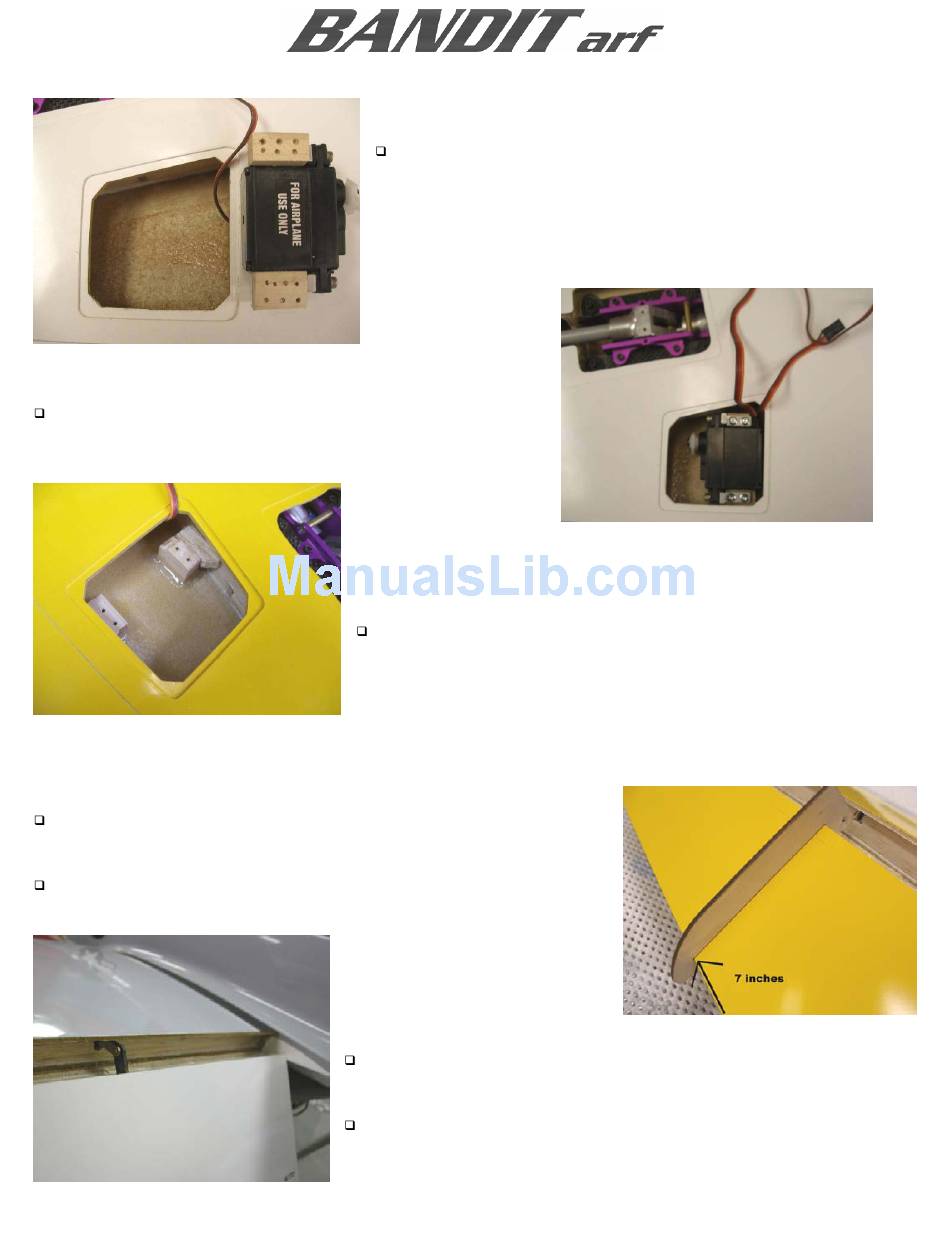

Align the flap servo in the pocket as shown.

FLAP CONTROL HORNS

Use a 1/16" cutter and a Perma-Grit file to create the pocket for
the control horn at the marked location.
The rear of the flap horn locator should be positioned 7" out from
the wing root at the trailing edge.
BVM © 2009 K5300-Current_manual-090808.doc
Assembly & Operation Manual
Apply SLO-ZAP to the maple servo mounting blocks and
hold the servo in place until the glue has cured.
Remove the servo and use scrap balsa to reinforce the front
maple block. Apply AeroPoxy to create fillets around the
blocks.
Use a piece of 1/16" music wire to locate the CF control horn.
The music wire slips though the laser cut hole.
Use AeroPoxy to hold the control horn in place. A strip of
masking tape can be used to hold the ply locator while glue
cures.
Page 19 12/2/2009
