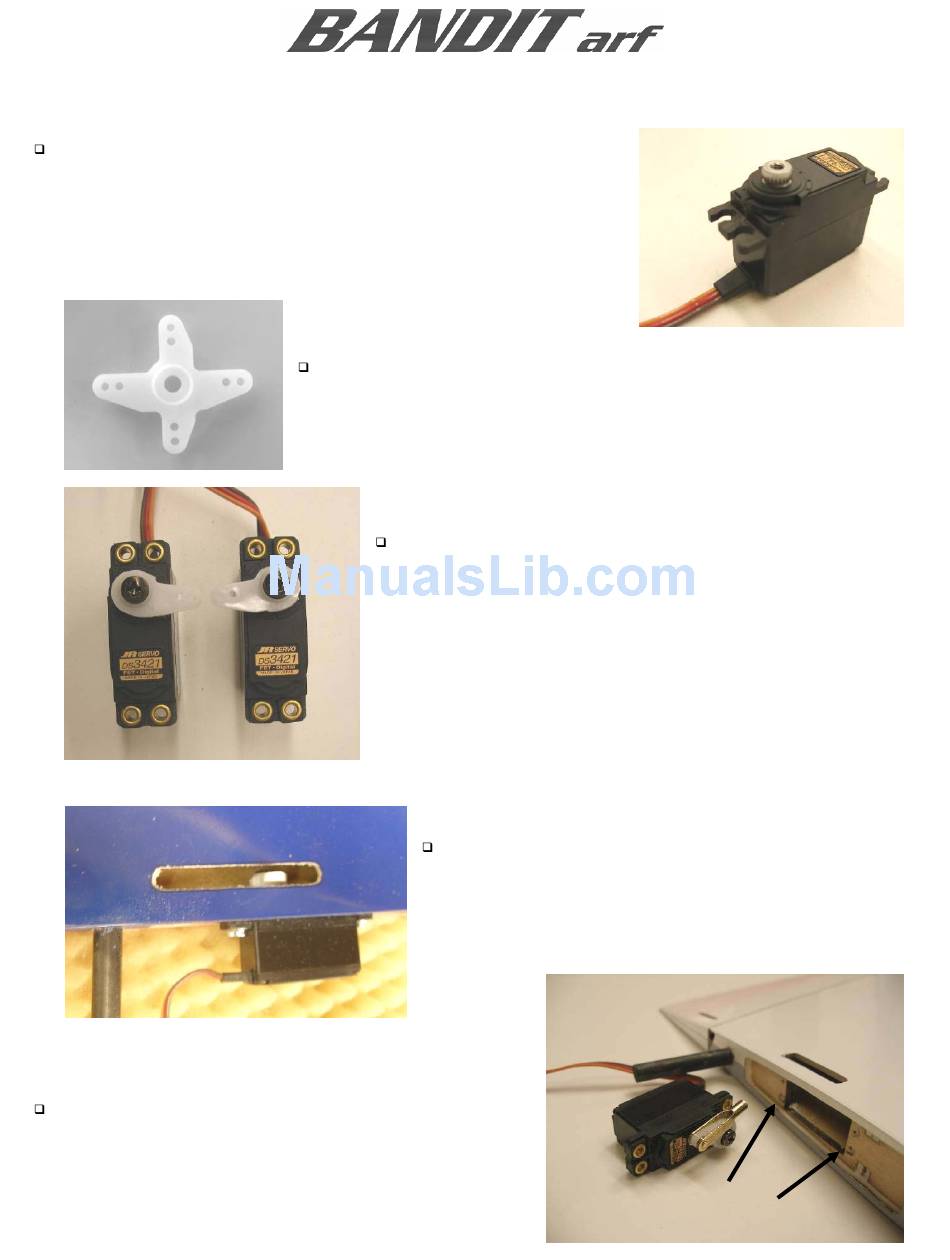

INSTALLING THE ELEVATOR SERVOS

Use a Perma-Grit file to trim the gussets off of the elevator servos
as shown.
Drill the (4) servo mounting holes with a 1/16" bit.
BVM © 2009 K5300-Current_manual-090808.doc
Assembly & Operation Manual
Use the long arm of the standard 4-way servo arm. This length is very
important; the elevator linkage system has been designed to provide
sufficient elevator surface travel and the required amount of power for
200 MPH flight. Using alternative servos or arms may unnecessarily
risk the plane.
Use the JR Matchmaker to orient the servo arms to be
slightly forward from perpendicular. Install the grommets and
eyelets from the top of the servo as shown.
NOTE: To make installing the clevis easy, install only the clevis
to the outer hole of the standard 4-way arm before adding the
threaded push rod.
Cut the slot for the servo arm as marked on the bottom
skin. Adjust for proper clearance once the servo is
installed and linkage connected.
