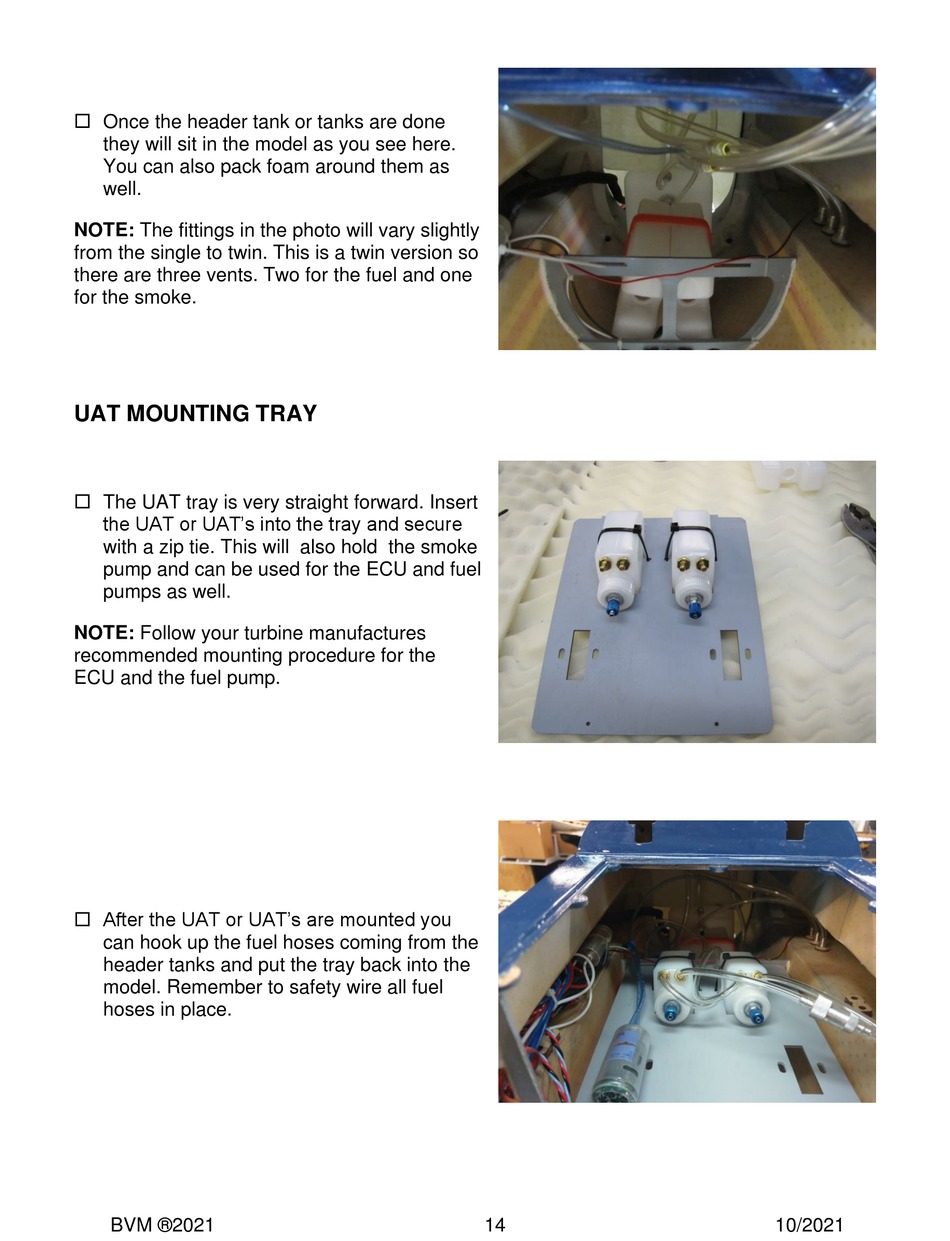

 Once the header tank or tanks are done
they will sit in the model as you see here.
You can also pack foam around them as
well.
NOTE: The fittings in the photo will vary slightly
from the single to twin. This is a twin version so
there are three vents. Two for the fuel and one
for the smoke.

UAT MOUNTING TRAY

 The UAT tray is very straight forward. Insert
the UAT or UAT's into the tray and secure
with a zip tie. This will also hold the smoke
pump and can be used for the ECU and fuel
pumps as well.
NOTE: Follow your turbine manufactures
recommended mounting procedure for the
ECU and the fuel pump.
 After the UAT or UAT's are mounted you
can hook up the fuel hoses coming from the
header tanks and put the tray back into the
model. Remember to safety wire all fuel
hoses in place.
BVM ®2021 14 10/2021
