Fuselage Layout and Installation

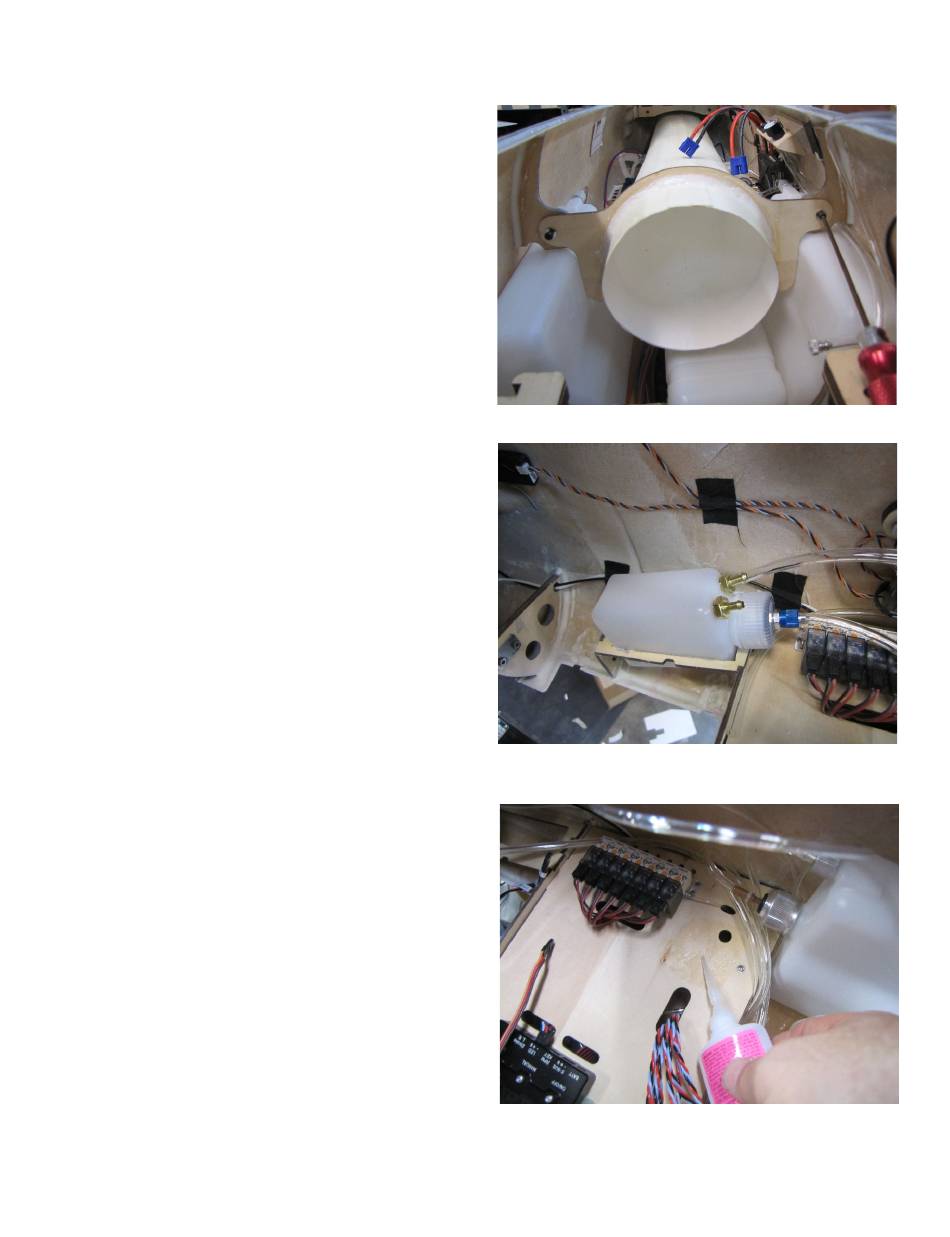

Inlet Removal
The inlet is held in place in (3) spots. The
front lip and the (2) 3mm bolts in the rear.
A 2.5mm Allen Wrench will allow you to
remove the inlet from the aircraft. Once
removed you will have access you need
for the next steps.
Mounting the UAT
The BVM UAT ( BVM 6044) is mounted
on the right side of the fuselage facing aft.
It maybe required for you to open the
mounting tray slightly to fit. The BVM UAT
is secured in place with a zip tie.
Mounting the Gyro
Use thin CA to seal the wood in preparation
of Gyro mounting.
Note: Mount your Gyro using the Gyro
manufactures recommended guidelines.
BVM ® 2020
F-86 Sabre
Assembly & Operation Manual
8
