Connecting the System Cables

After installation and fixation of the antenna, connect the ACU to the antenna.
Refer to the drawing below to connect cables.
Single IRD Connection
• Connect the RF Cable (15m) from the RF 1 connector on the antenna
to the ANT. RF1 connector on the rear of ACU.
• Connect the ACU-IRD Cable (3m) from the RECEIVER connector on the
rear of the ACU to the RF on the IRD.
• Connect the power cable (10m) from the DC power connector on the
rear of ACU to a power source at 12V /24V DC.
• Press the POWER ON switch in front of the ACU to start operating the
antenna system automatically.
18
RF1 RF2
RF Cable
ACU
Antenna
ANT RF1 RECEIVER
FG - +
+ -
DC 9~30V FUSE NMEA PC INTERFACE
DC Power Cable NMEA GPS PC Cable (Not supplied)

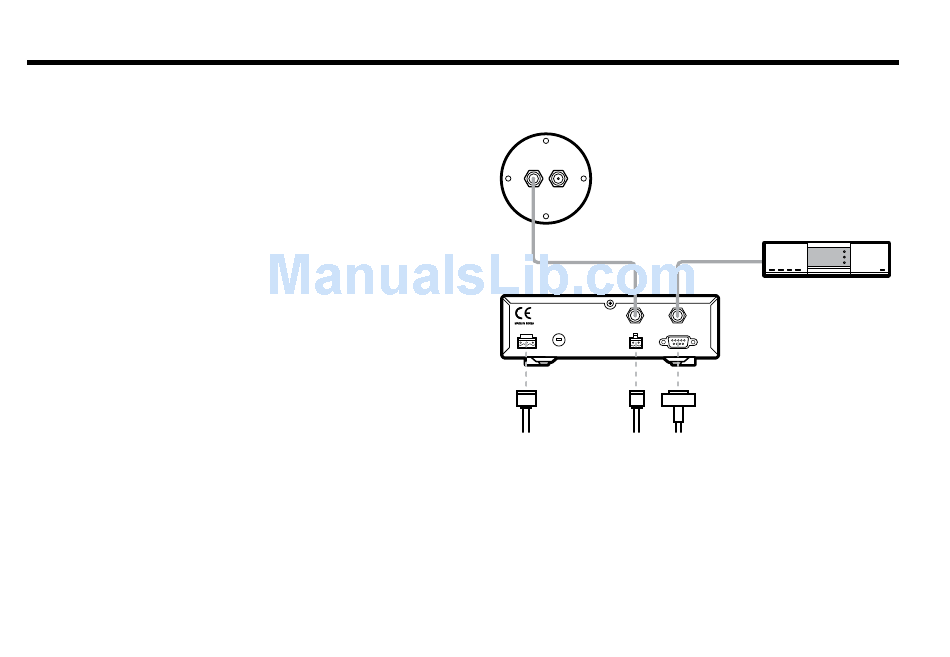

Figure 15 : Single IRD Configuration
ACU IRD Cable
IRD (Not Supplied)
Receiver
