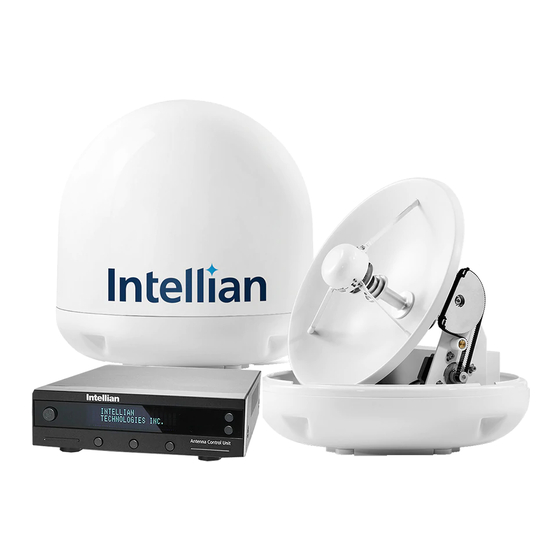

Intellian i3 Quick Installation Manual

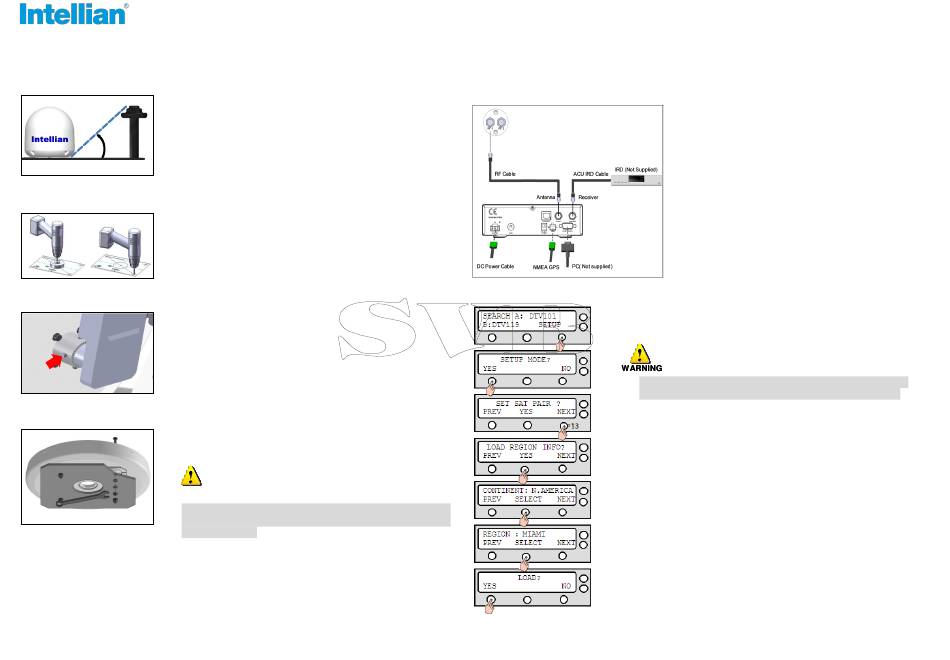

1. Select a location for the antenna.
 Make sure nearby objects do not block the antenna.
 Avoid unnecessary motion by locating the antenna as near
as to the centerline of the boat.
15°
Antenna Unit Obstacle
2. Prepare the mount
 Attach the installation template to the mounting surface using
adhesive tape.
 Remove the shaded center portion by using a hole saw.
 Drill 4 bolt holes.
3. Prepare the Antenna
 Open the antenna upper dome and remove the foam transit
restraints from the antenna base.
 Adjust the LNB Skew Angle (Linear Polarization Only).
USA/Japan/Korea is not required to adjust.

Loosen screws of the connection of LNB and feed horn.

Tighten screws after adjusting the LNB position.
4. Secure the Antenna
 Secure the antenna to the mount base using bolts, spring
washers, and flat washers.
WARNING WARNING
Be sure to put the radome on while operating the
system. The system functions will be abnormal if the
radome is off.
Intellian i3/i3L/i4/i4P/i5/i5P/i6/i6P/i6PE/i6W
Quick Installation Guide
5. Connect the System Cables
6. Set Region (Nation/City) in ACU
 Connect the RF Cable from the RF 1
connector on the antenna to the ANT. RF1
connector on the rear of ACU.
 Connect the ACU IRD Cable from the
RECEIVER connector on the rear of the ACU
to RF on the IRD.
 Connect the power cable from the DC power
connector on the rear of ACU to a power
source of DC (10.8~15.6V).
Note: i3L can only be connected to one receiver.
 Turn on the ACU power and you will see USA DTV101 and
DTV 119 as the default.
The system functions will be abnormal if you do not set
a correct continent and region.
 Please select your region (Nation/City) after selecting the
continent. Once the SET REGION has been done, you will
not need to adjust GPS and the target tracking satellites.
The setting steps as below.

Enter SETUP MODE and Press NEXT 13 times to enter
LOAD REGION INFO menu.

Select CONTINENT and Press NEXT to select
alternative continents.

Select REGION and Press NEXT to select alternative
Nation/City.

Press YES to load the region setting.
Copyright
Doc# : i3/i3L/i4/i4P/i5/i5P/i6/i6P/i6PE/i6W DCQ_2015_1103- V1.4
®
Intellian Technologies, Inc.
