Operation Using PC Controller Program

Introduction

GUI Software of Intellian's i2 has been coded for the user to easily set up the antenna by using the user's personal
computer. Using the GUI program enables the user to easily monitor and modify the information of the antenna, satellite
and GPS. Additionally, the detail diagnostic method of the antenna is provided by the GUI program.
To start this GUI program,
1. Connect one end of PC serial cable to the serial port on the computer.
2. Connect the other end of the PC serial cable to the "PC INTERFACE" on the rear of ACU.
3. Execute GUI program by inserting the supplied CD-ROM into the CDROM drive of the computer.

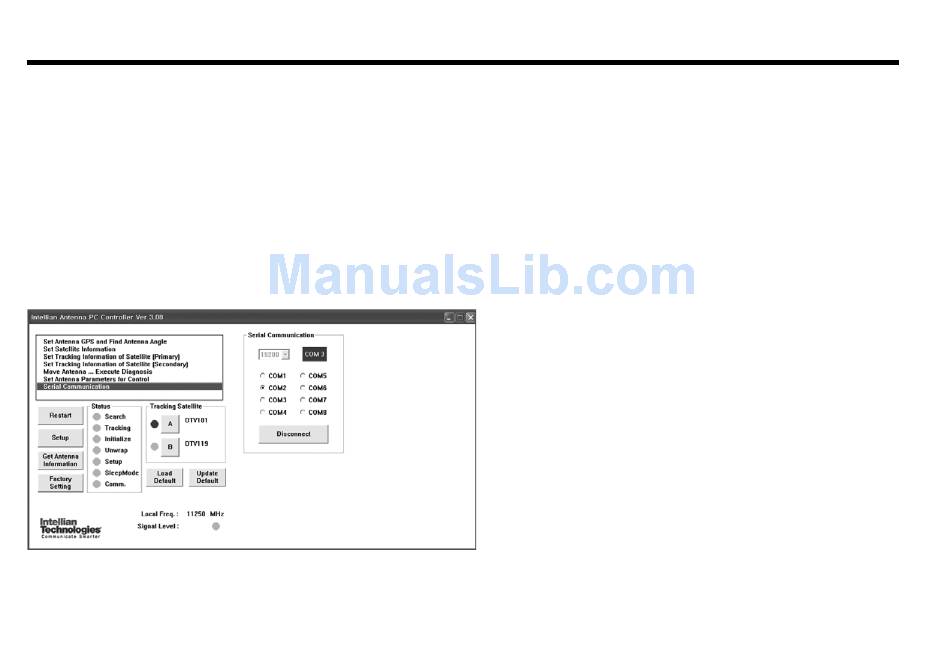

Figure 21 : Intellian Antenna PC Controller Program
48
