Installation and Mounting of the Antenna
The method of installation and mounting of antenna may vary due
to vessel design but the following procedures are applicable in most
situations, and will result in a secure and effective installation.
Confirmation of Size and Installation of Power Tower
• Confirm the height and diameter of the bottom surface of the antenna
before installing it.
• The space must be sufficient for installing the antenna unit
considering the height and diameter of the antenna.
• The height and the diameter of the bottom surface of the antenna are
as shown in the following drawing. If possible, install the antenna
using a power tower.
Before installing the antenna, open the radome and remove the
Note:
shipping constraints from the antenna interior. Reinstall the radome
before operating the system. The system will not perform properly if the
radome is open.

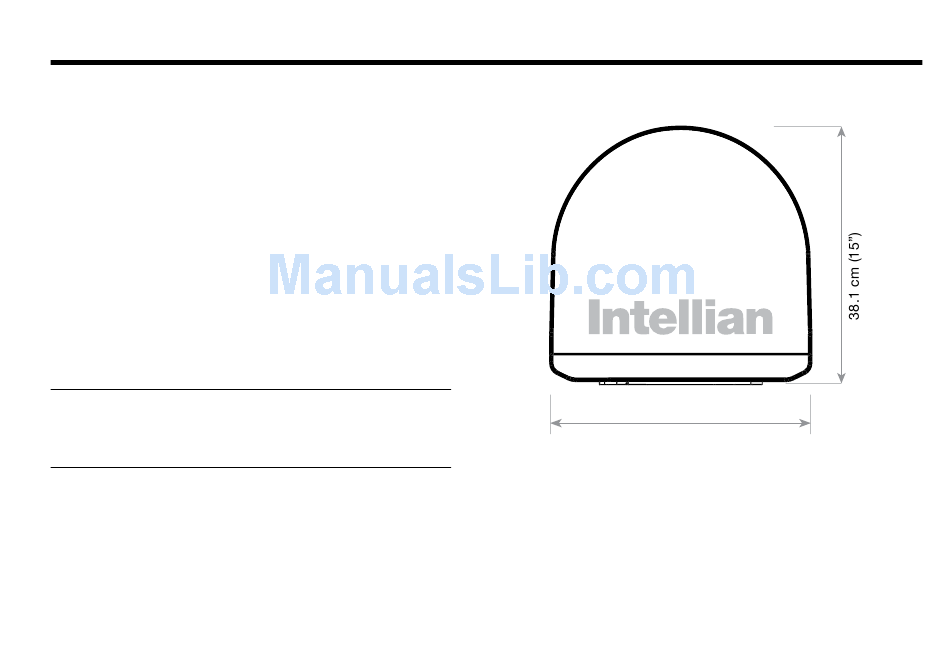

Ø37 cm (14.7")
Figure 08 : Radome Dimension of i2
13
