Intellian i2 Installation And Operation Manual page 9

Installation Kit
Contains the items required for securing the antenna unit and ACU to the
vessel.
Antenna
Item
Hex.Bolt Flat Washer
Qty
5 5
ACU
Item
Self-Tapping Screw
Qty
5
Size (M4 X 16L)

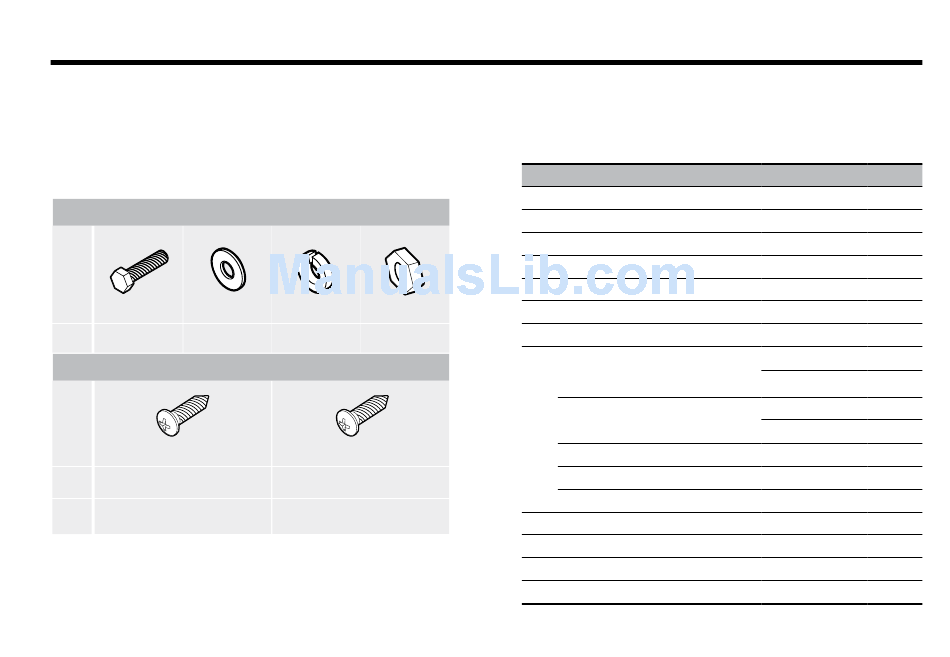

Figure 04 : Installation Bolt Kit
Spring Washer
Hex. Nut
5 5
Machine Screw
5
(M3 X 8L)
Other Components
No Components
1 ACU Bracket
2 RG6(Antenna – ACU RF Cable)
3 RG6(ACU – IRD Cable)
4 Power Cable
5 PC Serial Cable
6 NMEA Connector
7 Power Connector
Hex Bolt
Tapping Screw
8
Flat Washer
Spring Washer
Nut
9 Installation CD
10 User Manual
11 Mounting Template
12 Quick Installation Guide
Figure 05 : List of the Supplied Parts
Size Qty
- 2
15m 1
3m 1
10m 1
1.8m 1
1.5m 1
AK950-2 1
M6x35L 5
M6x50L 5
ø4x16L 5
ø3x8L 5
M6 10
M6 5
M6 5
- 1
- 1
1
- 1
9
