Set Tracking Information of Satellite [Primary]

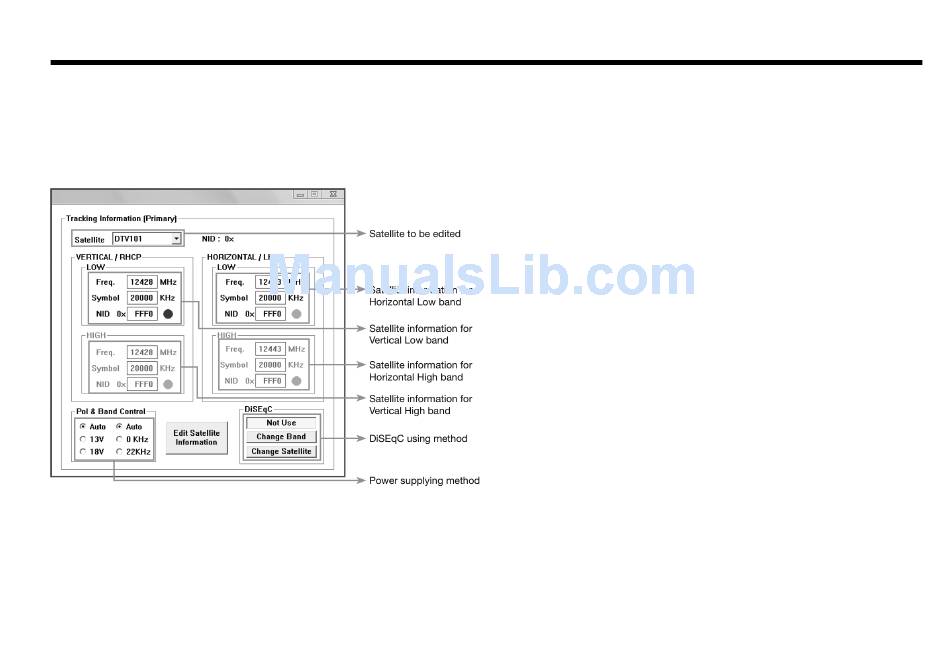

Figure 29 : Setting up the Primary Tracking Information
Command Buttons
• Edit Satellite Information - To change frequency information of the
antenna.
• Satellite Information - Satellite information consists of frequency, symbol
and NID(Network ID) of a transponder of the tracking satellite. There are
four groups of satellite information. 'Vertical/RHCP' is applied when the
IRD supplies 13V, and 'Horizontal/LHCP' is applied when the IRD supplies
18V. 'LOW' is applied when the DiSEqC signal is not detected from the
IRD, 'HIGH' is applied when the DiSEqC signal is detected from the IRD.
If you select 'Not Use' or 'Change Satellite', two 'HIGH' groups are
inactivated. If you select Change Band', two 'High' groups are activated
and you can modify satellite information which is applied when the
DiSEqC signal is detected from the IRD. After modifying the information,
press the 'Edit Satellite Information' button, and new information will be
updated in the antenna.
• Pol & Band Control - The power controls 13V (Vertical (RHCP)) and 18V
(Horizontal (LHCP)) bands. The Band controls High and Low bands. (AUTO
RECOMMENDED)
