Connecting the System Cables

After installation and fixation of the antenna, connect the ACU to the antenna.
Refer to the drawing below to connect cables.
Antenna RF Cable (Connecting Antenna - ACU)
Intellian provides the Antenna RF Cable (RG-6, 15 m) for connecting
Antenna and ACU. Due to the signal losses across the length of the RF
coax on L-Band, Intellian recommends the following 75 Ω coax cable
types for standard system installations. Check the instructions from the
cable supplier. The table below shows the recommended cable types
and maximum cable lengths for the antenna system. For installing
cables longer than the recommended length, consult with Intellian
Technologies first.
RF Cable Recommendation
Coaxial Cable Type
RG-6/U Solid Copper Core or
LMR 300
RG-11/U Solid Copper Core or
LMR 400
LMR 600
18
Max. Cable Length
35 m
60 m
100 m
Single Receiver Connection
1. Connect the RF cable 15m from the RF 1 connector on the
antenna base plate to the ANT. RF1 connector on the ACU.
2. Connect the RF cable 3m from the RECEIVER connector on the
ACU to RF connector on the Receiver.
3. Connect the DC power cable 1.5m from DC power connector on
the ACU to a power source from 110~220V AC.
4. Press the POWER ON switch on the ACU to start the operation of the
antenna system.
RF1 RF2
RF3 RF4
Antenna
ACU
FG - +
DC 24V ANT RF1
Adapter
( AC 110~220V )
IRD 1

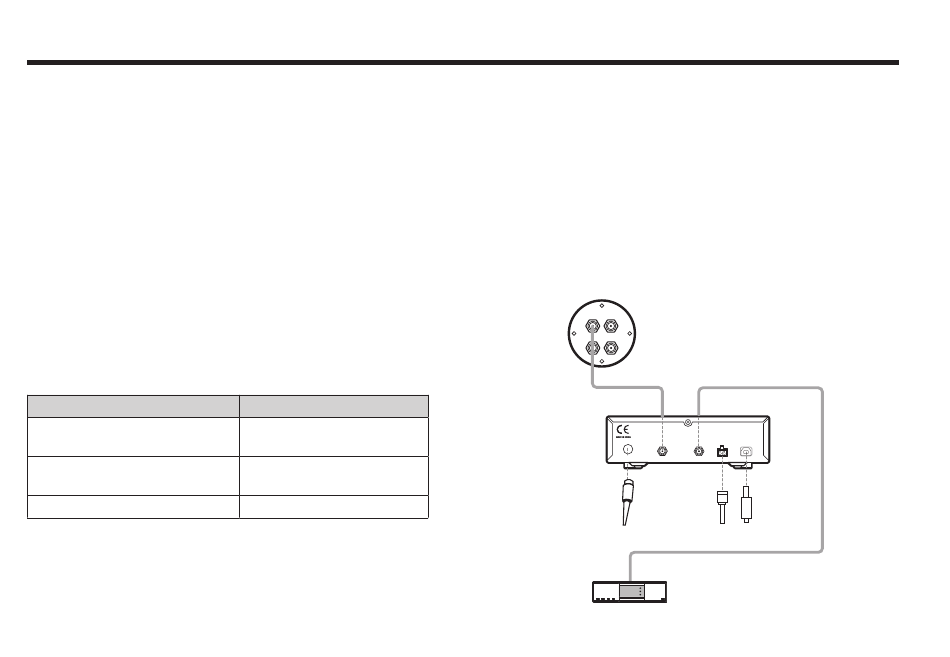

Figure 15 : Single Receiver Configuration
Receiver
+ -
RECEIVER NMEA PC INTERFACE
NMEA GPS USB Cable
