Summary of Contents for Intellian i3
Page 1
Installation and operation User Manual Document Number: 2012EF-UM1004-V1_0...
Page 2
Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc., and the information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form without written prior consent by Intellian Technologies, Inc.
INTRODUCTION OPERATION USING PC CONTROLLER PROGRAM INTRODUCTION TO INTELLIAN i3/i3L/i4/i4P INTRODUCTION FEATURES OF INTELLIAN i3/i3L/i4/i4P PROGRAM INITIALING AND SERIAL PORT SETUP BASIC SYSTEM CONFIGURATION OF INTELLIAN i3/i3L/i4/i4P MAIN MENU CONTROLLER MENUS INSTALLATION PREPARATION FOR TRANSPORTATION SYSTEM COMPONENTS TOOLS REQUIRED FOR INSTALLATION...
The i3/i3L/i4/i4P has a builtin GPS system which enhances the speed of satellite signals acquisitions. In addition, the i4P provides the embedded auto skew angle control system to maintain the optimal signal strength and increase the quality of satellite receptions in weak satellite single coverage area.
Easy installation and outstanding reliability Intellian i3/i3L/i4/i4P uses only one RF cable for installation. This makes installation easy. Power, RF and data signals transfer from the antenna to the ACU through this single cable. In addition, Intellian i3/i3L/i4/ i4P provides highly reliable system through the implementation of a modularized design, and the usage of strictly proven components.
Satellite Receiver #1 (Not Supplied) (Not Supplied) Note: i3L can only be connected to one receiver. Note 2: Dish and Bell TV users please refer to the Intellian Dish MIM Installation and User Manual. Antenna Control Unit ANT RF1 RECEIVER...
Installation The components of the Intellian i3/i3L/i4/i4P are designed as module system so that it is suitable for simple installation on all types of vessels. System Components Antenna Unit The antenna of Intellian i3/i3L/i4/i4P is comprised of the following components for optimum search and receiving satellite signal.
Page 8

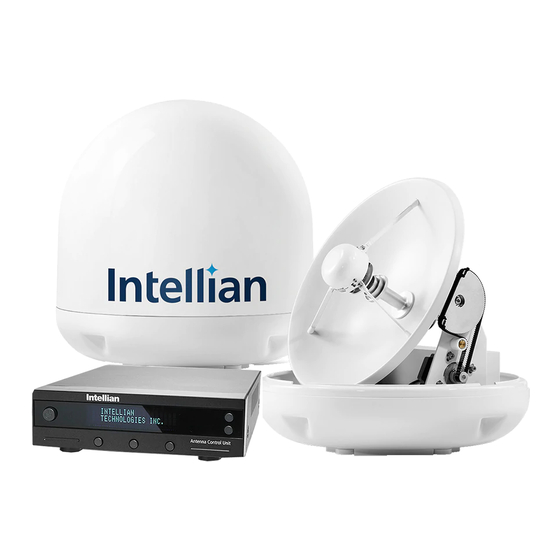

Intellian Satellite TV Antenna Systems Antenna Control Unit (ACU) Front The Antenna Control Unit (ACU) provides the power to the antenna and controls the various settings of the antenna. The digital VFD (Vacuum Fluorescent Display) allows for easy operation of the ACU, even in the dark.
Page 9
Machine Screw ø3x8L Flat Washer Size (M4 X 16L) (M3 X 8L) Spring Washer Figure 04 : Installation Bolt Kit Installation CD User Manual i3/i3L Mounting Template i4/ i4P Quick Installation Guide Figure 05 : List of the Supplied Parts...
Intellian Satellite TV Antenna Systems Tools Required for Installation Power Drill 11 mm Spanner 10 mm Drill Bit Pencil Power Drill 11 mm Spanner 10 mm Drill Bit Pencil Cross-Head Ø80 mm 5 mm Cross-Head Ø80 mm 5 mm Screwdriver...
Planning the Installation Antenna Unit Install the antenna in accordance with the following procedures to ensure maximum performance of the antenna. The antenna should be installed in a place where it has an all-around clear view of the horizon. Please be sure there are no obstacles within 15 degrees above the antenna.
Page 12
Power Requirements Follow the power requirements to avoid damage to the system. The Intellian i3/i3L/i4/i4P has been designed to work on a boat’s power supply rated from 9 ~ 30 V DC. If your IRD(s) and television(s) require a 110V/240V AC power supply, you will need to install a suitable DC to AC converter to operate the unit(s) from your boat’s DC power supply.
Installation and Mounting of Antenna The method of installation and mounting of antenna may vary due to vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation. Confirmation of Size Prior to Installation •...
Page 14
Intellian Satellite TV Antenna Systems Ø43 cm (16.9”) Figure 09 : Radome Dimension of i3 / i3L...
Page 15
Mark of the Antenna Mounting Position Referring to the mounting template, mark where antenna will be mounted on board (it must be a flat surface) or on a separate power tower. Note: If a power tower is not suitable to mount the antenna, separate cable shock and waterproofing measures must be taken to protect the RF connector from being exposed to the sea water and external shocks.
Page 16
Intellian Satellite TV Antenna Systems 23.3cm ( 9.2”) 22.86 cm (9”) Figure 10 : Mounting Hole Position of i4 / i4P Figure 11 : Mounting Hole Position of i3 / i3L...
Page 17
Securing Holes for Bolts and Cable Ways Connection of the Cable Make 4 bolt holes of 10mm diameter, one at each corner of a rectangle Remove the rubber cap from RF connector. Connect the RF cable to the drawn as below, and make a circular hole of 80mm diameter at the RF connector under the base plate through the access hole using an center of the rectangle through which the cable will run.
Intellian Satellite TV Antenna Systems Installing the ACU ACU Dimensions Mounting the Antenna Attach the antenna by using the hex head bolts (M8X35L), M8 spring washers, and M8 flat washers supplied. 22.8 cm (9”) Radome Base Deck M8 Flat Washer M8 Spring Washer 17.8 cm (7”)
Selecting ACU Installation Site The ACU should be installed below deck, in a location that is: • Dry, cool, and ventilated. • Easy access from your main TV viewing area. To Install the ACU 1. The ACU should be installed using the two supplied mounting brackets which allow for a top or bottom mounting configuration.
Intellian Satellite TV Antenna Systems Connecting the System Cables of i3/i3L/i4/i4P After installing and mounting the antenna, connect the ACU to the antenna. Refer the drawing on the right to connect the cables. IRD (Not Supplied) Single IRD Connection 1. Connect the RF cable 49ft (15m) from the RF 1 connector on the antenna base plate to the ANT.
Page 21
Dual-IRDs Connection Multi-IRDs Connection You can connect two IRDs from your antenna as shown in the above In order to connect multi-IRD to the antenna, you will need to purchase diagram. The IRD connected to ACU determines which satellite is tracked, a suitable multiswitch.
Page 22
Intellian Satellite TV Antenna Systems Connecting the System Cables of i3L After installing and mounting the antenna, connect the ACU to the antenna. Refer the drawing on the right to connect the cables. IRD (Not Supplied) Single IRD Connection 1. Connect the RF cable 49ft (15m) from the RF 1 connector on the antenna base plate to the ANT.
ACU’s external GPS connector. To do this you ANT RF1 RECEIVER will need a suitable cable to connect your GPS system and the green 2-way ACU GPS connector supplied with your Intellian i3/i3L/i4/i4P DC 9~30V FUSE NMEA PC INTERFACE Satellite TV System.
It should NOT need to be readjusted if the vessel stays in the same location and is operating on the same satellite. Skew Angle Adjustment of i3/i3L/i4 Polarization of your Intellian i3/i3L/i4 antenna must be accomplished manually by the following steps. 1. Open the radome after switching power OFF.
Page 25
Auto LNB Skew Angle Adjustment for i4P Intellian i4P has an embedded auto skew angle control system. Therefore, manual adjustment of LNB skew angle is not required. The LNB skew angle is continuously adjusted automatically through of the calculation of current GPS location and target satellite. The skew angle of LNB is shown from the ACU and GUI Program.
Intellian Satellite TV Antenna Systems Operation Instruction Introduction Note: Many of the above functions will only be required only after This section of the handbook describes how to setup your Satellite TV initial installation of your system. Refer to the Quick Installation Guide System after installing the ACU.
4. The antenna has located the satellite and is TRACKING A: DTV101 now tracking. B:DTV119 SETUP Note: The operation method is exactly same for i3, i3L, i4, and i4P. The following instruction will be described using the i3 as example.
Page 28
Intellian Satellite TV Antenna Systems Changing Target Satellite Tri-Sat Mode Your antenna is programmed with either two (Dual-Sat mode) or three (Tri- Sat mode) candidates of target satellites as default mode. To change the target 1. Press LEFT soft key for tracking...
Page 29
Monitoring the Current Status of the Antenna When the ACU power is on, it displays the status of the antenna. The current status of the antenna is displayed as shown below. 1. The antenna is searching Satellite A. 5. Antenna position detail and signal strength are SEARCH A: DTV101 AZ : ###.# EL : ##.#...
Intellian Satellite TV Antenna Systems Setup Mode Sleep Mode Begin Setup Mode If the antenna loses the tracking satellite while in sleep mode, sleep To enter the Setup Mode simply follow the instructions below. mode will be cancelled. 1. While the antenna is tracking press SETUP...
Page 31
Setting the Satellite Pair You can change the satellite pair if you decide to receive satellite television service from a different service provider. 1. Press YES to enter setup mode. 5. Set satellite B SETUP MODE ? SAT B : DTV119 Press PREV to show previous satellite name.
Page 32
Intellian Satellite TV Antenna Systems Setting GPS It is possible to set up and modify the GPS information, which enhances the antenna functionality. 1. Press YES to enter setup mode. 5. Press ENTER to move to next screen. SETUP MODE ? LONGITUDE ###.## E...
Page 33
Edit Satellite Information It is possible to modify the existing satellite information and input new satellite information into the ACU as well. It is not recommended for a novice satellite service user to use this mode. 1. Press YES to enter setup mode. 5.
Page 34
Intellian Satellite TV Antenna Systems 13. Input the network ID (NID) for vertical high 9. Input the network ID (NID) for vertical low band. VER LOW 12523 21096 VER HIGH NID 0x0003 band. INPUT INPUT 14. Input the tracking frequency (MHz) and symbol 10.
Page 35
Verification Method* 17. Select the Voltage Supply Method* to LNB. VOLTAGE : AUTO (AUTO is recommended) SIGNAL - use only signal level for tracking PREV SELECT NEXT DVB LOCK - use only DVB Lock signal for tracking DVB DECODE - verify satellite using DVB decoding method for tracking DSS DECODE - decode only DSS Lock signal for tracking Voltage Supply Method* 18.
Page 36
Intellian Satellite TV Antenna Systems Setting the Antenna Parameters It is not recommended for a novice satellite service user to use this mode. Consult Intellian for changing antenna parameters. 1. Press YES to enter setup mode. 5. Input the WRS LEVEL.
Page 37
PARAM* Scan Offset The scan offset is to offset the angle difference between the DiSEqC Level The DiSEqC level is to distinguish 0KHz tone and 22KHz tone. black marker on the sub-reflector and the optical sensor. Track Scale Offset RH-LH The track scale is to control the tracking speed while antenna The offset RH-LH is to offset the signal difference between is tracking the satellite.
Page 38
Intellian Satellite TV Antenna Systems Setting the LNB Local Frequency It is possible to select a local frequency from ACU. It is not recommend- ed for a novice satellite service user to use this mode. Case1. Single band LNB is used.
Page 39
Case 2. Universal LNB is used (Low band local frequency-9750 MHz/ High band local frequency 10600 MHz). 1. Press YES to enter setup mode. 5. Press YES to accept the data. SETUP MODE ? SAVE ? Press NO to cancel and return to main setup mode.
Page 40
Intellian Satellite TV Antenna Systems Setting the DiSEqC Method DiSEqC selection can be made from ACU. It is not recommended for a novice satellite service user to use this mode. 5. Press YES to accept the selection. 1. Press YES to enter setup mode.
Page 41
Display Versions This sequence enables you to see what version of antenna and ACU software are installed on your system. 1. Press YES to enter Display Version. 5. Antenna software version and S/N are shown. DISPLAY VERSION? ANT S/W VER : 4.00 Press EXIT to return to main setup mode.
Page 42
Intellian Satellite TV Antenna Systems Display Power 1. Press YES to enter setup mode. 5. Antenna voltage is shown. SETUP MODE ? ANT POWER : 25.9 V Press center soft key to view IRD Voltage and PREV NEXT frequency. Press EXIT to return to main setup mode.
Page 43
Setting Remote Control 5. SELECT/ENTER - Registers a key on remote 1. Press YES to enter setup mode. FUNC : SLEEP MODE SETUP MODE ? control. NEXT SELECT EXIT 6. Point remote control to ACU. 2. Press NEXT eight times to enter remote control PRESS A REMOTE KEY SET SAT PAIR ? Press any key on remote control for selected...
Page 44
Intellian Satellite TV Antenna Systems 9. REMOTE KEY REGISTED will be displayed if key REMOTE KEY REGISTED has been properly registered. 10. Press NEXT to shows next function. FUNC : CHANGE SAT Press EXIT to return to main setup mode.
Page 45
Setting Antenna Go Position The antenna can be controlled manually by using the ACU. 1. Press YES to enter setup mode. 5. Input position value for elevation (EL) axis. SETUP MODE ? GO TO EL : ##.# + increases the value. - decreases the value. INPUT Change the underscored digit using the +/- buttons.
Page 46
Intellian Satellite TV Antenna Systems Setting Antenna Move Step The antenna can be moved by 1° step manually by using ACU. 1. Press YES to enter setup mode. 5. Move the antenna in the EL axis. SETUP MODE ? STEP EL : ##.# UP - Move the antenna up.
Page 47
Executing Antenna Diagnosis The antenna status can be checked by reviewing the results of the diagnostic self-test of the antenna. Refer to the following codes to understand the test results. 1. Press YES to enter setup mode. 5. CODE* 101 has passed. SETUP MODE ? CODE 101 PASSED.
Page 48
Intellian Satellite TV Antenna Systems CODE* CODE 101 CODE 107 Data communication between antenna and antenna control unit is Skew System is tested. tested. If failed, check the RF cable. if failed, check the control board, skew motor, and skew sensor.
Page 49
Setting Region 1. Press YES to enter setup mode. 5. Select the Region*. SETUP MODE ? REGION : LOS_ANGELES PREV - Shows previous region. PREV SELECT NEXT SELECT - Set the displayed region. NEXT - Shows next region. 2. Press NEXT twelve times to enter load region 6.
Introduction GUI Software of Intellian i3/i3L/i4/i4P has been created for the user to easily set up the antenna by using the user’s personal computer. Using the GUI program enables the user to easily monitor and modify the information of antenna, satellite and GPS.
Program Initialing and Serial Port Setup Data communication between the ACU and antenna must be established as the first step in order to start setting your antenna. Figure 27 : Setup for Serial Communication Command Buttons • Baud Rate Setting – To display data communication speed. • Communication Status Display – To display data communication between ACU and PC. • Serial Port Setting – To select serial port to be used. • Connect / Disconnect – To establish connection between ACU and PC.
Intellian Satellite TV Antenna Systems Main Menu Antenna Status Monitoring • Search – Antenna is searching for the selected satellite. • Tracking – Antenna is tracking the selected satellite. • Initialize – Antenna or the ACU is initializing. • Unwrap – Antenna is unwinding/winding the cable in the antenna. • Setup – Antenna is in setup mode. • Comm. – Antenna is communicating with the ACU. Command Buttons • Restart – To exit setup mode and restart antenna again. • Setup – To enter the setup mode. • Get Antenna Information – To indicate the information on display after receiving input from the antenna. • Factory Setting – To initialize all antenna information to default as it was in the factory status. • Load Default – To select the regional library on PC program. Figure 28 : Main Menu • Update Default – To update the antenna using the selected regional library on PC program.
Page 53
Set Region 1. Load default: Click “Load Default” button to select satellite library (*.rif file) according to your current region. Figure 29 : Load Regional Library 2. Update default: Click “Update Default” button to open update default dialogue. Click “YES” button to update the system. Figure 30 : Confirm the Update 3.
“City GPS”. Pushing “Add City” button stores the GPS information. By selecting the stored region in the list box, the GPS information of each region is displayed. The Intellian satellite TV antenna system utilizes GPS data to locate the satellite faster. Command Buttons • Load GPS Files – Reads various city information from the GPS files.
Page 55
Setting Satellite Information • Satellite Information The name, longitude and confirmation method of the satellite is displayed when a satellite is selected in the list box. Push “Edit Satellite Information” button to update the information on modifying the value. • DiSEqC When the operation method of DiSEqC is selected to “Change Band”, DiSEqC may be used for updating the local frequency and to “Change Satellite”, for updating the target satellite.
Page 56
Intellian Satellite TV Antenna Systems Command Buttons • Edit Satellite Information – To modify the satellite information. • Register for Sat A – To register a satellite to satellite A. • Register for Sat B – To register a satellite to satellite B. • Register for Sat C – To register a satellite to satellite C. (Tri- Sat Mode) • Not Use – To not use DiSEqC. • Change Band – To use DiSEqC to change band. • Change Satellite – To use DiSEqC to change the satellite. • Single Band – Antenna in use of single band LNB. • Universal Band – Antenna in use of universal LNB. • Set Local Frequency – To select local frequency of LNB.
Page 57
Set Tracking Information of Satellite [Primary] Command Buttons • Edit Satellite Information – To change frequency information of the antenna. • Satellite Information – Satellite information consists of frequency, symbol and NID (Network ID) of a transponder in tracking satellite. There are four groups of satellite information. ‘Vertical/RHCP’ is applied when IRD supplies 13V. ‘Horizontal/LHCP’ is applied when IRD supplies 18V. ‘LOW’ is applied when DiSEqC signal is not detected from IRD.
Page 58
Intellian Satellite TV Antenna Systems Set Tracking Information of Satellite [Secondary] Voltage DiSEqC Discription 0KHz 22KHz AUTO AUTO AUTO AUTO 13V & 18V and DiSEqC 0KHz & 22KHz tone to LNB AUTO AUTO • 13V & 18V and DiSEqC 0KHz tone to LNB...
Page 59
Figure 37 : Antenna Diagnosis Move Antenna and Execute Antenna Diagnosis • Angle of Antenna Two kinds of antenna movement is available. One is to move by the target position and the other is to move by certain amount of angle. The current position (angle) of the antenna is displayed as “Current”...
Page 60
Intellian Satellite TV Antenna Systems Set Antenna Parameters for Control It is not recommended for a novice satellite service user to use this mode. Consult Intellian for changing antenna parameters. Command Buttons • Set Control Parameter – To register parameters value. • Set Flags – To set flag setting for WRS method or offset difference. Figure 37 : Antenna Parameters...
Page 61
Parameter Setting - To set antenna parameter values. Scan Offset DiSEqC Level The scan offset is to offset the angle difference between the The DiSEqC level is to distinguish 0KHz tone and 22KHz tone. black marker on the sub-reflector and the optical sensor. Track Scale Offset RH-LH The track scale is to control the tracking speed while antenna...
5. Cover upper part of radome. Be careful not to touch the reflector Shipping Foam when assembling upper part of radome. 6. Pack Intellian i3/i3L/i4/i4P into the original package box. NOTE : Don’t rotate it quickly, or you may damage the antenna limit system. Figure 38 : Preparation for Transportation...
Warranty This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of THREE (3) YEARS on parts and ONE (1) YEAR on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product.
Intellian Satellite TV Antenna Systems Appendix : i3/i3L Technical Specification General Antenna system performance Approvals Frequency Ku-band (10.7 to 12.75 GHz) CE – conforms to EU Directive 89/336/EEC FCC – verified to CFR47:Part 15 Minimum EIRP 50dBW Dimensions Azimuth range 680°...
Appendix : i4/i4P Technical Specification General Antenna system performance Approvals Frequency Ku-band (10.7 to 12.75 GHz) CE – conforms to EU Directive 89/336/EEC FCC – verified to CFR47:Part 15 Minimum EIRP 49dBW Dimensions Azimuth range 680° Satellite antenna unit 50cm (19.7”) x 54cm(21.2”) Elevation range 0°...
Page 66
Intellian Satellite TV Antenna Systems APAC Americas EMEA Maritime Technical Center MTC@intelliantech.com supportAPAC@intelliantech.com supportEMEA@intelliantech.com supportAMERICAS@intelliantech.com Headquarters Irvine Office Rotterdam Office Busan Office Intellian Technologies, Inc. Intellian Technologies USA, Inc. Intellian B.V. Intellian Technologies, Inc. 348-5 Chungho-Ri, Jinwi-Myeon 9004 Research Drive...
