Connecting the System Cables

After installation and fixation of the antenna, connect the ACU to the antenna.
Refer to the drawing below to connect cables.
Single IRD Connection
• Connect the RF Cable (15m) from the RF 1 connector on the antenna
to the ANT. RF1 connector on the rear of ACU.
• Connect the ACU-IRD Cable (3m) from the RECEIVER connector on the
rear of the ACU to the RF on the IRD.
• Connect the power cable (10m) from the DC power connector on the
rear of ACU to a power source at 12V /24V DC.
• Press the POWER ON switch in front of the ACU to start operating the
antenna system automatically.
18
RF1 RF2
RF Cable
Antenna
ACU
NMEA GPS
DC Power Cable

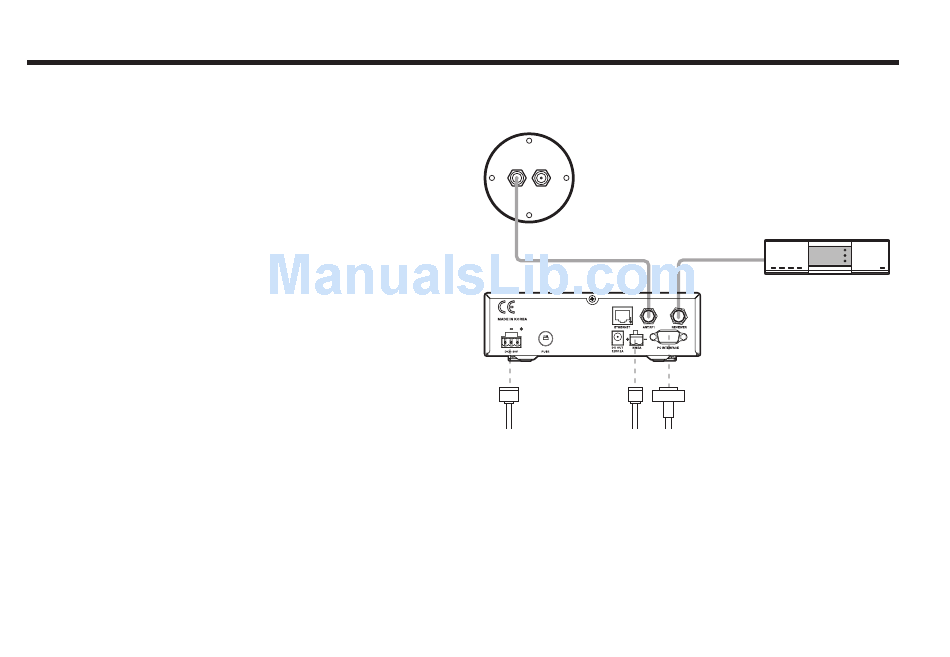

Figure 15 : Single IRD Configuration
ACU IRD Cable
Receiver
IRD (Not Supplied)
PC Cable (Not supplied)
