Multiple-IRDs Connection
In order to connect multi-IRD to the antenna, you will need to purchase
a suitable multiswitch. The multiswitch has to be installed between the
antenna unit and the IRDs as shown on the right.
Note: The system can receive either "High Band" or "Low Band"
channels by using a multi-switch to connect more than two receivers.
20
RF1 RF2
RF Cable ACU IRD Cable
ACU Antenna Receiver
ANT RF1 RECEIVER
FG - +
+ -
DC 9~30V FUSE NMEA PC INTERFACE
NMEA GPS PC Cable
DC Power Cable
IRD 1

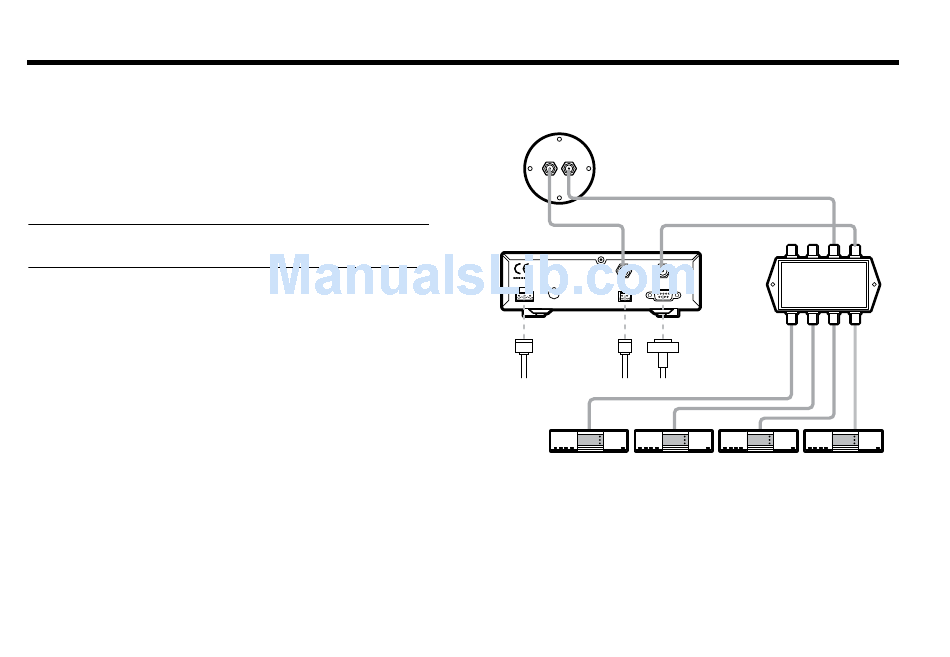

Figure 17 : Multi-IRDs Configuration
Multi switch
(Not Supplied)
IRD 2 IRD 3 IRD 4
* IRD 1~4 : Not supplied
