5. The green and red indicators light for about 3 seconds, blink for 3 seconds, then
go out.
6. Place the terminal in the cradle. Verify that the terminal is OFF.
7. Go to Loading the Program

Connecting to Host via 3115 CCA

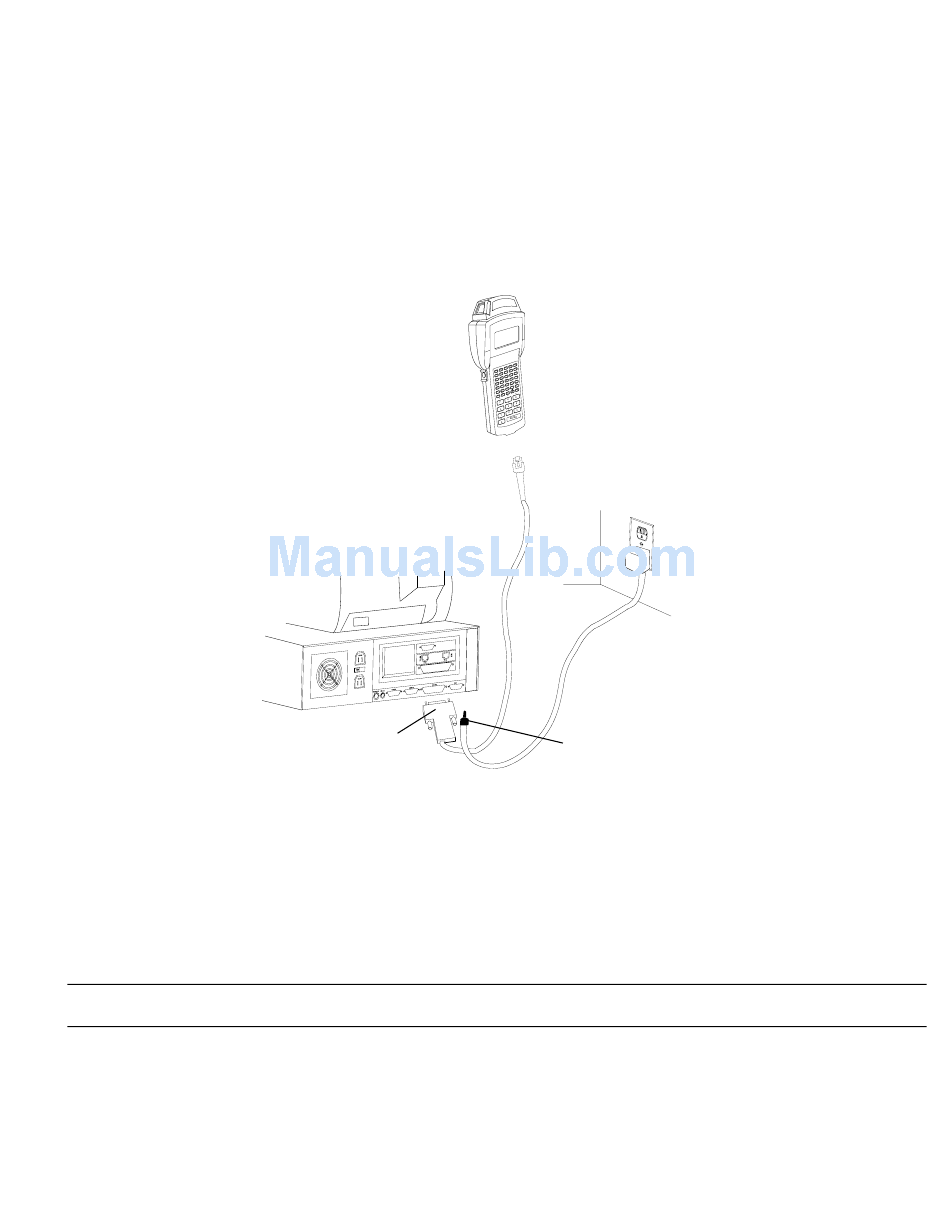

Figure 2-2. 3115 CCA Setup for 3100 Initialization
1. Verify the terminal is off.
2. Plug the CCA's 10-pin RJ-41 connector in the terminal base.
3. Plug the DB25 connector into the host's communications port.
4. Go to Loading the Program
Note: It is not necessary to connect to a power supply for communications.
on page 2-6.
3115 CCA
DB-25 Connector
on page 2-6.
Setting Up the Terminal
PDT 3100
RJ-41 Connector
Power Input Jack
2-5
